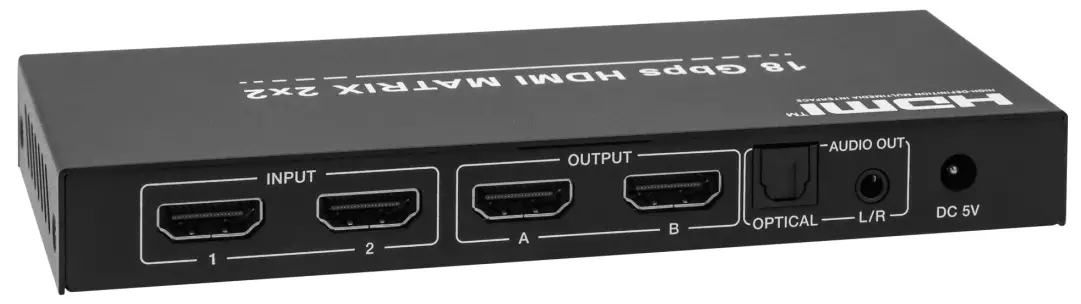

COVID MH22-220 18Gbps 2×2 HDMI Switcher with Audio Extractor
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment
Introduction
This 18Gbps HDMI switcher can transmit two HDMI signals from two different sources to two different HDMI displays. Both input and output HDMI support video resolutions up to 4K60Hz. Digital and analog audio can also be extracted from HDMI output A.
Features
- 4K2K@50/60Hz (4:4:4) 18Gbps
- HDCP2.2 / HDCP1.x, DVI 1.0 compliant
- Digital and analog audio extract output from output A
- EDID can be selected with AUTO, COPY and STD mode via the selector on the front panel.
- Analog audio PCM 2.0
- Optical audio pass-through: LPCM 2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6/DTS HDMA 5.1, DTS HD-HRA 5.1.
- HDR function
- Flexible control via panel buttons and IR remote
Package Contents
- 1× 2×2 HDMI Matrix Switcher
- 1× 5V/1A Power Adapter

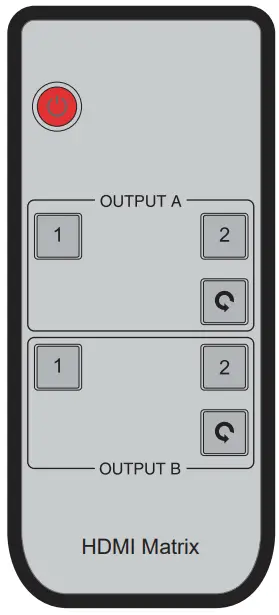

- 1× Matrix IR Remote
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K60Hz |
| ESD Protection | Human-body Model:±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR,HDR 10+,HLD,DOLBY VISION |
| Audio Formats | HDMI: PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD Optical: LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS, 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 L/R: PCM 2.0 |
| Technical | |
| Input Ports | 2 HDMI Type A, 1 IR Receiver Window |
| Output Ports | 2 HDMI Type A, 1 L/R 3.5mm Jack, 1 Optical OUT |
| Technical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 144mm(W)×59.5mm(D)×18mm(H) |
| Weight | 208g |
| Power Supply In | AC100~240V 50/60Hz |
| Power Supply Out | DC 5V/1A |
| Power Consumption | 2.7 watts |
| Operation Temp | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temp | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation and Controls

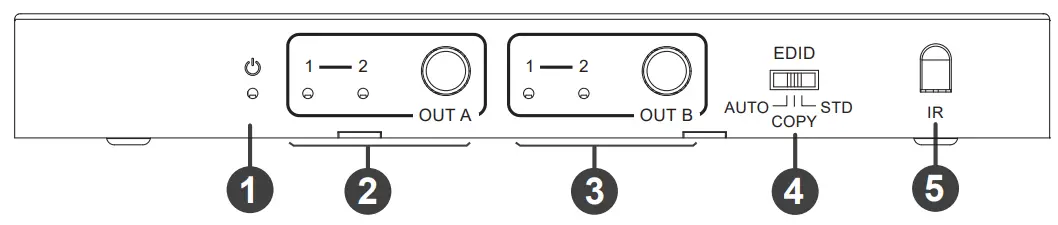

Front Side
- Power LED
- Output A
- Output B
- EDID Auto/Copy/Std
- IR receiver window

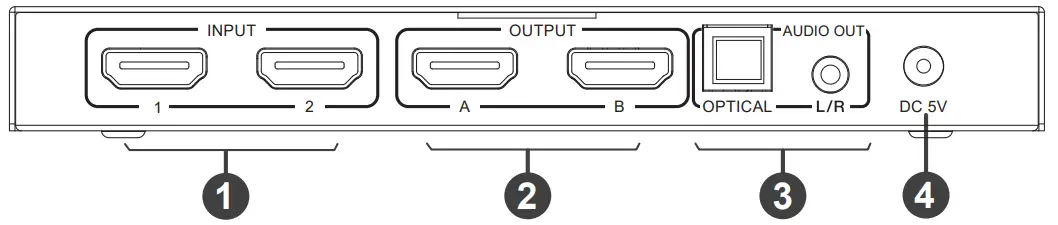

Back Side
- Input 1/2
- Output A/B
- Audio Out (Optical / L/R)
- DC 5v
- Output A (select input 1 or 2 source), (select circularly input 1 or input 2 source)
- Output B (select input 1 or 2 source), (select circularly input 1 or input 2 source)

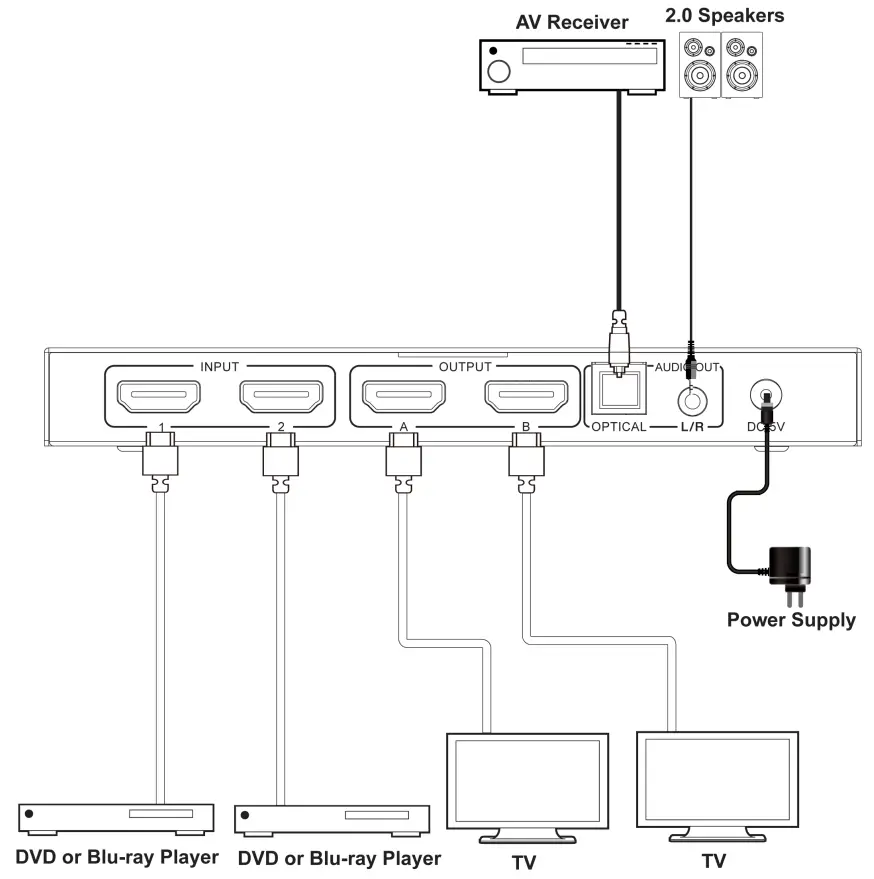

Application Example
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
