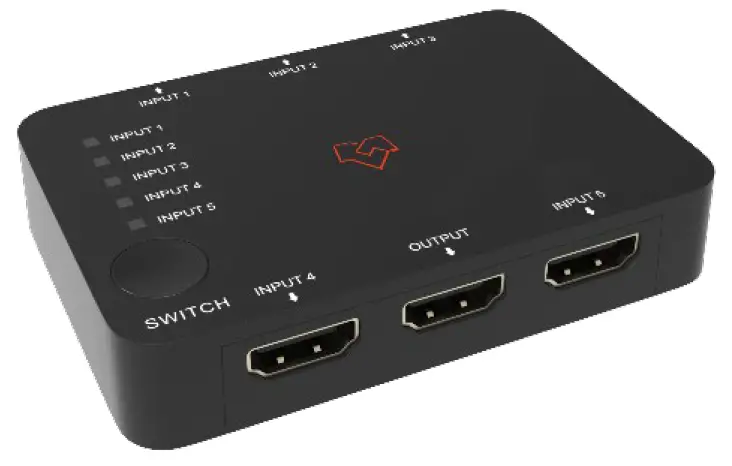

VigilLink VLSW-51H20 5×1 HDMI 2.0 Switch 18Gbps
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device is recommended.
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
The 18Gbps 5 by 1 HDMI Switcher can switch 5 HDMI sources to 1 HDMI display. Supported video resolution is up to 4K2K@50/ 60Hz YCbCr 4:4:4. The product supports HDR, HDR10, Dolby Vision, and HLG. It supports all 3D video formats. The product has low power consumption. The panel button and remote control can also control it.
Features
- HDCP 2.2/1.x and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- HDR, HDR10, Dolby Vision, and HLG are supported
- Support video resolution up to 4K2K@50/60Hz YCbCr 4:4:4
- Support 3D video format
- Low power consumption
- Support IR remote control and panel button control
- Compact design for easy and flexible installation
Package Contents
- 1× HDMI 5×1 Switcher
- 1× IR Receiver Cable
- 1× 5V USB Power Cable
- 1× Remote Control
- 1× User Manual
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4k2k@60Hz |
| Color Depth | 8-bit (4K60Hz) |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4 |
| HDMI Audio Formats | PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Ports | 5×HDMI Type A (19-pin female) 1×IR IN [3.5mm Stereo Mini-jack] |
| Output Ports | 1×HDMI Type A (19-pin female） |
| Mechanical | |
| Housing | Plastic Enclosure |
| Silkscreen Color | Black |
| Dimensions | 87mm (W) × 59.5mm (D) × 19mm (H) |
| Weight | 60g |
| Power Supply | Input: DC 5V/1A |
| Power Consumption | 1.5W |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

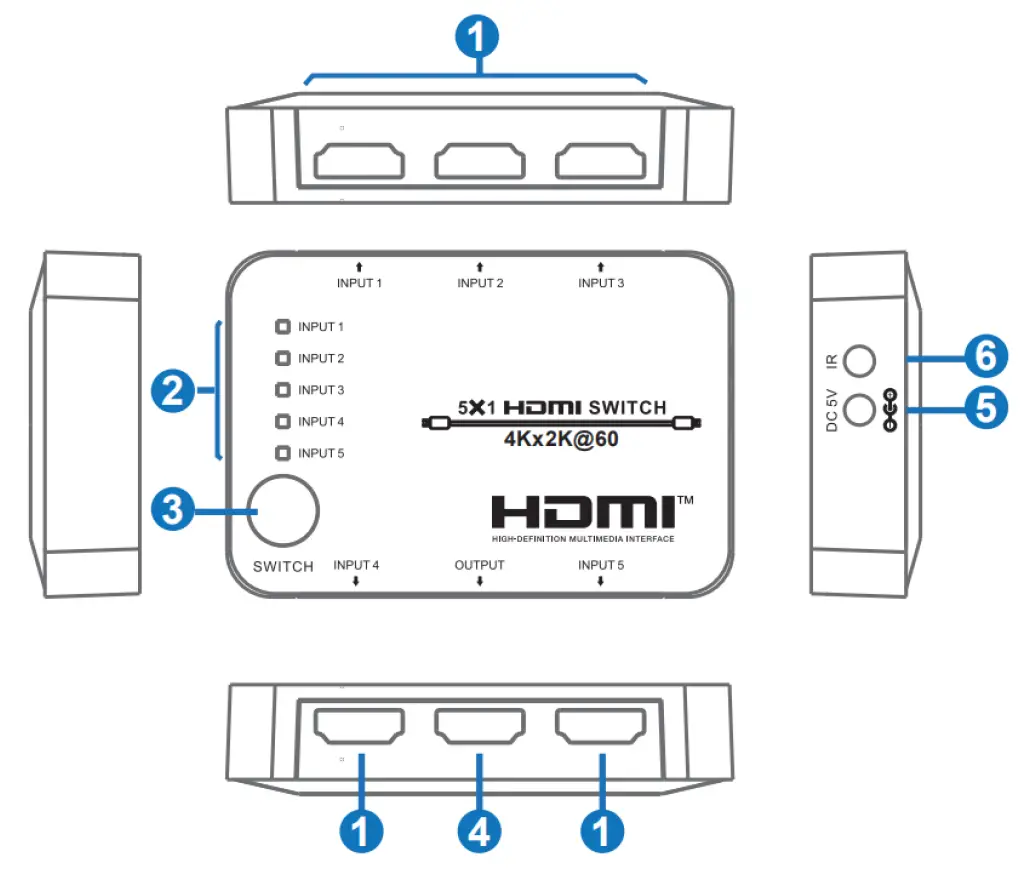

| No. | Name | Function Description |
| 1 | HDMI INPUT (1/2/3/4/5) | Connect to HDMI source devices such as DVD players or PS3 with an HDMI cable. |
| 2 | INPUT 1/2/3/4/5 LED | The corresponding LED will illuminate when the HDMI input port connects to an active source device. |
| 3 | SWITCH button | Press this button to switch the HDMI source signal for the HDMI OUTPUT. |
| 4 | HDMI OUTPUT | Connect to one HDMI display device, such as an HDTV or Monitor, with an HDMI cable. |
| 5 | DC 5V | DC 5V power input interface. |
| 6 | IR IN | Connect the IR Receiver cable to receive the remote control signal. |
Remote Control
IN1/IN2/IN3/IN4/IN5: Press IN1/IN2/IN3/IN4/ IN5 button to switch HDMI source signal to output display, and the corresponding LED will illuminate.
Press this button to select the input source to output display cyclically.

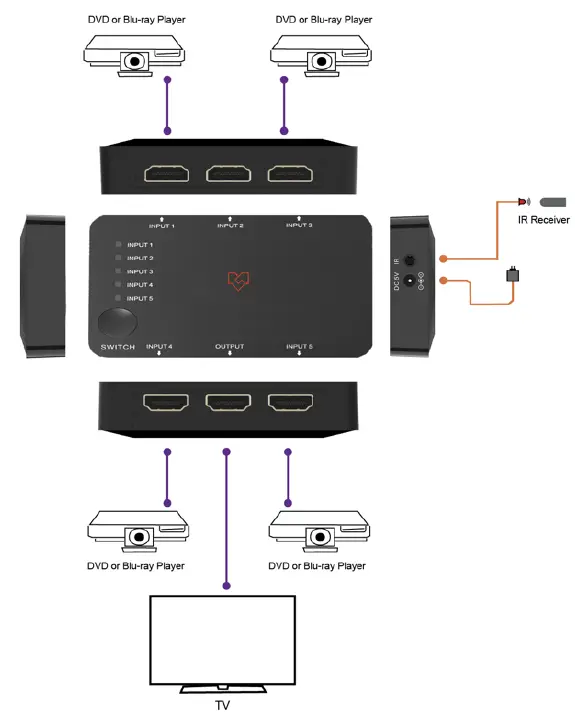

Application Example
