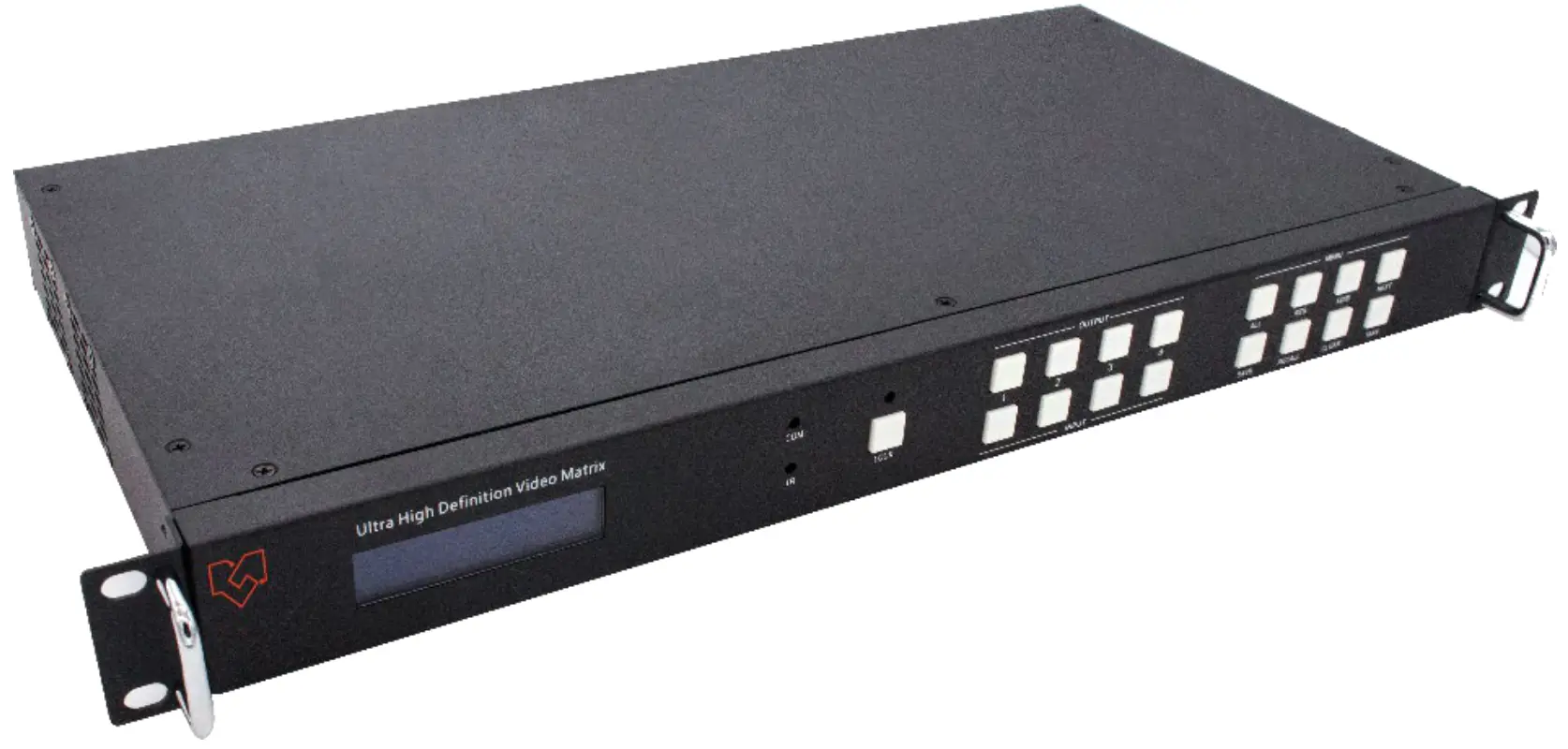

VLMX-44VW 4×4 HDMI 2.0 Matrix with Seamless switching and videowall 18Gbps
User Manual

VLMX-44VW 4×4 HDMI 2.0 Matrix with Seamless switching and videowall 18Gbps

Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device recommended
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.

Introduction

The 18Gbps 4×4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix routing follows video routing. Audio extract and insert are supported. The product supports CEC management and strong video wall processing.

Features

• HDMI 2.0 and HDCP 2.2 compliant
• Supports 18 Gbps video bandwidth
• Supports video resolution up to 4K60 4:4:4
• Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Supports seamless switching, video wall function
• Supports CEC management
• Supports audio matrix and IR matrix function
• Supports external L/R audio insert on HDMI stream
• Supports EDID management
• Supports front panel, RS232, TCP/IP (LAN 10M/100M) control

Package Contents

1. 1 x 4×4 seamless UHD Matrix
2. 1 x AC Power Cord
3. 1 x Matrix IR Remote
4. 4 x IR Receiver cable (1.5 meters)
5. 4 x IR Blaster cable (1.5 meters)
6. 1 x 3-pin Phoenix Connector
7. 1× Cat6 cable
8. 1× USB to RS232 Cable
9. 1× User Manual

Specifications

Operation Controls and Functions

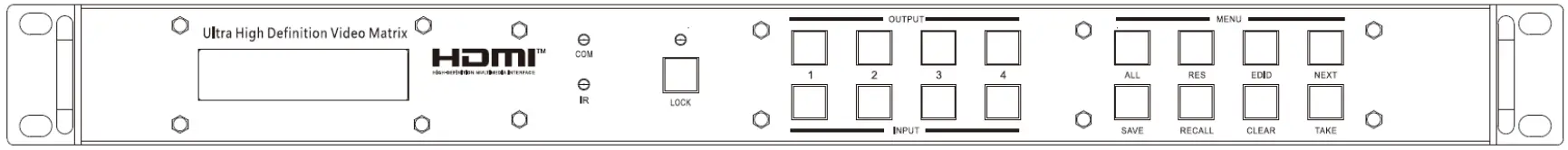

Front Panel

• Press ALL + INPUT m + TAKE by sequence to switch input m to all the outputs.
• Press SAVE + OUTPUT n to save the current routing/video wall scene as scene n. Up to 8 scenes can be saved.
• Press buttons RECALL + OUTPUT n to recall routing scene n as the current routing.
• Press buttons RES + OUTPUT n + NEXT + TAKE to change the output resolution of OUTPUT n.
  Resolution options:

  Number	Output Resolution Setting	Number	Output Resolution Setting
  1	3840x2160p 60Hz	9	1440×1050 60Hz
  2	3840x2160p 50Hz	10	1366×768 60Hz
  3	3840x2160p 30Hz	11	1360×768 60Hz
  4	3840x2160p 25Hz	12	1280×1024 60Hz
  5	1920×1200 60Hz	13	1280×768 60Hz
  6	1920x1080p 60Hz	14	1280x720p 60Hz
  7	1920x1080p 50Hz	15	1280x720p 50Hz
  8	1600×1200 60Hz	16	1024×768 60Hz

• Press buttons EDID + INPUT m + NEXT + TAKE, change the EDID mode of port INPUT m EDID options:


  Number	Output Resolution Setting	Number	Output Resolution Setting
  1	Manual	5	1920×1080 60Hz
  2	3840×2160 60Hz	6	1280×1024 60Hz
  3	3840×2160 30Hz	7	1280x720p 60H
  4	1920×1200 60z	8	1024×768 60Hz

• Front Lock button
  The front panel control buttons can be locked to prevent accidental use or operation by unauthorized persons. Press and hold the LOCK button for two seconds to lock or unlock the front panel. When the panel is locked, all buttons (except the LOCK button) will not function until the front panel is unlocked. The LOCKED/UNLOCKED state is shown on the LCD panel and lit by the LED above the LOCK button when the front panel is fully LOCKED. When the unit is UNLOCKED, press and hold the LOCK button for six seconds – The LCD panel will show the following (any exiting numbers indicate that those buttons are already locked):
  Output: ——–
  Input: ——–
  Pressing any of the numbered Output or Input buttons will toggle the lock status of that button.
  The button will become locked when the respective button number is shown on the LCD panel. When all selection is done, press the ENTER button to set the new LOCK/UNLOCK states of those buttons.
  Whenever a locked Output or Input button is activated, the LCD panel will show that the button is locked. In this mode, the LOCK LED is not lit.
  To unlock those buttons, repeat the above steps to remove the button numbers from the LCD panel before pressing ENTER to accept the changes.

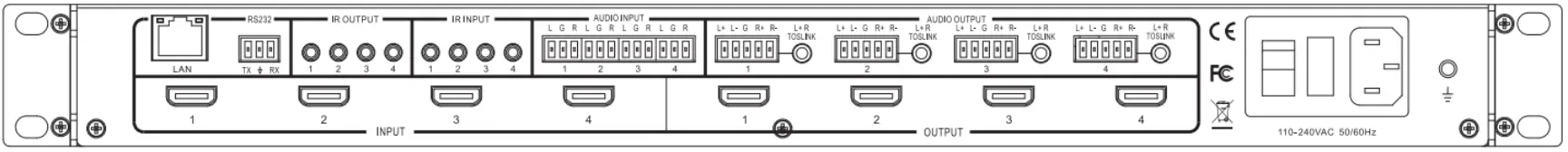

Rear Panel

• LAN(10M/100M) and RS232 are for PC control.
• Analog Audio IN/OUT ports binds to corresponding HDMI ports.
  For example:
  If HDMI 1 audio source is selected with External LR, then analog AUDIO IN LR1 (with phoenix connector) will be selected to replace the embedded audio of the HDMI input 1 data stream. If HDMI 1 audio source is selected with AUTO by PC TOOL or command, then the original embedded audio of input HDMI 1 will be used as its audio data stream. If the input is a DVI signal, the system will get external analog audio input no matter how it is set up. Analog AUDIO OUT n will always output the same audio content with HDMI OUTPUT n.

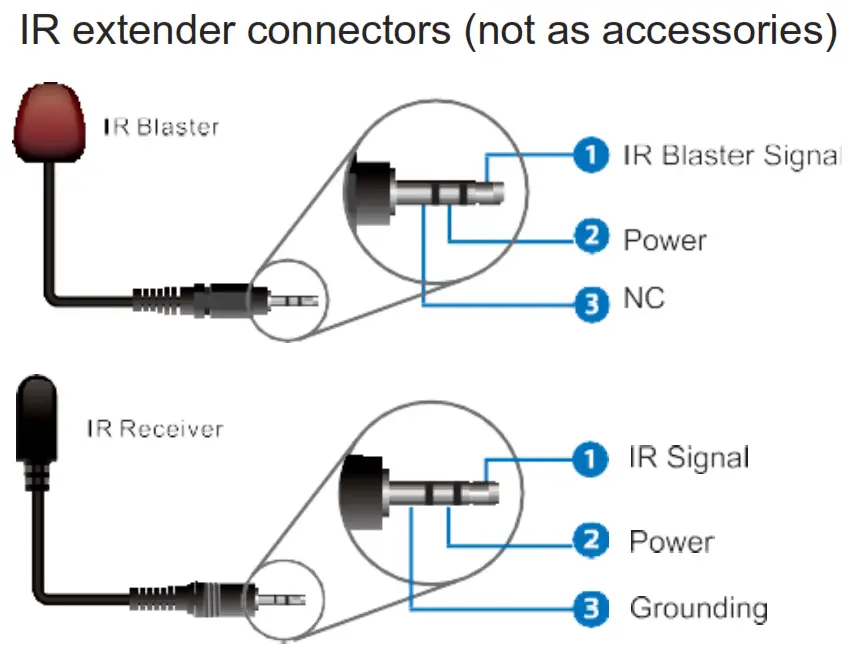

• IR IN and IR OUT
  IR IN/OUT routing follows the video matrix routing; no need to control the IR matrix separately.
• Audio Input
  4 3-pin Phoenix connectors to input external analog LR audio; the user can select this audio to replace the corresponding embedded HDMI audio.
• Audio Output
  4 5-pin Phoenix connectors to output balanced LR audio and 4 mini Toslink jackets to output analog LR audio and digital Spdif audio.
  The 4 Audio output (LR and Toslink) channels can be independent of video and switched by PC Tool or commands.

RS232/LAN Control Connection

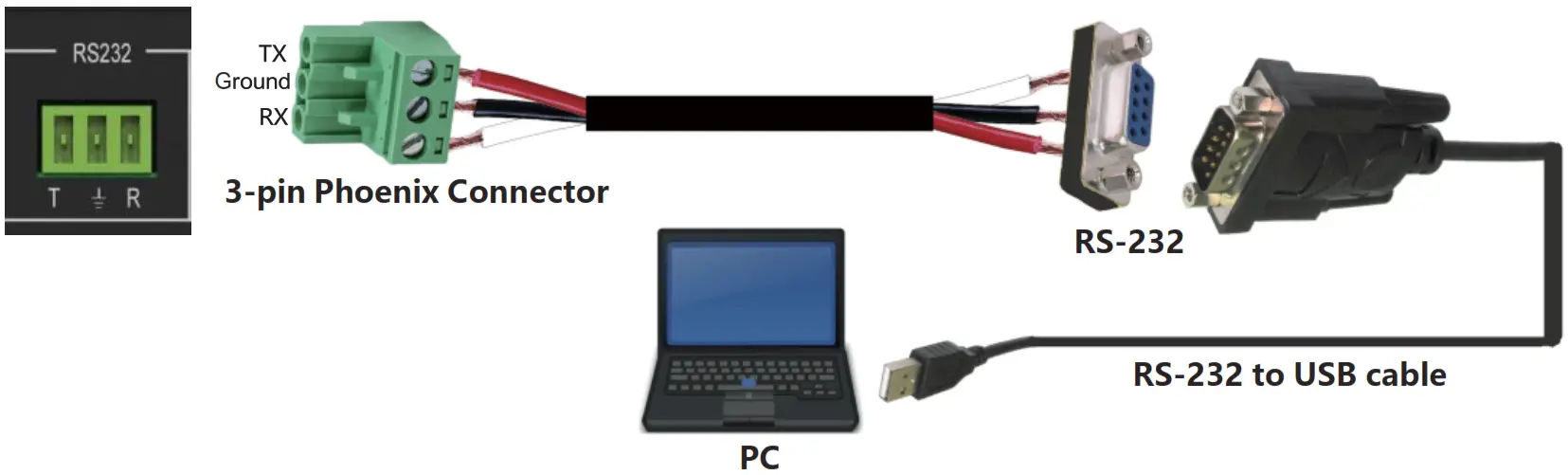

6.1 RS232 Control Connection
The product supports RS232 control. Connect the RS232 port of the product to a PC via a serial cable, as shown in the following figure:

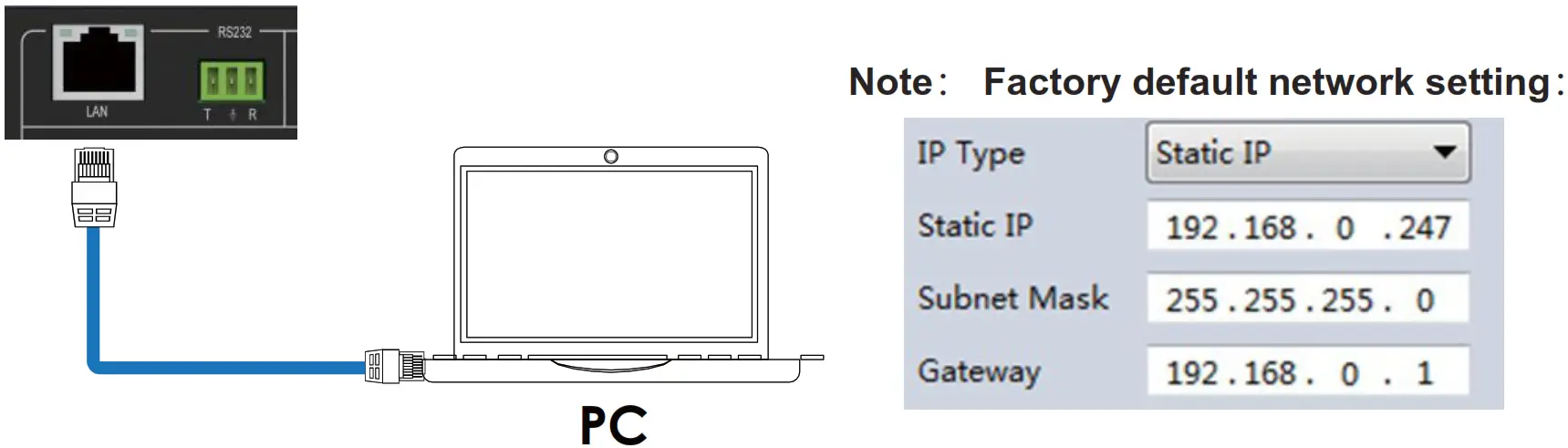

6.2 Network Control Connection
The product also supports Network control. Connect the LAN port of the product to a PC via a UTP cable, as shown in the following figure:

PC Tool User Guide

7.1 Account’s Authentication
Before running the PC tool, the password is needed for authentication.
The default password of Administrator (access to all features: 111111
The default password of User (access to all features, except OSD function): 000000
7.2 Connect with PC Tool

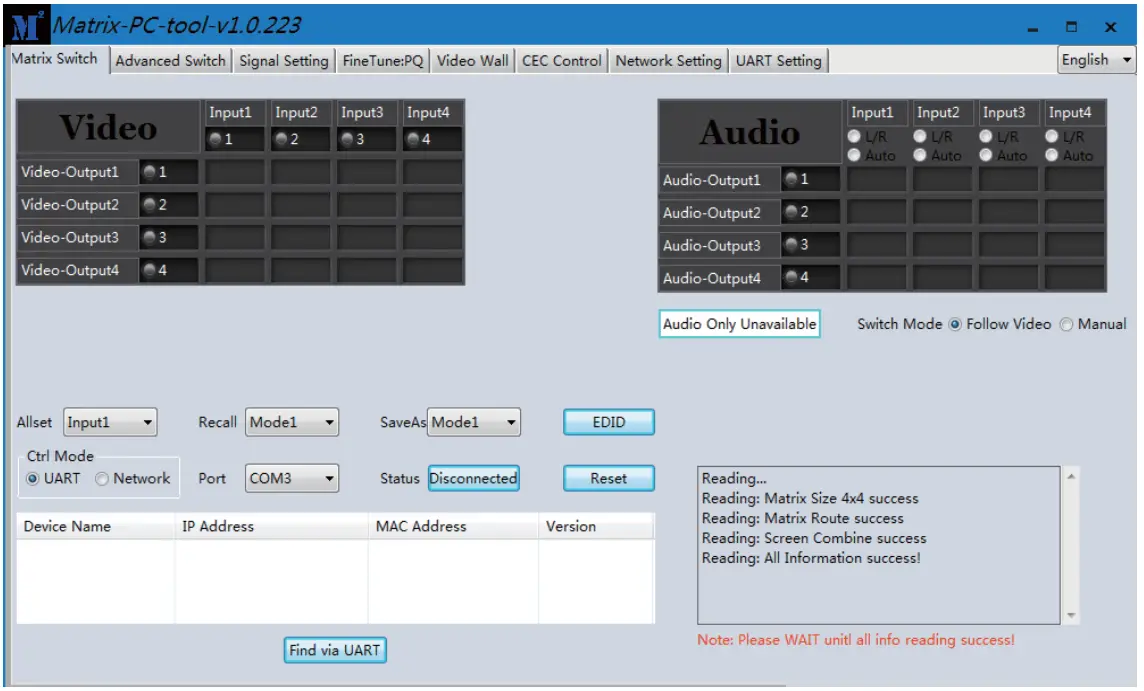

1. The default PC tool’s UI style is as below.
2. You can select UART (with RS-232 cable) or Network to connect; the baud rate is 9600 bps.
3. Default IP address: 192.168.0.247.

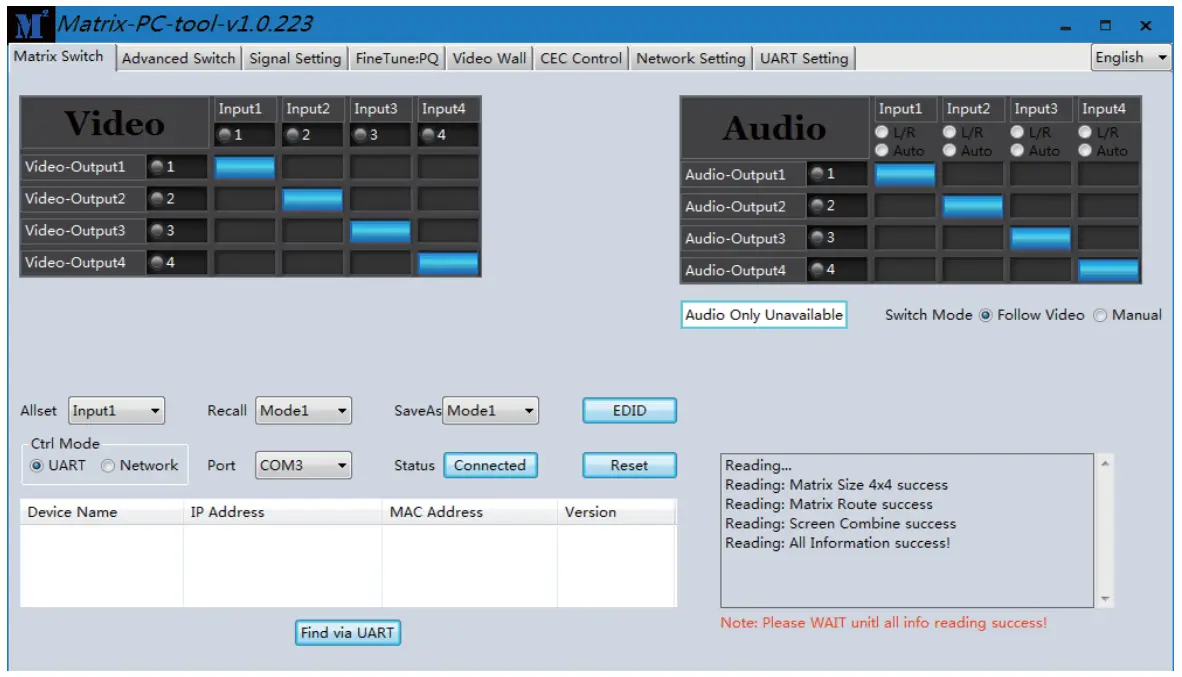

7.3 Matrix Switch Page

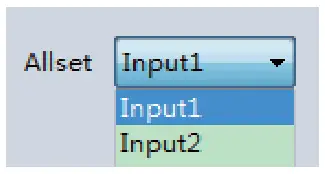

1. There is a shortcut button to switch one input port to all output ports that are All set; for example, switch input 1 to all outputs, the user can select
2. Recall mode: Recall an input/output routing scene which already been saved before. The device supports a maximum of 8 scenes.
3. Save mode: Save the current input/output routing in one index. Maximum 8 modes supported.
   Note: Save/Recall button here works the same with the front panel save/recall control and also the same with the Save/Load function on the video wall page.
4. System reset: The PC tool supports resetting the system to recover to factory configuration.
5. Audio Switch mode: Follow Video mode or Manual mode
   When selecting Manual mode, the user can switch L/R(Phoenix interface) and Toslink output separately.
   Users also can select to use HDMI embedded or corresponding external LR audio.
6. EDID Control: Click the “EDID” button on the Matrix Switch page, and there will be a popup EDID control window. Users can do the following operations:
   a) Read EDID of one output port
   b) Open one existing EDID file
   c) Write EDID to one input port

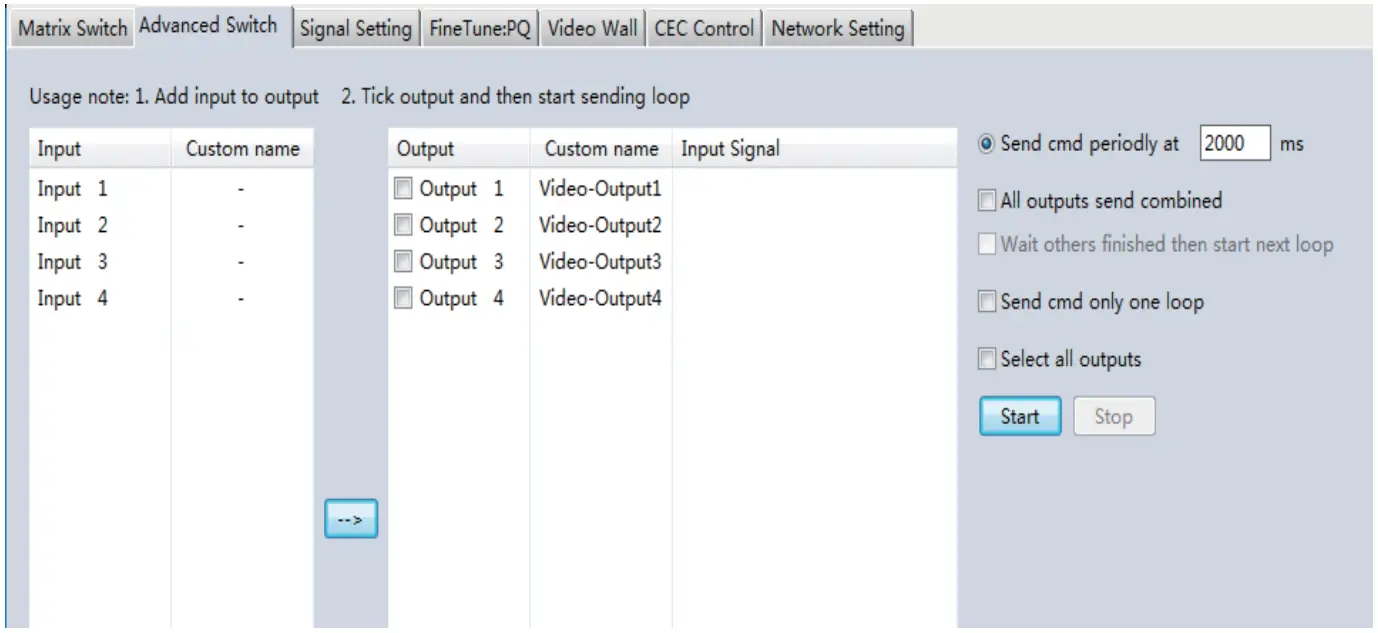

7.4 Advanced Switch Page

The Advanced Switch page will repeatedly send a batch of matrix selection commands at the interval specified in the value box after Send cmd periodly at the text.

1. Select one or more outputs.
2. Select one input.
3. Use the arrow button “–>” to assign that input to the selected output or outputs.
4. After completing all required selections, click the “Start” button to run the commands.

The available options are:
All outputs sent combined – Combine all outputs with the same input number as a single command.
Wait for others to finish the start of the next loop – Wait for all commands in the previous pass to complete before sending the next batch of commands.
Send cmd only one loop – Only send a single batch of commands.
Select all outputs – Select all outputs when the option is checked.
Start – Begin the command cycles.
Stop – Stop the command cycles.

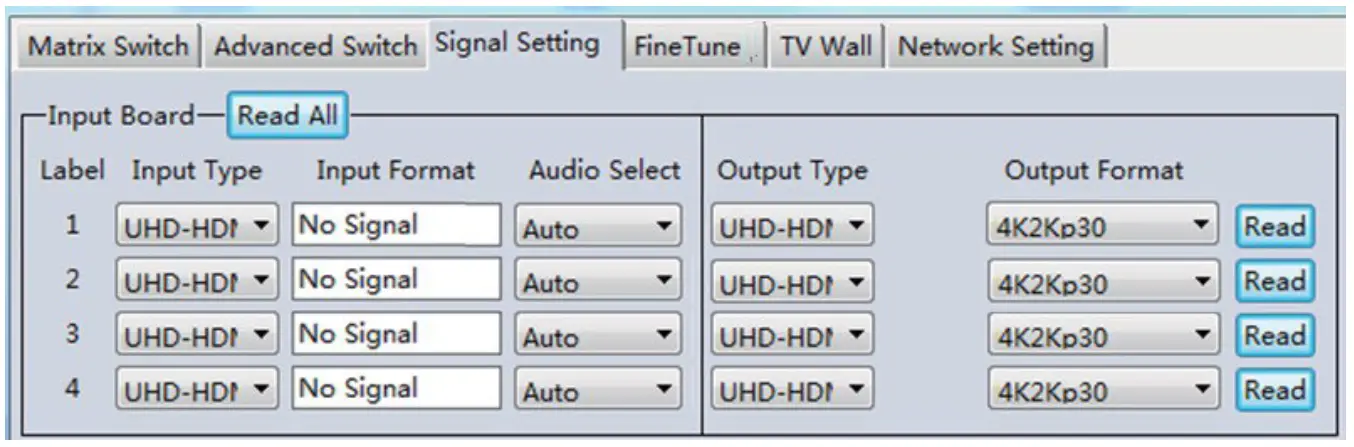

7.5 Signal Setting Page

1. Audio Select
   There are two options for input Audio Select.
   a) Auto: If the input source is an HDMI signal, the system will get the embedded audio; if the input source is a DVI signal, the system will get the corresponding analog audio.
   b) External: The system will get the corresponding analog audio.
2. Output Type
   Four input-output types options are UHD-HDMI (HDCP OFF), UHD-DVI, UHDHDCP-1.4, and UHD-HDCP-2.2.
3. Output Resolution: The same as the description on the Front Panel page.

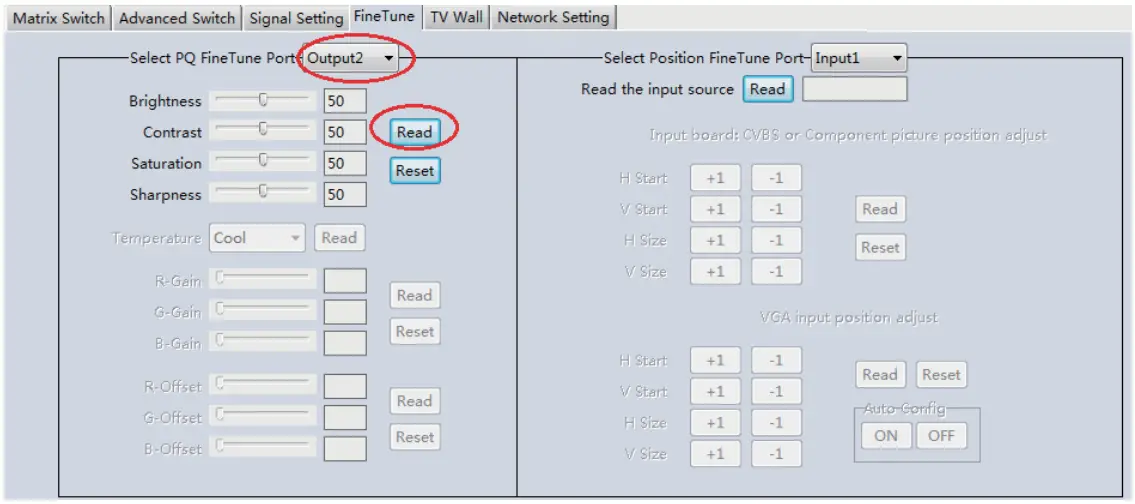

7.6 FineTune Page
You can read and set each output’s Brightness/Contrast/Saturation/Sharpness.

Note: Do not change the default settings without special conditions;
If there is a problem after changing, click “Reset” to return to the factory settings.

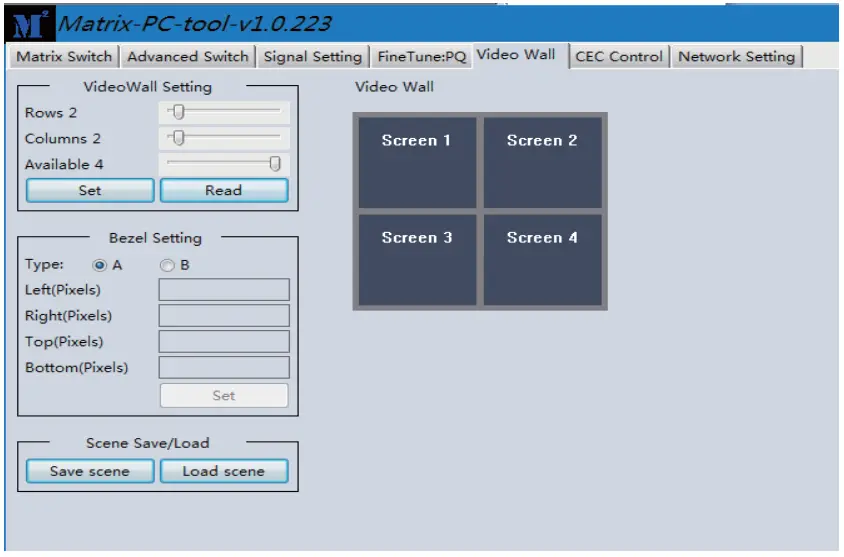

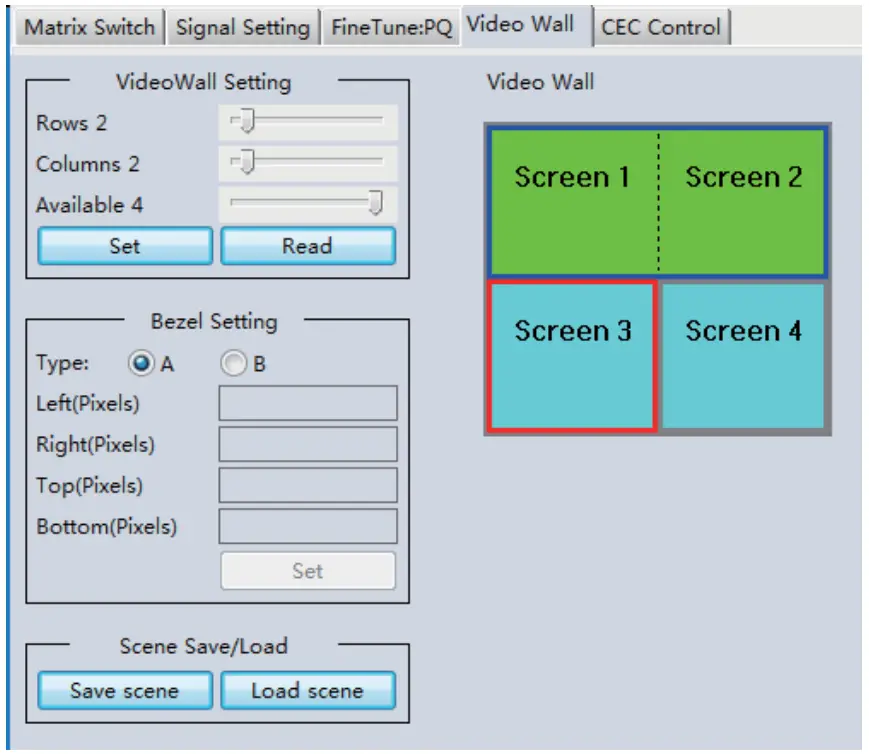

7.7 Video Wall Page
This page is used to configure a group of outputs to function as a video wall.

1. Use the Video Wall Setting controls to change how the displays are arranged on the VideoWall page:
   a. Adjust the Rows and Columns sliders to change the displayed screen arrangement to permit proper Drag-and-Select of the desired screens for the video wall.
   b. Change the Available slider to set how many outputs will be used for the Video Wall.
   c. Click the “Set” button to change the Screen configuration.
2. Use the left mouse button to drag-select the screens set for video wall mode. The selected screens will be shown as bright blue.
3. Use the right mouse button to open a menu.
4. Select “Screen Stitching” from the menu to program the video wall mode. The selected screens will now be shown as bright green.
5. To change the displayed image: right-click to open the pop-up menu and select the desiredinput from the “Input Select” menu option.
6. Repeating steps 2 ~ 5 above with different outputs allows for creating a second video wall.However, changing the Rows, Columns, and Available sliders will automatically delete the current video wall set up when the “Set” button is clicked. The following example shows a more unusual video wall set-up of two video walls with two 2×1 configurations:

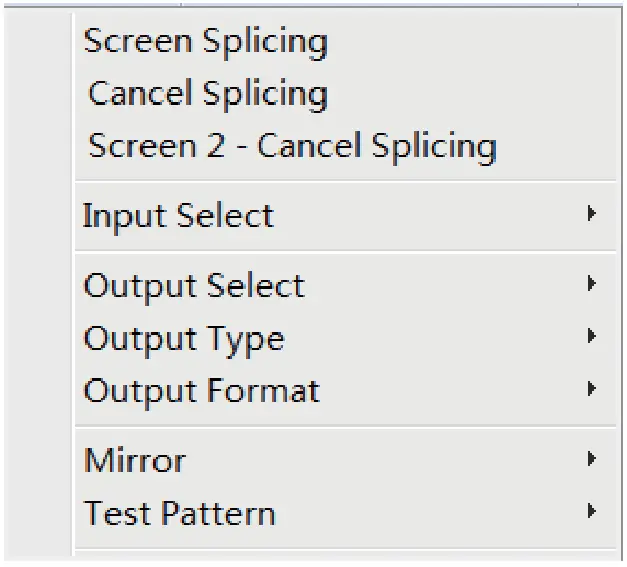

7.7.1 Video Wall Context Menu
Right-clicking on any of the screen icons will display the following context menu:

Screen Stitching	This option connects the selected screens into a video wall configuration.
Cancel Stitching	Return the Video Wall configuration to normal outputs.
Screen x – Cancel Stitching	Remove the single screen x from the video wall to allow the displaying of another full-frame image within the video wall configuration, as shown in this example:

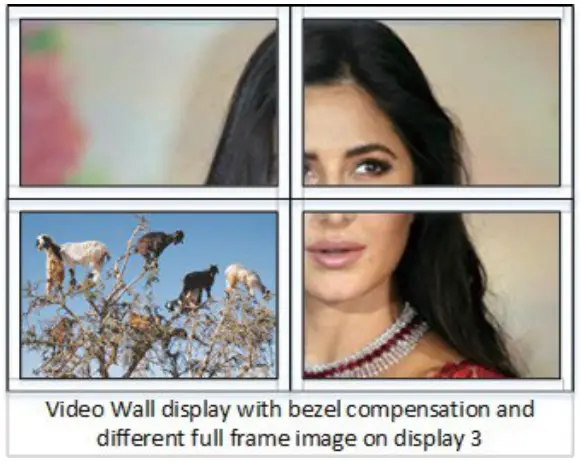

Input Select	Use the sub-menu to select the input to display on the video wall or the second input image shown in the above example.
Output Select	This option is only available for any screen not assigned to avideo wall mode.
Output Type	This option is only available for any screen not assigned to avideo wall mode.
Output Format	This option is only available for any screen not assigned to a videowall mode. It allows the setting of the output resolution for the selected screen output.
Mirror	Two sub-options: OFF ( default ), ON ( H+V Mirror) When selecting “ON,” you can make a 180º rotation with the selected screen.
Test Pattern	The output will display the Color Bar pattern when Test Pattern is enabled.

Bezel Setting
The Bezel Setting section allows the entry of values to compensate for the display bezel thickness. These values may be entered as pixels (Type A) or millimeters (Type B).
Type A Bezel Settings
The image size will be adjusted to allow for the number of pixels entered in each entry box. Click the “Set” button to view the effect of the new values.
Type B Bezel Settings
The image size will be adjusted to allow for the Inner and Outer display dimensions in each entry box. Click the “Set” button to view the effect of the new values. Bezel Compensation The following images demonstrate the impact of not having bezel compensation and what correctly configured bezel compensation settings should produce:

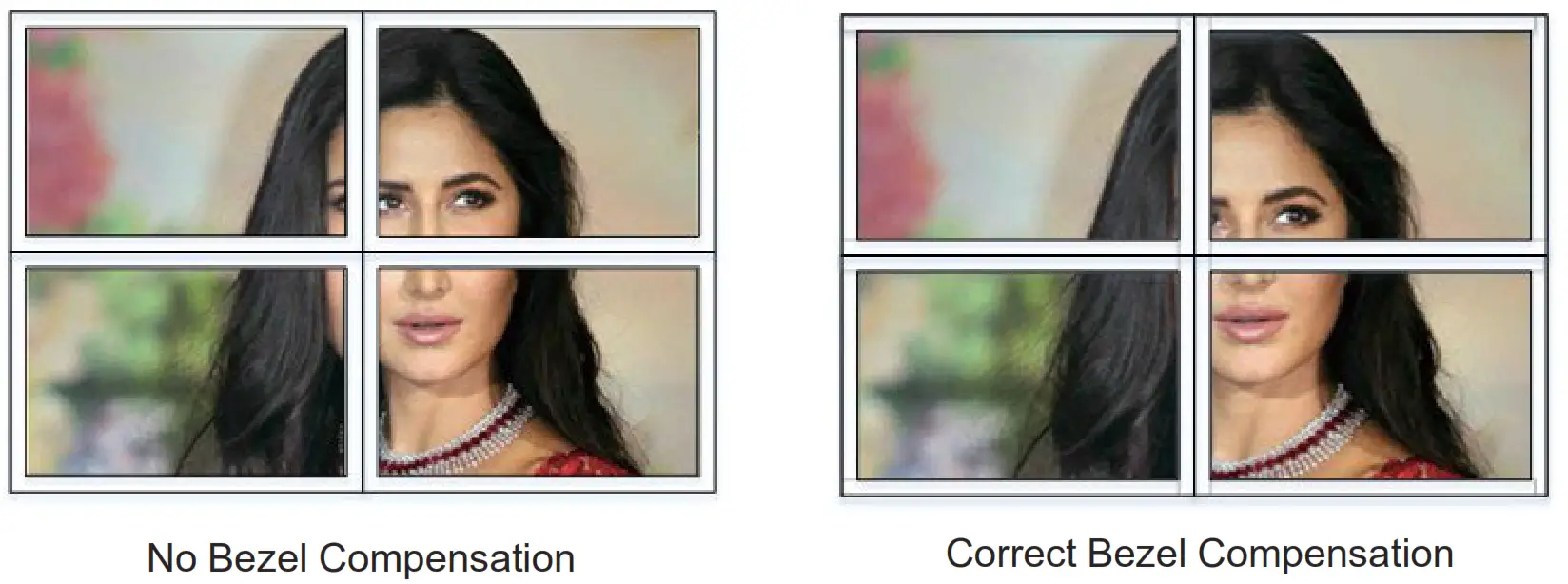

7.7.2 Layout Save/Load
The Save Scene/Layout and Load Scene/Layout buttons allow a video wall configuration to be saved or recalled at any time. Up to 10 configurations, each with their name, can be saved or recalled. Each Scene can optionally be given a name to identify that video wall scene setup when saving.

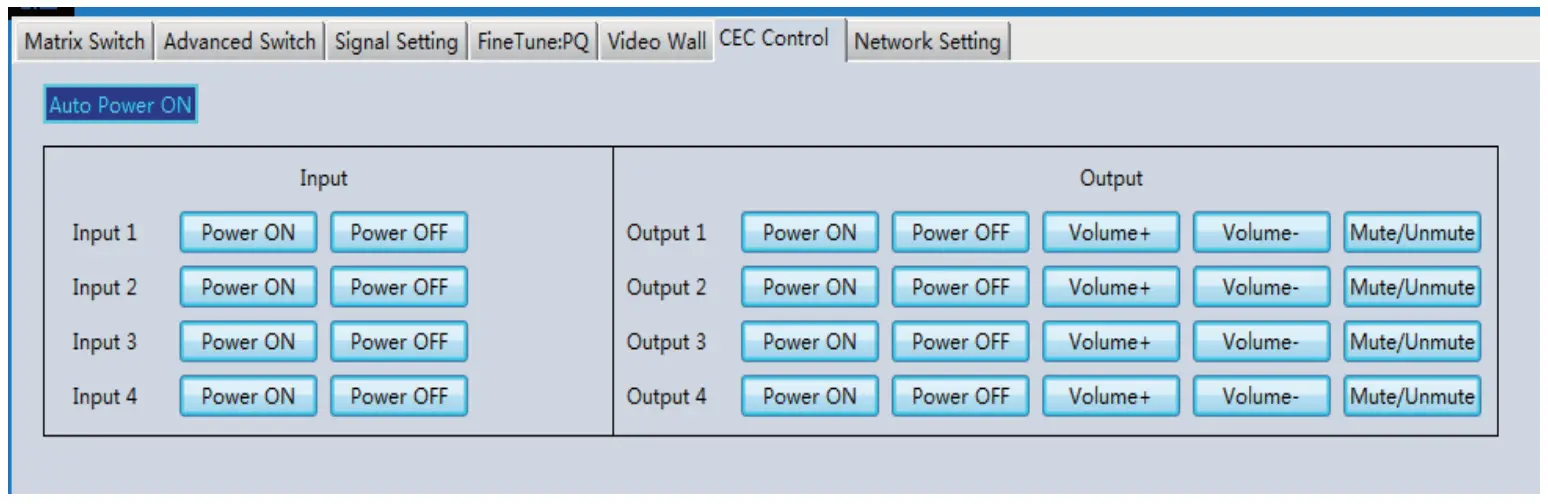

7.8 CEC Control Page

If Auto Power On is enabled, whenever the product is turned on, it will turn on all the sources and displayers connected to it.
The product supports CEC functions, including Power on/off, Volume+/-, and Mute/Un-mute.

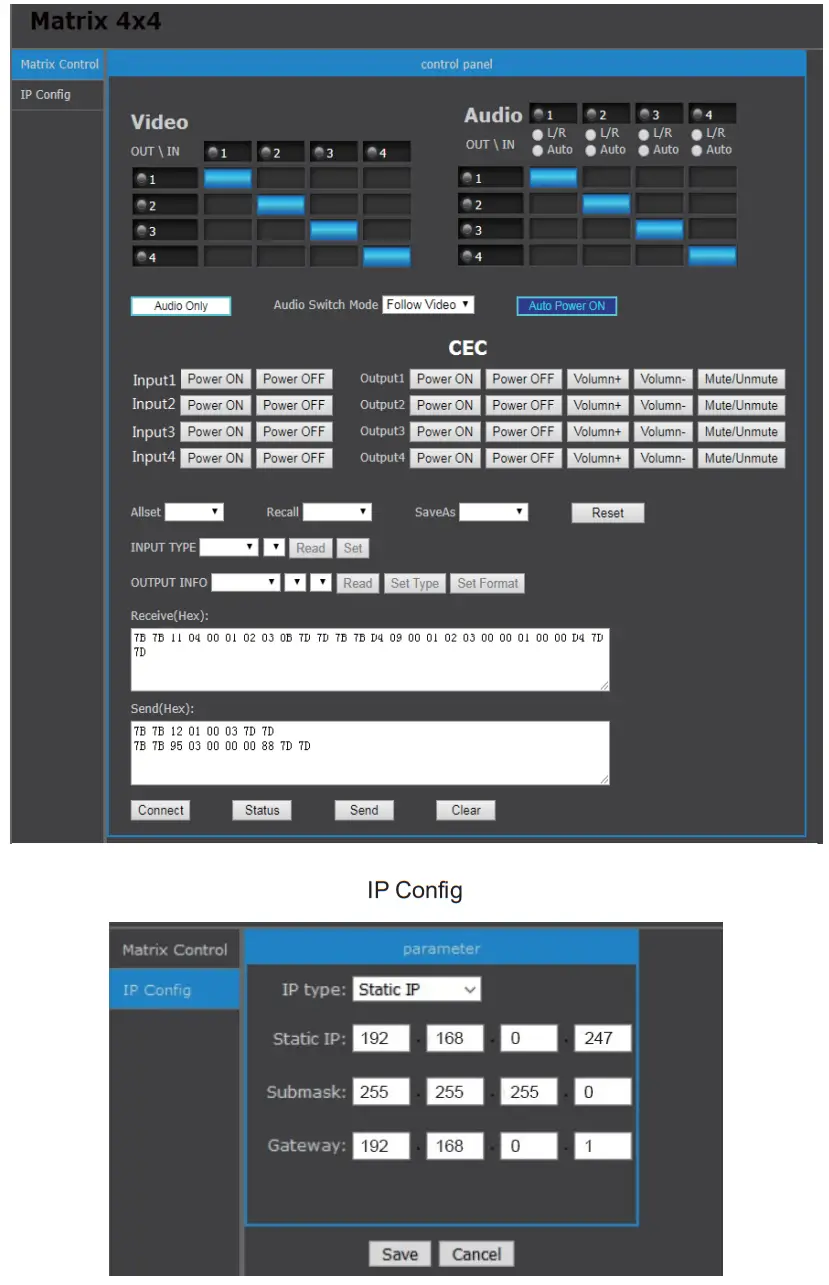

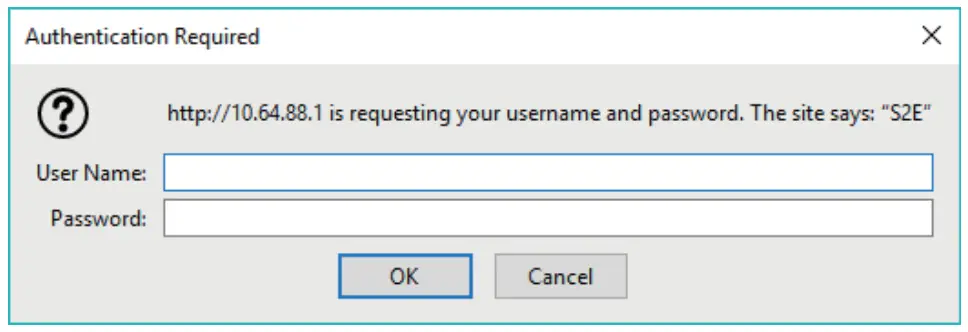

Control via Web

The built-in Web GUI interface provides only basic control of the matrix switcher and access to the network settings. The following will be displayed when the web interface is accessed each time:

The default User Name is: admin
The default Password is: admin
After entering the User Name and Password, an interface similar to the following will be displayed:

The IP Config tab is used to change the IP settings of the matrix switcher. Enter any necessary changes, click “Save” to program the switcher to the new settings, or click “Cancel” to reject the changes.

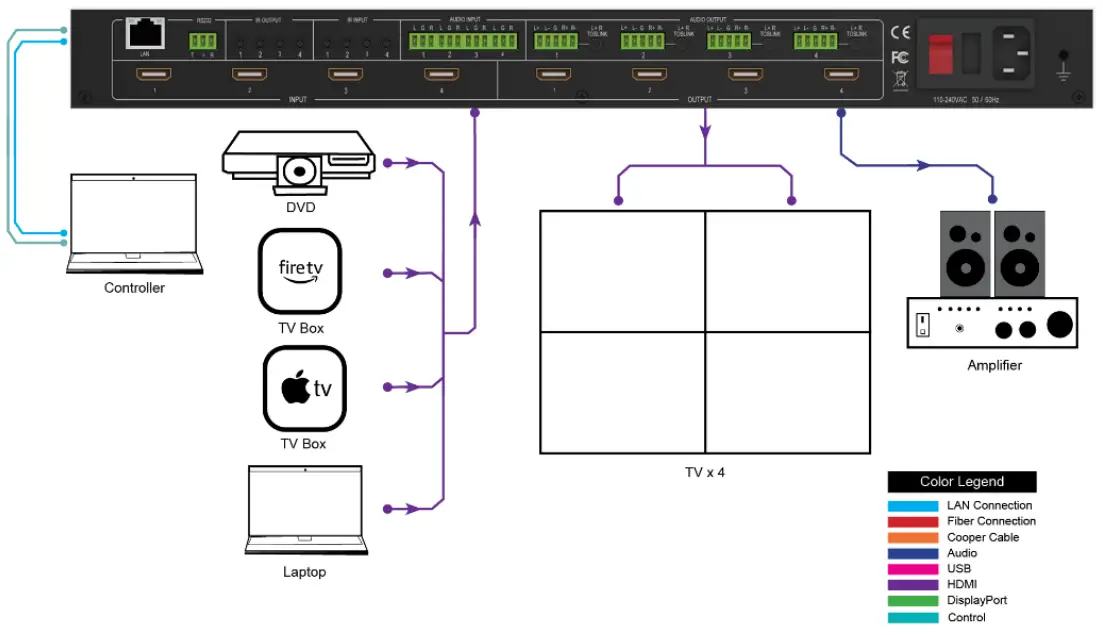

Application Example
