VLML-4X1H20
4×1 HDMI 2.0 4K60 Multiviewer with Seamless Switching
VER 1.0
User Manual

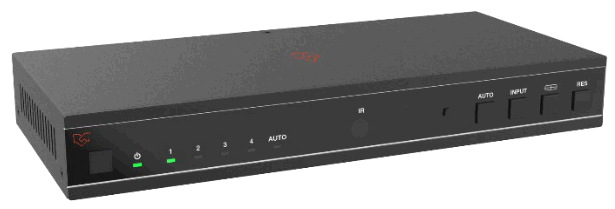

VLML-4X1H20 4K HDMI 2.0 4K60 Multiciewer with Seamless Switching

Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A Surge protection device is recommended.
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.

Introduction

This 4K60 4×1 Multiview Seamless UHD Video Switcher was developed to support higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create the layout and position of any of the four inputs on a single monitor.
This device supports the full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.
This device can be controlled via front panel buttons, IR remote, and RS-232 commands.

Features

☆ HDMI 2.0b, HDCP 2.2, and HDCP 1 .x compliant
☆ Supports 18Gbps video bandwidth
☆ Input and output resolutions support up to 4K@60Hz
☆ Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
☆ Seamless switching between input channels and combined multiple images on a single UHD monitor
☆ Up to 8 display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
☆ Seamless switching on single screen display mode
☆ Fast switching on Multiview display mode
☆ Audio de-embedding via analog and optical fiber audio ports
☆ Supports volume control and independent audio selection
☆ Supports OSD navigation for advanced setting
☆ EDID management
☆ Control via front panel buttons, IR remote, RS-232 commands
☆ Compact design for easy and flexible installation

Package Contents

1. 1 x 4K60 4×1 Multiview Seamless UHD Video Switcher
2. 1 x IR Remote
3. 1 x 3pin-3.81mm Phoenix Connector (male)
4. 1 x 38KHz IR Wideband Receiver Cable (1.5 meters)
5. 2 x Mounting Ears
6. 4 x Machine Screws (KM3*4)
7. 4 x Rubber Feet
8. 1 x 12V/2.5A Locking Power Adapter
9. 1 x User Manual

Specifications

Operation Controls and Functions

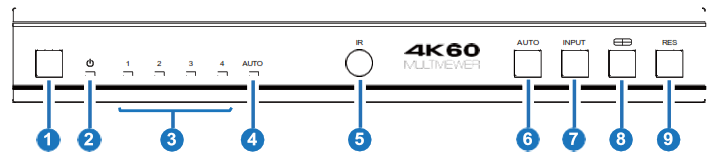

5.1 Front Panel

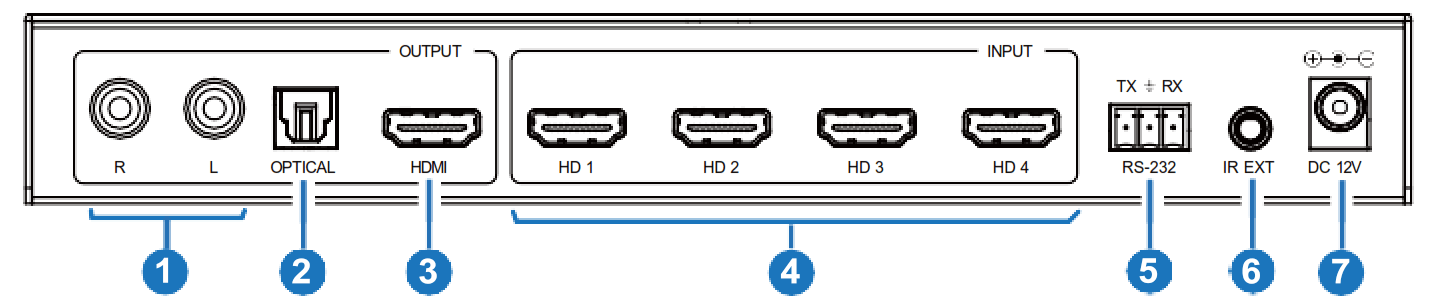

5.2 Rear Panel

IR Remote

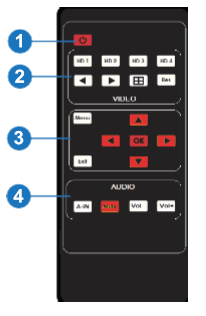

1. Power on or Standby: Press this button to power on the switcher or set it to standby mode.
2. HD 1/2/3/4: Press these buttons to select the input source on single-screen display mode, and the corresponding input LED on the front panel will light in green.
   : Press these buttons to select the last or next input source on single-screen display mode.
   : Multiview display mode switching button.
   ▪ Short press this button to circularly select: SINGLE – PIP – PBP (1) – PBP (2) – Triple (1) – Triple (2) – Quad (1) – Quad (2).
   ▪ Long press this button for 3 seconds to select the aspect ratio for PBP (1) / PBP (2) / Triple (1) / Triple (2) / Quad (1) / Quad (2).
   Res : Output resolution switching button.
   ▪ Short press the RES button to circularly switch the output resolution of the HDMI OUTPUT port (Please refer to the output resolution list of “8. Video & Audio”).
   ▪ Long press the RES button for 3 seconds to switch the output resolution to 720P60.
3. MENU, EXIT, LEFT, RIGHT, UP, DOWN, OK: OSD Menu navigation buttons.
4. A-IN: Press this button to pop up the audio channel selection OSD, then press the UP / DOWN button to select the audio output channel. (The output audio follows the video source by default.)
   Mute: Press this button to mute/unmute the audio.
   VOL-, VOL+: Press these buttons to increase/decrease the audio output volume.

EDID Settings

Users can select the following EDID modes via RS-232 command or OSD menu navigation.

Video & Audio

The switcher supports multiple resolution video input up to 3840×2160@60 and supports multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, and up to 7.1 can pass-throughout function via HDMI cable.
Users can control the volume of the audio in LPCM format.
The switcher supports the following video output resolutions via a powerful scaling engine.

Multiview

The switcher supports 8 categories of multiview display modes: SINGLE, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2) Users can select different operations for different Multiview modes as follows:
SINGLE: Inputs selection
PIP: Inputs selection, Sub window size, and position selection
PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2): Inputs selection,
Display mode selection, Display aspect selection

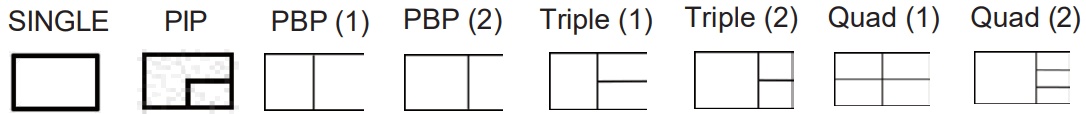

Multiview window distributions are as follows:

Users can select Multiview modes via RS-232 commands or OSD menu navigation.

OSD Menu Navigation

(1) A total of seven buttons on the IR Remote are used for OSD menu navigation, including MENU, EXIT, UP, DOWN, LEFT, RIGHT, and OK. Menu contents are as follows:

(2) A total of four buttons on the IR Remote are used for audio settings on OSD menu navigation, including A-IN, Mute, VOL-, and VOL+.
Menu contents are as follows:

RS-232 Command

The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on a PC to send ASCII commands to control the product.
The ASCII command list about the product is shown below.

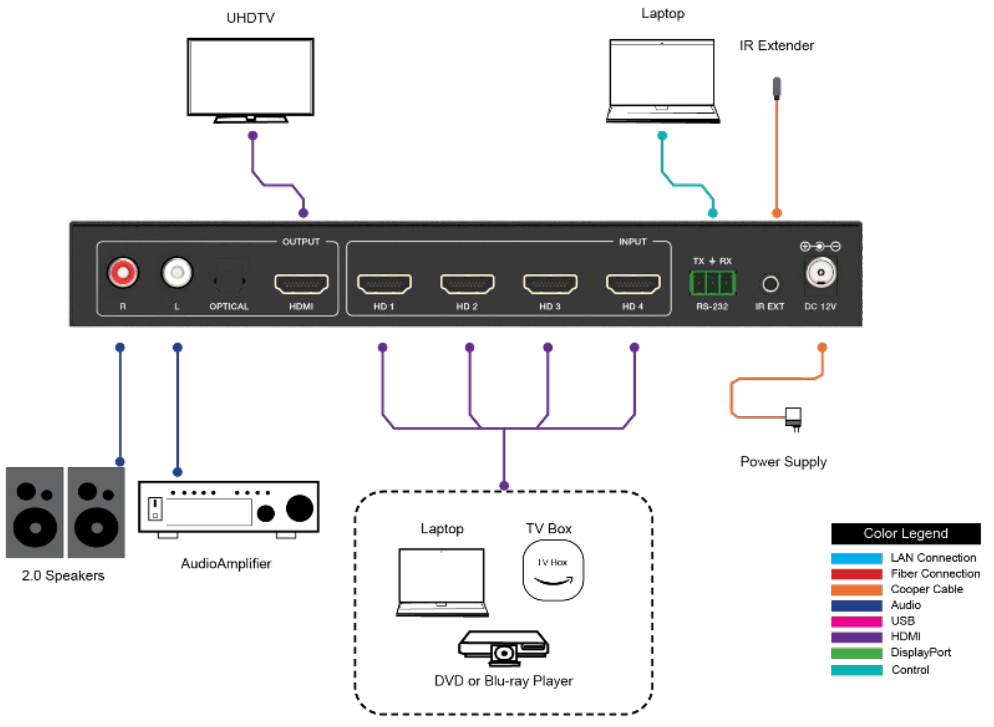

Application Example
