LED TV WALL MOUNT
INSTRUCTION MANUAL
cod. 190-00009
190-00009 LED TV Wall Mount
NOTE: We recommend that this product is installed by the professional only. we accept no liability for damages caused by incorrect assembly, installation or use. If there is any doubt, please contact the specialist from the seller for help.
IMPORTANT!
- For safety reasons, the wall or mounting surface must be capable of supporting the combined weight of the mount and the display; otherwise the structure must be reinforced.
- Safety gear and proper tools must be used. Failure to do so can result in property damage and/or serious injury.
- Make sure that no electrical cables, water pipes or gas pipes are located within the wall.
Tools required for the installation:
- Head Screw Driver
- Electric or Portable Drill
- 1/8″ (3 mm) Drill Bit + Stud Finder ( Drywall Installation )
- 7/16″ (11 mm) Masonry Bit ( Concrete Installation )
Also make sure that all of the hardware has been included with your mount.You should find the following:
| (A) M6x50 Lag Bolt X6 |  |
| (B) Concrete Anchor X6 |  |
| (C) Lag Bolt Washer X6 |  |

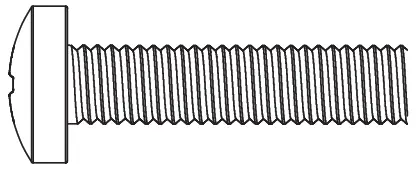

| (D) M6x20 Bolt x4 |  |

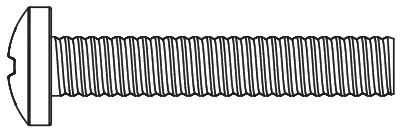

| (E) M8x20 Bolt X4 |  |

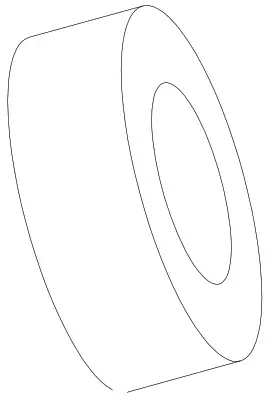

| (F) Spacer x4 |  |

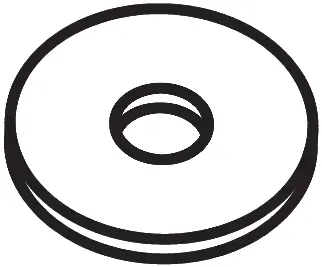

| (I) M6. Washer x4 |  |

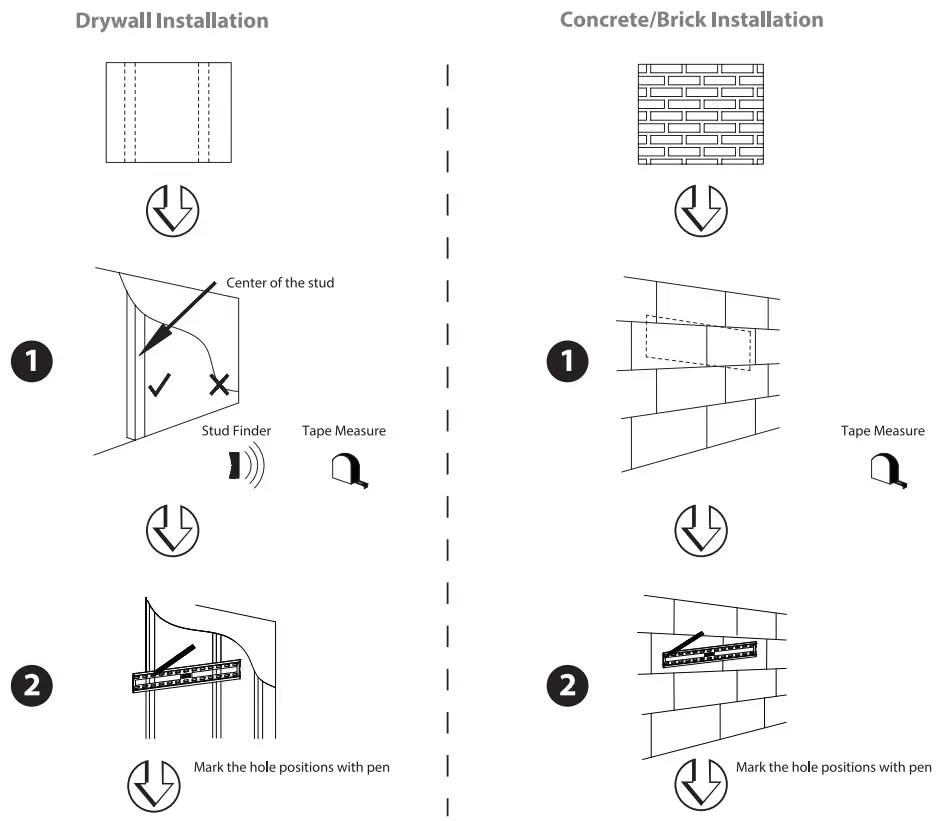

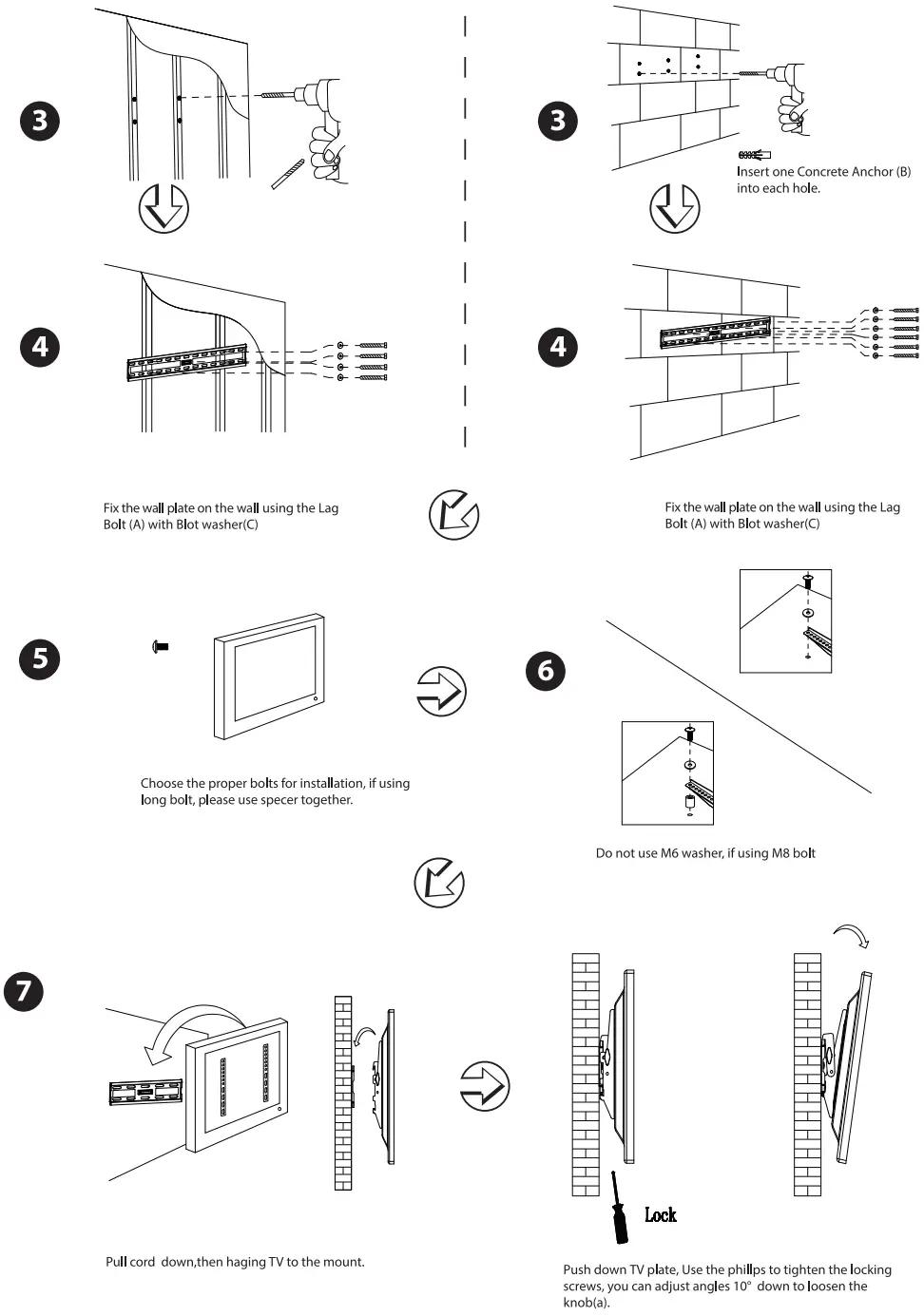

Installing the Wall Mount
