Count on it.
Form No. 3450-894 Rev A
Transport Frame
Trans Pro 80 Tow-Behind Trailer
Model No. 04238—Serial No. 410192806 and Up
Parts Catalog
Ordering Replacement Parts
To order replacement parts, please supply the part number, the quantity, and the description of each part desired.
Understanding Reference Numbers
Each identified part in an illustration has a reference number. The reference number for a part also appears in the parts list, along with other information about the part. This catalog uses two special reference number formats, one to indicate parts in a service assembly and another to indicate the quantity of a given part in an illustration.
Service Assembly Reference Numbers
Parts in service assemblies have reference numbers in the form a:b. The a represents the reference number of the entire service assembly and the b represents a sequential number unique to each part within the service assembly.
For example, a wheel assembly might be identified by reference number 6, the tire by 6:1, the valve by 6:2, and the wheel by 6:3. When you order the assembly identified by reference number 6, you receive all parts identified by reference numbers 6:1,6:2, and 6:3. However, you may also order any part individually. Reference numbers of this type appear in illustrations and in parts lists.
Reference Numbers Indicating Quantity
In an illustration, if a reference number indicates more than one part, the reference number has the form X y. The n represents the quantity of the part, the X is the multiplication symbol, and the y represents the reference number.
For example, in an illustration, the reference number 2X 37 means that two of the parts identified by reference number 37 are indicated.

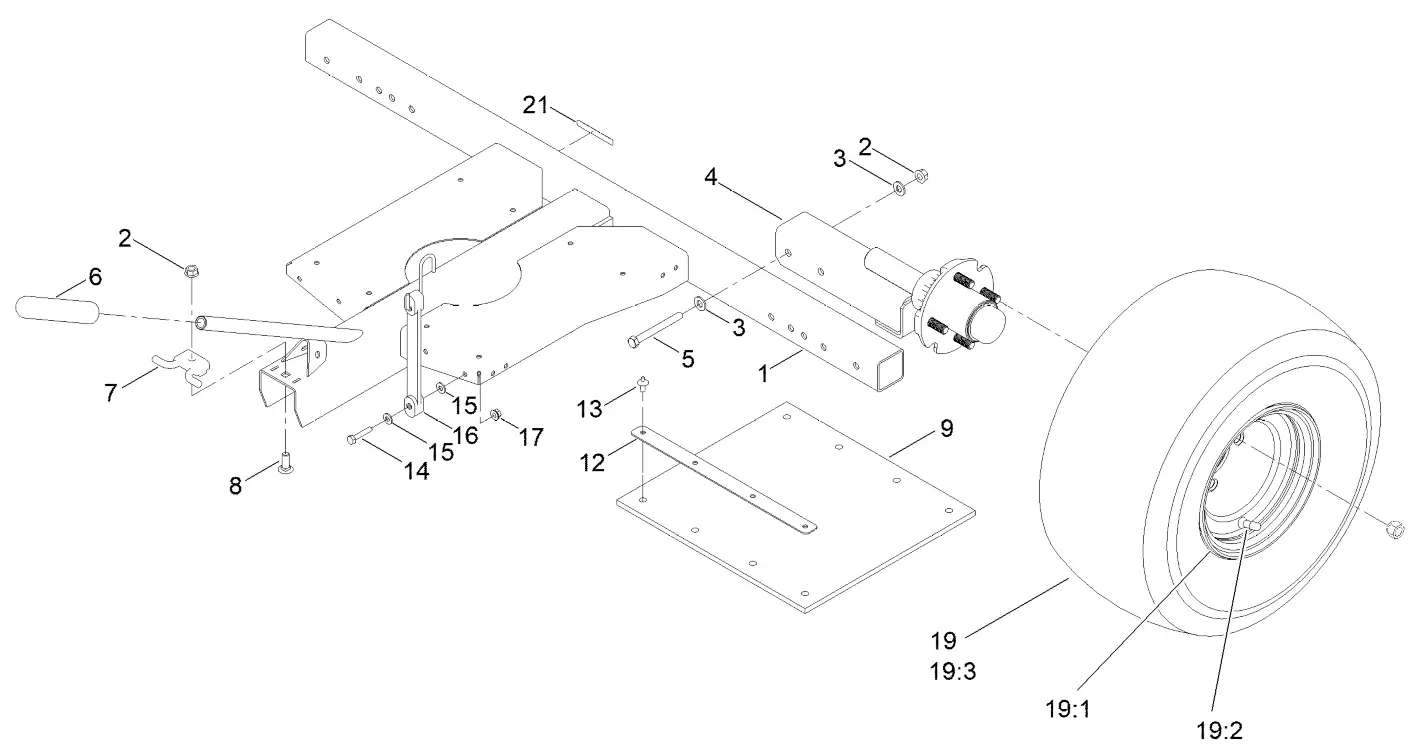

Main Trailer, Hub and Wheel Assembly
| Ref. | Part Number | Qty | Description | Ref. | Part Number | Qty. | Description |
| 1 | 106-5366-01 | 1 | Frame ASM | 14 | 321-13 | 2 | Screw-HH |
| 2 | 32128-21 | 5 | Nut-HF Lock | 15 | 3256-22 | 4 | Washer-Flat |
| 3 | 3256-24 | 8 | Washer-Flat | 16 | 106-8459 | 2 | Bungee |
| 4 | 117-1458 | 2 | Hub And Axle ASM | 17 | 32128-32 | 2 | Nut-HHF |
| 5 | 323-15 | 4 | Screw-HH | 19 | 144-3664 | 2 | Wheel-Assembly |
| 6 | 105-1904 | 1 | Grip-Handle | 19.1 | 137-2597 | 1 | Rim |
| 7 | 108-6094 | 1 | Latch | 19.2 | 232-27 | 1 | Stem-Valve |
| 8 | 3231-22 | 1 | Screw-CARR | 19.3 | 144-3665 | 1 | Tire |
| 9 | 132-9598 | 1 | Mat-Roller | 20 | 232-37 | 2 | Tube● |
| 12 | 106-5384 | 2 | Strip-Pad | 21 | 133-8061 | 1 | Decal-Warning |
| 13 | 105-9626 | 8 | Rivet-Drive | ||||
● Not illustrated

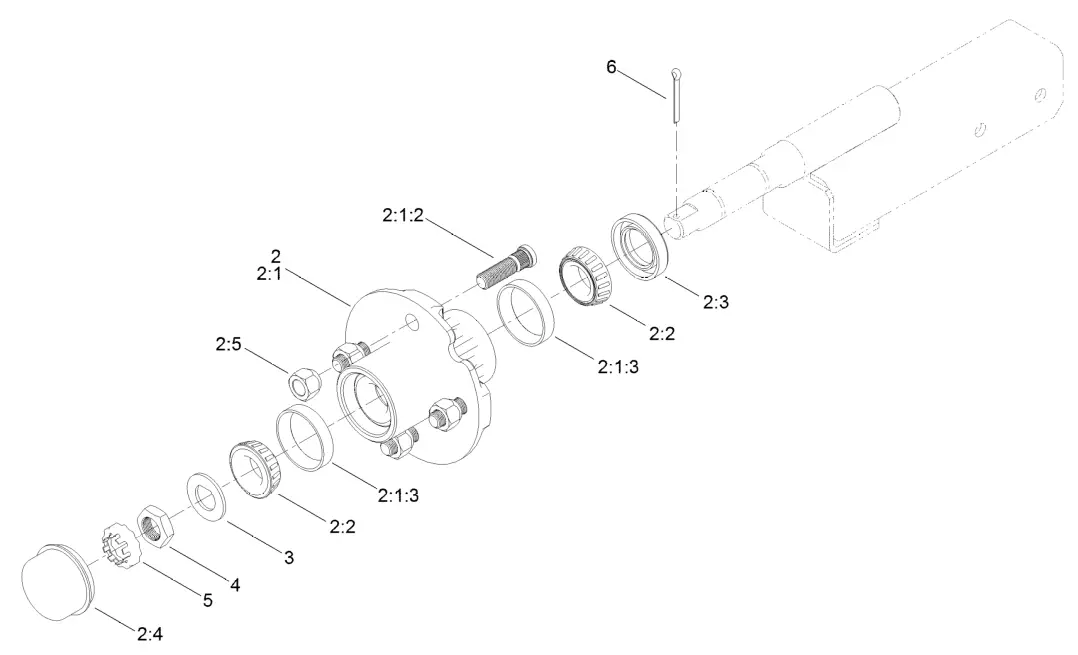

Hub and Axle Assembly No. 117-1458
| Ref. | Part Number | Qty. | Description |
| 2 | 117-5115 | 1 | Hub And Bearing ASM |
| 2:1 | 117-8251 | 1 | Hub ASM |
| 2:1:2 | 114-3918 | 4 | Stud-Wheel |
| 2:1;3 | 254-72 | 2 | Bearing-Cup, Tapered |
| 2:2 | 254-94 | 2 | Bearing-Cone, Tapered |
| 2:3 | 112-1690 | 1 | Seal-Oil |
| 2:4 | 241-119 | 1 | Cap-Dust |
| 2:5 | 242-50 | 4 | Nut-Lug |
| 3 | 117-8259 | 1 | Washer-Spindle |
| 4 | 117-8260 | 1 | Nut |
| 5 | 93-0307 | 1 | Nut-Lock, Retainer |
| 6 | 3272-18 | 1 | Pin-Cotter |

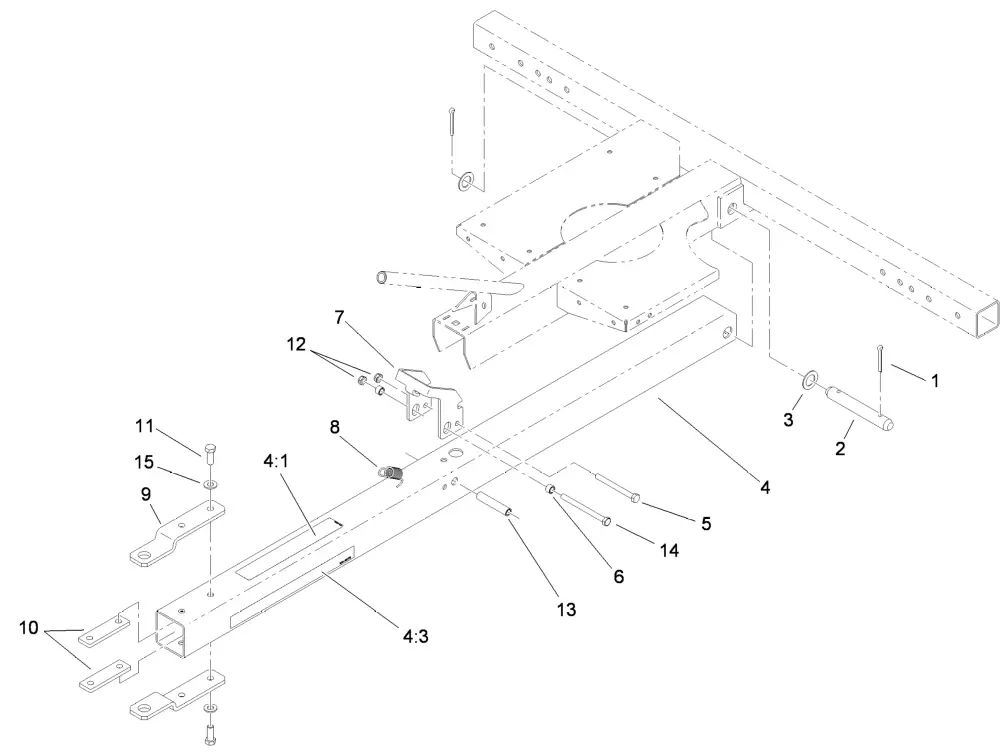

Tongue Assembly
| Ref. | Part Number | Qty | Description |
| 1 | 3272-23 | 2 | Pin-Cotter |
| 2 | 92-1233 | 1 | Pin-Clevis |
| 3 | 67-9410 | 2 | Washer |
| 4 | 106-4675 | 1 | Tongue ASM |
| 4:1 | 106-4669 | 1 | Decal-Warning, Trailer |
| 4:3 | 106-4673 | 2 | Decal |
| 5 | 322-20 | 1 | Screw-HH |
| 6 | 65-7910 | 2 | Spacer |
| 7 | 106-8437 | 1 | Strap-Latch |
| 8 | 105-9926 | 1 | Spring-Extension |
| 9 | 105-9930-01 | 2 | Hitch |
| 10 | 117-1523 | 2 | Plate-Lock |
| 11 | 3235-22 | 4 | Screw-HH, Lock |
| 12 | 3296-47 | 2 | Nut-Lock, NI |
| 13 | 105-9912 | 1 | Spacer-Latch |
| 14 | 322-23 | 1 | Screw-HH |
| 15 | 3256-24 | 4 | Washer-Flat |
Attachments and Accessories
For 04238 Transport Frame Trans Pro 80 Tow-Behind Trailer
| Product Name | Model/Part |
| Flat Ramp | 04245 |
| Rail Ramp Kit (Update) | 04247 |
| Adjustable Hitch Kit | 107-8188 |
