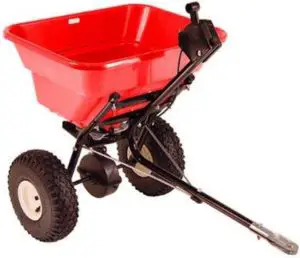

Earthway 2050tp 80lb Estate Tow Broadcast Spreader Installation Guide

EARTHWAY 2050TP 80LB Estate Tow Broadcast Spreader Installation Guide

Thank you for selecting EarthWay for your spreader needs. Our production team in Northern Indiana takes pride in building this spreader. Our customer support team is standing ready to ensure your success. Please contact us at www.EarthWay.com to see our full line of commercial, lawn & garden tools.

Note: Your EarthWay spreader includes a feature called side spread control. This feature turns off fertilizer from being spread to the left side. To activate this feature, slide the lever below the hopper to the right (if standing behind the spreader) and walk along a sidewalk or flowerbed that is 12”-14” on your left side. Fertilizer will not spread to the left. This feature is better than a deflector as no material is wasted by the deflector.

For spreading, please utilize the following spreader settings:

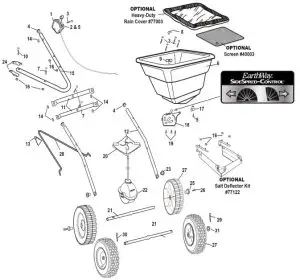

ASSEMBLY INSTRUCTIONS

• Make sure #28 Wire Brace is under #15 Control Support prior to attaching #15 Control Support.
• Attach #15 Control Support to #11 using #7 Bolts and #16 Nuts—DO NOT TIGHTEN.
• Using #13 Brace Clip and #7 Bolt and #16 Nut attach #28 Wire Brace to lower side of #15 Control Support.

TIGHTEN ALL HARDWARE NOW

• 3MPH Maximum towing speed

OPERATING INSTRUCTIONS

Before filling hopper, become familiar with the operation of this spreader.

• Obtain proper setting for material to be used from the SETTING MATRIX included with this spreader.
• Move stop bolt on rate gauge assembly to the proper setting and tighten to secure.
• While pulling spreader forward, push control lever toward the spreader to the stop bolt. To stop, pull lever forward to close flow holes before you stop moving.
• When finished, empty any remaining material from hopper.
• To prevent corrosion, spray a light oil or Fluid Film inside the tubing of the chassis and on all metal parts.
• If using, Rock Salt, to prevent damage to the gearbox remove salt from the hopper daily. Rock Salt will reconstitute back into a solid block if left in the hopper overnight and will damage your gearbox if operated with the salt in place.

The SideSpred-Control™ is an innovation that eliminates the need to use a side deflector, which can adversely affect your application rate, to prevent material from being spread into flowerbeds, on sidewalks, or driveways. The SideSpredControl™ maintains the correct application rate while it is activated, giving you excellent results in seeding or spreading while controlling the spread pattern on the left side of the spreader. The SideSpred-Control™ is an EarthWay® exclusive.

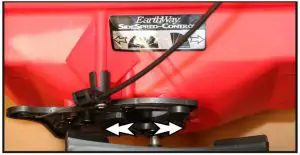

SideSpred-Control™ OPERATION

The SideSpred-Control™ lever is located on the back of the hopper at the bottom. To operate the SideSpred-Control™, slide the control lever from the left, to the right. This will activate the SideSpred-Control™ for a PARTIAL spread pattern and prevent material from being spread to the left side of the spreader. Position the left wheel of your spreader 12”-16” from the sidewalk, flowerbed, or driveway and spread as normal. When you have completed this spreading pass, open the SideSpred-Control™ by sliding the control lever from right to left, for a FULL spread pattern.

All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information when ordering.

1. Model Number
2. Part Number
3. Part Description

You can contact us by calling (574) 848-7491 to place an order with a credit card, or purchase online at

www.Earthway.com.
Questions? Email us at
[email protected]

CUSTOMER SERVICE

574.848.7491
[email protected]
www.EARTHWAY.com
1009 Maple Street, Bristol, IN 46507

ONE YEAR WARRANTY

EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay.

EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from EarthWay Products, Inc.

To seek remedy under this warranty, contact EarthWay Products, Inc. at 574-848-7491, [email protected] or write to EarthWay Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s) or product; any labor charges associated with repair or replacement of non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or its effects.
