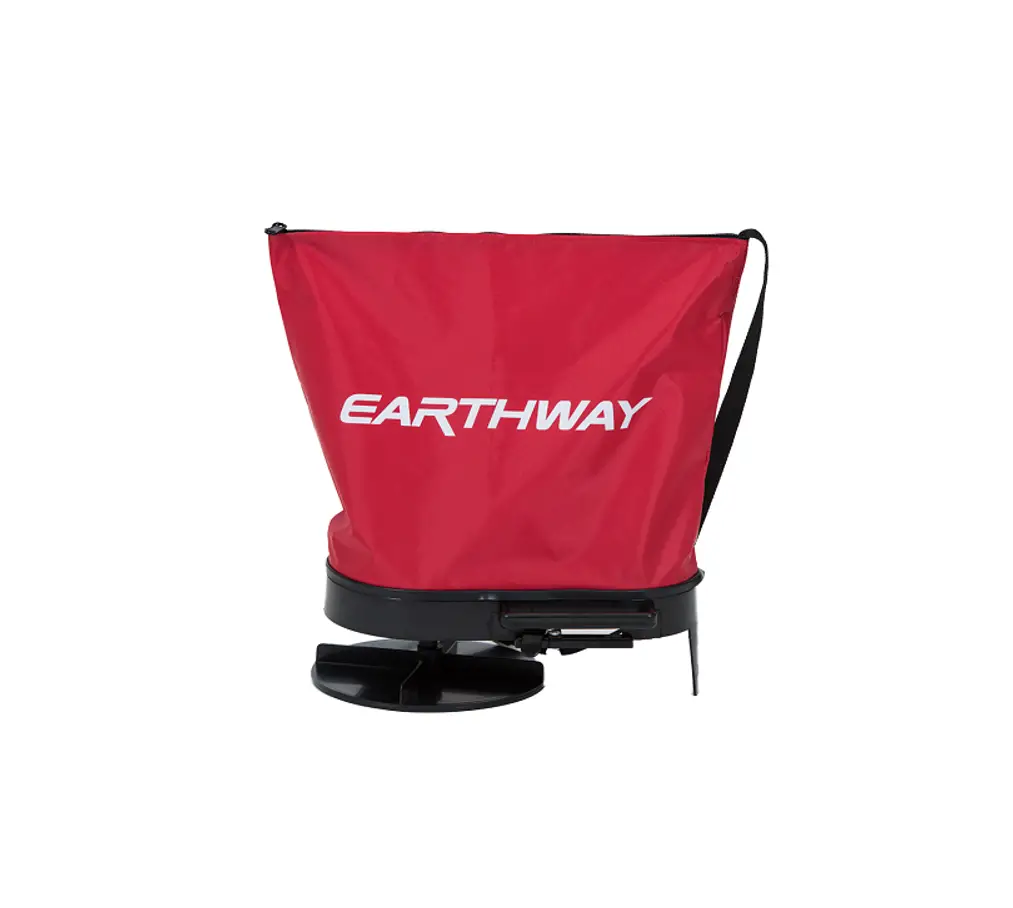

3100 Broadcast Spreader Seeder
Product Information:
- Product Name: Broadcast Spreader Seeder
- Model Number: 3100
- Manufacturer: Earthway Products, Inc.
- Warranty: One-year warranty
Assembly Instructions:
- Refer to the assembly instructions provided with the
product.
Operating Instructions:
- Obtain the proper setting for the material to be used from the
enclosed Setting Matrix included with this spreader, or from
Earthway Products, Inc. website under the Manuals section. - Set the stop bolt on the rate gauge assembly to the proper rate
setting. - While turning the handle crank and walking forward, push the
control lever forward to the stop bolt. - To stop, pull the lever back to close flow holes while
continuing to crank handle and walking forward. - When finished, empty any remaining material from the hopper,
rinse spreader, allow to dry before storing. No oiling is
necessary.
Hand Crank Spreader Rate Setting Instructions:
You will need a tape measure, pencil and pad, scale, and a
bucket/container for these instructions.
Calculating Rate Settings:
- Determine how much material is to be applied per 1,000 sq./ft.
This is determined on the bag based on bag weight and total area of
coverage if not directly stated on the bag the recommended number
of pounds per 1,000 sq./ft. - Measure off a distance of 50 feet, preferably on a paved
surface such as a parking lot. - Weigh out enough of the material to be applied to fill the
bag/hopper at least half full. Record the weight for future
use. - With the unit positioned correctly for comfortable use, (on
your left side), turn the crank handle and move forward at a brisk
walking speed of 3 mph. Open the control lever and allow the
material to flow onto the surface for 50 feet. - Weigh the remaining material in the hopper.
- Calculate the rate settings using the chart provided on page 2
of the manual. - Compare the results of your test to the desired application
rate. Adjust the rate setting stop accordingly and run through the
test again. Repeat this process until you have achieved the desired
application rate.
Note: The settings furnished on the Rate Setting Matrix are
intended as a guide only. Variations in physical characteristics of
material applied, walking speed, and roughness of ground surface
may require slightly different spreader settings. Due to the above
conditions, Earthway Products, Inc. makes no warranty as to the
uniformity of coverage actually obtained from the settings
listed.
Customer Service:
- Email: [email protected]
- Website: www.earthway.com
- Address: 1009 Maple Street, Bristol, IN 46507
MODEL # 3100
Broadcast Spreader Seeder
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
Obtain proper setting for material to be used from the enclosed SETTING MATRIX included with this spreader, or from our web site under the MANUALS SECTION.
Set stop bolt on rate gauge assembly to the proper rate setting. While turning handle crank and walking forward, push control lever forward to the stop bolt. To stop, pull lever back
to close flow holes while continuing to crank handle and walking forward. When finished, empty any remaining material from hopper, rinse spreader, allow to dry before storing. No oiling is
necessary.
The settings furnished on the Rate Setting Matrix are intended as a guide only. Variations in physical characteristics of material applied, walking speed, and roughness of ground surface may require slightly different spreader settings. Due to the above conditions, the manufacturer makes no warranty as to the uniformity of coverage actually obtained from the
settings listed.
HAND CRANK SPREADER RATE SETTING INSTRUCTIONS
YOU WILL NEED
Tape measure Pencil & Pad Scale Bucket/container
3100_RevMar2021
PAGE 1
Assembly and Operation Instructions
TO CALCULATE RATE SETTINGS: (Use the Chart on the next page to fill in numbers)
Determine how much material is to be applied per 1,000 sq./ft. This is determined on the bag based on bag weight and total area of coverage if not directly stated on the bag the recommended number of pounds per 1,000 sq./ft.
Measure off a distance of 50 feet, preferably on a paved surface such as a parking lot.
Weigh out enough of the material to be applied to fill the bag/hopper at least half full.
Record the weight for future use. With the unit positioned correctly for comfortable use, (on your left
hip for 2700A/2750 or on your chest for the 3100/3200 models) and the bag/hopper at least half full of the material to be spread, position the yourself far enough before the beginning of the 50 foot test area so that you will achieve the desired speed before you reach the starting line. Select the Setting Rate position that you feel would be an appropriate setting on the seeder/spreader (start in the middle). Start walking at a NORMAL pace cranking the handle so that it makes one revolution for each step with either your right or left foot to ensure the proper distribution rate. As you cross the starting line (of the 50 feet) move the rate lever to the open position against the stop. Continue from the starting line with the unit spreading the material. As you cross the finish line move the rate control lever to the closed position. Stop walking and measure the spread width and note it below. Return to the start point and empty the remaining material from the hopper into your weighing container and re-weigh.
3100_RevMarch2021
PAGE 2
Assembly and Operation Instructions
CHART
Desired Application Rate (lbs./1,000 sq. ft.) __________
To determine the desired application rate divide the area (sq. ft.) that the bag says it should cover, by the weight of the bag, and then multiply by 1,000. (Example: 5,000 sq. ft. / 25 lbs. = .005 x 1,000 = 5lbs. per 1,000 sq. ft.)
__________ Weight of Material Placed in Bag/Hopper __________ Subtract the Weight of Material Left in Bag/Hopper _=_________ Weight of Material Used
_X_________ Multiply by the Width of Spread Area by Length (50 feet) =__________ Total Spread Area
Divide the Weight of Material Used by the Total Spread Area = __________ lbs.sq. ft. Multiply the lbs.sq. ft. from above times 1,000 = __________ lbs.1,000 sq. ft.
Compare the results of your test to the desired application rate. Adjust the rate setting stop accordingly and run through the test again. Repeat this process until you have achieved the desired application rate.
These settings are intended as a guide only. Variations in physical characteristics of material applied, brisk walking speed (3 mph.), and roughness of ground surface may require slightly different spreader settings. Due to the above conditions, Earthway Products, Inc. makes no warranty as to the uniformity of coverage actually obtained from the setting listed.
CUSTOMER SERVICE
[email protected] | www.EARTHWAY.com | 1009 Maple Street, Bristol, IN 46507
ONE YEAR WARRANTY
EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay. EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from EarthWay Products, Inc. To seek remedy under this warranty, contact EarthWay Products, Inc. at [email protected] or write to EarthWay Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s) or product; any labor charges associated with repair or replacement of non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or its effects.
3100_RevMarch2021
PAGE 3
Assembly and Operation Instructions
HOW TO ORDER SPARE PARTS CALL or EMAIL:
TURF DEPOT 800-305-9255 or [email protected]
3100 Broadcast Spreader Parts List
SERIES PART #
DESCRIPTION
1 77001
HEAVY DUTY RAIN COVER
2 13103
HOPPER
3 33110
HAIR PIN CLIP #214 ZINC
4 12220
HOPPER BUSHING
5 37103
#10-24 X 3/4″ CARRIAGE BOLT
6 60128
LEVER & SHUT OFF ASSEMBLY
7 41262
FLOW GAUGE
8 12147
SPACER (PIVOT LINK)
9 32106
10-24 WING NUT ZINC
10 12109
IMPELLER
11 36105
1/8″ X 1 1/4″ COTTER PIN S.S.
12 60122 CLIP INCLUDED W/ HARNESS ASSBLY.
13 37101
1/4-20 X 1 1/2″ CARRIAGE BLT
14 12188
BELLY GUARD
15 23103
FRAME
SERIES 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
PART # 32100 12166 12137 31128 60126 23600 34103 60124 60122 33117 31108 19114 31138 23608 37109
3100_RevMarch2021
DESCRIPTION 1/4-20 HEX NUT ZINC CRANK SHAFT CAP
SPLIT BEARING #10 X 1 1/2″ TYPE A FHPS GEAR BOX ASSEMBLY
STAND 1″OD X 17/32″ID X 1/32″ WASHER
HANDLE CRANK ASSEMBLY HARNESS ASSEMBLY AGITATOR
#10 X 1 1/4″ TYPE A FHPS .125″ X .75″ X 2″ GRIP BLK #8 X 3/8″ PMT #8 HD COARSE
CRANK SHAFT 1/4-20 X 1 1/4″ CARRIAGE BOLT
PAGE 4
