1 nVent RAYCHEM 107442000 FrostGuard Self-Regulating Cable Kit

2 Product Information

3 Features

4 Specifications

5 ADDITIONAL PRODUCT DETAILS

6 Documents / Resources

6.1 References

nVent RAYCHEM 107442000 FrostGuard Self-Regulating Cable Kit

Product Information

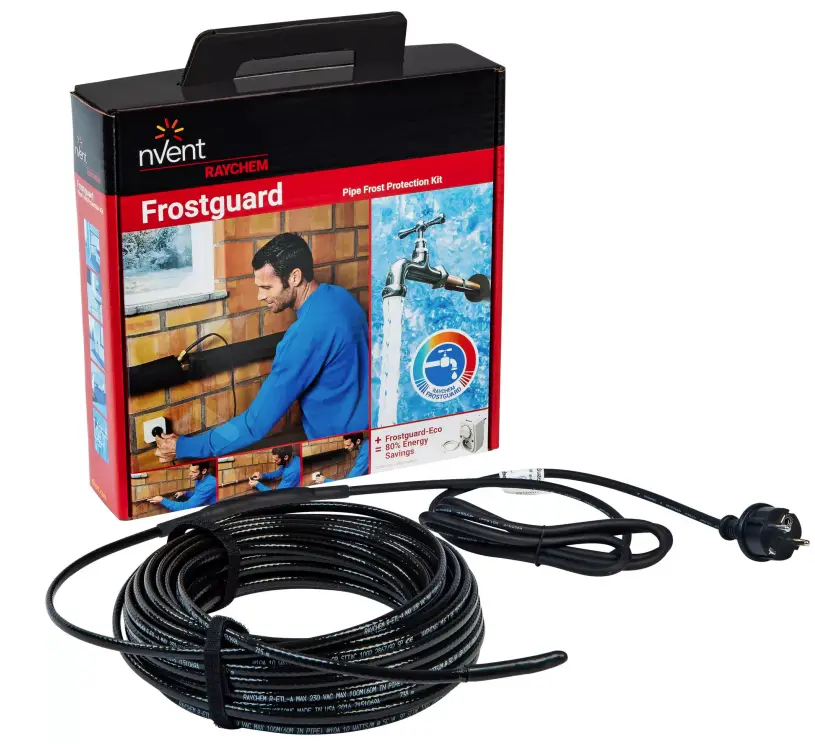

The nVent RAYCHEM FrostGuard Self-Regulating Cable Kit is a kit format designed for pipe freeze protection. The kit contains self-regulating trace heating cables, pre-installed with electrical cable and plug to provide an energy-efficient and easy-to-use solution. The kit is available in 10 different sizes and is simple to design, making it ideal for small-diameter pipework and condensate pipework of condensing boilers. The product comes with a 10-year extended product warranty and maintenance-free.

Features

Simple to design kit format, available in 10 sizes
Easy to install small and flexible trace heating cable, pre-installed with a plug and cold lead to avoid the need for connection by an electrician, ideal for small diameter pipeworkand condensate pipework of condensing boilers
Energy-efficient and safe self-regulating cable, no overheating possible even when overlapped or closely spaced
Reliable during a long life 10 year extended product warranty available, maintenance free

Specifications

Catalog Number	Item Name	Heating Cable Technology	Nominal Voltage	Nominal Power Output, In-Pipe @ 230V	Outer Jacket Material	Max. Circuit Length (m) @ 230VAC	Ground	Min. Installation Temp.	Color	Path	Installation	Exposure Temperature (°C)	Width (mm)	Height (mm)	Type
107442	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	22	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
108722	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	13	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007038	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	2	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007039	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	4	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007040	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	6	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007041	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	8	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007042	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	10	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007043	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	13	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007044	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	16	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007045	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	19	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm	5.8 mm	DK
1244007046	FRONT GUARD- Self-	Regulating	230 V	16 W/m	Fluoropolymer Black Braid	22	5.8 mm	-40°C	Black	Pipe	Wet or dry	65	8.5 mm

Catalog Number

Item Name

Heating Cable Technology

Nominal Voltage

Nominal Power Output, In-Pipe @ 230V

Nominal Power Output @ 5°C, 230V

Outer Jacket Material

Color

Ground Path Type

Min Installation Temperature

Nominal Width

Nominal Height

Ex Po

1244-

007044

FROSTGUARD- 16M-DK

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

1244-

007045

FROSTGUARD- 19M-DK

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

1244-

007046

FROSTGUARD- 22M-DK

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

1244-

007047

FROSTGUARD- 25M-DK

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

468683-

000

FROSTGUARD- 19M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

493074-

000

FROSTGUARD- 8M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

524628-

000

FROSTGUARD- 4M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

641438-

000

FROSTGUARD- 10M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

768868-

000

FROSTGUARD- 25M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

845612-

000

FROSTGUARD- 6M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

924248-

000

FROSTGUARD- 16M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

928206-

000

FROSTGUARD- 2M

Self- Regulating

230 V

W/m

Fluoropolymer

Black

Braid

-20 °C

8.5 mm

5.8 mm

ADDITIONAL PRODUCT DETAILS

Subject to local norms and approvals, FrostGuard can be used for in-pipe applications. For in-pipe applications (where permitted) install using a nVent RAYCHEM-approved pipe entry gland assembly.

WARNING
nVent products shall be installed and used only as indicated in nVent’s product instruction sheets and training materials. Instruction sheets are available at www.nvent.com and from your nVent customer service representative. Improper installation, misuse, misapplication or other failure to completely follow nVent’s instructions and warnings may cause product malfunction, property damage, serious bodily injury, and death and/or void your warranty. Tel. +1.800.545.6258 Fax +1.800.527.5703 [email protected]
