CABLE PROTECTOR
User Manual

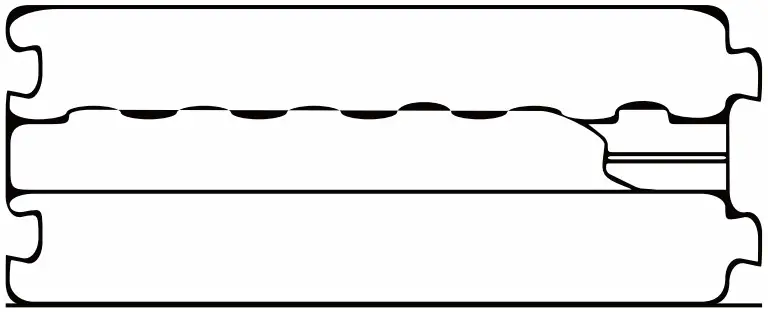

COMPONENTS
ASSEMBLY
Interlock with connectors to extend protection length.

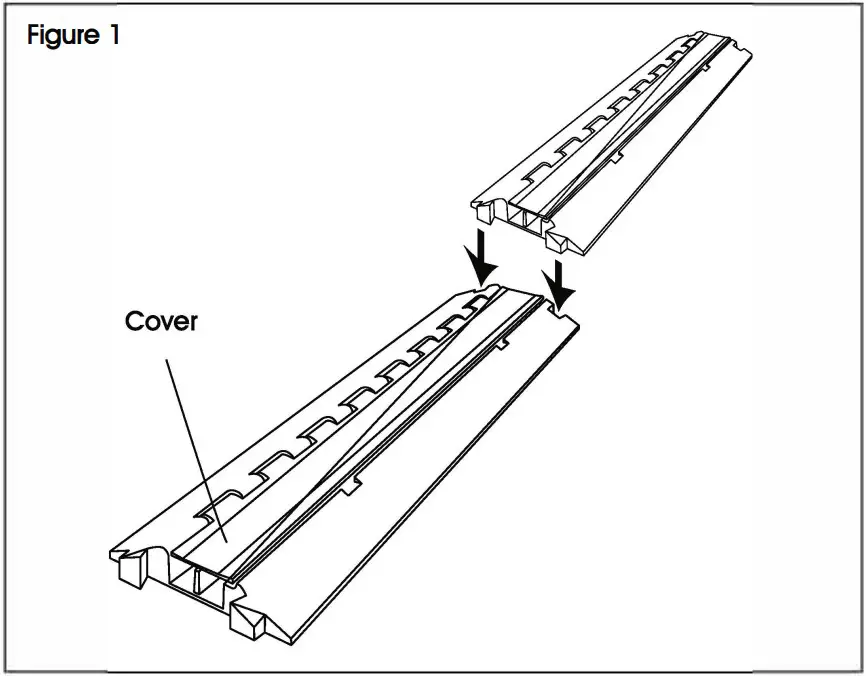

(See Figure 1)
- Inspect areas for safety hazards
- Assemble sections by aligning male connectors over female connectors and press with foot to secure.
- Close cover flush with base.
- Test installation for intended use.
CHANNEL CAPACITY
| MODEL NO. | CHANNEL CAPACITY – MAX DIAMETER INCHES (WIDTH x HEIGHT) |
| 670615 | 1-1/4″ X 1-3/8″ |
| 670616 | 1″ X 1-3/8″ |
| 670618 | 2-3/8″ X 2″ |
| 670619 | 2-1/4″ X 2″ |
| 670621 | 1-3/8″ X 1-3/8″ |
| 670622 | 1-5/16″ X 1-3/16″ |
| 670624 | 3-1/2″ X 1-3/16″ |
| 670625 | 3-1/2″ X 1-3/16″ |
| (Optional 5 Channel End Cap) | |
| 670623 | 1-3/8″ X 1-3/8″ |
LOAD CAPACITY
The Cable Protector has different load supporting capabilities depending on type of vehicle and temperature. Suitability must be verified by testing under actual conditions.
Load-supporting capacity varies by type of loading conditions and environment conditions. The load capacity decreases in warm environments. Test before use and inspect periodically.
| MODEL NO. | LOAD CAPACITY – MAX LOAD 70°F(21°C) |
| 670615 | 16000Ibs |
| 670616 | 24000Ibs |
| 670618 | 22000Ibs |
| 670619 | 32600Ibs |
| 670621 | 22000Ibs |
| 670622 | 32600Ibs |
| 670624 | 18000Ibs |
| 670625 | 18000Ibs |
CHEMICAL RESISTANCE
Limited resistance to brake fluids and other chemicals.
MATERIAL
| MODEL NO. | MATERIAL |
| 670615 | Rubber and plastic |
| 670616 | Rubber and plastic |
| 670618 | Rubber and plastic |
| 670619 | Rubber and plastic |
| 670621 | Rubber and plastic |
| 670622 | Rubber and plastic |
| 670624 | Plastic |
| 670625 | Plastic |
| (Optional 5 Channel End Cap) | |
| 670623 | Rubber and plastic |
CAUTION! Misuse can cause electrical shock and injury.
- DO NOT use as work surfaces. NO CUTTING, NO DRILLING, NO HAMMERING.
- Use with momentary loads only. DO NOT place ladders, scaffolds or any type of structure on the protector.
- Avoid concentrated loads.
- Use only on a stable surface. Inclined surfaces, slippery surfaces and broken ground can cause injury.
- This protector can be a trip hazard to pedestrian traffic if they are unaware of its presence.
- Keep Cable Protector and End Cap clean.
- Keep various services, communications, fluids and power separated. Limit a channel to one service type.
- Always test a small amount for chemical compatibility before using and follow maintenance procedure.
- Vehicular traffic must pass over the protector slowly and with caution.
MAINTENANCE
- Store in a clean dry area.
- Inspect Cable Protector and End Cap for damage, and replace it if damaged.
- Remove any foreign materials, solids and liquids.
- Keep clean by using a detergent and water solution.
