H-69543
CHANNEL CABLE PROTECTOR
1-800-295-5510
ulink.com
INSTRUCTIONS

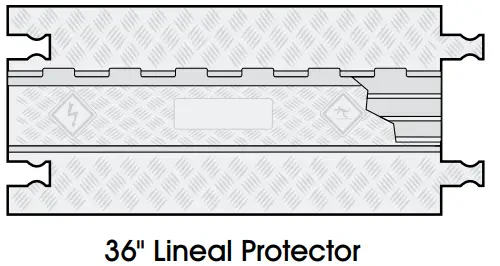

COMPONENTS
ASSEMBLY

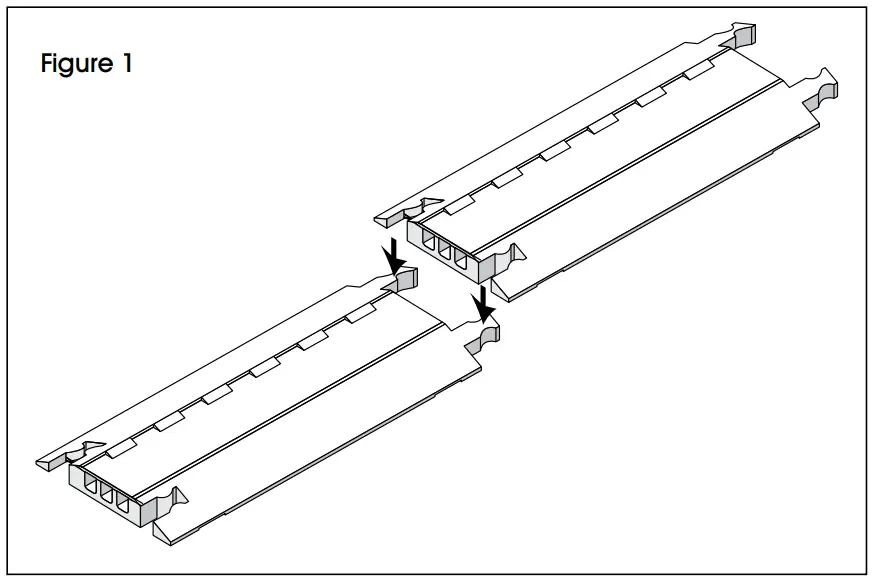

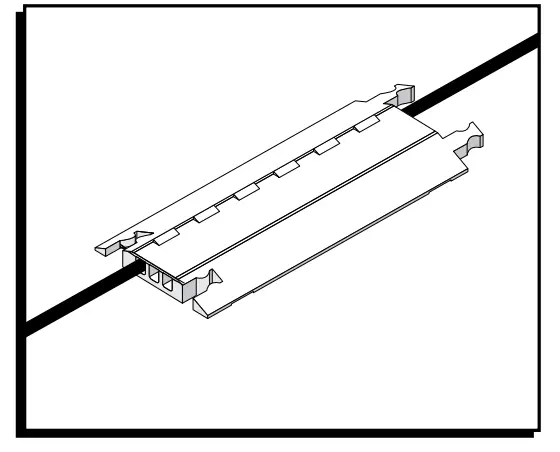

Interlock with dog-bong connectors to extend protection length.(see Figure 1)
- inspect areas for safety hazards.
- Assemble sections by aligning female connectors over male connectors and press with the foot to secure.
- Close cover flush with the base.
- Test installation for Intended use.
- Periodically inspect Installation.
CHANNEL CAPACITY
| CHANNEL CAPACITY – MAX. DIAMETER INCHES
| |
| 2 Outer Channels | 2.25′ width x 2.25′ height |
| Center Channel | 1.705′ width x 2.25′ height |
LOAD CAPACITY
The 3 Channel Cable Protector has different load supporting capabilities depending on the type of vehicle and temperature. Suitability must be verified by testing under actual conditions.
Load-supporting capacity varies by type of loading conditions and environmental conditions. The load capacity decreases In warm environments. Test before use and Inspect periodically.
| MODEL NO. | LOAD CAPACITY PER TIRE MAX LOAD 70°F (21°C) | LOAD CAPACITY PER AXLE MAX LOAD 70°F (21°C) |
14-6954 | 14.210 lbs. | 28.420 lbs. |
OPERATING TEMPERATURE
-40° to 120°F (-40° to 48°C)
CHEMICAL RESISTANCE
Tested for compatibility with common motor oils, gasoline, and diesel fuel. Limited resistance to brake fluids and other chemicals.
MATERIAL
UV-stabilized polyurethane elastomer.
CAUTION! Misuse can cause electrical shock and injury.
- DO NOT use as a work surface. NO CUTTING, NO DRILLING, NO HAMMERING.
- Use with momentary loads only. DO NOT place ladders, scaffolds, or any type of structure on the protector.
- Avoid concentrated loads.
- Use only on a stable surface. Inclined surfaces, slippery surfaces, and broken ground can cause
- This protector can be a trip hazard to pedestrian traffic If they are unaware of its presence.
- Keep the 3 Channel Cable Protector clean and bright.
- Keep various services, communications, fluids, and power separated. UmIt a channel to one service type.
- Polyurethane Is attacked by some chemicals. Always test a small amount for chemical compatibility before using and follow maintenance procedures.
- Vehicular traffic must pass over the protector slowly and with caution.
MAINTENANCE
- Store in a clean dry area.
- Inspect protector for damage and replace it If
- Remove any foreign materials, solids and liquids.
- Keep clean by using a detergent and water solution.
