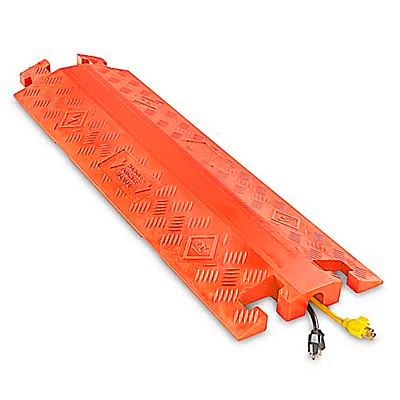

ULINE Drop Over Cable Protector
INSTRUCTIONS

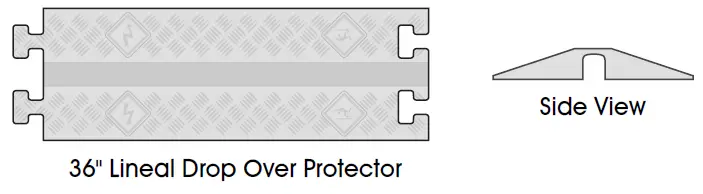

COMPONENTS
NOTE: Drop over protectors do not prevent abrasion to cable from below.
ASSEMBLY

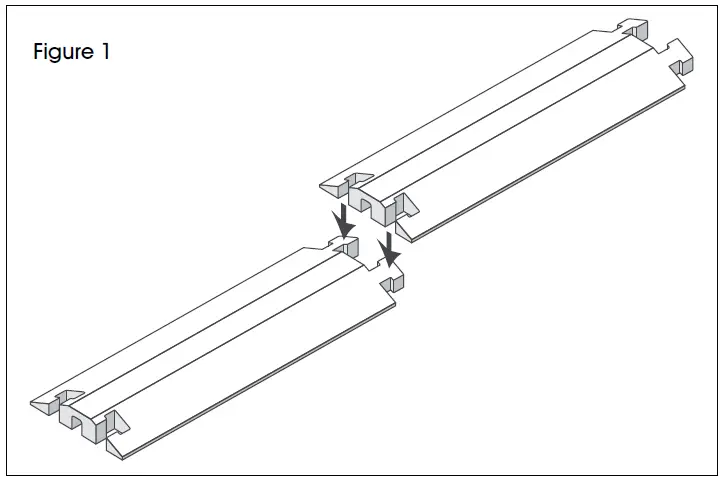

Interlock with T-connectors to extend protection length. (See Figure 1)
- Inspect areas for safety hazards.
- Assemble sections by aligning female connectors over male connectors and press with foot to secure.
- Install cable as required. Place the protector over the top of exposed cable/hose.
- Test installation for intended use.
- Periodically inspect installation.
CHANNEL CAPACITY
| CHANNEL CAPACITY – MAX. DIAMETER INCHES | |
| H-4616 | 1.25″ width x 1.25″ height |
| H-4617 | 2.25″ width x 2.25″ height |
LOAD CAPACITY
The Drop Over Cable Protector has different load supporting capabilities depending on type of vehicle and temperature. Suitability must be verified by testing under actual conditions.
Load-supporting capacity varies by type of loading conditions and environmental conditions. The load capacity decreases in warm environments. Test before use and inspect periodically.
| MODEL NO. | LOAD CAPACITY PER TIRE MAX LOAD 70°F (21°C) | LOAD CAPACITY PER AXLE MAX LOAD 70°F (21°C) |
| H-4616 | 11,700 lbs. | 23,400 lbs. |
| H-4617 | 8,500 lbs. | 17,000 lbs. |
OPERATING TEMPERATURE
-40° to 120°F (-40° to 48°C)
CHEMICAL RESISTANCE
Tested for compatibility with common motor oils, gasoline and diesel fuel. Limited resistance to brake fluids and other chemicals.
MATERIAL
UV-stabilized polyurethane elastomer.
CAUTION! Misuse can cause electrical shock and injury.
- DO NOT use as work surface. NO CUTTING, NO DRILLING, NO HAMMERING.
- Use with momentary loads only. DO NOT place ladders, scaffolds or any type of structure on the protector.
- Avoid concentrated loads.
- Use only on a stable surface. Inclined surfaces, slippery surfaces and broken ground can cause injury.
- This protector can be a trip hazard to pedestrian traffic if they are unaware of its presence.
- Keep the Drop Over Cable Protector clean and bright.
- Keep various services, communications, fluids and power separated. Limit a protector to one service type.
- Polyurethane is attacked by some chemicals. Always test a small amount for chemical compatibility before using and follow maintenance procedure.
- Vehicular traffic must pass over the protector slowly and with caution.
MAINTENANCE
- Store in a clean dry area.
- Inspect protector for damage and replace it if damaged.
- Remove any foreign materials, solids and liquids.
- Keep clean by using a detergent and water solution.
