RATCHEM
HTV
CONNECT AND PROTECT
Self-regulating heating cable

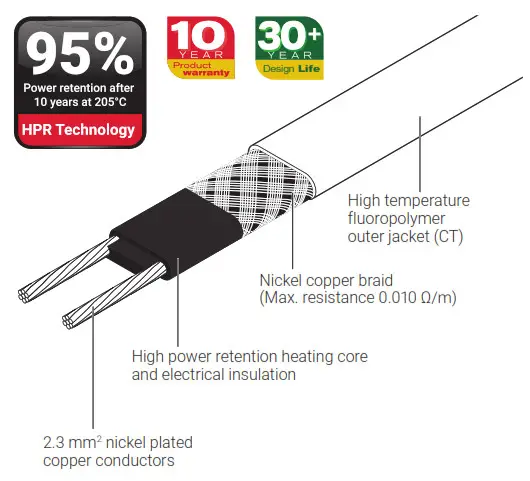

HEATING CABLE CONSTRUCTION
The nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels with very high continuous operating temperatures (205°C).
Maximum exposure temperature is 260°C.
The HTV cable has a solid construction with a high power retention (HPR) heating core and pressure extruded electrical insulation. It is then integrated with a robust metallic braid and a chemically resistant fluoropolymer outer jacket.
The innovative heating core technology and design result in:
- Superior thermal conductivity
- Super stable power output for long operational life
- Ease of stripping, flexing and installation
- Long circuit lengths for minimized total installation cost
Power retention: At least 95% after 10 years of simulated product life at maximum continuous operating temperature (205°C).
Certified for use in hazardous and ordinary areas and comes with a 10 year product warranty programme.
Design life: 30 years or more depending on application.
APPLICATION
| Area classification | Hazardous, Zone 1, Zone 2 (Gas), Zone 21, Zone 22 (Dust) Ordinary |
| Traced surface type | Carbon steel Stainless steel Painted or unpainted metal |
| Chemical resistance | Organics aqueous inorganic chemicals and corrosives |
SUPPLY VOLTAGE
230 Vac (Contact nVent for data on other voltages 190-277 Vac)
APPROVALS
PTB 21 ATEX 1003 X
II 2 G Ex 60079-30-1 IIC T3…T2 Gb Ta = –60°C to +56°CII 2 D Ex 60079-30-1 IIIC T3…T2 Db Ta = –60°C to +56°C
Temperature class and ambient temperature range of the system may vary. Refer to the installation instructions or hazardous area approval for details about the components.
IECEx PTB 21.0007X
Ex 60079-30-1 IIC T3…T2 Gb Ta = –60°C to +56°C
Ex 60079-30-1 IIIC T3…T2 Db Ta = –60°C to +56°C
Temperature class and ambient temperature range of the system may vary. Refer to the installation instructions or hazardous area approval for details about the components.
 | Approval for CIS region pending |
 | Approval for China pending |
SPECIFICATIONS
| Maximum continuous operating temperature (energized) | 205°C |
| Maximum continuous exposure temperature (de-energized) | 205°C |
| Maximum intermittent exposure temperature (energized/de-energized) | 260°C Maximum cumulative exposure 2000 hours(*) (*) Longer periods allowed between 205-260°C. Contact nVent. |
| Temperature classification | 215°C (T2): 20HTV2-CT T3: 3HTV2-CT, 5HTV2-CT, 8HTV2-CT, 10HTV2-CT, 12HTV2-CT, 15HTV2-CT |
| Based on systems approach* | T3-T6 * Approved for the listed temperature classifications by using the principles of stabilized design (as per system classification approach) or the use of a temperature limiting device. Use TraceCalc design software or contact nVent. |
| Minimum installation temperature | –60°C |
| Bus wire size | 2.3 mm² |
| Heating cable dimensions (nominal) | 11.5 mm x 6.9 mm |
| Weight (nominal) | 170 g/m |
| Minimum bend radius | 25 mm at –60°C ≤ T < –20°C 20 mm at –20°C ≤ T < –10°C 15 mm at –10°C ≤ T < +10°C 13 mm at T ≥ +10°C |
| Design life | 30 years or more depending on application |
| Power retention | At least 95% after 10 years of simulated product life at maximum continuous operating temperature (205°C). |

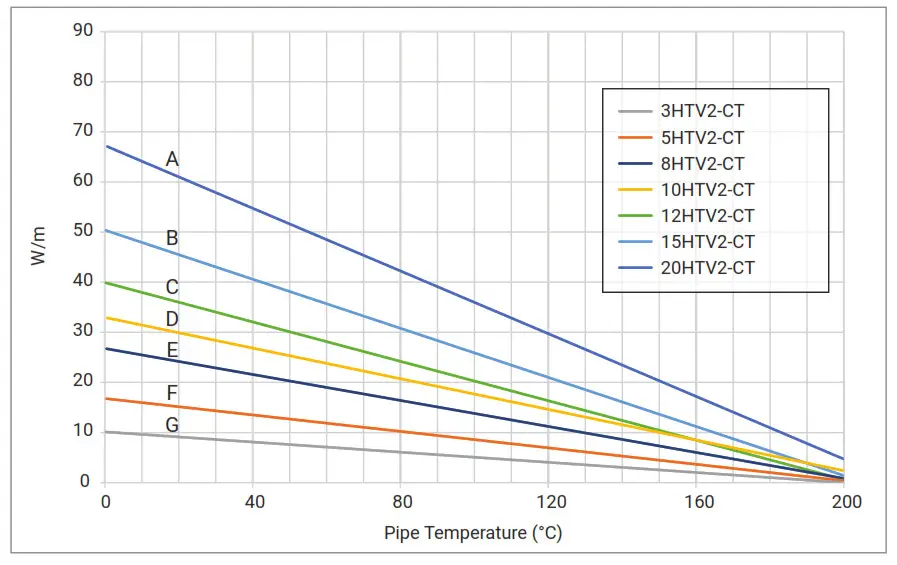

THERMAL OUTPUT RATING
Nominal power output at 230 Vac on insulated steel pipes
| Part description | Nominal power output (W/m at 10°C) | See chart |
| 20HTV2-CT | 64 | A |
| 15HTV2-CT | 48 | B |
| 12HTV2-CT | 38 | C |
| 10HTV2-CT | 32 | D |
| 8HTV2-CT | 25 | E |
| 5HTV2-CT | 16 | F |
| 3HTV2-CT | 9 | G |
MAXIMUM CIRCUIT LENGTH BASED ON TYPE ‘C’ CIRCUIT BREAKERS ACCORDING TO EN 60898
| Start- p Temp. | Electrical protection sizing / Maximum heating cable length per circuit (m) | |||||
| aCS | WIC-!, | WCS. | ffitSh | fil,6,1 | ||
| 3HTV2-CT | 10°C | 197 | 246 | 293 | 293 | 293 |
| 0°C | 189 | 237 | 293 | 293 | 293 | |
| -20°C | 168 | 210 | 262 | 293 | 293 | |
| -40°C | 155 | 193 | 241 | 293 | 293 | |
| 5HTV2-CT | 10°C | 146 | 183 | 224 | 224 | 224 |
| 0°C | 138 | 172 | 215 | 224 | 224 | |
| -20°C | 126 | 158 | 197 | 22,4 | 224 | |
| -40°C | 116 | 145 | 181 | 224 | 224 | |
| 8HTV2-CT | 10°C | 106 | 132 | 16r, | 173 | 173 |
| 0°C | 100 | 125 | 157 | 173 | 173 | |
| -20°C | 92 | 115 | 143 | 173 | 173 | |
| -40°C | 84 | 105 | 132 | 169 | 173 | |
| 10HTV2-CT | 10°C | 90 | 112 | 140 | 152 | 152 |
| 0°C | 86 | 108 | 135 | 152 | 152 | |
| -20°C | 79 | 99 | 123 | 152 | 152 | |
| -40°C | 72 | 91 | 113 | 145 | 152 | |
| 12HTV2-CT | 10°C | 78 | 97 | 121 | 138 | 138 |
| 0°C | 74 | 93 | 116 | 138 | 138 | |
| -20°C | 67 | 84 | 105 | 134 | 138 | |
| -40°C | 62 | 77 | 97 | 124 | 138 | |
| 15HTV2-CT | 10°C | 61 | 76 | 95 | 119 | 119 |
| 0°C | 58 | 72 | 90 | 115 | 119 | |
| -20°C | 53 | 6C | 105 | 119 | ||
| -40°C | 48 | 60 | 75 | 96 | 113 | |
| 20HTV2-CT | 10°C | 46 | 58 | 72 | 92 | 99 |
| 0°C | 44 | 55 | 69 | 88 | 95 | |
| -20°C | 40 | 50 | 63 | 81 | 88 | |
| -40°C | 37 | 46 | 58 | 74 | 82 | |
The above numbers are for circuit length estimation only. The maximum circuit length is for one continuous length of cable, not the sum of segments of cable. For more detailed information please use the nVent TraceCalc design software or contact your local nVent representative. nVent requires the use of a 30 mA residual current device to provide maximum safety and protection from fire. Where design results in higher leakage current, the preferredtrip level for adjustable devices is 30 mA above any inherent capacitive leakage characteristic of the heater as specified by the trace heater supplier or alternatively, the next common available trip level for non adjustable devices, with a maximum of 300 mA. All safety aspects need to be proven.
ORDERING DETAILS
| Part description | Part number |
| 3HTV2-CT | P000004319 |
| 5HTV2-CT | P000004320 |
| 8HTV2-CT | P000004321 |
| 10HTV2-CT | P000004322 |
| 12HTV2-CT | P000004323 |
| 15HTV2-CT | P000004324 |
| 20HTV2-CT | P000004325 |
COMPONENTS
nVent offers a full range of com po nents for power connections, splices and end seals.
These components must be used to ensure proper func tion ing of the product and com pli ance with electrical requirements.
| North America Tel +1.800.545.6258 Fax +1.800.527.5703 [email protected] | Europe, Middle East, Africa Tel +32.16.213.502 Fax +32.16.213.604 [email protected] |
| Asia Pacific Tel +86.21.2412.1688 Fax +86.21.5426.3167 [email protected] | Latin America Tel +1.713.868.4800 Fax +1.713.868.2333 [email protected] |
Our powerful portfolio of brands: CADDY ERICO HOFFMAN RAYCHEM SCHROFF TRACER
©2021 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners.
nVent reserves the right to change specifications without notice.
RAYCHEM-DS-EU1750-HTV-EN-2104
nVent.com/RAYCHEM
