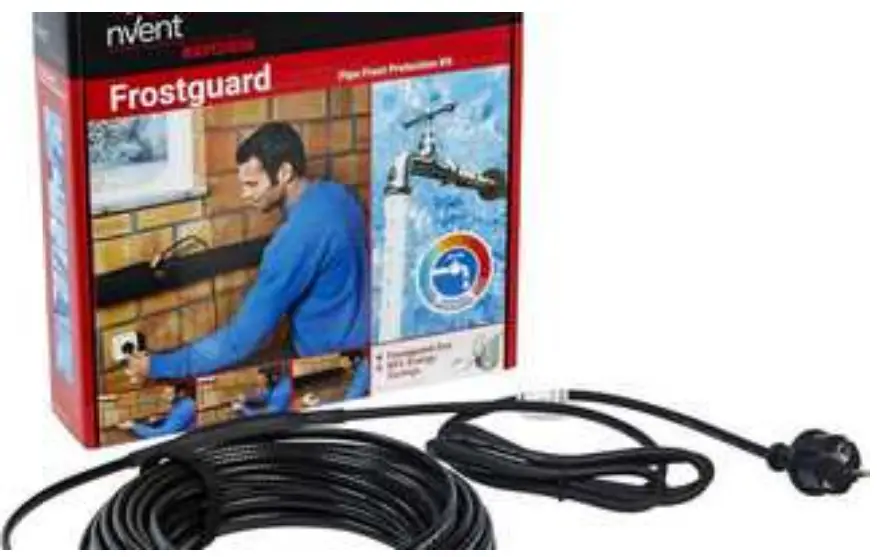

nvent RAYCHEM 1244-007042 Frostguard Self-Regulating Cable Kit
FROSTGUARD SELF-REGULATING CABLE KIT
nVent RAYCHEM FrostGuard kits contain self regulating trace heating cables, pre-installed with electrical cable and plug to provide an energy-efficient and easy-to-use solution for pipe freeze protection.
FEATURES & BENEFITS
Simple to design: kit format, available in 10 sizes
Easy to install: small and flexible trace heating cable, pre-installed with a plug and cold lead to avoid the need for connection by an electrician, ideal for small diameter pipeworkand condensate pipework of condensing boilers
Energy efficient and safe: self-regulating cable, no overheating possible even when overlapped or closely spaced
Reliable during long life: 10 year extended product warranty available, maintenance free
SPECIFICATIONS
Heating Cable Technology Self-Regulating
Nominal Voltage 230 V
Nominal Power Output, In-Pipe @ 230V 16 W/m
Nominal Power Output @ 5°C, 230V 10 W/m
Outer Jacket Material Fluoropolymer
Color Black
Ground Path Type Braid
Min Installation Temperature -20 °C
Nominal Width 8.5 mm
Nominal Height 5.8 mm
Max Continuous Exposure Temperature, Power Off 65 °C
Cold Lead Length 2 m
| Catalog Number | Item Name | Length |
| 641438-000 | FROSTGUARD-10M | 10 m |
| 1244-007042 | FROSTGUARD-10M-DK | 10 m |
| 108722-000 | FROSTGUARD-13M | 13 m |
| 1244-007043 | FROSTGUARD-13M-DK | 13 m |
| 924248-000 | FROSTGUARD-16M | 16 m |
| 1244-007044 | FROSTGUARD-16M-DK | 16 m |
| 468683-000 | FROSTGUARD-19M | 19 m |
| 1244-007045 | FROSTGUARD-19M-DK | 19 m |
| 1244-007038 | FROSTGUARD-2M-DK | 2 m |
| 928206-000 | FROSTGUARD-2M | 2 m |
| 107442-000 | FROSTGUARD-22M | 22 m |
| 1244-007046 | FROSTGUARD-22M-DK | 22 m |
| 768868-000 | FROSTGUARD-25M | 25 m |
| 1244-007047 | FROSTGUARD-25M-DK | 25 m |
| 524628-000 | FROSTGUARD-4M | 4 m |
| 1244-007039 | FROSTGUARD-4M-DK | 4 m |
| 845612-000 | FROSTGUARD-6M | 6 m |
| 1244-007040 | FROSTGUARD-6M-DK | 6 m |
| 493074-000 | FROSTGUARD-8M | 8 m |
| 1244-007041 | FROSTGUARD-8M-DK | 8 m |
Subject to local norms and approvals, FrostGuard can be used for in-pipe applications. For in-pipe applications (where permitted) install using a nVent RAYCHEM approved pipe entry gland assembly.
