Frostguard Self-Regulating Cable
Installation Guide
Frostguard Self-Regulating Cable
Applicable for on-pipe applications
Applicable for in-pipe applications, subject to local norms & approvals
| Insulation | Minimum ambient temperature/ | 20 | 25 | 32 | 40 | 50 |
| 20 | —10 | ABC | ABC | ABC | ABC | ABC |
| —20 | ABC | ABC | ABC | AB- | AB- | |
| -30 | ABC | AB- | A– | A– | A– | |
| 30 | -10 | ABC | ABC | ABC | ABC | ABC |
| —20 | ABC | ABC | ABC | ABC | AB- | |
| -30 | ABC | AB- | AB- | AB- | AB- | |
| 40 | -10 | ABC | ABC | ABC | ABC | ABC |
| —20 | ABC | ABC | ABC | ABC | ABC | |
| —30 | ABC | ABC | ABC | ABC | AB- | |
| 50 | -10 | ABC | ABC | ABC | ABC | ABC |
| —20 | ABC | ABC | ABC | ABC | ABC | |
| —30 | ABC | ABC | ABC | ABC | ABC |
Insulation table
A = ETL/FrostGuard in water pipes
B = ETL/FrostGuard on metal pipes
C = ETL/FrostGuard on plastic pipes
– = Insufficient effect for anti-freeze protection
–10°C Corresponds to 1.5 m depth in the ground
–20°C Corresponds to 0.5 m depth in the ground
–30°C Corresponds to 0.25 m depth in the ground

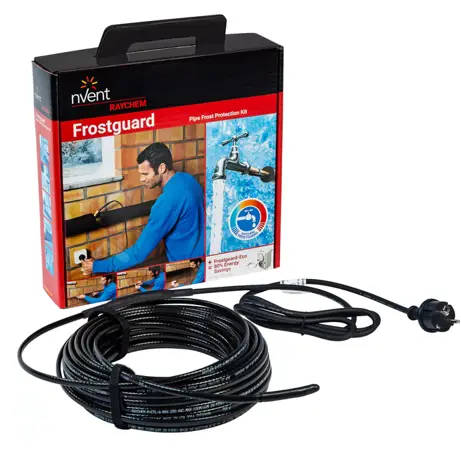

nVent RAYCHEM FrostGuard, self-regulating heating cable for anti-freeze protection of water pipes. IP 68. Application conditions min. -30°C and max. +65°C
Instructions for installation
FrostGuard is supplied with 2 m of power cable and a plug for temporary installation. The cable is non replaceable and the entire heating cable must be discarded if it is damaged. The connection plug of the UK FrostGuard product should be made FrostGuard plug.
CAUTION: Make sure that the heating cable is not covered by material with heat use, contact your electrical contractors for thermostat.
Use a 30-mA GLCB or RCD. nVent, international and local electrical codes, and standards all require the use of a ground-fault equipment protection device on each heating
cable circuit. Arcing may not be stopped by conventional circuit breakers which could result in a fire hazard.
De-energise all electrical circuits before installation or servicing.
The presence of the trace heater shall be made evident by the posting of caution signs at frequent intervals along the circuit.

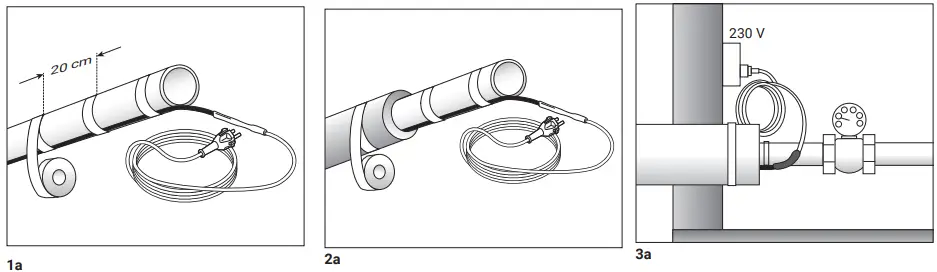

External installation
1a. Tape the heating cable to the underside of the pipe. Use age-resistant tape, e.g. electrical tape.
2a. Insulate the pipe. Select the insulation thickness according to the table.
3a. Connect to a wall socket.
Internal installation
1b. Fit the Y-piece to the pipe. Thread the R20-connector onto the heating cable. Use a lubricant, such as washing up liquid, to facilitate application of the rubber packing. Insert the heating cable into the Y-piece. The splice between the heating cable and cold cable must not be inserted in the pipe.
2b. Fully tighten the R20 connector.
3b. Insulate the pipe. Select the insulation thickness according to the table.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Itali
Tel +39 02 577 61 51
Fax +39 02 577 61 55 28
[email protected]
Nederland
Tel 0800 0224978
Fax 0800 0224993
[email protected]
nVent.com
02018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates.
All other trademarks are the property of their respective owners
nVent reserves the right to change specifications without notice.
Raychem-I M-INST253f-FrostGuard-ML-1805 PCN 960544-000
