EARTHWAY F80S Commercial Broadcast Spreader with Standard Output Tray

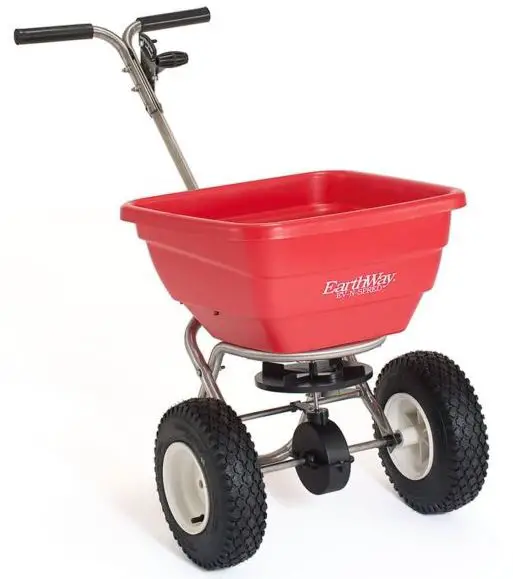

Product Information

The F80S Commercial Broadcast Spreader with Standard Output Tray is a high-quality product designed for commercial use. The spreader comes with a range of features that make it easy to use and highly effective. Some of the key features of this product include:

• Standard output tray
• FlexSelect™ technology for easy adjustment of the spread rate
• Pneumatic tires for smooth operation on any terrain
• Heavy-duty rain cover for protection against the elements
• Side deflector for precision spreading
• Optional accessories for added functionality

This spreader is perfect for use in large commercial settings, such as golf courses, parks, and athletic fields. Its durable construction ensures that it can withstand heavy use and provide reliable performance over time.

Product Usage Instructions

Before using the F80S Commercial Broadcast Spreader with Standard Output Tray, it is important to assemble the product correctly. The user manual provides detailed instructions on how to do this, with step-by-step guides and diagrams to help you along the way. Once you have assembled the spreader, you can begin using it to spread fertilizer, seed, and other materials. To use the spreader, follow these steps:

1. Fill the hopper with the material you want to spread.
2. Adjust the spread rate using the FlexSelect™ technology. This will ensure that you are spreading the right amount of material for your needs.
3. Push the spreader forward while squeezing the lever to release the material. Walk at a steady pace to ensure an even spread.
4. Use the side deflector to control the direction of the spread. This is especially useful when working near flower beds or other sensitive areas.
5. When you are finished, clean the spreader thoroughly to prevent clogging and ensure that it is ready for its next use.

By following these simple steps, you can get the most out of your F80S Commercial Broadcast Spreader with Standard Output Tray and ensure that your lawn or garden looks great all year round.

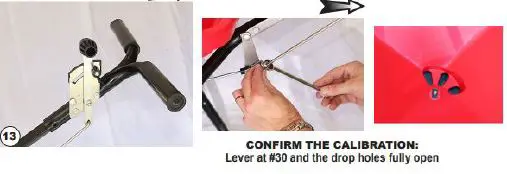

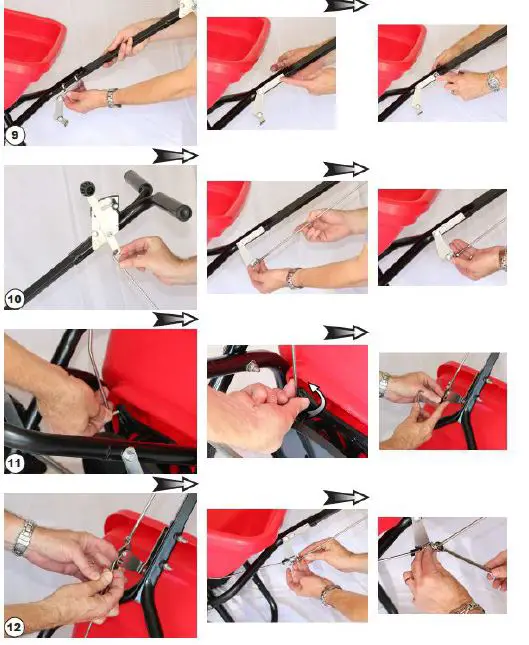

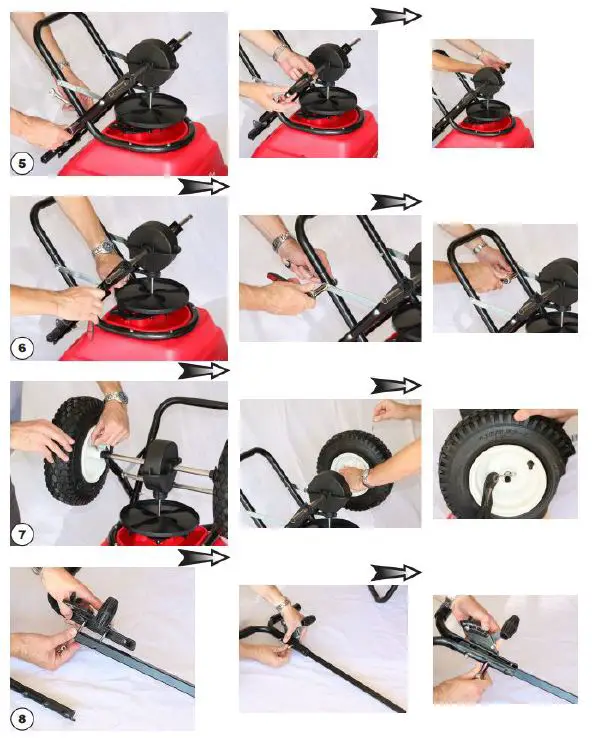

ASSEMBLY

COMPLETE ASSEMBLY:

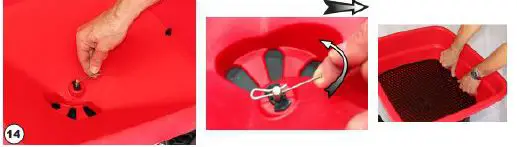

Install agitator, bend the agitator up slightly to prevent contact with the standard output tray, and install debris screen (press over 1/4 turn fasteners to secure)

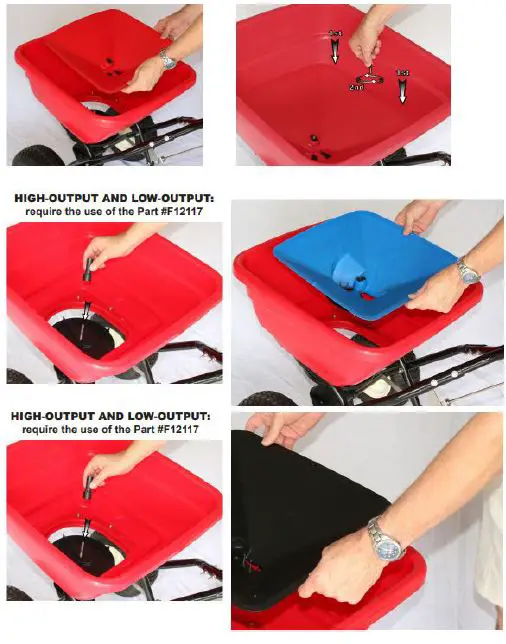

TRAY INSTALLATION

HELPFUL HINTS

• If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader. The impeller must turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise. Clean the impeller after each use as some fertilizer may become stuck on the impeller blades and will cause uneven spreading.
• Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds change the spread patterns. Wet fertilizer will also change the spread pattern and flow rate.
• Clean and dry your spreader thoroughly after each use, wash between the shut-off plate and bottom of the hopper regularly. To prevent rust, coat all metal parts (inside and out) including the frame tubes with a light oil, silicon spray, or Fluid Film*.
• Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
• When using Rock Salt to prevent damage to the gearbox remove salt from the hopper daily. Rock Salt will reconstitute back into a solid block if left in the hopper overnight and will damage your gearbox if pushed with the salt in place.

OPERATING INSTRUCTIONS

Before filling hopper, become familiar with the operation of this spreader.

• Obtain proper setting for material to be used from the enclosed SETTING MATRIX included with this spreader, or from our web site under the MANUALS SECTION.
• Move stop bolt on rate gauge assembly to the proper setting.
• While pushing spreader forward, pull control lever back to stop bolt.
• To stop, push lever forward to close flow holes before you stop moving.
• When finished, empty any remaining material from hopper.
• Thoroughly wash spreader and allow to dry before storing. Apply coating of light oil to help prevent corrosion.
• If you use Rock Salt, remove agitator when using Rock Salt to prevent damage to the gearbox.

ONE YEAR WARRANTY

EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear and tear as determined by EarthWay. EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from EarthWay Products, Inc. To seek remedy under this warranty, contact EarthWay Products, Inc. at [email protected] or write to EarthWay Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC

LIMITATIONS: This warranty covers only the parts) or product; any labor charges associated with repair or replacement of non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or its effects.
