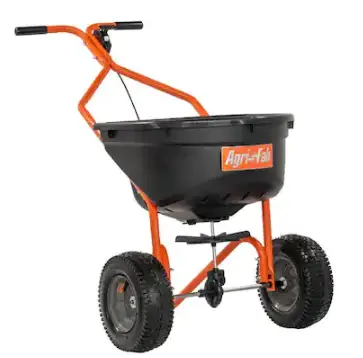

THE HOME DEPOT 45-0576 17500 sq. ft. Coverage Push Broadcast Spreader

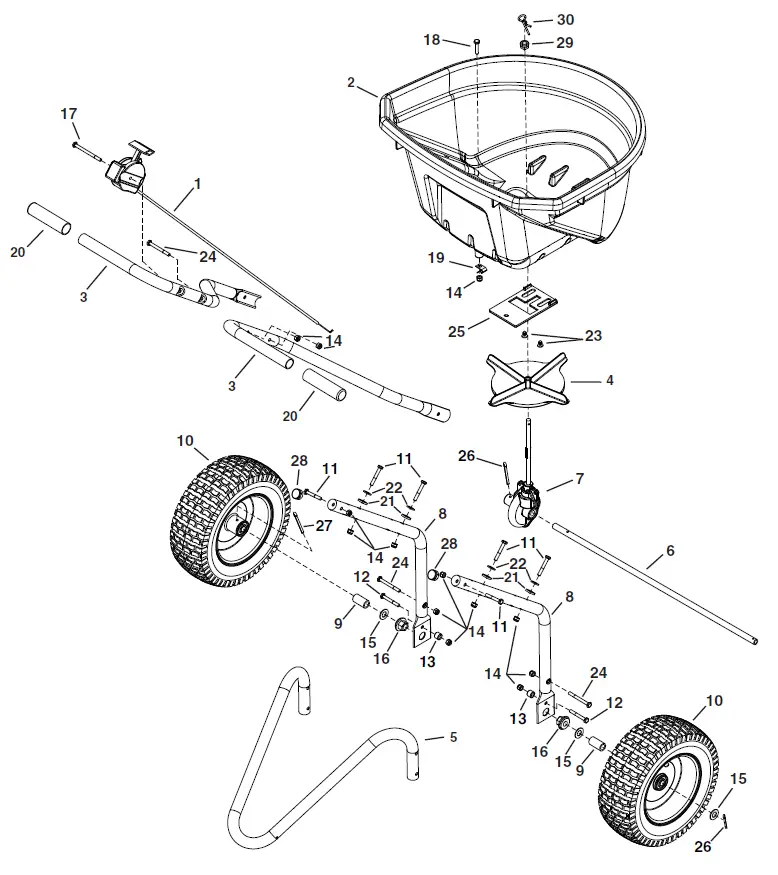

ASSEMBLY INSTRUCTION
| REF | QTY | PART NO | DESCRIPTION | REF | QTY | PART NO | DESCRIPTION |
| 1 | 1 | 45281 | Control, Cable | 17 | 1 | 46071 | Bolt, Hex 1/4-20 X 3-1/4 |
| 2 | 1 | 45282 | Hopper | 18 | 1 | 1509-90 | Bolt, Hex 1/4-20 X 1-1/4 |
| 3 | 2 | 41924OR1 | Tube, T-Handle | 19 | 1 | 41196 | Clamp |
| 4 | 1 | 45504 | Impeller | 20 | 2 | 44482 | Grip, Handle |
| 5 | 1 | 42004OR1 | Tube, Stand | 21 | 4 | 1543-69 | Washer, Nylon .3281 x .75 |
| 6 | 1 | 2-192 | Axle, .500 Tube | 22 | 4 | 43088 | Washer, 1/4 Std .312 x .734 |
| 7 | 1 | 69209 | Gearbox | 23 | 2 | 48402 | Plug, 1/4″ (Christmas Tree) |
| 8 | 2 | 28322OR1 | Tube, Hopper | 24 | 3 | 49870 | Bolt, Hex 1/4-20 x 2-1/2 |
| 9 | 2 | 4-14 | Spacer, .53 x 1.40 | 25 | 1 | 45344 | Plate, Flow |
| 10 | 2 | 45802G | Wheel & Tire Assembly, 12″ | 26 | 2 | 43010 | Pin, Cotter 1/8″ x 1-1/4″ |
| 11 | 6 | 1509-69 | Bolt, Hex 1/4-20 x 1-3/4 | 27 | 1 | 46855 | Pin, Cotter 3/16′ x 2″ |
| 12 | 2 | 46699 | Bolt, Hex 1/4-20 x 2 | 28 | 2 | 49449 | Plug |
| 13 | 2 | 28325 | Small Spacer | 29 | 1 | 44285 | Bushing, Hopper Bottom Black |
| 14 | 13 | 47189 | Nut, Hex 1/4-20 Nylock | 30 | 1 | 48934 | Hairpin, Agitator |
| 15 | 3 | R19171616 | Washer, .532 x 1 x .059 | 1 | 3-110 | Owner’s Manual | |
| 16 | 2 | 47963 | Bearing, Hex Flange |
