Operator’s Manual RS600
Broadcast Spreader
X7507840102 © 7/21 ECHO Incorporated

INTRODUCTION

Specifications, descriptions, and illustrative material in this literature are as accurate as known at the time of publication, but are subject to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment.

Read and understand all provided literature.
The literature contains specifications and information for safety, operation, maintenance, storage, and assembly specific to this product. Scan QR codes for more information.

https://www.echo-usa.com/Support-Help/Technical-Documents?gt=true https://www.shindaiwa-usa.com/Tech-Support/Technical-Documents.aspx?gt=true
https://www.shindaiwa-usa.com/manuals

SERVICING INFORMATION

Parts and Serial Number
Genuine SHINDAIWA Parts and Assemblies for your SHINDAIWA products are available only from an Authorized SHINDAIWA Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you. For future reference, write them in the space provided below.

Service

Service of this product during the warranty period must be performed by an Authorized SHINDAIWA Service Dealer. For the name and address of the Authorized SHINDAIWA Service Dealer nearest you, ask your retailer or call: 1-877-986-7783. Dealer information is also available on WWW.SHINDAIWA-USA.COM. When presenting your unit for Warranty service/repairs, proof of purchase is required.

Consumer Product Support
If you require assistance or have questions concerning the application, operation or maintenance of this product you may call the SHINDAIWA Consumer Product Support Department at 1-877-986-7783 from 8:00 am to 5:00 pm (Central Standard Time) Monday through Friday. Before calling, please know the model and a serial number of your unit.

Product Registration
To ensure trouble-free warranty coverage it is important that you register your SHINDAIWA equipment online at WWW.SHINDAIWA-USA.COM or by filling out the product registration sheet included in this manual. Registering your product confirms your warranty coverage and provides a direct link between you and ECHO if we find it necessary to contact you.

Additional Literature
In addition to finding information online, information is available from your Authorized Shindaiwa Service Dealer, or by contacting ECHO Incorporated, 400 Oakwood Road, Lake Zurich, IL 60047, 1-800-432-ECHO (3246).

Safety Information

WARNING
Carefully read these instructions before use. Improper use or failure to follow instructions can result in product failure or injuries. For safe use of this product you must read nd follow all instructions before using.

WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov

WARNING

Do not allow anyone to operate the broadcast spreader without proper instructions.
Do not permit children to operate the broadcast spreader.
Wear all personal protective equipment recommended by the chemical manufacturers.
Read and follow the chemical label instructions and warnings for handling and applying the chemicals you plan to spread – the application settings provided are only a guideline.

DESCRIPTION

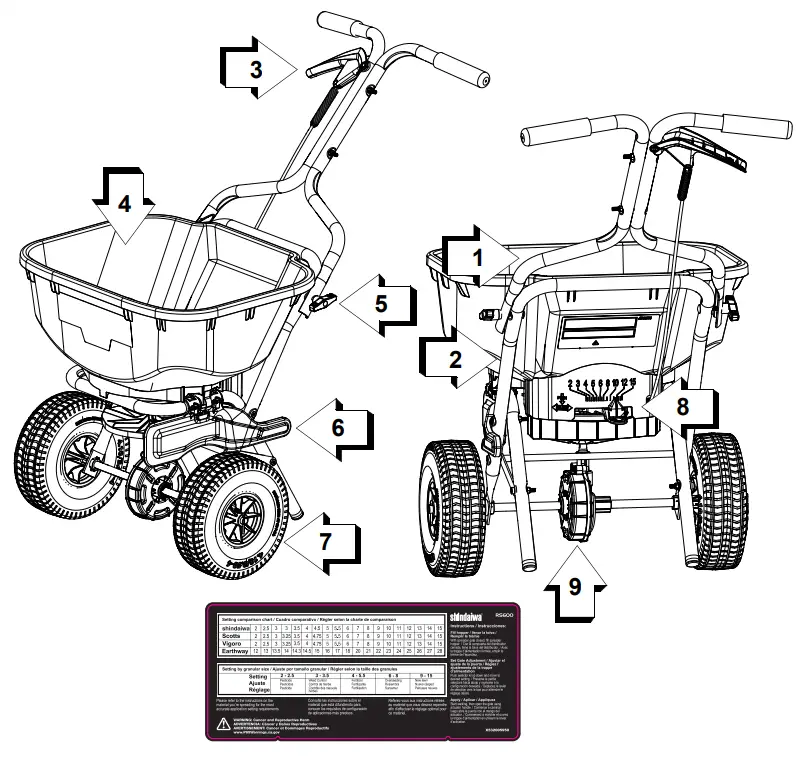

Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your dealer. The safety decal is for example only. Your label may appear slightly different.

Top Handle Bracket
Bottom Handle Bracket
Actuator Handle
Hopper
Handle Assembly Wing Nut
Side Deflector
Wheels
Gate Adjuster
Gear Case

The product you purchased has been partially factory pre-assembled for your convenience. Due to packaging restrictions, some assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or Dealer of damaged or missing parts. Use the contents list to check for missing parts.

1 Broadcast Spreader Assembly
2 Carriage Bolts
2Wing Nuts
1 Quick Start Guide

ASSEMBLY

Install Handle Brackets

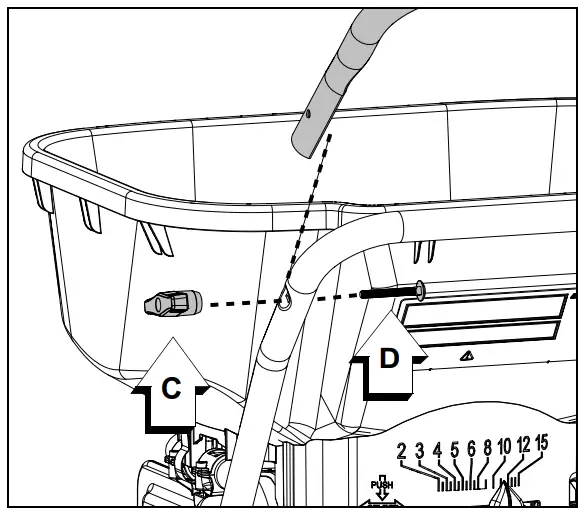

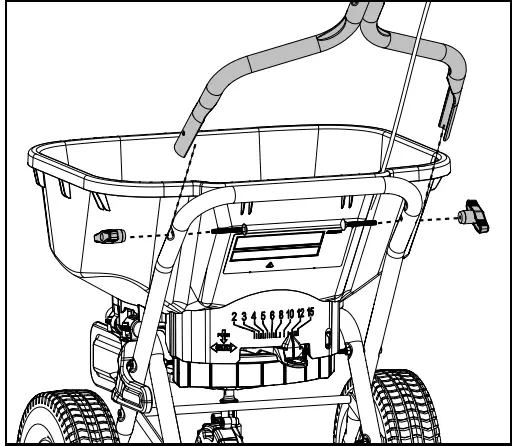

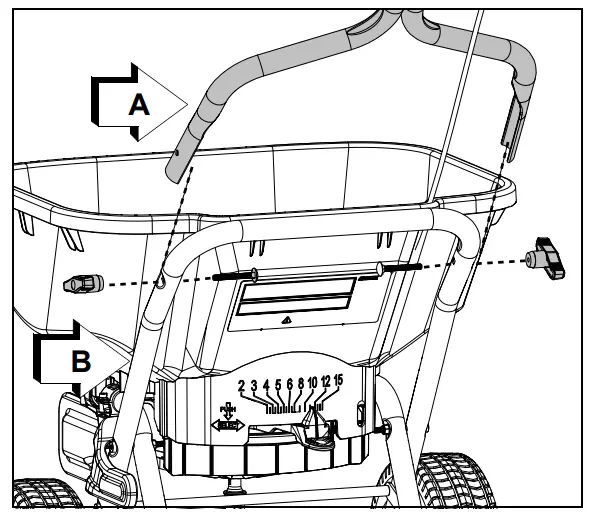

Align holes in the top handle bracket (A) with holes in the bottom handle bracket (B).
Secure handle brackets with wing nuts (C) and carriage bolts (D) on each side.
Note: Attach each side loosely before tightening brackets securely.

NOTICE

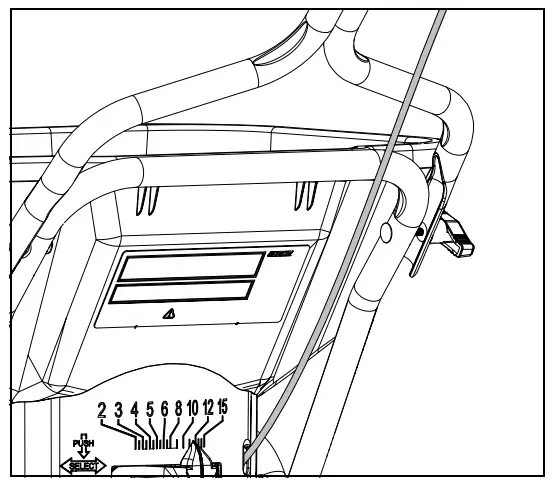

Assure control cable is routed behind handle brackets.

Check Tire Pressure

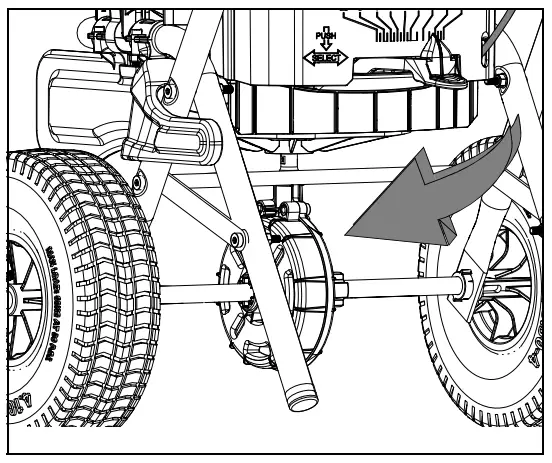

Tires should be inflated to 15 psi. Assure tire pressure does not exceed 30 psi.

OPERATION

CAUTION

TIP HAZARD. The unit can tip on uneven ground. Always fill the hopper on flat ground, and keep bystanders away. Otherwise, personal injury can result.

Fill Hopper

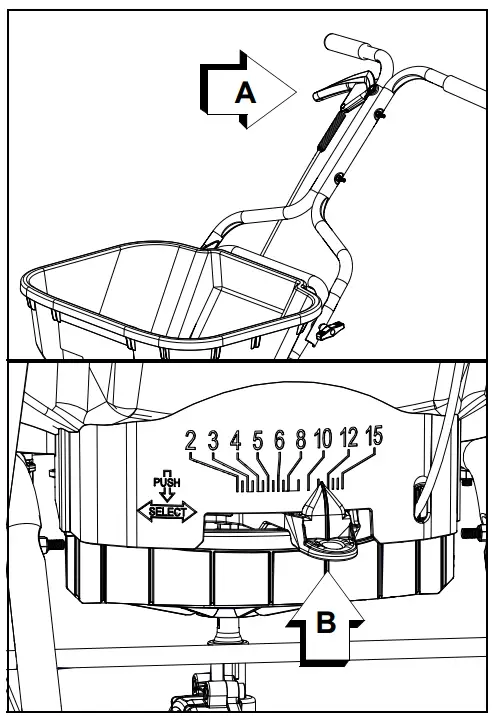

Release actuator handles (A) to close the gate. Fill hopper.
Note: Fill the hopper in an area that won’t be damaged by the spilled product.
Set Gate Adjustment Push gate adjuster (B) down and move to the best application setting (see chart below). Pull adjuster upward to lock in place.
Note: Gate adjustment settings should only be used as a general guideline for application. Refer to instructions on the material you are spreading for the most accurate application setting requirements.
Application

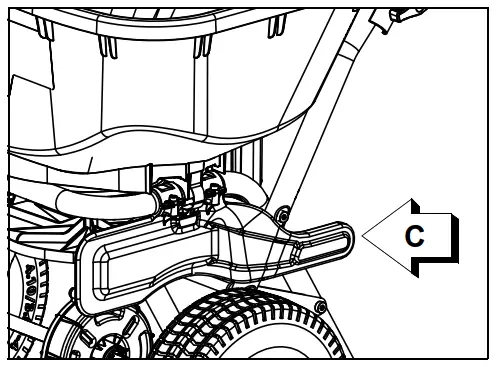

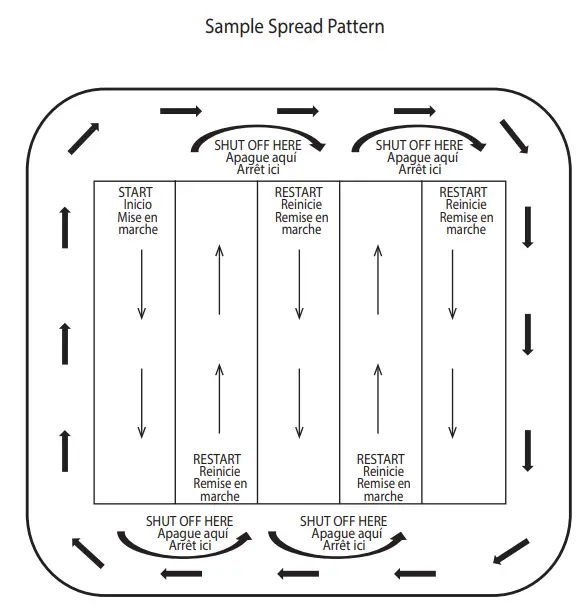

A. Lower edge guard (C) and make perimeter pass to protect non-lawn areas. Pull actuator handle to open gate while spreading.
B. Raise edge guard. Make parallel internal passes to ensureeven coverage.

Setting comparison chart
Shindaiwa	2	3.	3	3	4.	4	5.	5	6.	6	7	8	9	10	11	12	13	14	15
Scotts	2	3.	3	3.	4.	4	5.	5	6.	6	7	8	9	10	11	12	13	14	15
Vigoro	2	3.	3	3.	4.	4	5.	5	6.	6	7	8	9	10	11	12	13	14	15
Earthway	12	13	14.	14	14.	15.	15	16	17	18	20	21	22	23	24	25	26	27	28

Setting by granular size
Setting	2-2.5	3-3.5	4-5.5	6-8	9-15
Setting	Pesticide	Weed Control	Fertilizer	Overseeding	New lawn

MAINTENANCE

Clean Spreader

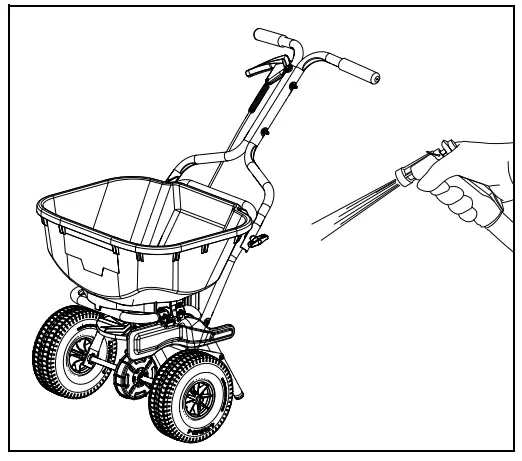

Avoid spraying the gear case directly, and do not use a pressure washer on the spreader.

Wash spreader with a garden hose after each use.

Check Tire Pressure

Tires should be inflated to 15 psi. Assure tire pressure does not exceed 30 psi.

Replacing Control Cable

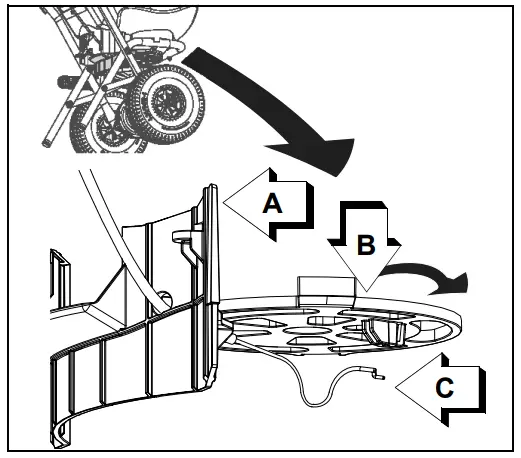

Remove Shield (A).
Turn gate (B) clockwise to relieve tension on the cable.

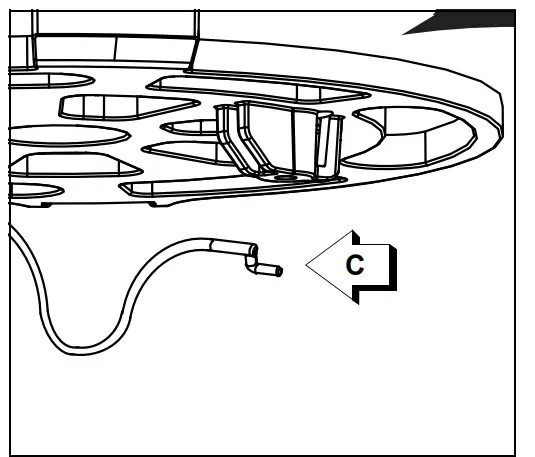

Remove cable S hook (C) from gate.
Remove upper handle bracket from lower handle bracket.

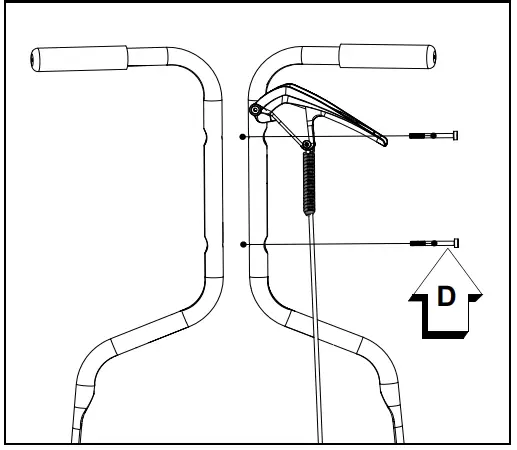

Remove bolts (D) and separate handle halves.
Install new handle half with control cable assembly.
Re assemble spreader components.

SPECIFICATIONS

Assure control cable is routed behind handle brackets.

SPECIFICATIONS

MODEL	RS600
Length	959 mm (37.75 in.)
Width	584 mm23 in.) (
Height	794 mm (31.25 in.)
Weight	10.2 kg (22.4 lb.)
Capacity
Weight	27.2 kg (601b.)
Volume	36.8 L (1.3 ft3)
Loading Height	584 mm (23 in.)
Wheels and Tires
Tire Diameter	254 mm (10in.)
Tire Type	Pneumatic
Recommended Pressure	103.4 kPa (15 psi)

PRODUCT REGISTRATION

Thank you for choosing Shindaiwa Power Equipment

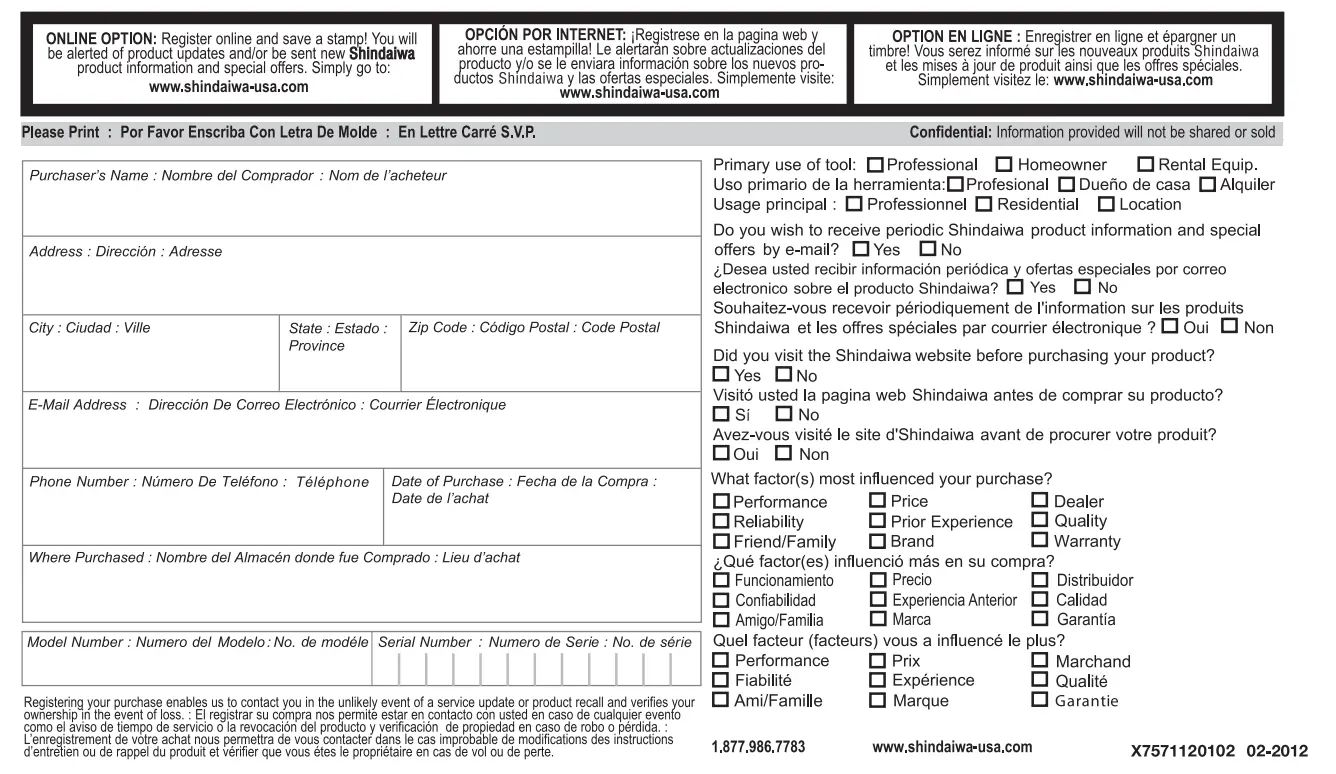

Please go to http://www.shindaiwa-usa.com to register your new product on-line. It’s FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
