Scope and General

The manual only used to PEFS-24V-CN Series Panel-level Rapid Shutdown(DC 24V) Control Box.

VersionDateRemarkChapter
V1.02021-10-15First Edition
V2.02022-04-20Content Modified4 Installation & Connection/ 5 Technical Specification

Important Safety Precautions

PROJOY assumes no responsibility for any loss, in particular for circuit damage, resulting from any violation of the specifications recommended and referred to in this specification. PROJOY assumes no responsibility for the damage of the product caused by the maintenance, improper use, wrong installation or wrong system design of the product by non-designated personnel.1) PEFS is an electrical product that should be installed by a suitable person who meets local regulations. When modifying an existing installation, isolate the inverter from the PV array by turning OFF the DC isolator/switch disconnect or turn OFF the inverter and the AC switch. Incorrect connections to the PEFS-24V-CN may cause failure.If the inverter and pv module connectors are not compatible with PEFS connectors, forced connections are unsafe and may cause operational problems. For the mechanical compatibility of the module/converter and PEFS, use the same connectors from the same manufacturer on both the PEFS and modules, or obtain verification that the connectors to be used are compatible.

Introduction

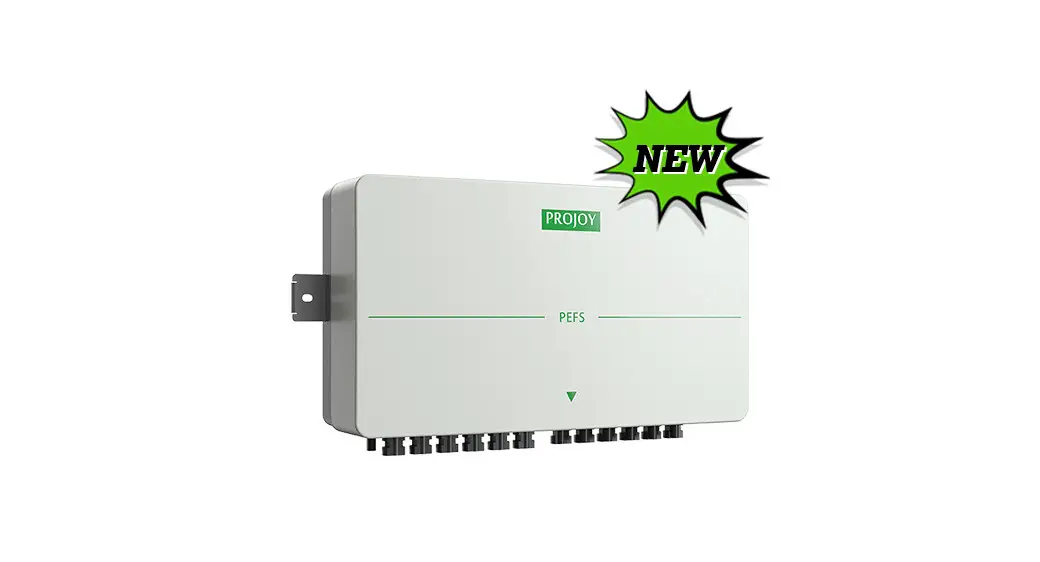

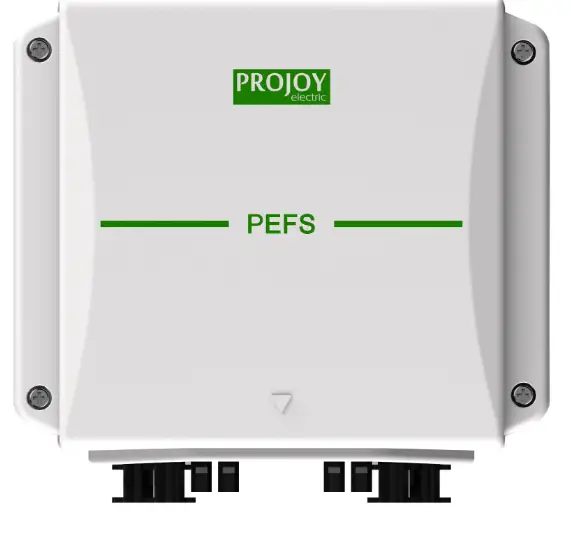

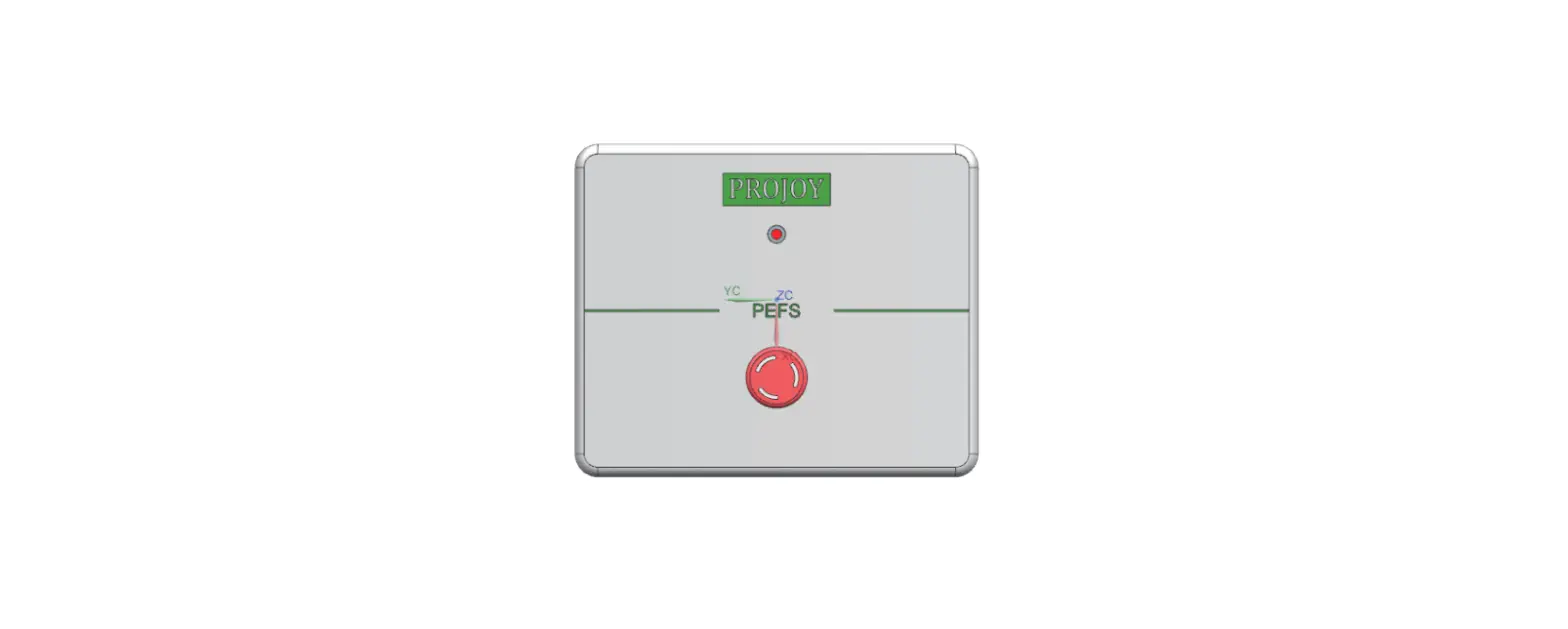

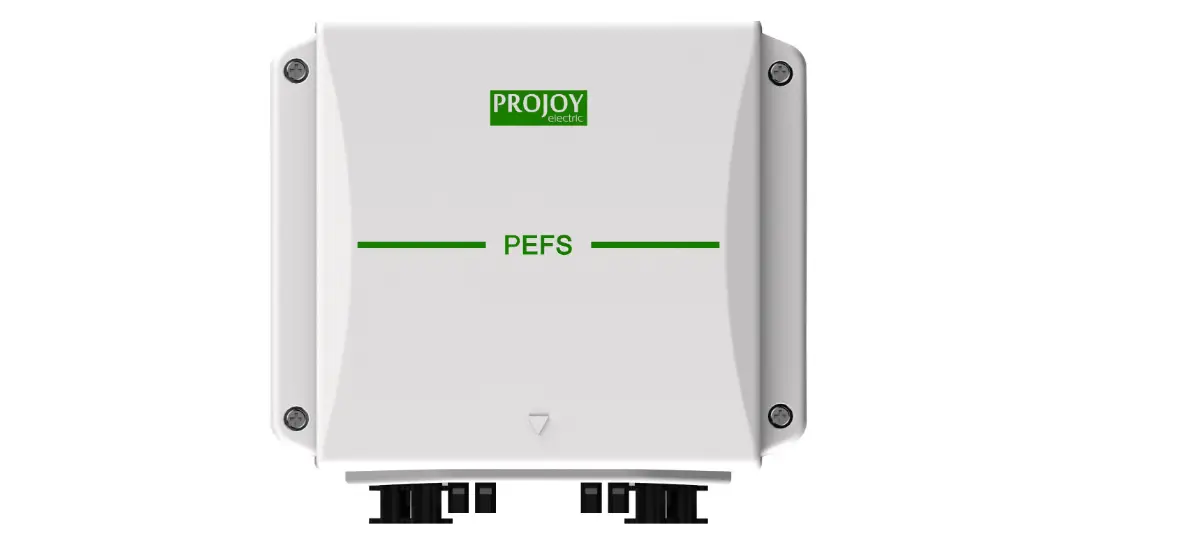

PEFS -24V-CN Emergency Rapid Shutdown Switch Unit (excludes 24 VDC power supply)

Installation & Connection

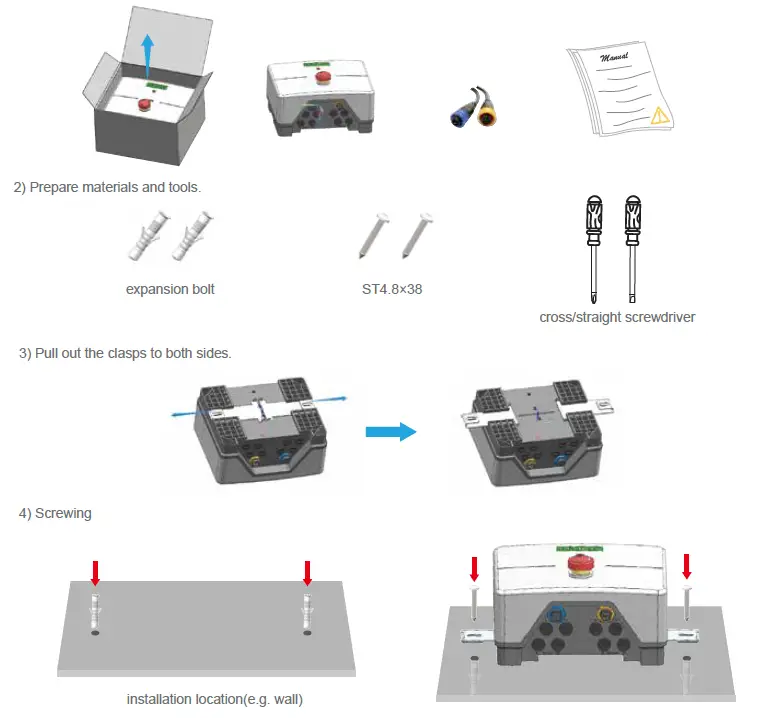

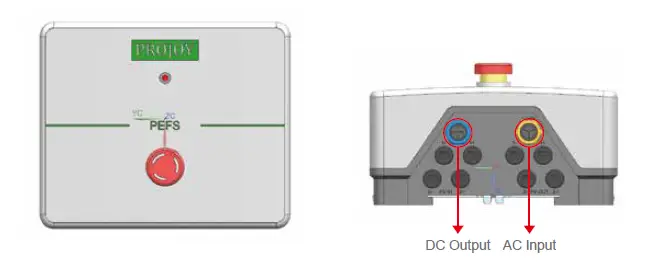

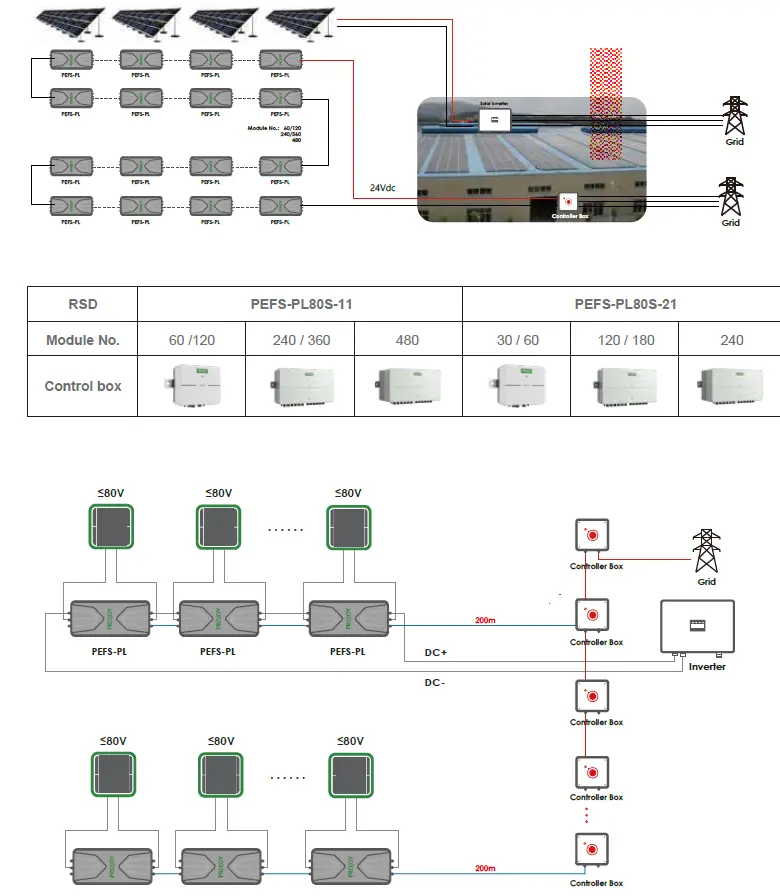

The installation locations and modes of PEFS-24V-CN are shown below. Open the box, take out PEFS-24V-CN and parts, and read this manual.

The Emergency Rapid Shutdown Switch Unit PEFS-24V-CN can be conveniently located anywhere for emergency access and is supplied with an internal 24VDC power supply to interface with the PEFS-24V-CN units.

Technical Specification

TypePEFS-24V-C60PEFS-24V-C120PEFS-24V-C240PEFS-24V-C360PEFS-24V-C480
Operating AC Voltage Range100~240V AC
Norminal Frequency50/60 Hz
Output Voltage24V DC
Output Current2.2A2*2.2A4* 2.2A6* 2.2A8* 2.2A
24Vdc Control Cable Size0.823 mm2 / 18 AWG
24Vdc Control Cable Length With Standard Connectors20 m / 30 m / 100 m
Spare Terminal ConnectorsYes
Maximum PEFS-PL80S-1160 Unites120 Unites240 Unites360 Unites480 Unites
Maximum PEFS-PL80S-2130 Unites60 Unites120 Unites180 Unites240 Unites
Dimensions(mm)210*175*105210*175*105375*205*95375*205*95375*205*160
With LockOptional
Ambient Operating Temperature-30℃ ~ +70℃
Protection ClassIP65
MountingWall Mounted
Max cable length200m (RSD cable length Excluded)

Trouble Shooting

ProblemPossible CausePossible Solution












Panel (pair) voltage is 0V

No mains supplyCheck area utility operational
(LED OFF)Check mains ON
Check mains fuse
PEFS-24V-CN power supply failureCheck mains voltage between L&N marked terminals
Check 24VDC between + & – marked terminals
PEFS-24V-CN switch activatedTurn red actuator anti-clockwise to release button
No PEFS-24V-CN switch outputCheck 24VDC between switch out terminal & PSU – marked terminal
Broken cableCheck 24VDC between terminals of remote AMP
Superseal connector (pin 1 +24VDC\pin 2 0VDC)
PV array not connectedCheck all PV to PEFS-24V-CN input connections
Incorrect PEFS-24V-CN polarity connectionCheck PV array Positive (+) goes to PEFS-24V-CN
Positive (+) and PV array Negative (-) goes to PEFS-PC Negative (-)
No PEFS-24V-CN outputReplace PEFS-24V-CN
PV Inverter input 0VNo DC isolator (if fitted)Check PEFS-24V-CN output connections
inputCheck DC inputs to isolator
DC Isolator (if fitted) OFFTurn DC Isolator ON
String voltage too lowIncorrect PEFS-24V-CN polarity connectionCheck all PV array Positive (+) go to PEFS-PC
Positive (+) and PV array Negative (-) goes to PEFS-PC Negative (-)

In the occurrence of a fire, PROJOY recommends that all elements of the PEFS Rapid Shutdown system be assessed for operational suitability by a competent person prior to re-energizing.

Aftersales service and warranty

This product is manufactured in a sophisticated quality management system. In case of fault, the following warranty and after-services clauses are applicable.
Warranty
On the premise of the user’s compliance with the reservation and use specifications of the breaker, for breakers whose delivery date is within 60 months from now and whose seals are intact, PROJOY will repair or replace any of these breakers which are damaged or cannot work normally due to manufacture quality. However, as for faults caused by the following reasons, PROJOY would repair or replace the breaker with a charge even it is still in warranty.

  1.  Due to incorrect use, self-modification and improper maintenance, etc.:
  2.  Use beyond the requirements of standard specifications;
  3.  After the purchase, due to falling and damage during installation, etc.;
  4.  Earthquakes, fires, lightning strikes, abnormal voltages, other natural disasters and secondary disasters, etc.

Aftersales service

  1.  Please contact the supplier or our company’s after-sales service department in case of failure;
  2.  During the warranty period: For failures caused by the company’s manufacturing problems, free repairs and replacements;
  3.  After the warranty period expires: If the function can be maintained after the repair, make a paid repair, otherwise it can be replaced with a paid.

Contact us

  • Projoy Electric Co., Ltd.
  • Tell: +86-512-6878 6489
  • Web: https://en.projoy-electric.com/
  • Add: 2nd Floor, Building 3, No. 2266, Taiyang Road, Xiangcheng District, Suzhou

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
