PROJOY PEFS-PC Series RSD Panel Level Rapid Shutdown Control Box
Scope and General
The manual only used to PEFS-PC Series Array-level Rapid Shutdown Control Box.
| Version | Date | Remark | Chapter |
| V1.0 | 2021-10-15 | First Edition | – |
Important Safety Precautions
Disclaimer
PROJOY assumes no responsibility for any loss, in particular for circuit damage, resulting from any violation of the specifications recommended and referred to in this specification. PROJOY assumes no responsibility for the damage of the product caused by the maintenance, improper use, wrong installation or wrong system design of the product by non-designated personnel.
Safety instructions
- PEFS is an electrical product that should be installed by a suitable person who meets local regulations.
- When modifying an existing installation, isolate the inverter from the PV array by turning OFF the DC isolator/switch disconnect or turning OFF the inverter and the AC switch.
- Incorrect connections to the PEFS-PC may cause failure.
Cautions
If the inverter and PV module connectors are not compatible with PEFS connectors, forced connections are unsafe and may cause operational problems. For the mechanical compatibility of the module/converter and PEFS, use the same connectors from the same manufacturer on both the PEFS and modules, or obtain verification that the connectors to be used are compatible.

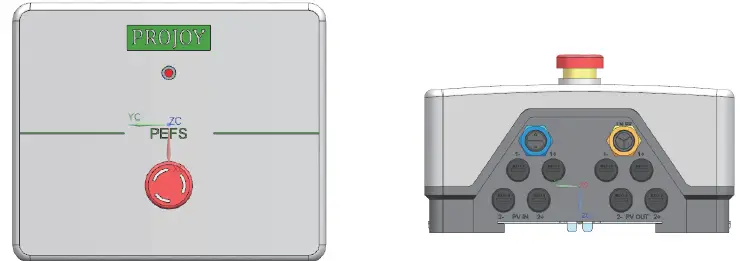

Introduction

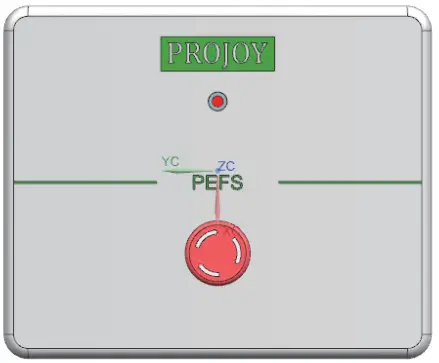

PEFS -PC Emergency Rapid Shutdown Switch Unit (excludes 24 VDC power supply)
Installation & Connection
The installation locations and modes of PEFS-PC are shown below.
- Open the box, take out PEFS-PC and parts, read this manual.

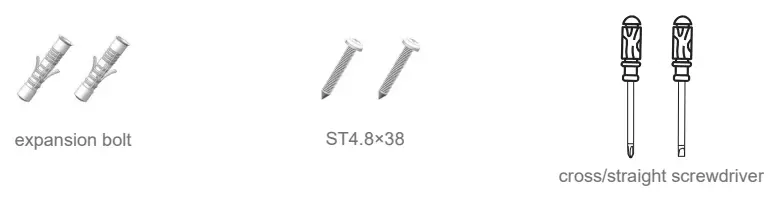

- Prepare materials and tools.

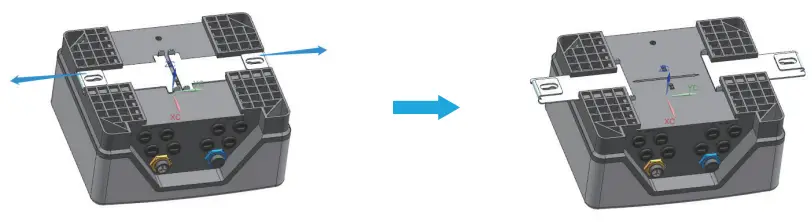

- Pull out the clasps to both sides.

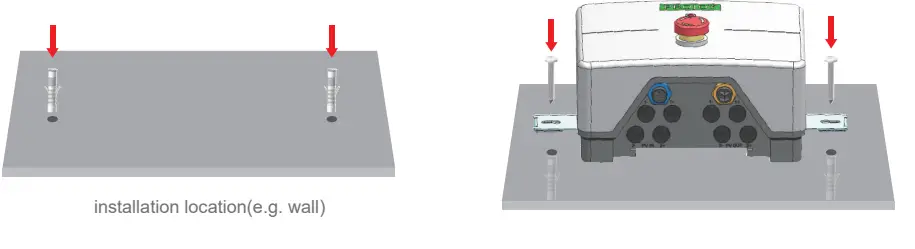

- Screwing

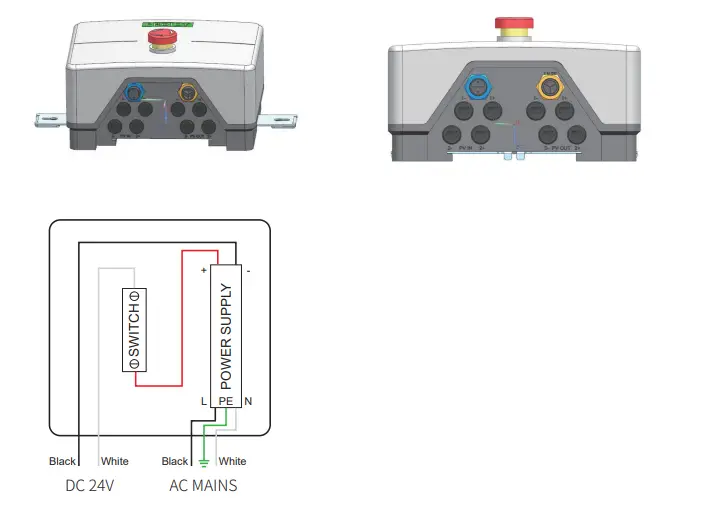

The Emergency Rapid Shutdown Switch Unit PEFS-PC can be conveniently located anywhere for emergency access and is supplied with an internal 24VDC power supply to interface with the PEFS-PC units.
Technical Specification
| Type | PEFS-PC |
| Input Voltage | 100~240V AC |
| Rated input current | 200mA (Vi 115VAC) / 135mA (Vi 230VAC) Rated |
| Output Voltage | 24V DC |
| Controlled fast shutdown number | ≤60 pcs PEFS-PL80S-11 or ≤30 pcs PEFS-PL80S-21 |
| With Lock | Optional |
| Dimensions | 210×200×120 mm |
| Ambient Operating Temperature | -30℃ ~ +55℃ |
| Communication | GPRS Optional |
Trouble Shooting
| Problem | Possible Cause | Possible Solution |
|
Panel (pair) voltage is 0V | No mains supply | Check area utility operational |
| (LED OFF) | Check mains ON | |
| Check mains fuse | ||
| PEFS-PC power supply failure | Check mains voltage between L&N marked terminals | |
| Check 24VDC between + & – marked terminals | ||
| PEFS-PC switch activated | Turn red actuator anti-clockwise to release button | |
| No PEFS-PC switch output | Check 24VDC between switch out terminal & PSU – marked terminal | |
| Broken cable | Check 24VDC between terminals of remote AMP | |
| Superseal connector (pin 1 +24VDC\pin 2 0VDC) | ||
| PV array not connected | Check all PV to PEFS-PC input connections | |
| Incorrect PEFS-PC polarity connection | Check PV array Positive (+) goes to PEFS-PC | |
| Positive (+) and PV array Negative (-) goes to PEFS-PC Negative (-) | ||
| No PEFS-PC output | Replace PEFS-PC | |
| PV Inverter input 0V | No DC isolator (if fitted) | Check PEFS-PC output connections |
| input | Check DC inputs to the isolator | |
| DC Isolator (if fitted) OFF | Turn DC Isolator ON | |
| String voltage too low | Incorrect PEFS-PC polarity connection | Check all PV array Positive (+) go to PEFS-PC |
| Positive (+) and PV array Negative (-) goes to PEFS-PC Negative (-) |
In the occurrence of a fire, PROJOY recommends that all elements of the PEFS Rapid Shutdown system be assessed for operational suitability by a competent person prior to re-energizing.
Aftersales service and warranty
This product is manufactured in a sophisticated quality management system. In case of fault, the following warranty and after-services clauses are applicable.
Warranty
On the premise of the user’s compliance with the reservation and use specifications of the breaker, for breakers whose delivery date is within 60 months from now and whose seals are intact, PROJOY will repair or replace any of these breakers which are damaged or cannot work normally due to manufacture quality. However, as for faults caused by the following reasons, PROJOY would repair or replace the breaker with a charge even if it is still under warranty.
- Due to incorrect use, self-modification, and improper maintenance, etc.:
- Use beyond the requirements of standard specifications;
- After the purchase, due to falling and damage during installation, etc.;
- Earthquakes, fires, lightning strikes, abnormal voltages, other natural disasters and secondary disasters, etc.
Aftersales service
- Please contact the supplier or our company’s after-sales service department in case of failure;
- During the warranty period: For failures caused by the company’s manufacturing problems, free repairs and replacements;
- After the warranty period expires: If the function can be maintained after the repair, make a paid repair, otherwise it can be replaced with a paid one.
