SKYDANCE T4 Wall Mounted Touch Panel
Wall Mounted Touch Panel

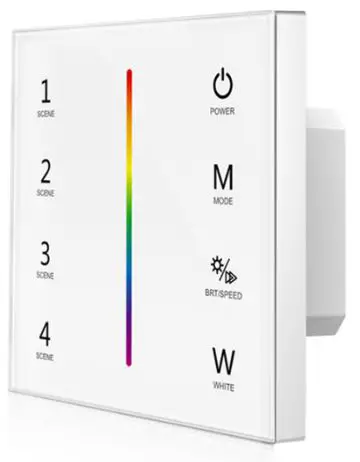

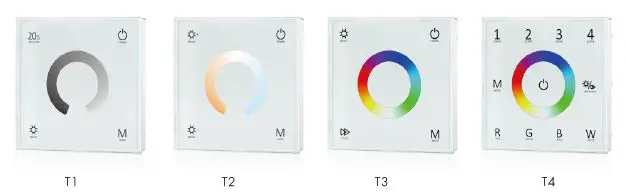

Model No.: T1, T2, T3, T4
1-4 color/Glass panel/Touch color wheel/DC input/4 channel constant voltage PWM output/Wireless remote control
Features
- Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller.
- Ultra sensitive high strength glass touch panel with touch color wheel in the middle and backlighting. ● Compatibility with RF 2.4G single zone or multiple zone remote control.
- Touch keys with LED indicator.
- White & Black glass panels are available.
Technical Parameters
| Input and Output | ||||
| Model | T1 | T2 | T3 | T4 |
| Input voltage | 12-24VDC | 12-24VDC | 12-24VDC | 12-24VDC |
| Input current | 12.5A | 12.5A | 12.5A | 12.5A |
| Output voltage | 4 x (12-24)VDC | 4 x (12-24)VDC | 3 x (12-24)VDC | 4 x (12-24)VDC |
| Output current | 4CH,3A/CH | 4CH,3A/CH | 3CH,4A/CH | 4CH,3A/CH |
| Output power | 144-288W | 144-288W | 144-288W | 144-288W |
| Output type | Constant voltage | Constant voltage | Constant voltage | Constant voltage |
| Light type | Single color | Dual color | RGB | RGBW |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse polarity Over heat Short circuit |
Key function

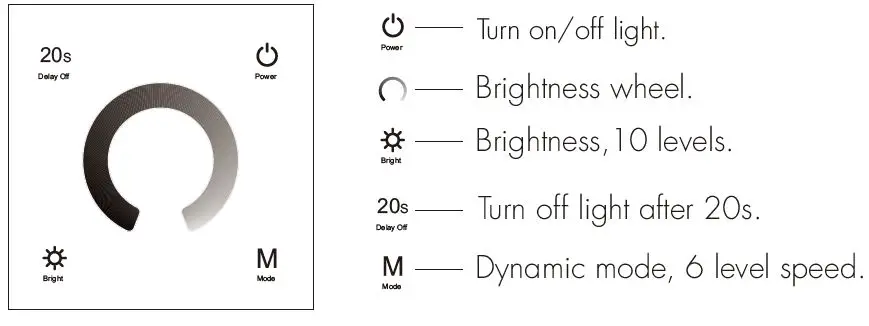

T1 Single color panel

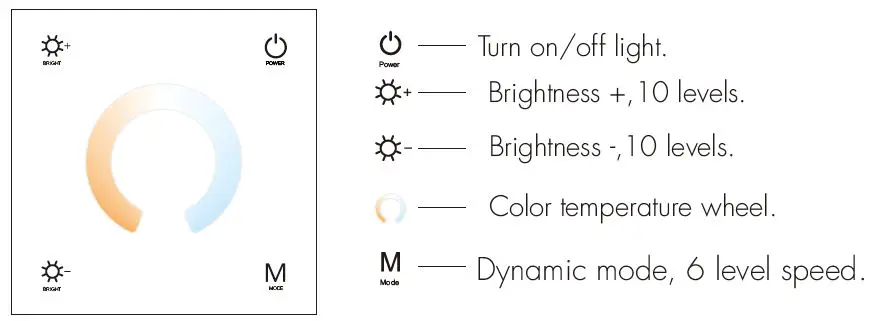

T2 Dual color panel
T3 RGB panel

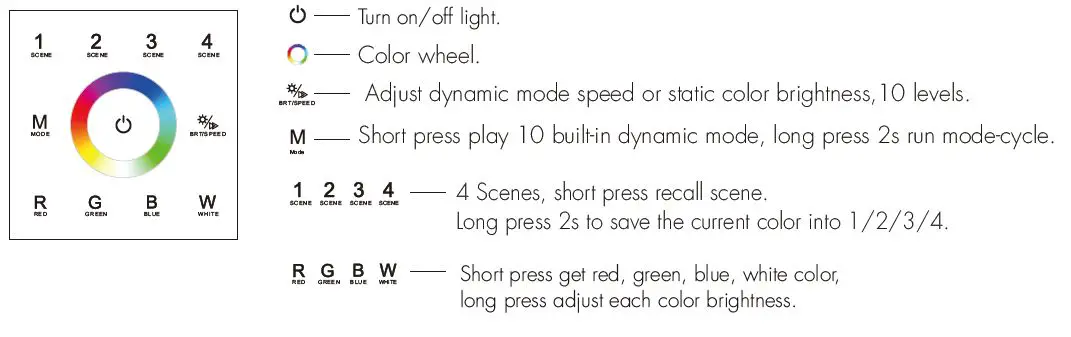

T4 RGBW panel
Turn on key tone:
Long press power key for 5s when light is off, will turn on or turn off key tone.
Wiring diagram

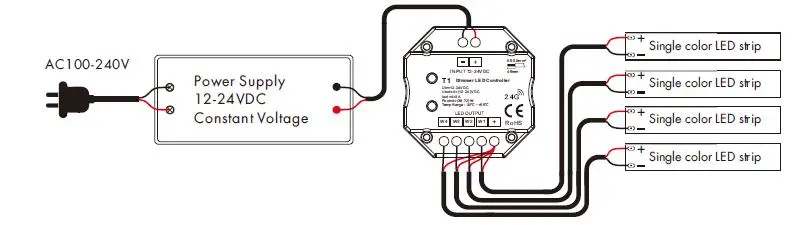

T1 Single color panel

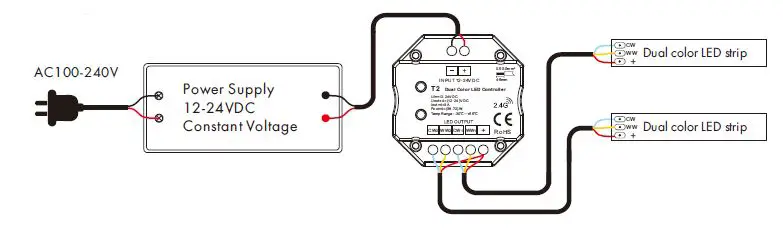

T2 Dual color panel

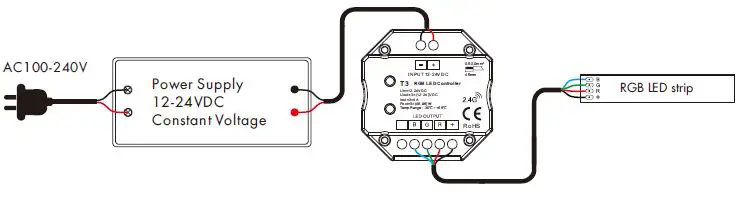

T3 RGB panel

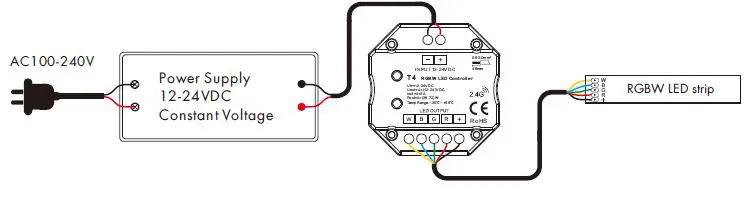

T4 RGBW panel
LED power supply voltage and power select :
- 12V lamp, Input 12V power supply, can load 0~144W,
- 24V lamp, Input 24V power supply, can load 0~288W, The power supply power must larger than load power 20%.
Match Remote Control (two match ways)
The touch panel controller can also match with the RF remote (optional). End user can choose the suitable match/delete ways. Two options are offered for selection:
Use On/Off key
Match: Turn on light, turn off, immediately press the On/Off key of the panel for 5s, then press on/off key (single zone remote) or zone key (multiple zone remote) of the RF remote within 5s. The LED indicator fast flash 3 times means match is successful.
Delete:
Turn on light, turn off, immediately press the On/Off key of the panel for 10s, delete all matched RF remote. The LED indicator fast flash 6 times means all matched remotes were deleted.\
Use Power Restart
Match:
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
RGB/RGBW dynamic mode list (only for T3 / T4)
| No. | Name | No. | Name |
| 1 | RGB jump | 6 | RGB fade in and out |
| 2 | RGB smooth | 7 | Red fade in and out |
| 3 | 6 color jump | 8 | Green fade in and out |
| 4 | 6 color smooth | 9 | Blue fade in and out |
| 5 | Yellow cyan purple smooth | 10 | White fade in and out |

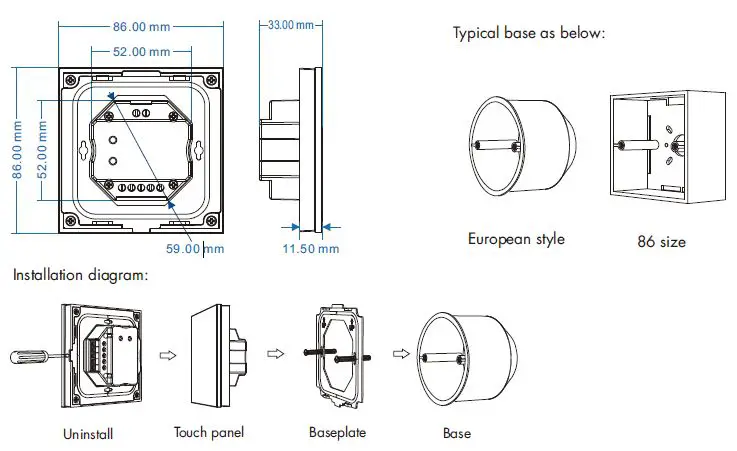

Mechanical Structures and Installations
