Allegra T21 Wall Mounted Touch Panel User Manual

Wall Mounted Touch Panel
Model No.: T21,T22,T24,T25

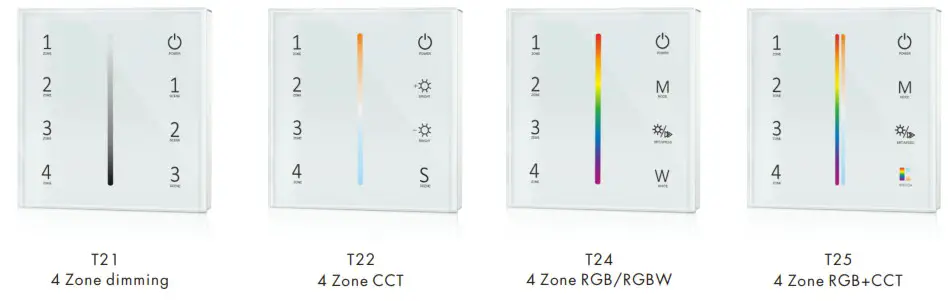

T21 Wall Mounted Touch Panel

4 Zone/1-5 color/Glass touch panel/Color slide/Wireless remote 30m distance/AAA x 2 battery

Features

• Touch panel 4 zone 1-5 color RF remote.
• Each zone can remote control multiple RF 2.4G LED controllers.
• Ultra sensitive high strength glass touch panel with touch color slide in the middle.
• Smooth and accurate color adjustment by touching the color slide.
• Touch keys with chord tones and LED indicator.
• Free installation, no wiring, removable.
• AAA x 2 battery powered.
• White & Black glass panel available.

Technical Parameters

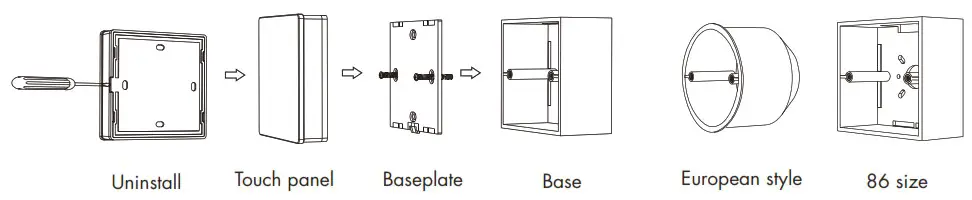

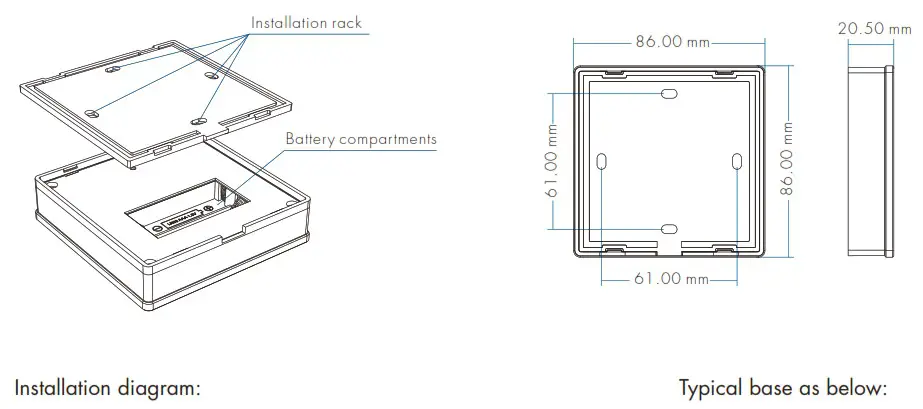

Mechanical Structures and Installations

To fix the panel, two options are offered for selection:
Option 1: fix it on the wall with two screws.
Option 2: adhere it to the wall with paster.

Match with RF LED controller (two match ways)

End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the controller’s Match key
Match:
Short press match key, immediately press zone key of the touch panel.
The LED indicator fast flash a few times means match is successful.

Delete:
Press and hold match key for 5s to delete all match. The LED indicator fast flash a few times means all matched remotes were deleted.

Use Power Restart
Match:
Switch off the power of the receiver, then switch on power, repeat again.
Immediately short press zone key 3 times on the touch panel.
The light blinks 3 times means match is successful.

Delete:
Switch off the power of the receiver, then switch on power, repeat again.
Immediately short press zone key 5 times on the touch panel.
The light blinks 5 times means all matched remotes were deleted.

Key function

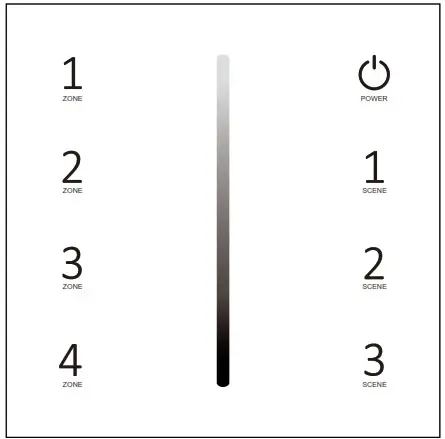

T21 Single color panel

– Turn on/off all zone light. – Brightness slide. Short press recall scene. Long press 2s to save the current state into 1/2/3. Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. Short press multiple zone key fastly, will select multiple zone synchronously. 4 zone control seperately or synchronously, each zone could control multiple receivers.

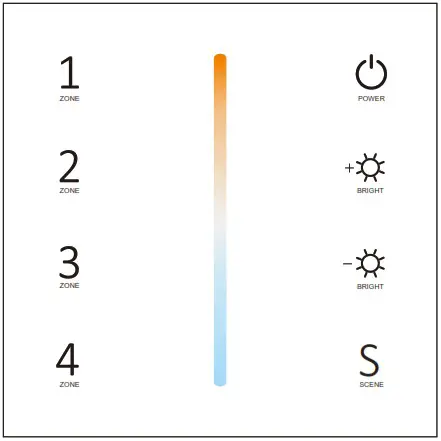

T22 Dual color panel

– Turn on/off all zone light. – Color temperature. +  – Brightness +,10 levels. – – Brightness -,10 levels. Short press recall scene. Long press 2s to save the current state into the scene. Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. Short press multiple zone key fastly, will select multiple zone synchronously. 4 zone control seperately or synchronously, each zone could control multiple receivers.

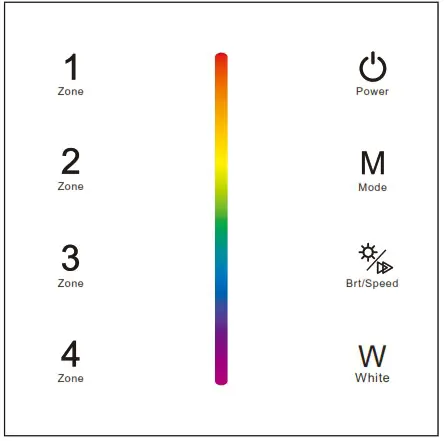

T24 RGBW panel

– Turn on/off all zone light. – Color slide. – Short press play 10 built-in mode, long press run mode-cycle. Adjust dynamic mode speed or static color brightness,10 levels. Short press turn on/off W channel, long press adjust W channel brightness. Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. Short press multiple zone key fastly, will select multiple zone synchronously. 4 zone control seperately or synchronously, each zone could control multiple receivers.

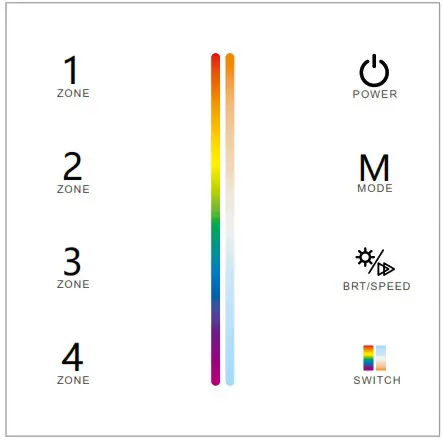

T25 RGB+CCT panel

– Turn on/off all zone light. – RGB color / Color temperature slide. – Switch between RGB color / Color temperature slide. – Short press play 10 built-in mode, long press run mode-cycle. – Adjust dynamic mode speed or static color brightness,10 levels. Short press turn on zone light and select zone simultaneously, long press 2s turn off zone light. Short press multiple zone key fastly, will select multiple zone synchronously. 4 zone control seperately or synchronously, each zone could control multiple receivers.

Note: After touch power key to turn off light, long press power key for 5 seconds will turn on or turn off tone.

Safety information

1. Read all instructions carefully before you begin this installation.
2. When installing battery, pay attention to the battery positive and negative polarity.
   A long time without the remote control, remove the battery.
   When remote distance becomes smaller and insensitive, replace the battery.
3. If no response from the receiver, please re-match the remote.
4. Gently handle remote, beware of falling.
5. For indoor and dry location use only.

User Manual Ver 1.1.0
