Crestron Ts Series Wall Mounted Touch Panel User Manual

CRESTRON TS Series Wall Mounted Touch Panel

Wall Mounted Touch Panel

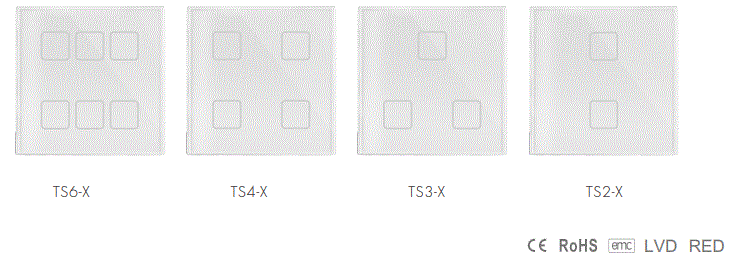

Model No.: TS6-X, TS4-X, TS3-X, TS2-X
2-6 Scene/1-6 Zone dimming/Glass touch panel/AC input/RF 2.4G and DMX 512 signal output

Features

• 6/4/3/2 key touch panel RF 2.4G remote with scene recall or zone dimming function, selectable by DIP switch.
• For scene control, with 6/4/3/2 scene memories selectable, and each scene is programmed by 8 zone and 8 scene RF remote RS10.
• Each zone can remote control one or multiple RF 2.4G 1-5 colors LED controllers.
• Can also be used as 6/4/3/2/1 zone dimming DMX512 master.
• DMX signal output comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
• Ultra sensitive high strength glass touch panel.
• Each key with blue LED indicator.
• White & Black glass panel available.

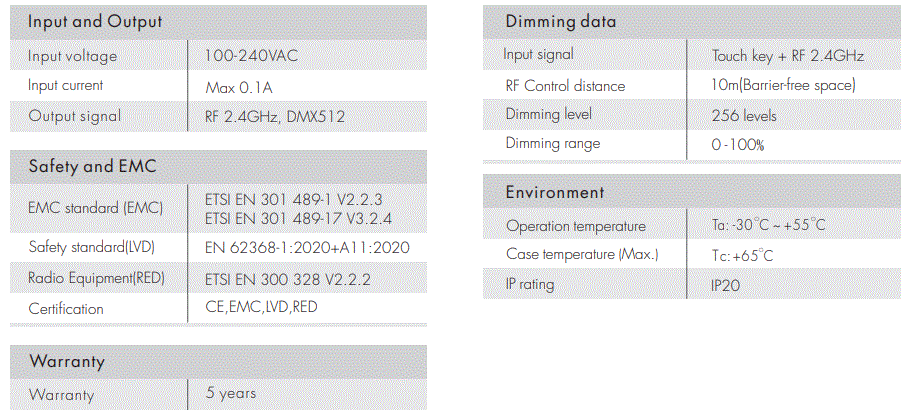

Technical Parameters

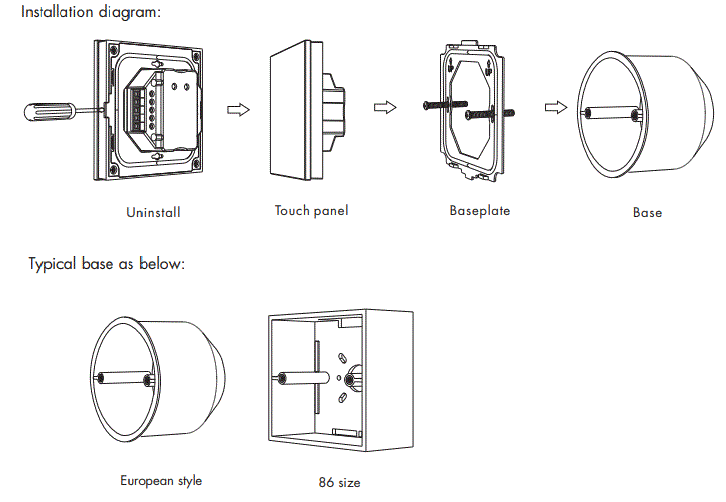

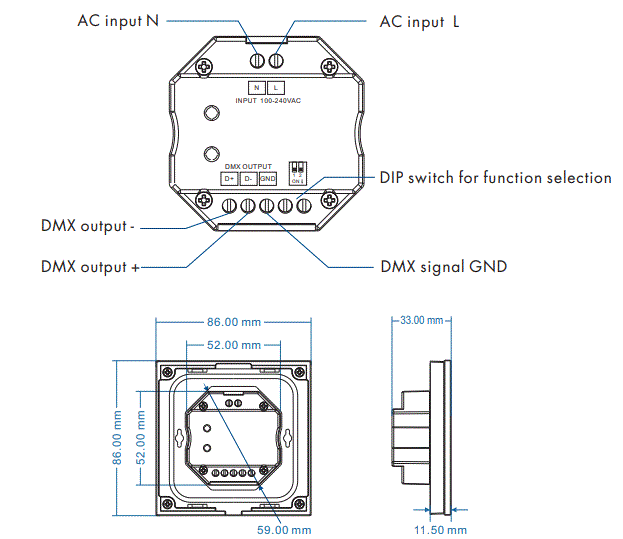

Mechanical Structures and Installations

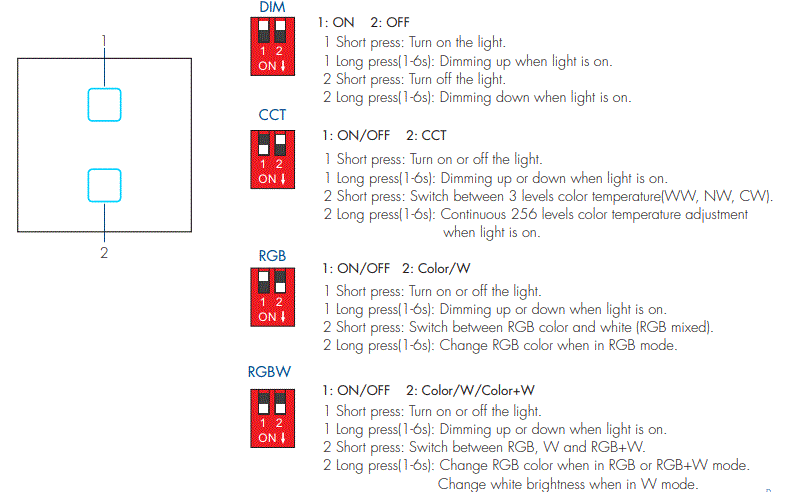

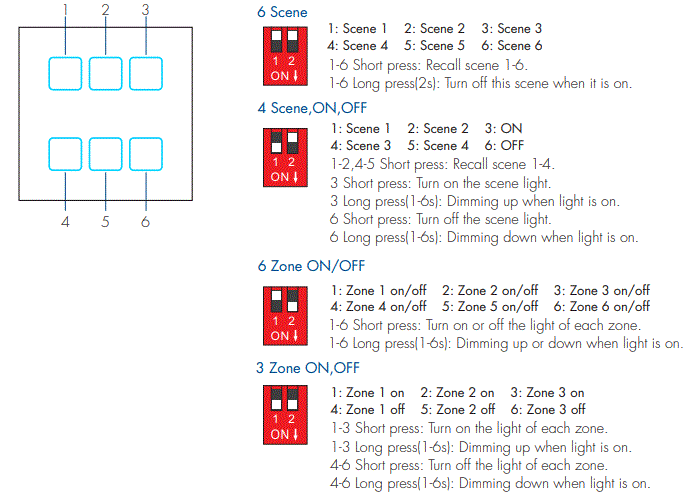

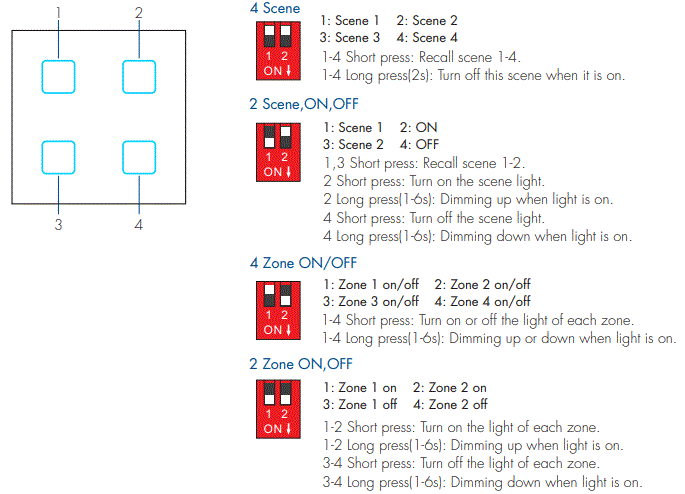

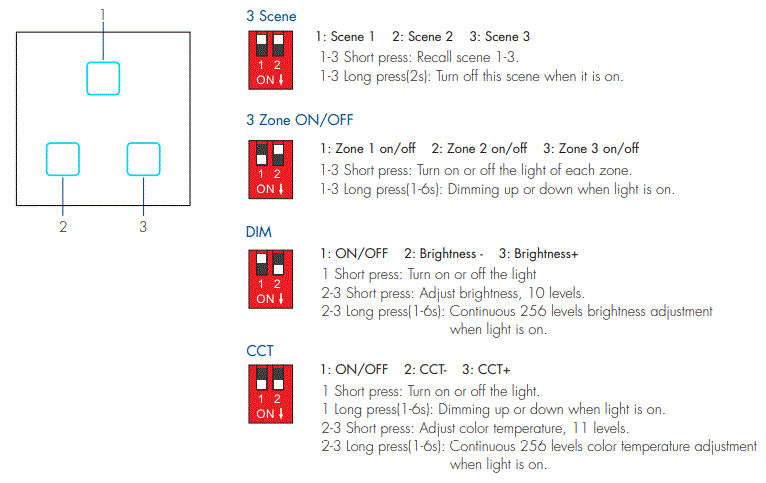

Key function

TS6-X Scene & Switch PanelTS4-X Scene & Switch Panel TS3-X Scene & Switch PanelTS2-X 1 Zone Switch Panel

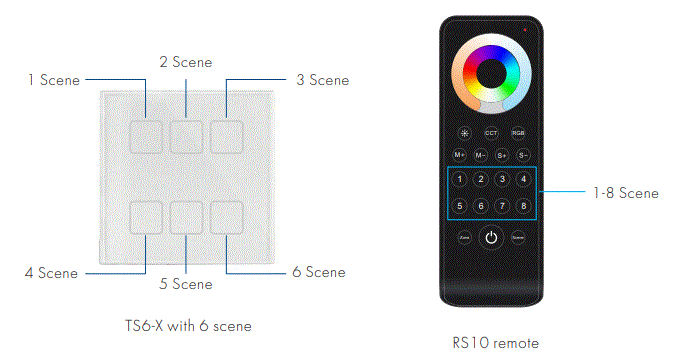

Scene programming

When the panel set as 6/4/3/2 scene function, each scene must be programmed by RS10 remote firstly, then use panel scene button to recall these scene.

• Step1: one or multiple light zone are matched with the RS10 remote.
• Step2: use RS10 remote to change the color, brightness or on/off state of the light zone, and save the current state to 1-6 scene.
• Step3: one or multiple light zone are matched with the TS6-X panel remote.
• Step4: use panel scene button to recall these scene which programmed by RS10 remote.
  The scene number of the scene panel corresponds to the scene number of the RS10 remote.

Touch Panel work as RF remote

When the touch panel work as RF remote, it need match with other RF 2.4G 1-5 colors LED controllers. End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the controller’s Match key
Match:

• Short press match key, immediately press Scene or ON/OFF key of the touch panel.
• The LED indicator fast flash a few times means match is successful.

Delete:

• Press and hold match key for 5s to delete all match,
• The LED indicator fast flash a few times means all matched remotes were deleted.

Use Power Restart
Match:

• Switch off the power of the receiver, then switch on power, repeat again.
• Immediately short press Scene or ON/OFF key 3 times on the touch panel.
• The light blinks 3 times means match is successful.

Delete:

• Switch off the power of the receiver, then switch on power, repeat again.
• Immediately short press Scene or ON/OFF key 5 times on the touch panel.
• The light blinks 5 times means all matched remotes were deleted.

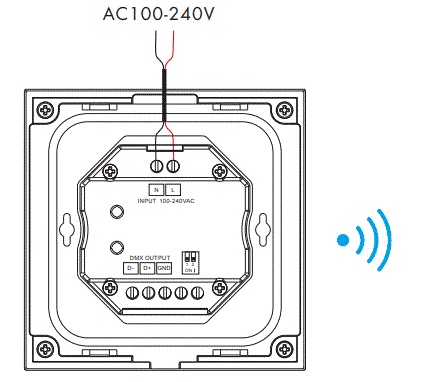

Wiring diagram for touch panel work as RF remote

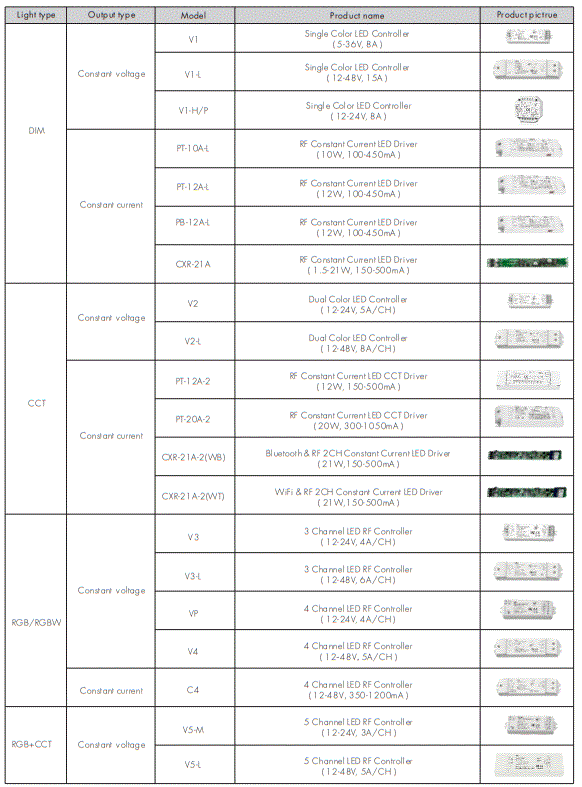

Recommended RF LED controller and driver

Touch Panel work as DMX512 Master
After connect with DMX decoders, please set the DMX decoders address as below:

• DMX decoder’s address 001 is controlled by Zone 1,
• DMX decoder’s address 002 is controlled by Zone 2,
• DMX decoder’s address 003 is controlled by Zone 3,
• DMX decoder’s address 004 is controlled by Zone 4,
• DMX decoder’s address 005 is controlled by Zone 5,
• DMX decoder’s address 006 is controlled by Zone 6.

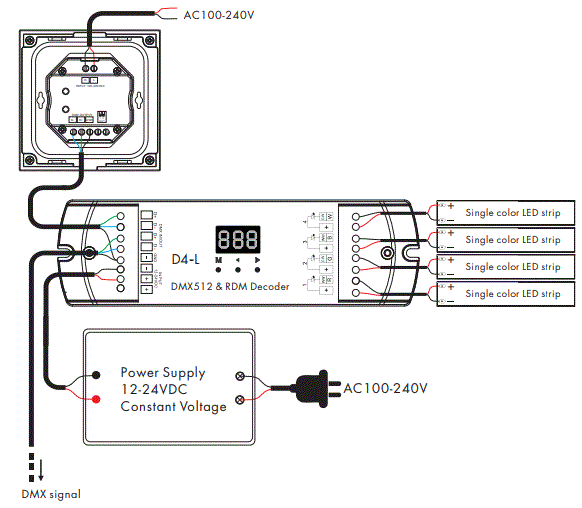

Wiring diagram for touch panel work as DMX512 master
