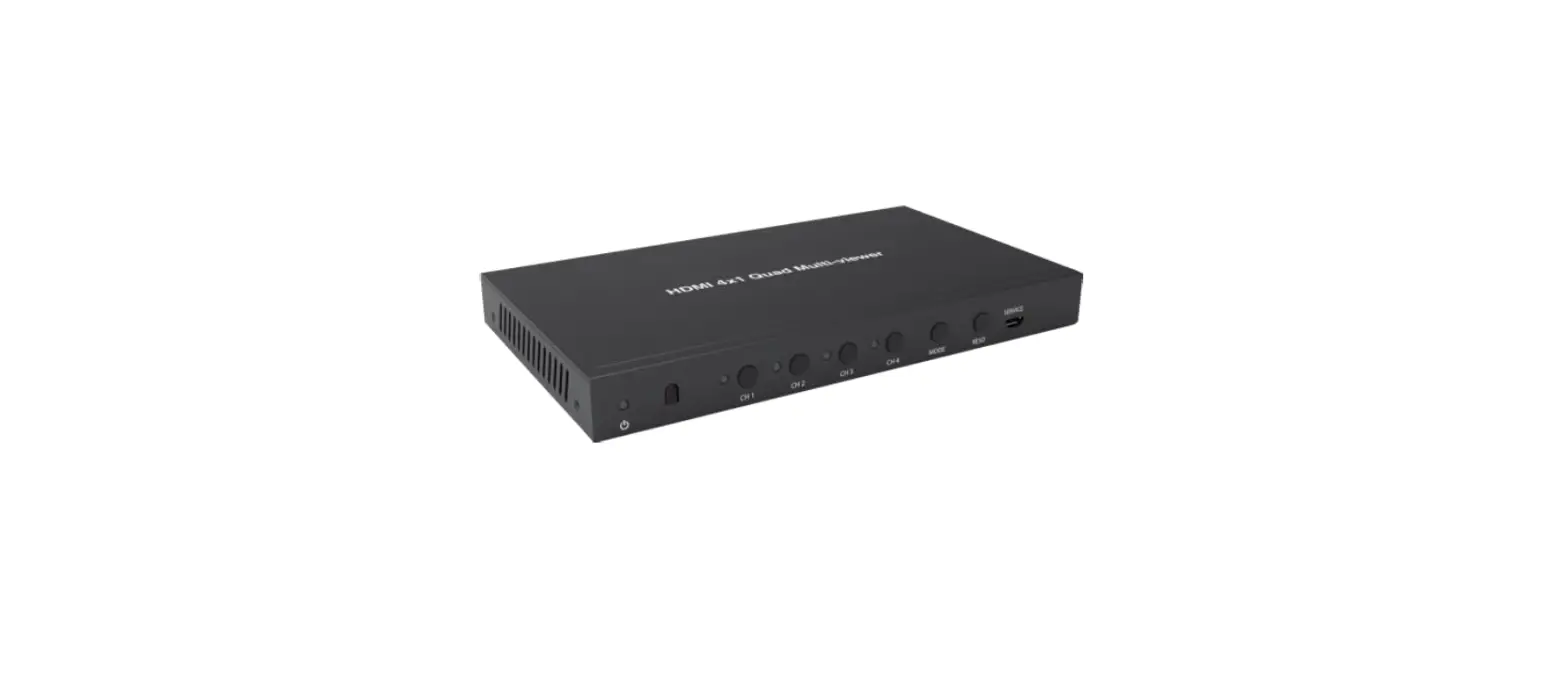

BZBGEAR BG-HD-MNA-4X1 HDMI 4×1 Quad Multi-Viewer
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
The BG-HD-MNA-4X1 4×1 quad multi-viewer can display four simultaneous HDMI HD input signals on one HDMI screen and one VGA screen. It features an analog audio output that can select different input sources. It has five multi-view display modes. Output resolution can be adjusted, and the maximum resolution is 920×1080@60Hz. The product can be controlled via panel buttons and the remote control.
Features
- HDMI 1.4, HDCP 1.4 compliant
- Input resolution can be recognized automatically (480p~1080P60, 800×600~1920×1080)
- Output resolution can be selected by panel buttons and remote control, the maximum resolution is up to 1080P@60Hz (1920x1080P@60Hz, 1280x720P@60Hz)
- Support Audio formats: LPCM 2CH
- Support 1/2/4 windows multi-view modes
- Control via panel buttons and the remote control
Package Contents
- 1× HDMI 4×1 Quad Multi-Viewer
- 1× 12V/1A DC Power Adapter
- 1× Remote Control
- 2× Mounting Ears
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 4.95Gbps |
| Video Resolutions | the maximum is up to 1920×1080P@60Hz |
| Color Depth | 8-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Analog Audio Formats | LPCM2.0, 44.1KHz, 48KHz |
| ESD Protection | Human-body Model： ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connections | |
| Inputs ports | 4x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] |
| Outputs ports | 1x HDMI Type A [19-pin female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 185mm (W)×111.8mm (D)×21mm (H) |
| Weight | 500g |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 5.28W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

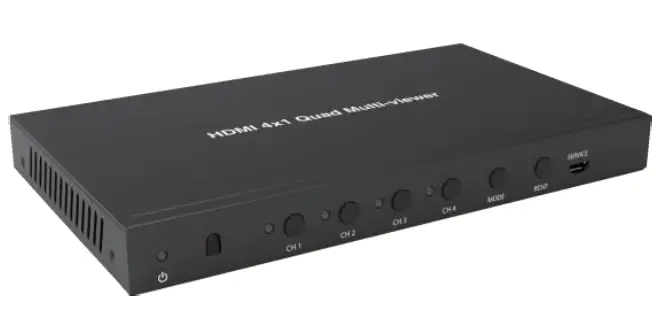

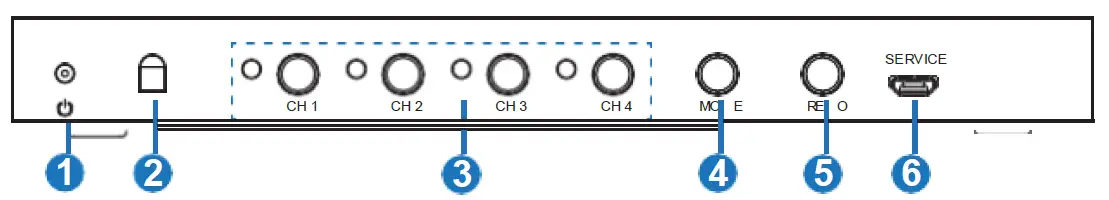

Front Panel
| Number | Name | Function Description |
| 1 | POWER LED | The LED will illuminate green when the unit is working, red when the unit is in standby mode. |
| 2 | IR | IR receiver window. It accepts the remote control signal. |
| 3 | CH1/CH2/CH3/ CH4 button | Input channel select button (Please refer to “6. Display Modes” for details). |
| 4 | MODE button | Press this button to cyclically select display mode (Please refer to “6. Display Modes” for details). Long press this button for 5s, the output screen is full screen displayed with equal proportion. |
| 5 | RESO button | Cyclically select different output resolution. Long press this button for 5s to open or close the window display frame. |
| 6 | SERVICE port | Firmware update port. (Manufacture use only.) |

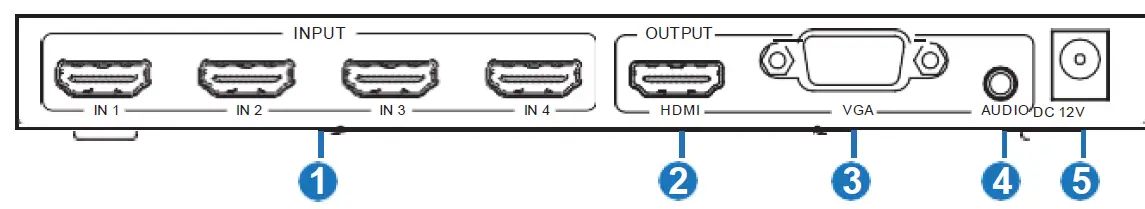

Rear Panel
| Number | Name | Function Description |
| 1 | HDMI INPUT | Connect to HDMI source device such as DVD player or PS4 with a HDMI cable. |
| 2 | HDMI OUTPUT | Connect to HDMI display device such as TV or projector with a HDMI cable. |
| 3 | VGA OUTPUT | VGA output port, outputting the signal that is the same as the HDMI output port. |
|
4 |
AUDIO OUTPUT | Analog audio output port. (Note: If the HDMIoutput is MODE 1, the audio output follows the video content. If the HDMI output is MODE 2/3/4/5, press CH1/CH2/CH3/CH4 up to 5s to select audio output or use the remote control to cyclically select audio output. The default status is CH1 screen audio output.) |
| 5 | DC 12V | Plug the 12V/1A DC power supply into the unit and connect the adapter to an AC outlet. |

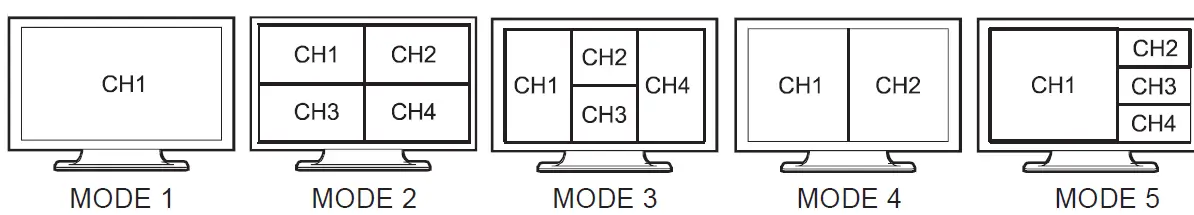

Display Modes
The quad multi-viewer has 5 display modes. Detailed description is as follows.
- MODE 1: The quad multi-viewer will display four HDMI inputs separately. Use the CH1/CH2/CH3/CH4 button on the panel or the Source 1/2/3/4 button on the IR remote to select input source, the corresponding panel light will be on.
- MODE 2: The quad multi-viewer divides four HD inputs with the same size and displays them on one screen. The four lights on panel will be on. In the CH1 window, you can press the CH1 button on panel or the Source 1 button on the IR remote to cyclically select four input sources. Select the input source separately in the CH2/CH3/CH4 window in the same way.
- MODE 3: The quad multi-viewer divides four HD inputs and displays them on one screen. The four lights on panel will be on. The operation is the same as MODE 2.
- MODE 4: The quad multi-viewer divides two HD inputs with the same size and display them on one screen. The CH1, CH2 lights on panel will be on. In the CH1 window, you can press the CH1 button on panel or the Source 1 button on the IR remote to cyclically select four input sources. Select the input source in the CH2 window in the same way.
- MODE 5: The quad multi-viewer divides four HD inputs and displays them on one screen. The four lights on panel will be on. The operation is the same as MODE 2.
Remote Control

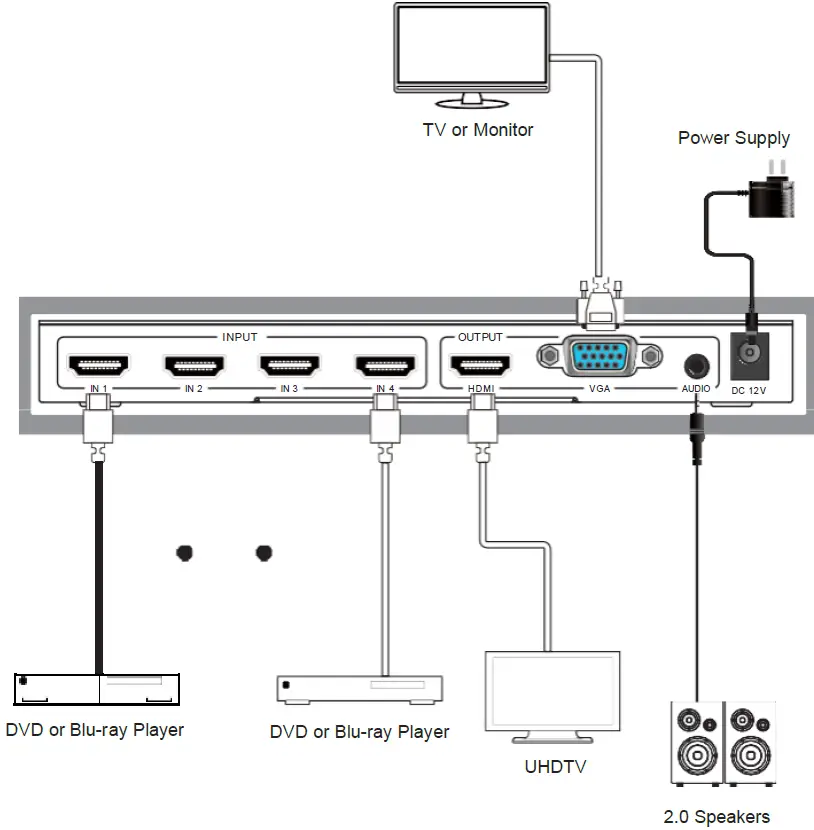

Application Example
Warranty
BZBGEAR wants to assure you peace of mind. We’re so confident in the quality of our products that along with the manufacturer’s one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below:
- Register your product within 90 days of purchase by visiting BZBGEAR.com/warranty.
- Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt.
For questions, please call 1.888.499.9906 or email [email protected]. For complete warranty information, please visit BZBGEAR.com/warranty or scan the QR code below.
Terms and conditions apply. Registration is required.
