24inch 4K HOR Multi View
Video Production Monitor
VZ-238PM-HDR
INSTALLATION/OWNERS MANUAL
Welcome

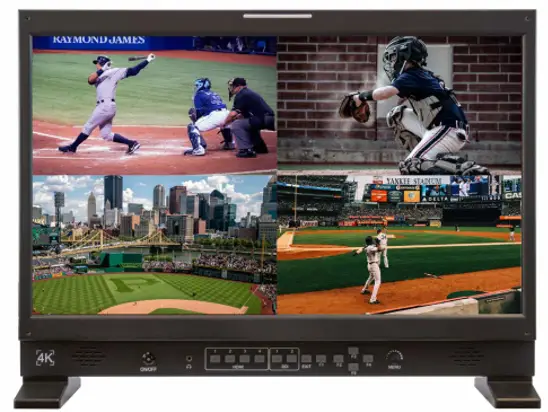

Thank you for choosing the ViewZ 4K HDR broadcast monitor which for the professional film make using. It adopts a 24-inch 3840×2160 4K LCD full-view display panel, which supports 4 channels of 4K HDMI video signal input and 1 channel HDMI output, 2x 3G-SDI video signals input and 1 x 3G-SDI output. It perfectly equipped with the vast majority of cameras on the market.
Precautions
- Make sure to read the instruction carefully before using.
- Please check and confirm that the product accessories are complete after unpacking. If there is anything missing, please contact the seller.

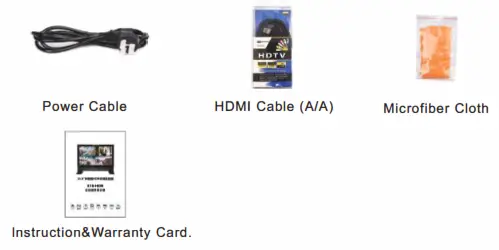

Accessories
Assembly Option

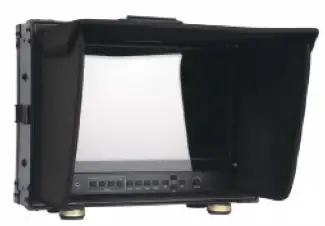

A: Engineering aluminum Case + Sun-Hood

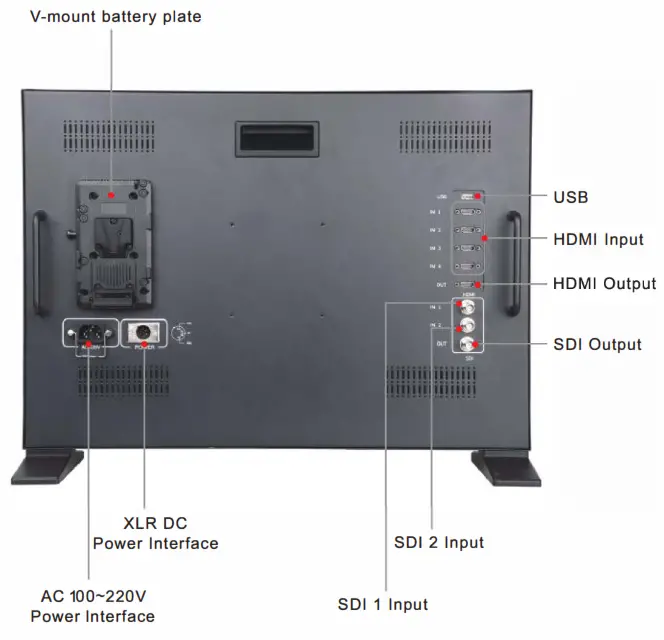

Signal connect
| HDMI | 3G-SDI | USB | |||
| Input | x4 | x2 | |||
| Output | xl | xl | xl (5V/2A) |

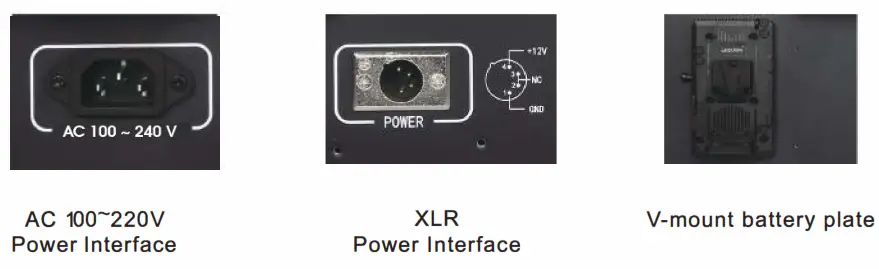

Power Connect
Power Button
Connect the power cable > Find the Power Button in front > Press to turn on/off.

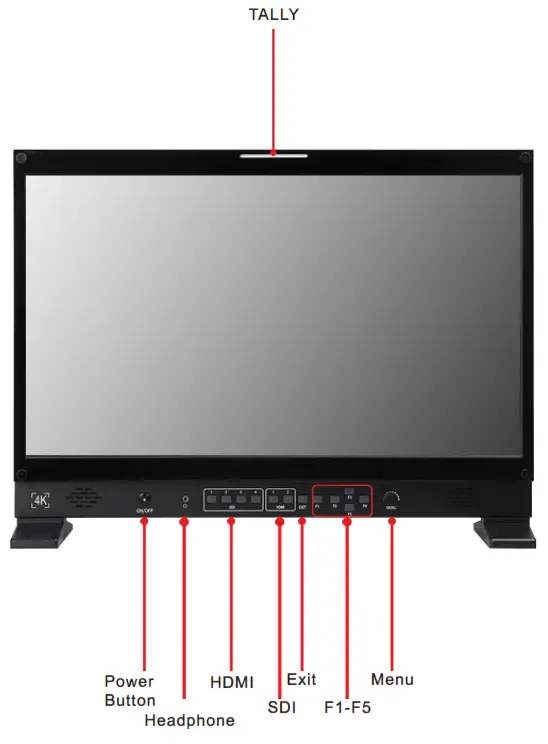

Control Panel
Control Panel
Specifications
| Display | Screen Size: 24inch | Resolution: 3840×2160 |
| Brightness: 400cd/m² | Contrast Ratio: 1000: 1 | |
| Viewing Angel: 178° (H/V) | ||
| Signal | Input Signal | Output Signal |
| 4x HDMI | lx HDMI | |
| 2x 3G-SDI | lx 3G-SDI | |
| Signal Forma | HDMI | 3G-SDI |
| [email protected], 60Hz 720x5764720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97,30, 50,59.94,60Hz 3840x2160p@24,25,30, [50,60Hz(HDMI 2)] [email protected],24,25,29.97,30, [50,59.54,60Hz(HDMI 2)] | 720×4801&@59.94, 60Hz 720×5764@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97,30, 50,59.94,60Hz | |
| Power | AC:100-240V,50/60Hz DC:12-24V | |
| Power Consumption: 536W Typ | ||
| Working Environment | Working Temperature:-20 C— 60 C Stored Temperature: -30 C-70 C | |
| Relative Humidity:No condensation operating humidity10%-90% | ||

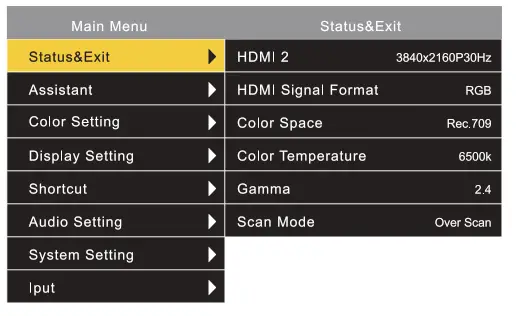

OSD
Assistant
| Monochrome | Off. Red. Green. Blue. Black/White |
| Center Mark | Off. On |
| False Color | Off. On |
| Safety Border | Off. 80%. 85%. 90%. 93%. 95% |
| Make Ratio | Off, 16:10, 4:3, 2.35:1, 1.85:1 |
| Make Color | White. Red. Green. Blue |
| Display Border | Off. On |
| Battery | Off. On |
| Exit |
OSD
Color Setting
| Color Space | Off, EBU, SMPTE C, Rec.709, DCI-P3 | |
| HDR | Off, ST2084 | |
| Gamma | Off, 2.2, 2.4,2.6. | |
| Color Temperature | 5600K, 6500K,9300K, User | |
| Brightness | 0-100 (User) | |
| Contrast | 0-100 (User) | |
| Saturstion | 0-100 (User) | |
| Sharpness | 0-100 (User) | |
| Backlight | 0-100 | |
| Red | 0-255 (User) | |
| Green | 0-255 (User) | |
| Blue | 0-255 (User) | |
| Exit | ||
Display Setting
| Aspect Ratio | Auto. 4:3. 16:9. 16:10. 2.35:1. 1.85:1. Full Screen |
| Scan Mode | Over Scan. Standard |
| Pixel to Pixel | Off. On |
| U/D Rotation | Off. On |
| Freeze | Off. On |
| Display Mode | 1P. 2P LIR. 2P TB. 2P PIP. 4P |
| Display Swap | Off. On |
| Exit |
OSD
Shortcut
| F1 | Display (Default, Custom) |
| F2 | Mute (Default, Custom) |
| F3 | Center Mark (Default, Custom) |
| F4 | Make Ratio (Default, Custom) |
| F5 | Safty Border (Default, Custom) |
| Exit |
Audio Setting
| Volume | 0-100 |
| Mute | Off. On |
| Audio Source | HDMI |
| Exit |
System Setting
| Language | Chinese, English |
| OSD Background | Black, Gray |
| OSD Time | Off, 5s, 10s, 15s |
| OSD Transparency | 0-10 |
| Rsset | Cancel ,Confirm |
| Servicesupport | www.viewzusa.com |
| 1-714-996-1177 | |
| Exit |
OSD
nput
| Input | SDI 1, SDI 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 |
| Exit |
Attention: There will not be a notice for the update, this instruction is for reference only. Please be subject to the actual product.
