Features

Welcome

Thank you for choosing the ViewZ 4K HDR broadcast monitor which for the professional film make using. It adopts a 17.3-inch 3840×2160 4K LCD full view display panel, which supports 4 channels of 4K HDMI video signal input and 1 channel HDMI output, 2x 3G-SDI video signals input and 1x 3G-SDI output. It perfectly equipped with the vast majority of cameras on the market.

Precautions:

Make sure to read the instruction carefully before using.
Please check and confirm that the product accessories are complete after unpacking.

If there is anything missing, please contact the seller.

Accessories:

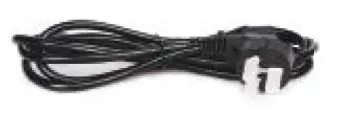

Power Cable
HDMI Cable (A/A)
Microfiber Cloth
instruction & Warranty Card.

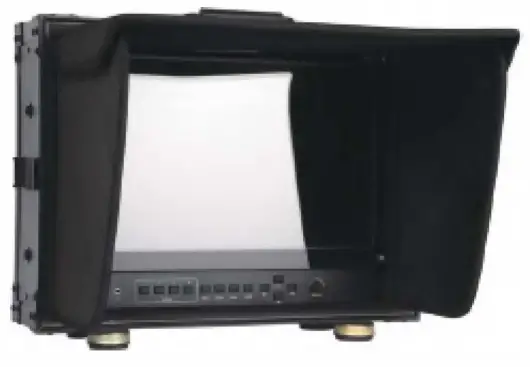

Assembly Option:

A: Engineering aluminum Case + Sun-Hood

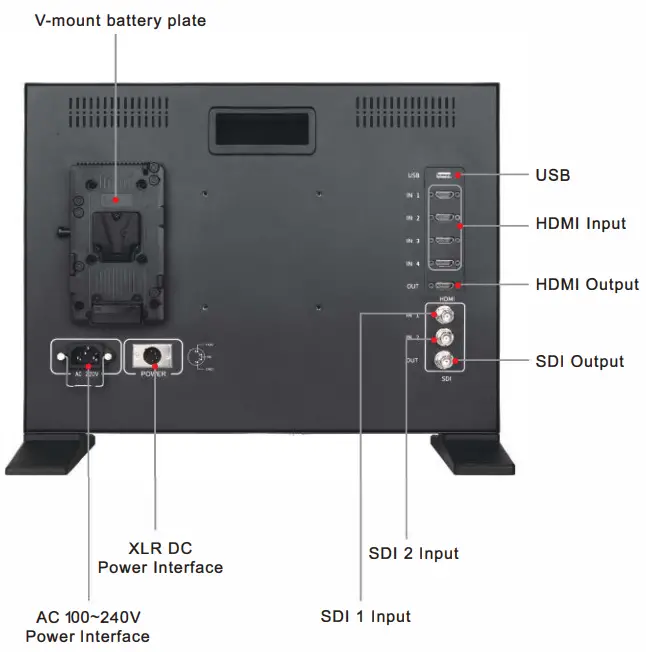

Signal connect

	HDMI	3G-SDI	USB
Input	x4	x2
Output	x1	x1	x1 (5V/2A)

Power Connect

AC 100~240V Power Interface

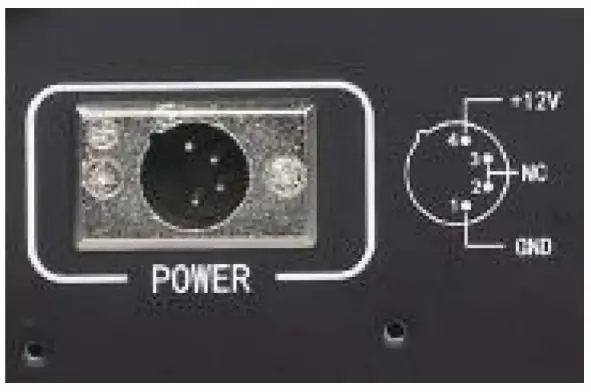

XLR Power Interface

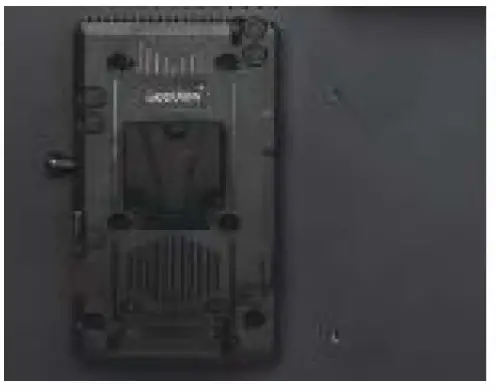

V-mount battery plate

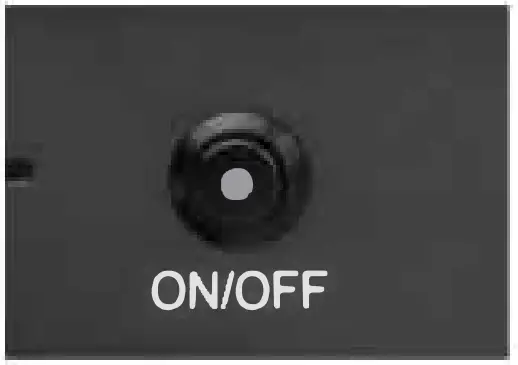

Power Button

Connect the power cable > Find the Power Button in front > Press to turn on/off.

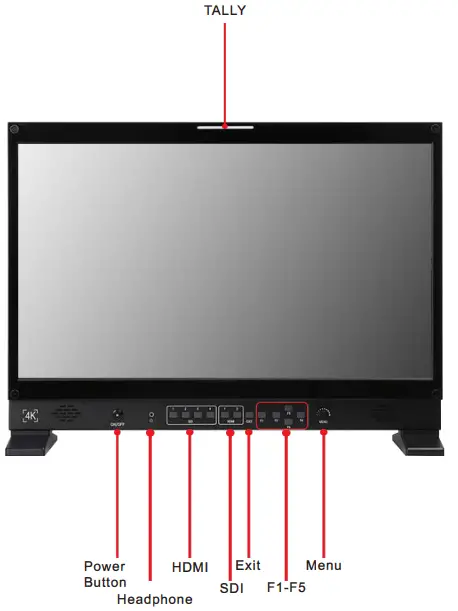

Control Panel

Specification

Display	Screen Size: 17.3inch	Resolution: 3840×2160
	Brightness: 400cd/m2	Contrast Ratio: 1000: 1
	Viewing Angel: 178° (H/V)
Signal	Input Signal	Output Signal
	4x HDMI	lx HDMI
	2x 3G-SDI	3G-SDI
Signal Forma	HDMI	3G-SDI
	720×48018,[email protected], 60Hz 720×57618,720x576p@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97,30, 50,59.94,60Hz 3840x2160p@24,25,30, (50,60Hz(HDMI 112)] [email protected],24,25,29.97,30, [50,59.54,60Hz(HDMI 112)]	720x480i&@59.94, 60Hz 720×5764@50Hz 1280x720p@50, 59.94, 60Hz 1920x1080i@50, 59.94, 60Hz 1920x1080psf@24, 25, 29.97, 30Hz [email protected], 24, 25, 29.97,30, 50,59.94,60Hz
Power	AC: 100-240V,50/60Hz DC:12-24V
	Power Consumption: 521.6W Typ
Working Environment	Working Temperature:-20 C— 60 C Stored Temperature: -30 C-70 C
	Relative Humidity: No condensation operating humidity10%-90%

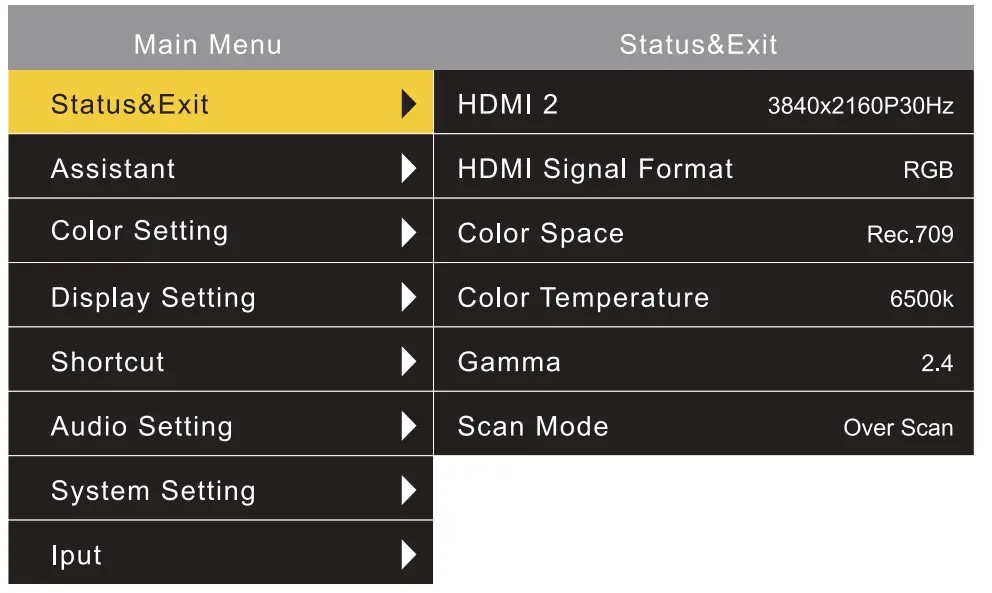

OSD

Assistant

Monochrome	Off. Red. Green, Blue Black/White
Center Mark	Off. On
False Color	Off. On
Safety Border	Off. 80%. 85%. 90%• 93%. 95%
Make Ratio	Off, 16:10, 4:3, 2.35:1, 1.85:1
Make Color	White. Red. Green. Blue
Display Border	Off. On
Battery	Off. On
Exit

Color Setting

Color Space	Off. EBU. SMPTE _C. Rec.709. DCI-P3
HDR	Off. ST2084
Gamma	Off. 2.2. 2.4.	2.6
Color Temperature	5600K. 6500K.	9300K. User
Brightness	0-100 (User)
Contrast	0-100 (User)
Saturstion	0-100 (User)
Sharpness	0-100 (User)
Backlight	0-100
Red	0-255 (User)
Green	0-255 (User)
Blue	0-255 (User)
Exit

Display Setting

Aspect Ratio	Auto. 4:3. 16:9• 16:10. 2.35:1. 1.85:1. Full Screen
Scan Mode	Over Scan. Standard
Pixel to Pixel	Off. On
U/D Rotation	Off. On
Freeze	Off. On
Display Mode	1P. 2P LIR. 2P TB. 2P PIP. 4P
Display Swap	Off. On
Exit

Shortcut

Fl	Display (Default, Custom)
F2	Mute (Default, Custom)
F3	Center Mark (Default, Custom)
F4	Make Ratio (Default, Custom)
F5	Safty Border (Default, Custom)
Exit

Audio Setting

Volume	0-100
Mute	Off.. On
Audio Source	HDMI
Exit

System Setting

Language	Chinese• English
OSD Background	Black^, Gray
OSD Time	Off. 5s. 10s. 15s
OSD Transparency	0-10
Rsset	Cancel ,Confirm
Service support	www.viewzusa.com
	1-714-996-1177
Exit

Input

Input	SDI 1. SDI 2. HDMI 1. HDMI 2. HDMI 3. HDMI 4
Exit

Attention: There will not be a notice for the update, this instruction is for reference only. Please be subject to the actual product.
