CDC-26142-XCN1A Arrowg+ard Blue Two-Lumen Hemodialysis Catheterization for High Volume Infusions
Product Information:
Product Name: CDC-26142-XCN1A
Catheter Size: 14 2 Fr.
Lumen: Single lumen
Catheter Length: 25 cm
Guide Wire Diameter: 0.035 inch
Contents:
– Catheter: 18 Ga. x 2-1/2 (6.35 cm) Radiopaque over 20 Ga. RW
Introducer Needle
– Raulerson Spring-Wire Introduction Syringe
– Injection Needle: SafetyGlideTM1 22 Ga. x 1-1/2 (3.81 cm) and 5
mL Luer-Slip
Trademarks:
– SafetyGlideTM1 is a trademark of Becton, Dickinson and
Company.
– Arrowg+ard Blue is a trademark of CareFusion or one of its
subsidiaries.
– Sulfa drugs is a registered trademark of 3M Company.
Product Usage Instructions:
1. Contraindications: – The Arrow large-bore two-lumen catheter is
not suitable for long-term (30 days) hemodialysis. – It should not
be used in patients with thrombosed vessels. – The Arrowg+ard Blue
antimicrobial catheter should not be used in patients with known
hypersensitivity to chlorhexidine, silver sulfadiazine, and/or
sulfa drugs. 2. Priming: – Before using the catheter, prime it by
flushing with an appropriate volume of sterile saline solution. –
The priming volumes provided in the manual are approximate and do
not include any accessories. 3. Dialysis Flow Rate: – The provided
graph shows the pressure (mmHg) and flow rate (mL/min) for the
catheter during dialysis. – The venous side is represented on the
negative side of the graph, while the arterial side is represented
on the positive side. – Use the graph to monitor and adjust the
flow rate during dialysis. 4. In Vitro Testing: – The product has
undergone in vitro tests using a 3:1 ratio. Please consult a
healthcare professional or refer to the complete user manual for
detailed instructions on catheter insertion, removal, and
maintenance procedures.
CDC-26142-XCN1A
14 2 Fr.
Lumen
25 cm catheter length
.035 inch dia. spring-wire guide
Arrowg+ard Blue® Two-Lumen Hemodialysis Catheterization for High Volume Infusions
Contents:

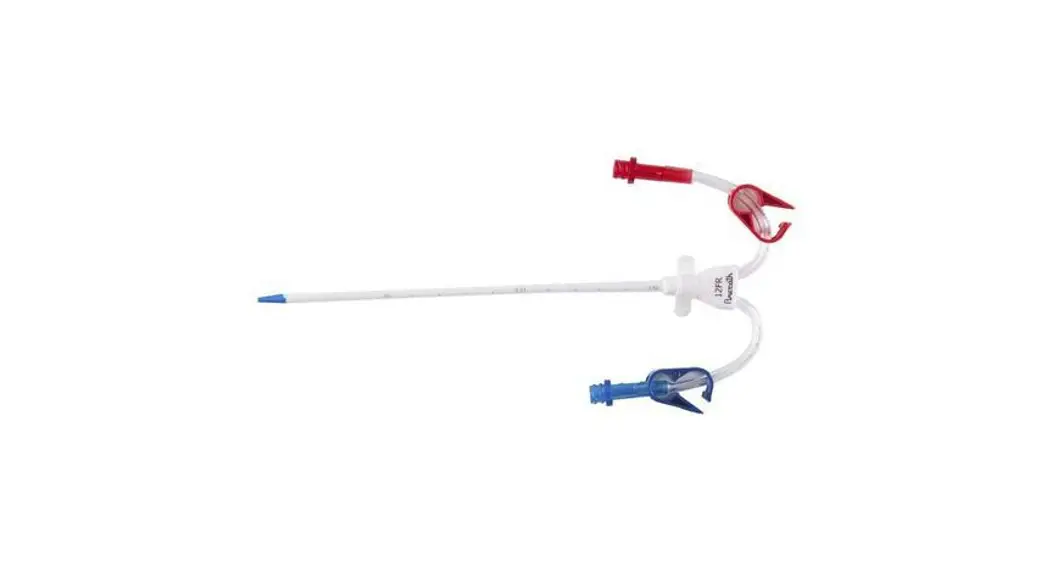

1: Two-Lumen Catheter: 14 Fr. (4.72 mm OD) x 25 cm Radiopaque Polyurethane with Blue FlexTip®, Arrowg+ard® Antimicrobial Surface Treatment, Extension Line Clamps
1: Spring-Wire Guide, Marked: .035″ (0.89 mm) dia. x 23-5/8″ (60 cm) (Straight Soft Tip on One End – “J” Tip on Other) with Arrow® GlideWheelTM Wire Advancer
1: Catheter: 18 Ga. x 2-1/2″ (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1: Injection Needle: SafetyGlideTM1 25 Ga. x 1″ (2.54 cm) 1: Blunt Fill Needle: 18 Ga. x 1-1/2″ (3.81 cm) 1: Pressure Transduction Probe 1: Introducer Needle: Echogenic 18 Ga. x 2-1/2″ (6.35 cm) XTW and 5 mL Arrow®
Raulerson Spring-Wire Introduction Syringe 1: Injection Needle: SafetyGlideTM1 22 Ga. x 1-1/2″ (3.81 cm) and 5 mL Luer-Slip
Syringe 1: Syringe: 3 mL Luer-Lock 1: Tissue Dilator: 14 Fr. (4.7 mm) x 14 cm 1: Tissue Dilator: 12 Fr. (4.0 mm) x 14 cm 2: 10 mL Luer-Lock Pre-Filled Saline Syringe 1: 5 mL 1% Lidocaine HCl Solution and Alcohol Prep 2: 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with
Hi-Lite OrangeTM Tint 1: SharpsAway® II Locking Disposal Cup 1: SharpsAway® Disposal Cup 1: Maximal Barrier DrapeTM with 4″ fenestration 1: Towel 1: Needle Holder 1: Safety Scalpel: #11 1: Checklist/CLIP Sheet 1: Sterile Procedure Sign 1: Medication Label: 1% Lidocaine 2: Gauze Pad: 2″ x 2″ (5 cm x 5 cm) 5: Gauze Pad: 4″ x 4″ (10 cm x 10 cm) 1: Surgical Apparel: Impervious Gown 1: Dressing: Tegaderm®3 CHG 3-1/2″ x 4-1/2″ (8.5 cm x 11.5 cm) 1: Transducer Cover: 14 cm x 147 cm 1: Surgical Apparel: Mask with Eye Shield 1: Surgical Apparel: Bouffant Cap 1: Suture: 3-0 Silk with Curved Needle 1: Tubing±: 20″ (50 cm) Extension 1: HemoHopper® Fluid Receptacle
1A trademark of Becton, Dickinson and Company.
±Precaution: Contains Phthalate: DEHP. Warning: The results of certain animal experiments have shown phthalates to be potentially toxic to reproduction. Proceeding from the present state of scientific knowledge, risks for male premature infants cannot be excluded in the case of long-term exposure or application. Medical products containing phthalates should be used only temporarily with pregnant women, nursing mothers, babies and infants. Not made with natural rubber latex. Store between 20 25°C (68 77°F). Arrow International provides the enclosed medication label(s) for your convenience. Please ensure that these labels are applied to the correct syringe and corresponding medication.
Contraindications: The Arrow large-bore two-lumen catheter is not designed for long-term ( 30 days) hemodialysis or for use in patients with thrombosed vessels. The Arrowg+ard Blue antimicrobial catheter is contraindicated for patients with known hypersensitivity to chlorhexidine, silver sulfadiazine, and/ or sulfa drugs.
2A registered trademark of CareFusion or one of its subsidiaries. 3A registered trademark of 3M Company.
Priming Volume*
Distal Proximal
1.80 mL 1.60 mL
* Priming volumes are approximate and are done without accessories.
Pressure (mmHg)
Dialysis Flow Rate 300
200
100 0
-100
VENOUS ARTERIAL
-200
-300
100
200
300
400
500
Flow (mL/min)
In vitro tests performed using 3:1
glycerine/saline at 37°C.
LBL068973 R00 (2023-04)
