Infobit Icam-vb50 4k Uhd All-in-one Usb Camera User Manual

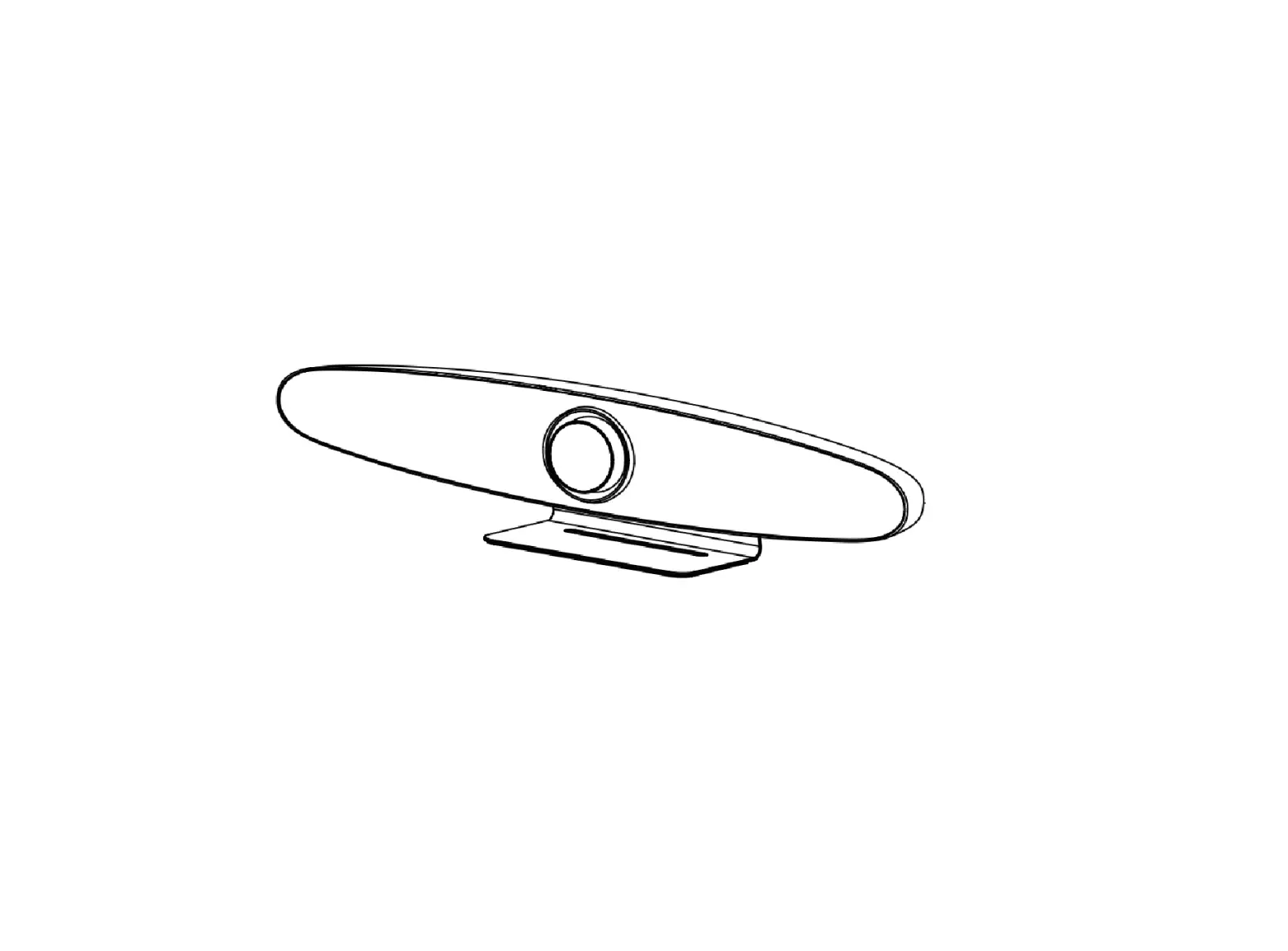

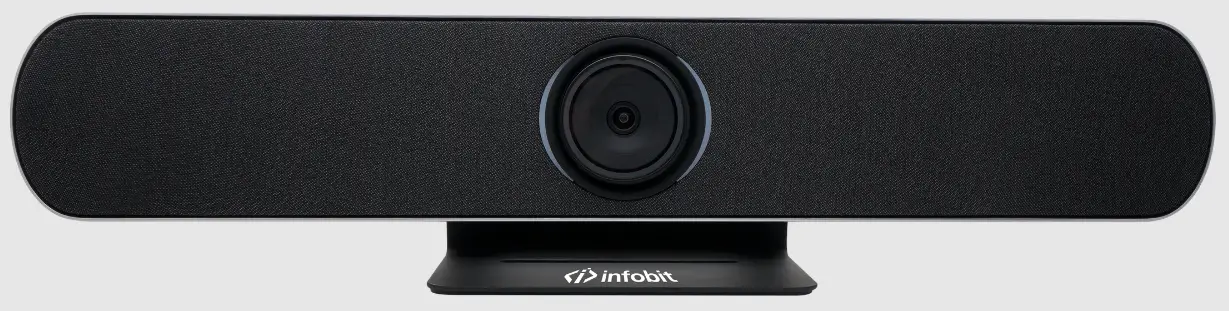

infobit iCam-VB50 4K UHD ALL-IN-ONE USB Camera

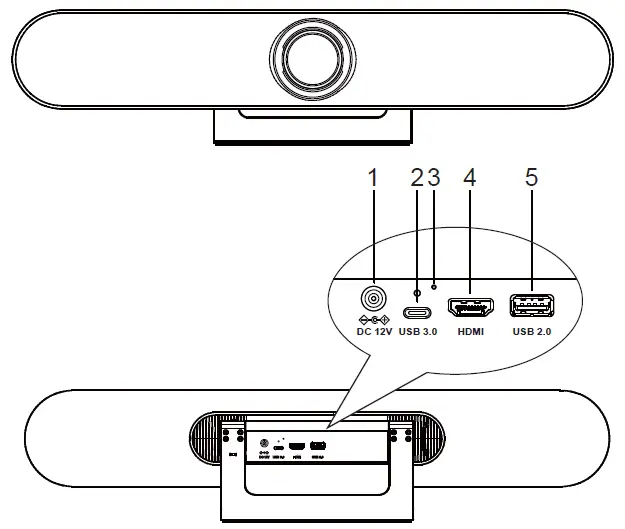

Appearance and Interface

Packing List

Product Features

Applicable Scene
It is specially designed for small and medium-sized meeting rooms, especially for the Huddle Room with 4 to 6 people, to help enterprises re-tap the potential of using the small and micro meeting space inside. On one hand, it can hold meetings more efficiently, on the other hand, it can also save the rental cost. Product Value
It is convenient for small and medium-sized enterprises to conduct daily business negotiation and team cooperation in different places flexibly, so as to create a relaxed, free and smooth conversation environment, make decisions quickly and improve efficiency.

All-in-one Design
The three-in-one design of 4K ultra HD camera, beamforming microphone and full-frequency loudspeaker reduces wiring and make video communication easy. Bluetooth 5.0
Using Bluetooth 5.0 technology. Compared with the previous generation technology, the transmission rate is increased by 2 times, and the transmission distance is increased by 4 times. It can better transmit the high-quality audio between the mobile phone and tablet devices to achieve the wireless Bluetooth streaming.

4K UHD
Using 1/2.5 inch, 8.51M pixel high quality UHD CMOS sensor, 4K (3840×2160)@30fps ultra high resolution clear image, and downward compatible with 1080P, 720P and other resolutions. It can meet the needs of users for different video experiences, and can provide clearer, real, smooth and accurate communication.

Wide Field View
121°wide field of view (110° horizontal field of view), 5 times zoom, optical lens customized for the conference scene, built-in electric head (horizontal and pitch ±15° motion range), no need to worry about the camera position, participants can easily enter the scene clearly.

Beamforming Microphone
Beam Forming (BF) microphone is built in, with a pickup distance of 6 meters. Low-distortion transverse beamforming algorithm can direct the microphone directly to the speaker, with better sound, clearer communication, fuller and more authentic.

Audio 3A Algorithm
Built-in audio 3A algorithm (AEC/AGC/ANS), full duplex dialogue, can meet the communication needs of different room structures, whether sitting at a conference table, sitting against the wall or standing, can have comfortable experience for calling.

Full Frequency Speaker
Full frequency Hi-Fi loudspeaker, professional acoustics design, reduce noise interference, provide outstanding sound effect.

Plug and Play Type
Through plug and play USB interface connect with the computer or business display screen, very easy to use. Less wiring, convenient video communication, reduce the user’s learning cost.

Speaker Phone
It can be used as Bluetooth microphone and speaker while connected to mobile phone or other devices via Bluetooth connection, and the call
can be connected to the audio and video conference.

Intelligent Analysis
Built-in intelligent analysis algorithm, listening to the speaker position, automatic framing of participants, automatic tracking of speakers, switching the speaker screen, to ensure that the speaker is always clearly in the picture.

Rich Interfaces
Support HDMI and USB 3.0 audio video output simultaneously.

Easy Installation

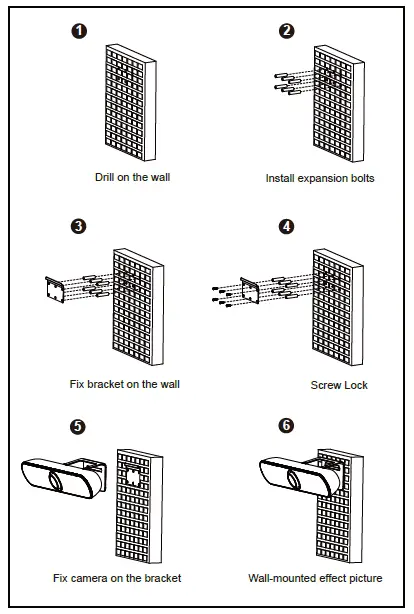

Flexible installation options such as countertops, walls, and TV/display screens are available for quick installation and deployment in a crowded meeting room.

Product Specifications

Product specifications and parameter information are subject to change without notice

Safety Precautions

Careful Transportation
Transportation, custody and installation process to prevent heavy pressure, violent vibration, immersion damage to the product.

Careful Installation
This product should be placed on the smooth desktop. The shell of the product is an organic material and is strictly prohibited from contact with any liquid, gas or solid material that may cause corrosion to the shell.

Do not Unauthorized Disassemble
This product has no parts which can be repaired by the user. The damage caused by the user’s own disassembly is not covered by warranty.

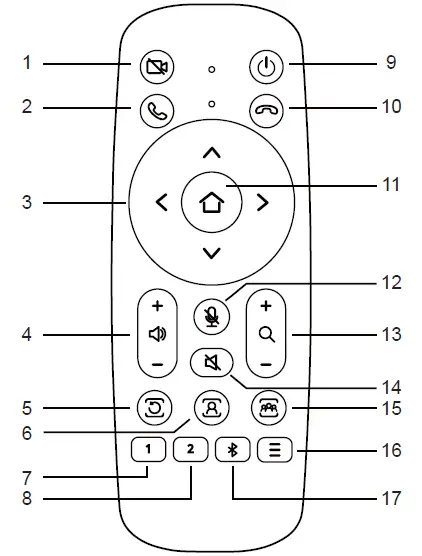

Remote Control

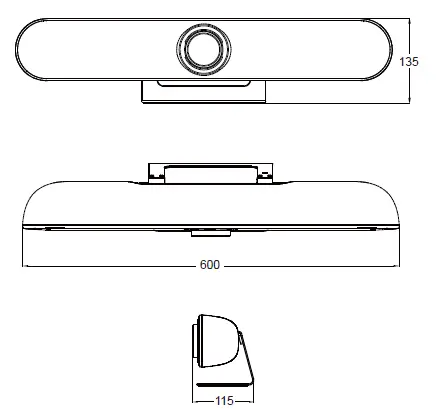

Product Dimension

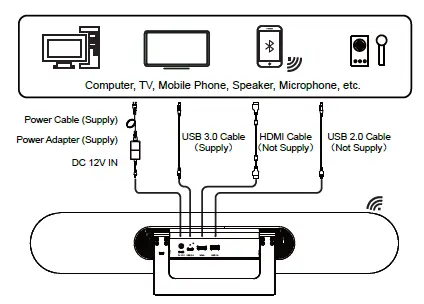

Installation and Connection

Remote Control Pairing

Note: The remote control has been paired with the whole machine when it leaves the factory, and it can be used normally without special operations. Unless there is an abnormal remote control, the whole remote control is confused, the remote control is missing, etc., and the remote control needs to be re-matched, the following steps are used to re-pair.

1. Step 1 Connect the camera to the power supply and wait for the camera initialization to complete, and the camera can output pictures normally.
2. Step 2 Clear the paired status of the remote control: Press and hold the Menu + OK button at the same time until the remote control indicator light with steady red, release the buttons to clear the paired status of remote control.
3. Step 3 Trigger the camera to enter the remote control pairing mode: Use the card pin to poke the reset button of the camera, the camera’s LED light will switch to a blue marquee effect when it enters the pairing mode normally. (Note: There is only 15s operation time while entering the pairing mode. After the timeout, the pairing mode will be automatically exited and the LED is not a blue marquee effect. Press the reset button again to reenter the remote control pairing mode.)
4. Step 4 Start pairing: Press and hold the Menu button unitl the indicator on the complete. When the normal pairing is successful paired, the camera’s remote control light with red, and then wait for the matching to LED light is blue with a flashing effect. Now, your camera can be operated through the remote control normally. If the pairing fails, please repeat steps 2, 3 and 4 until the matching is successful.

GUI Settings

MENU
Press【MENU】key under normal image, the screen will display as below:

• MENU
• Setting
• Information
• Restore Default
• Exit

Setting
Move the cursor to “Setting” in the main menu, and press [OK] to enter the setting page as below:

• SETTING
• Language English
• Video Setting
• Audio Setting
• EPTZ On
• Zoom Limit 3x
• HDMI Format 4K@30
• Tracking Mode OFF
• Return

Maintenance & Troubleshooting

Camera Maintenance

• If camera is not use in long-term, please disconnect power switch after use.
• Use soft cloth or cotton paper to remove dust from the camera housing.
• When cleaning the camera lens, please use dry soft cloth to wipe, if dirt is serious, use neutral cleaner gently. Do not use strong or corrosive detergent, lest the lens scratch, affect the image effect.

Avoid Using

• The camera should avoid shooting particularly bright objects, such as sunlight, lights, etc.
• The camera should not work under unstable lighting conditions, otherwise the image will flash.
• Do not use around facilities that can transmit high-power radio waves, such as television station or radio-transmitting station.

Troubleshooting
The video image displayed by the camera lens has jitter.

1. Check whether the camera installed position be stabled.
2. Check whether have vibrating machinery or object near the camera

FCC & IC Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of Nthe following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
