Infobit Icam P30 4k60 Ptz Conference Camera User Manual

infobit iCam P30 4K60 PTZ Conference CameraNote

• Electric Safety
  Installation and operation must accord with electric safety standard.
• Use caution to transport
  Avoid stress, vibration or soakage in transport, storage and installation.

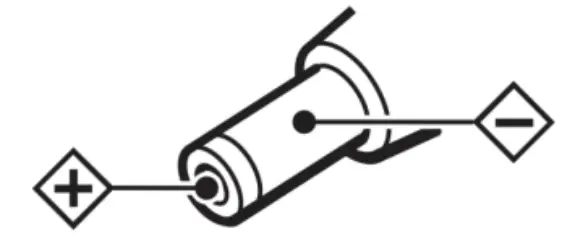

• Polarity of power supply
  The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power supply plug drawing shows as below.
• Installation Precautions
  Do not grasp the camera lens when carrying it. Don’t touch camera lens by hand. Mechanical damage may be caused by doing so.
  Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic material) damage. Make sure there is no obstacle within rotation range.
  Please never power on before installation is completed.
• Do not dismantle the camera
  We are not responsible for any unauthorized modification or dismantling.

Specific frequencies of electromagnetic field may affect the image of the camera!

Packing List

When you unpack, check that all the supplied accessories are included:

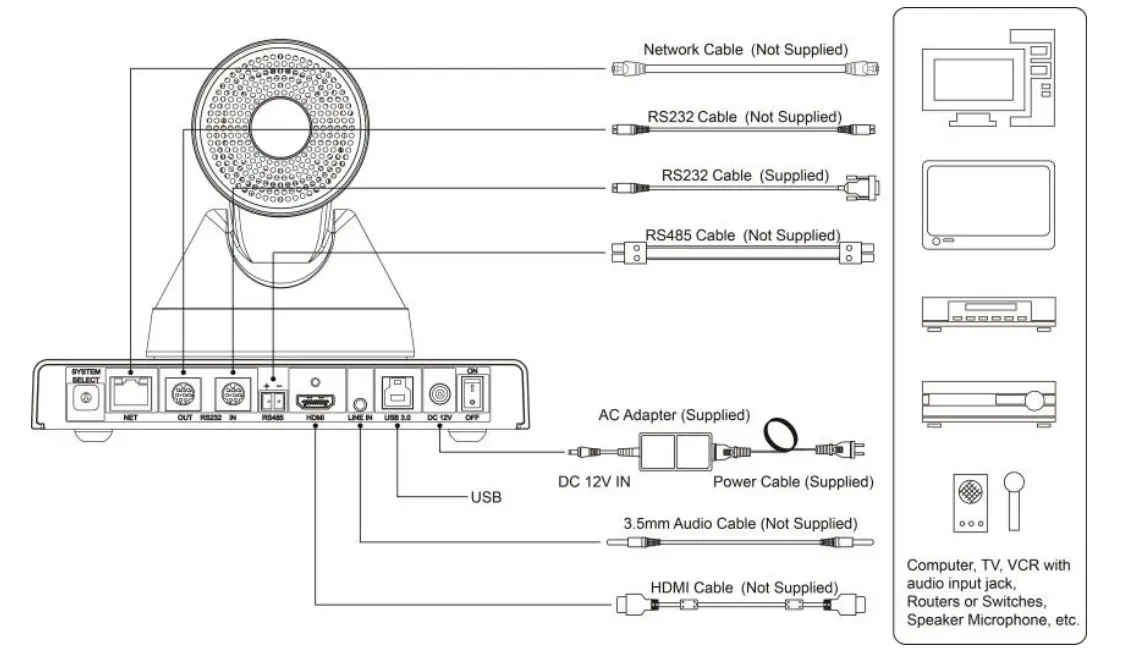

Quick Start

1. Please check connections are correct before starting.
2. Connect the power adapter to the power connector on the rear panel of the camera. The power indicator on the front panel of the camera is on.
3. After the camera is power on, it starts to initialize, right up to the limit position, and then both horizontal and vertical go to the middle position, the motor stops running, and the initialization is completed.
   (Note: If preset 0 is saved, PTZ will be move to preset 0)

System Select Video Format

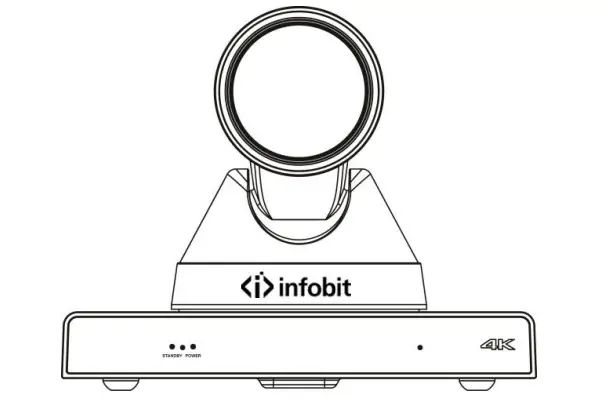

About Product

1. Features
   1. 4K Ultra HD
      Using a new generation of SONY 1/2.5 inch, 8.51 million pixel high-quality UHD CMOS sensor. It can provide 4K ultra high definition, up to 4K@30fps/25fps image coding output, and downwards compatibility with 1080P, 720P resolution, etc.
   2. HDMI 1.4
      It supports HDMI 1.4 version and output uncompressed 4K original video.
   3. Multiple Interfaces
      It supports HDMI/USB 3.0/Network Interface, and it output 4K video at the same time.
   4. 12x Wide Angle Lens
      Customized high quality real 8 million ultra high resolution 4K lens, 12x optical zoom, maximum 70° viewing angle.
   5. Support PoE
      Support PoE power supply, and control, power supply, video and audio can be completed with only one network cable.
   6. Infrared Transmission In addition to receiving the dedicated remote control signal, the camera can also receive the user’s infrared remote control signal and send it to the back-end device (such as video conference terminal) through the VISCA IN port, so that the back-end device can be hidden in the cabinet.
   7. Built-in Microphone
      Built-in microphone array, it can pick up sound distance up to nine meters, unique noise suppression algorithm, it can make your voice perfect presentation.
   8. Low Light
      The application of 2D and 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keep the picture clean and clear, and the SNR of image is as high as 55dB.
   9. Remote Control
      Through the RS232 and RS485 serial ports, the camera can be controlled remotely.
2. Product Specification


   Name	Video Conference Camera
   Camera
   Video System	4K@30fps, [email protected], 4K@25fps, 1080P@60fps, [email protected], 1080P@50fps, 1080I@60fps, [email protected], 1080I@50fps, 1080P@30fps, [email protected], 1080P@25fps, 720P@60fps, [email protected], 720P@50fps
   Sensor	1/2.5 inch, CMOS, Max Effective Pixel: 851M
   Scanning Mode	Progressive
   Lens	12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
   Digital Zoom	16x
   Minimum Illumination	0.05 Lux @ (F1.8, AGC ON)
   Shutter	1/30s ~ 1/10000s
   White Balance	Auto, Indoor, Outdoor, One Push, Manual, VAR
   Backlight Compensation	Support
   Digital Noise Reduction	2D & 3D Digital Noise Reduction
   Signal Noise Ratio	≥55dB
   Horizontal Angle of View	71° ~ 8.2°
   Vertical Angle of View	42.7° ~ 4.5°
   Horizontal Rotation Range	±170°
   Vertical Rotation Range	±30°
   Pan Speed Range	1.54° ~ 82°/s
   Tilt Speed Range	0.43° ~ 42.7°/s

   H & V Flip	Support
   PoE	Support
   Image Freeze	Support
   Number of Preset	255
   Preset Accuracy	0.1°
   IPC Features
   Video Compression	H.264/H.265/MJPEG
   Video Stream	First Stream, Second Stream
   First       Stream Resolution	3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360
   Second Stream Resolution	1280×720, 1024×576, 720×576 (50Hz support), 720×480 (60Hz support), 720×408, 640×360, 480×270, 320×240, 320×180
   Video Bit Rate	32Kbps ~ 102400Kbps
   Bit Rate Type	Variable Rate, Fixed Rate
   Frame Rate	50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
   Audio Compression	AAC
   Audio Bit Rate	48Kbps, 64Kbps, 96Kbps, 128Kbps
   Protocols	TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, etc.
   Input/Output Interface
   Network Interface	1 x RJ45: 10/100/1000M Adaptive Ethernet Ports
   Communication Interface	1 x RS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
   	1 x RS232 IN: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P

   Communication Interface	1 x RS-485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P
   HDMI Interface	1 x HDMI: Version 1.4
   Audio Interface	1 x LINE IN: 3.5mm Audio Interface
   USB Interface	1 x USB 3.0: Type B
   Power Jack	JEITA type (DC IN 12V)
   Physical Parameter
   Input Voltage	DC 12V / PoE (802.3af)
   Current Consumption	0.61A (Max)
   Operating Temperature	-10°C ~ 40°C
   Storage Temperature	-40°C ~ 60°C
   Power Consumption	7.32W (Max)
   MTBF	＞30000h
   Size	200 x 129 x 161mm
   Net Weight	1.35Kg

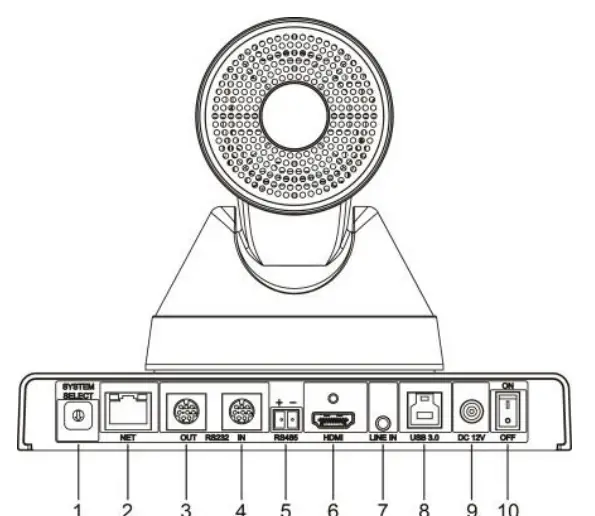

3. Interfaces and Buttons


   Item	Name
   1	System Select Switch
   2	Network Interface
   3	RS232 OUT Interface

   Item	Name
   4	RS232 IN Interface
   5	RS485 Interface
   6	HDMI Interface
   7	LINE IN Interface
   8	USB 3.0 Interface
   9	DC 12V Interface
   10	Power Switch

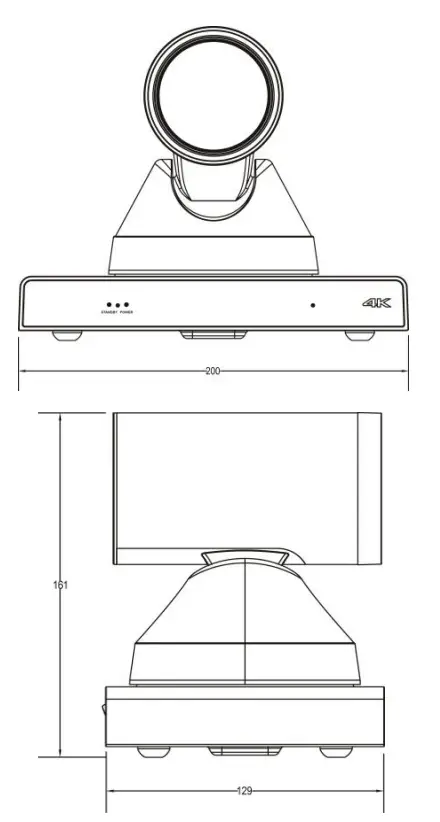

4. Dimension
5. RS-232 Interface Remote Control

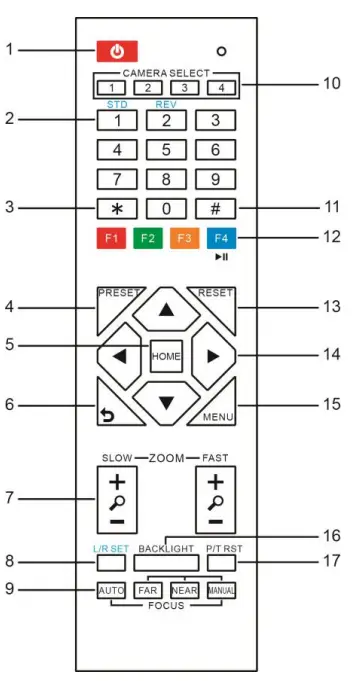

   Key Description

   1. Standby Key

   Press this button to enter standby mode. Press it again to enter normal mode. Note: Power consumption in standby mode is    approximately half of the normal mode

   2. Number Key

   To set preset or call preset

   3. *Key

   Used with other buttons.

   4. Preset Key

   Set preset: Store a preset position. [SET PRESET] + Numeric button (0-9): Setting    a corresponding numeric key preset position.    5. HOME Key Confirm menu, enter the submenu or the PTZ will back to the middle position after pressed it 6. Return Key Return back the last level menu 7. Zoom KeySlow  Zoom: Zoom In [+] or Zoom Out [-] slowly Fast Zoom: Zoom In [+] or Zoom Out [-] fast 8. Left/Right Setting KeyPress with 1 buttons and 2 buttons setting the direction of the Pan-Tilt. Simultaneously press L/R Set +1[STD]: set the Pan-Tilt turn the same direction as the L/R Set. Simultaneously press L/R Set +2[REV]: set the Pan-Tilt turn the opposite direction as the L/R Set. 9. Focus Key Used for focus adjustment. Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually. Press [MANUAL] adjust the focus on the center of the object manual. MANUAL button, and adjust it with [Far] (Focus on far object) and [NEAR] (Focus on near object). 10. Selection Key Press the button corresponding to the camera you want to operate with the remote controller. 11. #Key  Used with other buttons. 12. IR Remote Control Key [*]+[＃]+[F1]: Address 1 [*]+[＃]+[F2]: Address 2 [*]+[＃]+[F3]: Address 3 [*]+[＃]+[F4]: Address 4 13. Reset Key  Clear preset: Erase a preset position. [CLEAR PRESET] + Numeric button (0-9) Or: [*]+[#]+[CLEAR PRESET]: Erase all the preset individually. 14. PTZ Control Key Press arrow buttons to perform panning and tilting. Press [HOME] button to face the camera back to front. 15. Menu Key MENU: enter or exit OSD MENU.  iCam P10 PTZ Conference Camera 16. Backlight Key  BLC ON/OFF: Press this button to enable the backlight compensation. Press it again to disable the backlight compensation. NOTE: Effective only in auto exposure mode. If a light behind the subject, the subject will become dark. In this case, press the backlight ON/OFF button. To cancel this function, press backlight ON/OFF button. 17. PTZ Reset Key  Preset Pan/Tilt self-test. 18. Image Freezing Function Manually freeze: Open the freezing function after press the remote control [F4], display “Freeze” on the left upper corner character, after five seconds display disappear automatically. If you want to cancel the freeze, press [F4] key and then can return to normal, display “Unfreeze” on the left upper corner, after five seconds display will disappear automatically. Recalling the Preset image Freeze: By the OSD Menu “Image Freeze” to set recalling the preset image freeze function. After the function is opened, the screen will stay in before Recalling the Preset when Recalling the Preset, the screen can be switched to the preset position screen until the camera points to the preset position. 19. Shortcut Set [*]+[＃]+[1]: OSD menu default English [*]+[＃]+[3]: OSD menu default Chinese [*]+[＃]+[6]: Quickly recover the default [*]+[＃]+[8]: Look the camera version [*]+[＃]+[9]: Quickly set up inversion

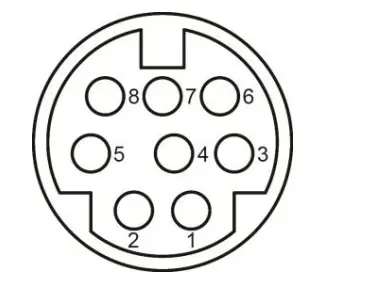

6. RS-232 Interface


   No.	Function
   1	DTR
   2	DSR
   3	TXD
   4	GND
   5	RXD
   6	GND
   7	IR OUT
   8	NC

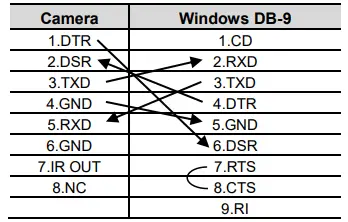

   The correspondence between the camera and Windows DB-9 pin:The correspondence between the camera and the Mini DIN pin:

   Camera		Mini DIN
   1.DTR		1.DTR
   2.DSR		2.DSR
   3.TXD		3.TXD
   4.GND			4.GND
   5.RXD		5.RXD
   6.GND		6.GND
   7.IR OUT		7.NC
   8.NC		8.NC

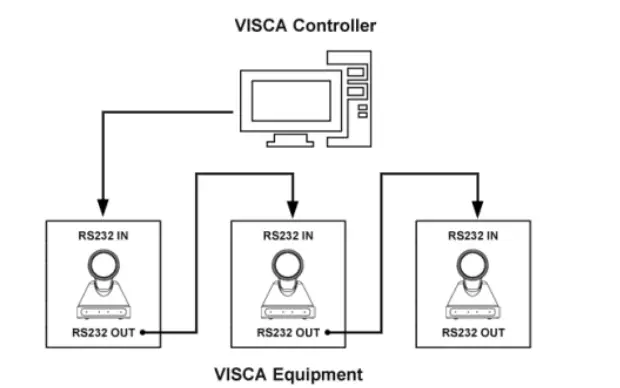

7. VISCA Network
8. Serial Communication Control
   1. RS232 Communication Control
      The camera is controlled via RS232. The RS232 serial port parameters are as follows: Baud rate: 2400/4800/9600/38400;
      1. Starting Position: 1 bit
      2. Data bit: 8 bits
      3. Stop bit: 1 bit
      4. Check digit: None
   2. RS485 Communication Control
      Control camera via RS485, half-duplex mode: Baud rate: 2400/4800/9600/38400 bit/s; Starting position: 1 bit
      1. Data bit: 8 bits
      2. Stop bit: 1 bit
      3. Check digit: None
      4. After power on, the camera goes to the upper right limit and then back to the middle position. The zoom lens is pulled to the farthest position, auto focus, and the aperture is adjusted to the default value. If the camera has preset 0 saved, the camera will be set to position 0 after the initialization is completed. At this point, the user can use the serial port command to control the camera.
   3. List of protocols (omitted)
      The serial port of the camera follows the VISCA/Pelco-D/Pelco-P standard protocol. If secondary development is required, the camera can be controlled according to the standard protocol.
      For a detailed list of VISCA/Pelco-D/Pelco-P protocols, contact the manufacturer.

GUI Settings

1. MENU
   Press [MENU] button to display the main menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu.

   	MENU
   	Exposure
   	Color
   	P/T/Z
   	Noise Reduction
   	Audio
   	Setup
   	Communication Setup
   	Restore Default
   	[Home] Enter
   	[Menu] Exit

2. EXPOSURE
   Move the main menu cursor to [EXPOSURE], and press [HOME] key enter the exposure page, as shown in the following figure.

   	EXPOSURE
   	Mode	Auto
   	ExpCompMode	Off
   	Backlight	Off
   	Gain Limit	3
   	Anti-Flicker	50Hz
   	Meter	Average
   	DRC	2
   	Select Item
   	Change Value
   	[Menu] Back

   1. Mode: Exposure mode, optional items: Auto, Manual, SAE, AAE, Bright.
   2. ExpCompMode: Exposure compensation mode, optional items: On, Off (Effective only in Automode).
   3. ExpComp: Exposure compensation value, optional items: -7 ~ 7 (Effective only in ExpCompMode item to On).
   4. Backlight: Set the backlight compensation, optional items: On, Off (Effective only in Auto mode).
   5. Bright: Intensity control, optional items: 00 ~ 17 (Effective only in Bright mode).
   6. Gain Limit: Maximum gain limit, optional items: 0 ~ 15 (Effective only in Auto, AAE, Bright mode).
   7. Anti-Flicker: Anti-flicker, optional items:
   8. Off, 50Hz, 60Hz (Effective only in Auto, Bright mode).
   9. Meter: optional items: Average, Center, Smart, Top.
   10. Iris: Aperture value, optional items: F1.8, F2.0, F2.4, F2.8, F3.4, F4.0, F4.8, F5.6, F6.8, F8.0, F9.6, F11.0, Close (Effective only in Manual, AAE mode).
   11. Shutt: Shutter value, optional items: 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (Effective only in Manual, SAE mode).
   12. DRC: DRC strength, optional items: 0 ~ 8.
3. COLOR
   Move the main menu cursor to [COLOR], and press [HOME] key enter the color page, as shown in the following figure.

   	COLOR
   	WB Mode	Auto
   	Saturation	100%
   	Hue	7
   	AWB Sens	Middle
   	Select Item
   	Change Value
   	[Menu] Back

   1. WB-Mode: White balance mode, optional items: Auto, Indoor, Outdoor, One Push, Manual, VAR.
   2. RG: Red gain, optional items: 0 ~ 255 (Effective only in Manual mode).
   3. BG: Blue gain, optional items: 0 ~ 255 (Effective only in Manual mode).
   4. Color Temp: Optional items: 2500K ~ 8000K (Effective only in VAR mode).
   5. RG Tuning: Red gain fine-tuning, optional items: -10 ~ +10 (Effective only in AWB sens is Low).
   6. BG Tuning: Blue gain fine-tuning, optional items: -10 ~ +10 (Effective only in AWB sens is Low).
   7. Saturation: Optional items: 60% ~ 200%. Hue: Chroma adjustment, optional items: 0 ~ 14.
   8. AWB Sens: The white balance sensitivity, optional items: Low, Middle, High.
4. IMAGE
   Move the main menu cursor to [IMAGE], and press [HOME] key enter the image page, as shown in the following figure.

   	Luminance	7
   	Contrast	10
   	Sharpness	3
   	Flip-H	Off
   	Flip-V	Off
   	B&W Mode	Off
   	Gamma	Default
   	Style	Clarity
   	Select Item
   	Change Value
   	[Menu] Back

   1. Luminance: Brightness adjustment, optional items: 0 ~ 14.
   2. Contrast: Contrast adjustment, optional items: 0 ~ 14.
   3. Sharpness: Sharpness adjustment, optional items: Auto, 0 ~ 15.
   4. Flip-H: Image flipped horizontally, optional items: On, Off.
   5. Flip-V: Image Flip Vertical, optional items: On, Off.
   6. B&W Mode: Optional items: On, Off.
   7. Gamma: Optional items: Default, 0.45, 0.5, 0.56, 0.63.
   8. Style: Optional items: Norm, Clarity (LED), Clarity, Bright, Soft, 5S, QS.

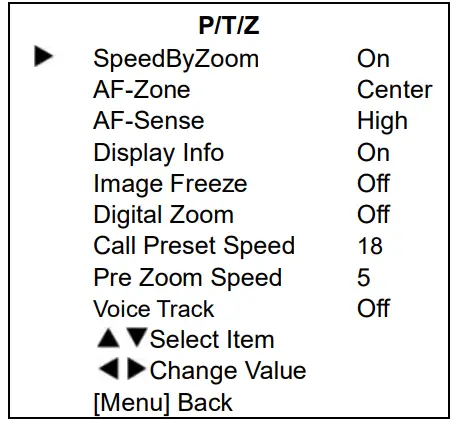

5. P/T/Z
   Move the main menu cursor to [P/T/Z], and press [HOME] key enter the P/T/Z page, as shown in the following figure.
   1. SpeedByZoom: The depth of field scale switch, optional items: On, Off.
   2. AF-Zone: Interested in focusing area, optional items: Top, Center, Bottom.
   3. AF-Sense: Automatic focusing sensitivity options, optional items: Low, Medium, High. Display Info: Optional items: On, Off.
   4. Image Freeze: Optional items: On, Off.
   5. Digital Zoom: Optional items: Off, 2x, 4x, 8x, 16x.
   6. Call Preset Speed: Optional items: 1 ~ 24. Pre Zoom Speed: Optional items: 0 ~ 7.
   7. Voice Track: Optional items: On, Off.
6. NOISE REDUCTION
   Move the main menu cursor to [NOISE REDUCTION], and press [HOME] key enter the noise reduction page, as shown in the following figure.

   NOISE REDUCTION
   	NR2D-Level	3
   	NR3D-Level	3
   	Select Item
   	Change Value
   	[Menu] Back

   1. NR2D Level: 2D noise reduction, optional items: Off, Auto, 1 ~ 5.
   2. NR3D Level: 3D noise reduction, optional items: Off, 1 ~ 8.

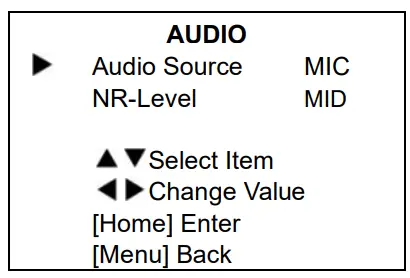

7. AUDIO
   Move the main menu cursor to [AUDIO], and press [HOME] key enter the audio page, as shown in the following figure.
   1. Audio Source: Optional items: MIC, LINE. NR-Level: Optional items: LOW, MID, HIGH.
8. SETUP
   Move the main menu cursor to [SETUP], and press [HOME] key enter the setup page, as shown in the following figure.

   	SETUP
   	Language	EN
   	USB Mode	BULK
   	ID CONF	1
   	OSD Flip	Off
   	Select Item
   	Change Value
   	[Home] Enter
   	[Menu] Back

   1. Language: Optional items: EN, Chinese, Russian.
   2. USB Mode: Optional items: BULK, ISOC.
   3. ID CONF: Optional items: 1, 2.
   4. OSD Flip: Optional items: On, Off.

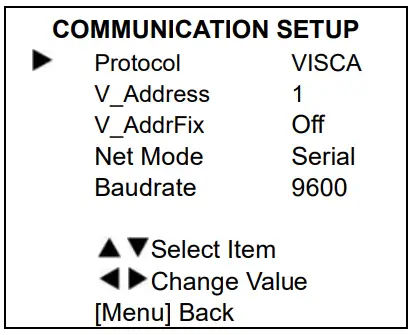

9. COMMUNICATION SETUP
   Move the main menu cursor to [COMMUNICATION SETUP], and press [HOME] key enter the communication setup page, as shown in the following figure.
   1. Protocol: Control protocol type, optional items: AUTO, VISCA, PELCO-D, PELCO-P.
   2. V_Address: Optional items: 1 ~ 7.
   3. P_D_Address: Optional items: 0 ~ 254.  (Effective only in PELCO-D protocol). P_P_Address: Optional items: 0 ~ 31. (Effective only in PELCO-P protocol).
   4. V_AddrFix: If you can change through the serial port of infrared switch, optional items: On, Off (When set to On, useless in 88 30 01 FF Command).
   5. Net Mode: Set the serial port control networking, optional items: Serial, Paral. Baudrate: Serial port baud rate, optional items: 2400, 4800, 9600, 38400.
10. RESTORE DEFAULT
    Move the main menu cursor to [RESTORE DEFAULT], and press [HOME] key enter the restore default page, as shown in the following figure.

    NOISE REDUCTION
    	NR2D-Level	3
    	NR3D-Level	3
    	Select Item
    	Change Value
    	[Menu] Back

    1. Restore: Confirm restore factory settings, optional items: Yes, No.
       Note: Press [HOME] button to confirm, all parameter restore default, include IR Remote address and VISICA address

Network Function

1. Operating Environment
   1. Operating System: Windows 2000/2003/XP/ vista/7/8/10
   2. Network Protocol: TCP/IP
   3. Client PC: P4/128M RAM/40G HDD/ support scaled graphics card, support DirectX 8.0 or more advanced version.
2. Equipment Installation
   1. Connect internet camera to your internet or to your PC directly via internet cable.
   2. Turn on DC 12V power.
   3. If the network connection is normal, the connection light (green) at the network interface will light up within 5 seconds, and the data indicator (orange) will flash, indicating that the physical connection of the camera has been completed.

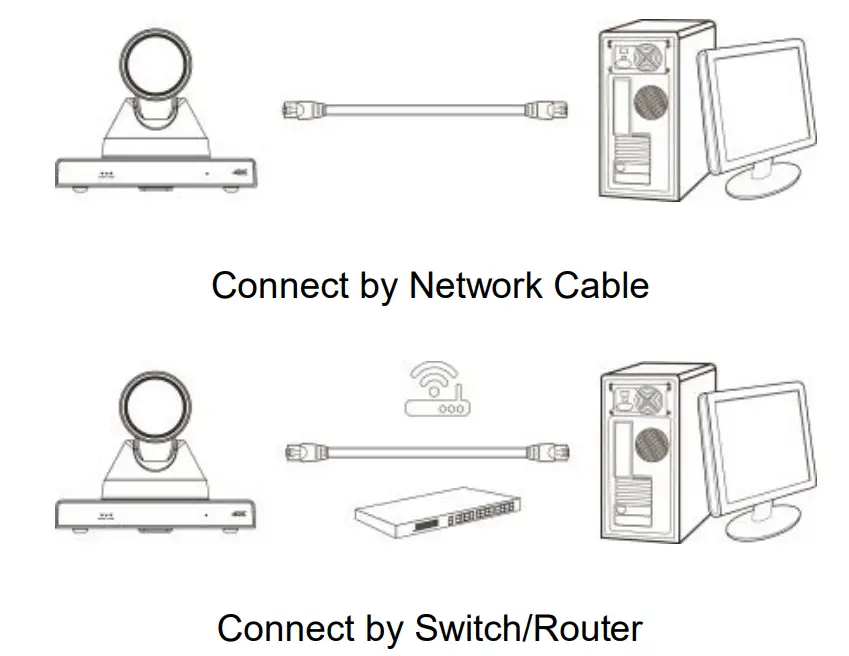

3. Internet Connection

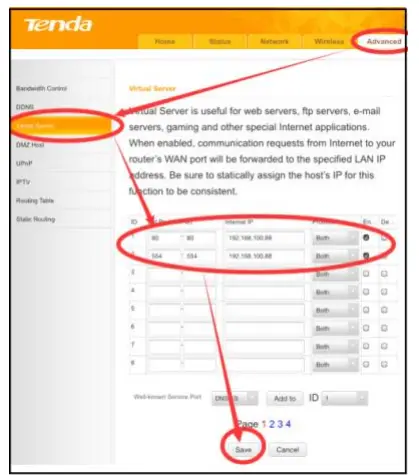

   There are two main ways to connect network camera.
4. IP camera controlled by LAN
   1. Setup IP address If you don’t know the camera IP, view as below: Method 1: Press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
      Method 2: Connect camera to PC with network cable, use “upgrade_En.exe” to search for IP address. Change IP address, two methods as below:

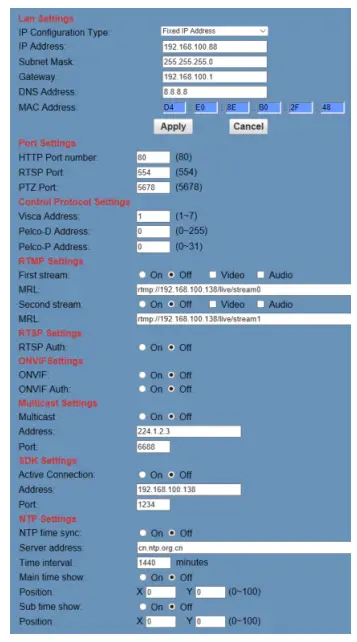

      1. Method 1: Login the web page, select “Network > Lan Settings”, change IP address, subnet mask and gateway. Click “Apply” and restart the camera.

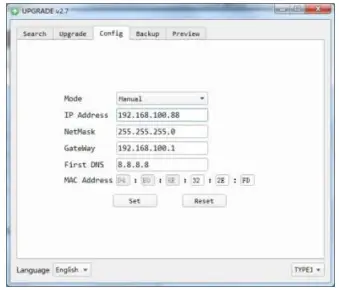

      2. Method 2: Open “upgrade_En.exe”, change IP and click “Set”. After modified, IP Camera will be restart.

Change IP address

1. Step 1 Search the IP address of camera.
2. Step 2 Select the camera IP of you want to change.
3. Step 3 Select config dialog of upgrade applets.
4. Step 4 Change the IP address, netmask and gateway, then click “Set”.
5. Step 5 Finish.

Visit/Access IP Camera

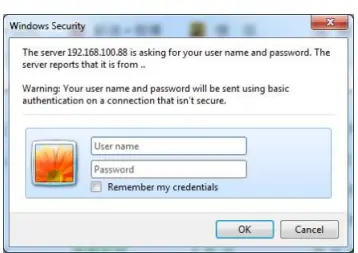

Input http://192.168.100.88 to IE (better with IE web browser, others will cause little latency), a login window pop up, input username: admin, password: admin, shown as belowAfter login, shown as below: If user first time use this camera by internet (only for new user), must install a player software (VLC). Please go to VLC website http://www.videolan.org/vlc/#download and Install VLC (player software). After installation, login again, will show as above:
IP Camera controlled by WAN

1.  Setup IPC controlled by dynamic DNS
   Two dynamic DNS: Dyndns.org, 3322.org. Router Port Mapping: Take Tenda router for example, enter the Router Home Page (interface page), select “Advanced”- “Virtual Server”, add a new port number in “Ext Port”, add a new port number in “Int port”, put camera IP address to “Internal IP”, then select “Save”, shown as below:
2. Dynamic DNS visit camera
   Set domain name to camera, setup the parameter, then dynamic DNS can access camera. Access link: http://hostname: port number. For example, setup host computer name: youdomain.f3322.org, the camera port number is 89, the access link should be http://youdomain.3322.org:89.
   If the camera port default is 80, then unnecessary to input port number, use host name can access camera directly.
3. VLC stream media player monitoring
   Visit VLC media server procedure
   1. Step 1 Open VLC media player.

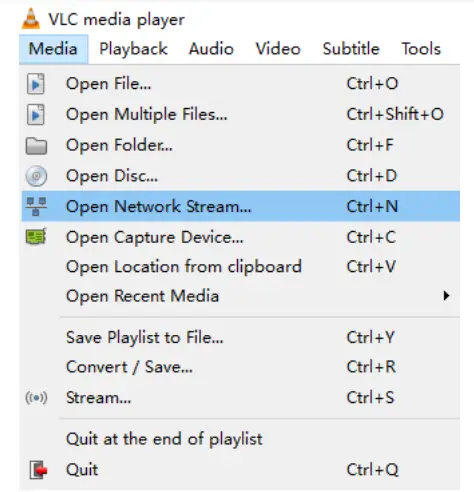

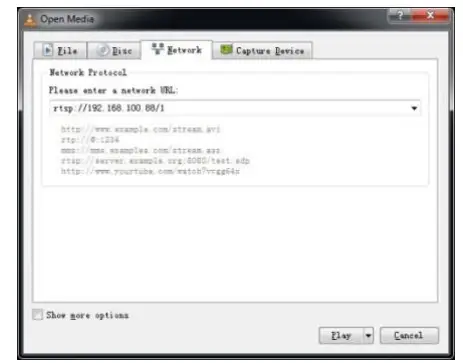

   2. Step 2 Click “Media > Open Network Stream”, or click “Ctrl + N”; as below:
   3. Step 3 Input URL address: rtsp://ip: port number/1 (First stream); rtsp://ip: port number/2 (Second stream).
   4. Step 4 Click “Play”. RTSP port number default 554. If the camera port default is 80, then unnecessary to input port number of URL address.
4. IP Camera Parameter Setup
   1. Homepage Introduction
   2. Menu
      All pages include two menu bars:
      Real-time monitoring: displaying video image Parameter setup: with function buttons.
   3. Video viewing window
      Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing area is. Double click viewing window, will show full-screen, double click again, will return to initialized size.
      Status bar in viewing window shown as below:
      1. Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again.
      2. Audio control buttons: can adjust the volume or set silent mode.
      3. Full screen switch button.

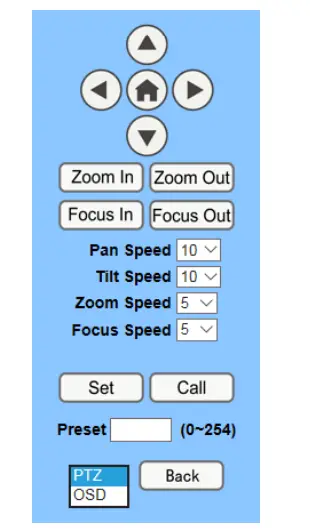

   4. B. PTZ Setup
      1. Pan and Tilt ControlUp, Down, Left and Right arrows and the home button allow you to manually drive the camera to the desired position.
      2. Zoom
         Zoom In and Zoom Out buttons allow for wide or narrow view of the space.
      3. Focus
         Focus In and Focus Out buttons allow for fine manual focus adjustment if the camera has any problems auto focusing on the difficult object
      4. PTZ Speeds
         Pan speed can be set at any rate between 1 ~ 24, Tilt speed can be set at any rate between 1 ~ 20. Zoom and Focus speeds can be set at any rate between 0 ~ 7.
      5. PTZ Presets
         After manually setting up a shot that you would like to return to later, you can save presets for quick recall of these positions. Type a number between 0 and 254 into the Preset box.
         Click the “Set” button to save the current location with that preset number. Click the “Call” button to cause the camera to return to that position. This enables smooth, quick and convenient control without the need to manually drive the camera. You can set up preset that user want as below. Method 1: Type a number into the Preset box.
      6. Preset: Optional items: 0 ~ 254.

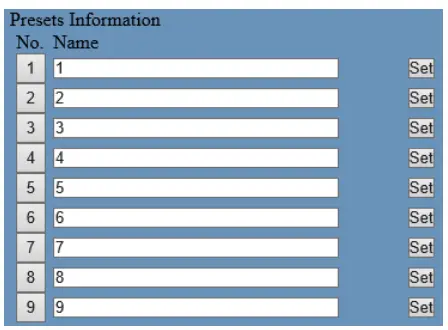

         Method 2: Type the name into the Presets Information.
      7. Click “Set” button, when PTZ turn to other position, click “Call” button or click “No.” of the Presets Information, PTZ will turn back to preset position.
         6) PTZ / OSD Dropdown
         From the dropdown menu, clicking the OSD option will open the on-screen display menu of the camera giving you control from within the IP interface.
         C. Language selection click either “Russian”, “Chinese” or “English” to change the language of the menu.
5. Video Settings
   1. Video FormatSupport 50Hz (PAL) and 60Hz (NTSC), and Dial Priority three formats.
   2. Encode Level
      Support baseline, mainprofile, highprofile and svc-t four levels.
   3. Encode Protocol
      Support H.264, H.265 and MJPEG three formats.
   4. Resolution
      First stream support 3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360. Second stream support 1280×720, 1024×576, 720×576 (50Hz support), 720×480 (60Hz support), 720×408, 640×360, 480×270, 320×240, 320×180; The bigger resolution is, the clearer the image will be, more network bandwidth will be taken.
   5. Bit Rate
      The user can specify the bit rate. Generally speaking, the larger of the bit rate, the clearer of the image. However, the configuration of the bit rate needs to be combined with the network bandwidth. When the network bandwidth is narrow and the bit rate is configured larger, the video stream cannot be transmitted normally, and the visual effect is worse.
   6. Frame Rate
      User can specify the size of the frame rate, generally, the frame rate greater, the image more smooth; Frame rate is smaller, the more sense of beating.
   7. I Key Frame Interval
      Set interval between 2 I frame, the bigger interval is the response will be lower from viewing window.
   8. Bit Rate Control
      Code stream control way: Constant Bit Rate: Video coder will be coding according to preset speed. Variable Bit Rate: Video coder will adjust the speed based on preset speed to gain the best image quality.
   9. Fluctuate Level
      Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6.
   10. Slice Split Enable
       Enable or disable slice split function.
   11. Split Mode
       Select split mode, optional items: Fixed blocks, Fixed bytes.
   12. Slice Size
       Set the size of slice.

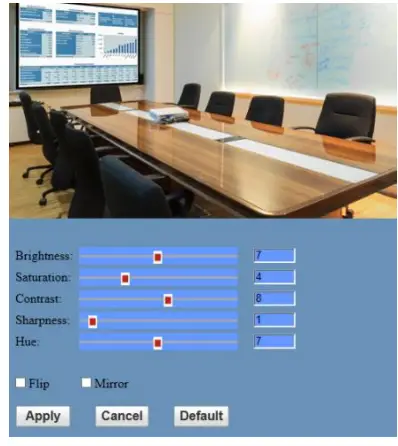

6. Image Settings
   1. BrightnessImage bright 0 ~ 14, slider control, on the right shows the corresponding numerical. Default value is 7.
   2. Saturation
      Saturation 0 ~ 14, slider control, on the right shows the corresponding numerical. Default value is 4.
   3. Contrast
      Contrast 0 ~ 14, slider control, on the right shows the corresponding numerical. Default value is 8.
   4. Sharpness
      Sharpness 0 ~ 15, slider control, on the right shows the corresponding numerical. Default value is 1.
   5. Hue Hue 0 ~ 14, slider control, on the right shows the corresponding numerical. Default value is 7.

   6. Flip & Mirror
      Tick Flip to realize image upside down, tick mirror to realize image around the mirror. Default value is not tick.

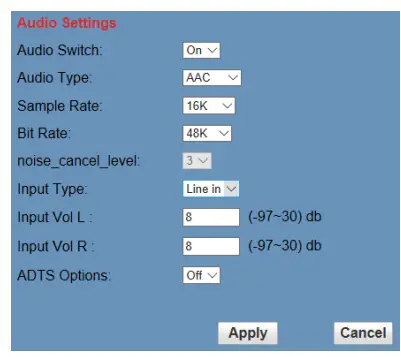

7. Audio Settings
   1. Audio Switch
      Enable or disable audio switch.
   2. Audio Type
      Audio type AAC.
   3. Sample RateOptional items: 16K, 44.1K, 48K.
   4. Bit Rate
      Optional items: 48K, 64K, 96K, 128K.
   5. noise_cancel_level
      Optional items: 0 ~ 3 (Effective only when the Input Type is MIC).
   6. Input Type
      Optional items: Line in, MIC.
   7. Input Vol L
      The volume of the left channel.
   8. Input Vol R
      The volume of the right channel.
   9. ADTS Options

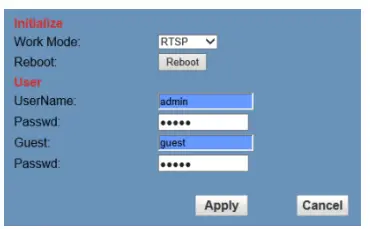

8. System Settings
   1. Work Mode
      The default work mode is RTSP.
      Optional items: RTSP, SDK, Multicast.
   2. Reboot
      Click the “Reboot” button, system restart.
   3. Username and password
      The user can modify the password (letters and Numbers only).
9. Network Settings
   1. Lan Settings
      Default the IP address is 192.168.100.88, the MAC address can not be modified.
   2.  Port Settings
      1.  HTTP Port
         IP address identifies the network device, the device can run multiple web applications, each network program using network port to transmit data, so data transmission to be carried out between the port and port. Port setting is to set up web server program using which port to transmit. When port mapping, need to be consistent with the port number (default port: 80).
      2. RTSP Port
         Network camera support RTSP protocol, use the VLC tools broadcast, default port: 554.
      3. PTZ Port
         Support PTZ protocol, default port: 5678.
   3. Control Protocol Settings
      Setting the camera control communication protocol, include Visca address, Pelco-D address and Pelco-P address.
   4. RTMP Settings
      Setting the MRL of RTMP, select enable or disable video and audio. You can select control code stream of “On”, “Off”, “Video”, “Audio” between in the two streams.
   5. RTSP Settings
      Turn On/Off RTSP auth.
   6. ONVIF Settings
      Turn On/Off ONVIF and ONVIF auth.
   7. Multicast Settings
      Turn On/Off multicast. Setting the multicast address (default value is 224.1.2.3) and port (default value is 6688, then 6688 is the multicast port of the first stream; 6690 is the multicast port of the second stream).
   8. SDK Settings
      Turn On/Off active connection. Setting SDK address (default value is 192.168.100.138) and port (default value is 1234).
      NTP Settings
      Turn On/Off NTP time sync, main time show and sub time show. Setting NTP server address, time interval, main stream position and sub-stream position.

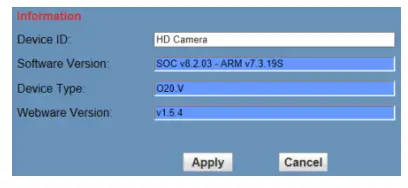

10. Device Information
    Display the current device information, as shown below.
11. Download the Network Upgrade  Program

If you need the camera upgrade program, please contact the manufacturer.

Maintenance and Troubleshooting

Camera Maintains

• If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC adaptor to the outlet.
• Use soft cloth or tissue to clean the camera cover.
• Please use the soft dry cloth to clean the lens. If the camera is very dirty, clean it with diluted neuter detergent. Do not use any type of solvents, which may damage the surface.

Unqualified Application

• No shooting extreme bright object for a long period of time, such as sunlight, light sources, etc.
• No operating in unstable lighting conditions, otherwise image will be flickering.
• No operating close to powerful electromagnetic radiation, such as TV or radio transmitters, etc.

Troubleshooting Image

1. The monitor shows no image
   1.  Check that the camera power supply is connected, the voltage is normal, and the power indicator light is always on.
   2. Turn off the power switch to check whether the camera is self-testing.
   3. Check the cable of video platform and TV whether correct connection.
2. Sometimes without the image
   Check the cable of video platform and TV whether correct connection.
3. Image have jitter when the camera lens at max multiple.
   1. Check whether the camera installed position be stabled.
   2. Check whether have vibrating machinery or object near the camera.
4. Please visit VLC website
   http://www.videolan.orgvl download and install VLC media player, after it installed, visit IP Camera will have normal image display.
5. Unable to Access IP Camera through IE Browser
   1. Using PC to access the network to test whether the network access can work properly, first of all, the network fault caused by the PC virus can be eliminated, until the PC and IP Camera can communicate with each other Ping.
   2. Disconnect the network, connect IP Camera and PC separately, and reset the IP address of PC.
   3. Check IP address, subnet mask, and gateway settings for IP Camera.
   4. Check whether the MAC address is conflicts.
   5. Check whether the web port is occupied by another device.
6. Forget the IP address or login password Please remember (The default IP address: 192.168.100.88; default user name: admin; default password: admin).

Control

1. Remote control can not control
   1. Check and replace the new battery for the remote controller.
   2. Check whether the camera working mode is correct.
2. Series port can not control
   1. Check whether the camera protocol, address such is the same.
   2. Check whether the control line is connected well.

Contact US

• United Kingdom INFOBIT AV LTD. [email protected] Fifth Floor 3 Gower Street London WC1E 6HA
• Singapore INFOBIT AV PTE. LTD. [email protected] 3 Shenton Way, Shenton House #09-02, Singapore 068805
• China INFOBIT AV LTD. [email protected] Chaoyang, Beijing China

References

• 专业的云计算、动态域名服务提供商 - 公云PubYun
• My Dyn Account
• Official download of VLC media player, the best Open Source player - VideoLAN
• Official download of VLC media player, the best Open Source player - VideoLAN
