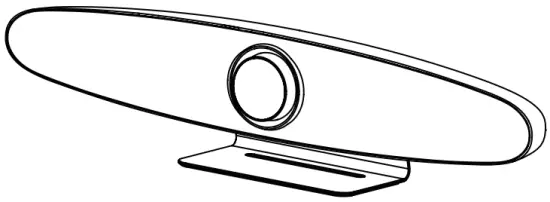

VHD M1000 4K UHD All-In-On USB Camera

Contents hide

4.1 System Information

5 Installation

6 Compliance Information

7 Declaration of RoHS2 Compliance

8 Note

9 Customer Care

10 Documents / Resources

10.1 References

11 Related Posts

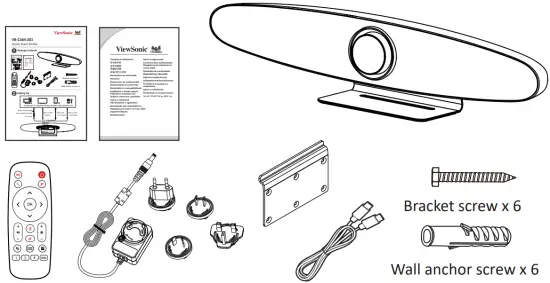

Package Contents

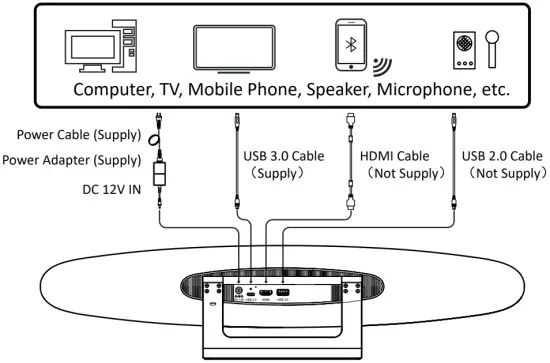

Setting Up

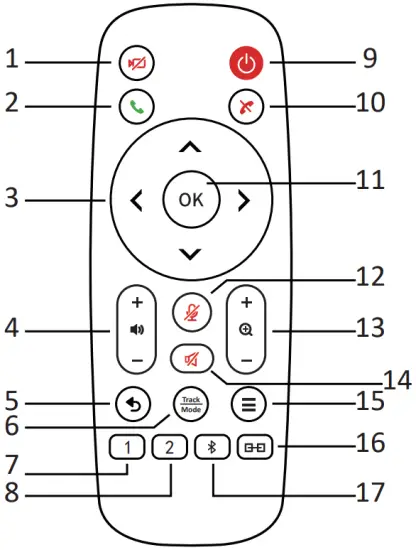

Remote Control

Model: M1000RF4CE

Items	Key	Function
1	Camera Disable	Disable/ Enable the video
2	Start Call	Answer/ Start call/ Enter call interface (for Skype for business only)
3	Control Key	Menu Control / Camera moving direction control
4	Audio Volume Up/Down	Audio volume control
5	Return	Return to previous menu page
6	Track Mode	Switch Mode between Manual and Tracking mode.
7	Preset 1	Set and Memo current camera position after long pressing and call the position after short pressing.
8	Preset 2	Set and Memo current camera position after long pressed and call the position after short pressed.
9	Standby	Come into Standby mode after long pressed and return to normal mode after short pressed
10	Hang Up	Hang up th call/ Leave meeting (for Skype for business only)
11	OK {Confirm)	Confirm selection / Camera returns to home position.
12	Mute	Disable / Enable the speaker
13	Zoom	Zoom In/ Out
14	Speake r	Disable/ Enable t he speaker
15	Menu	Call/ Hide Menu
16	Remote Control Pairing	Pairing the camera with on hand remote control
17	Bluetooth	Disable/ Enable Bluetooth function

Menu Setting

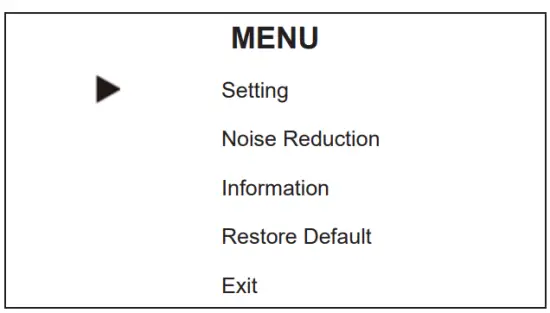

Main Page

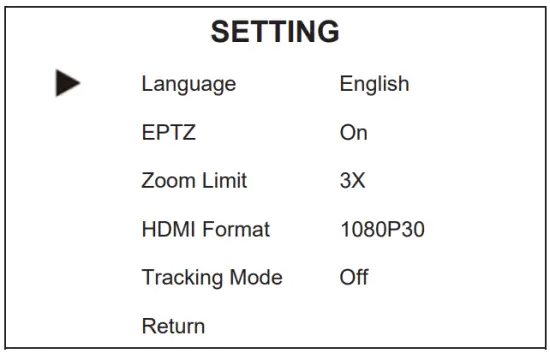

System / Camera Setting

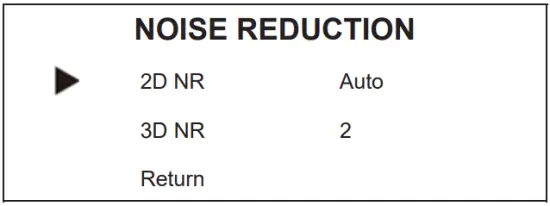

Noise Reduction Setting

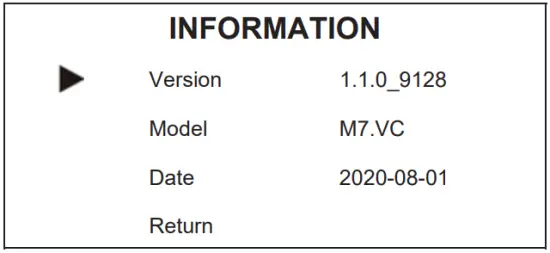

System Information

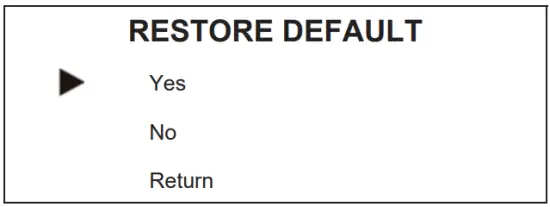

System Restore

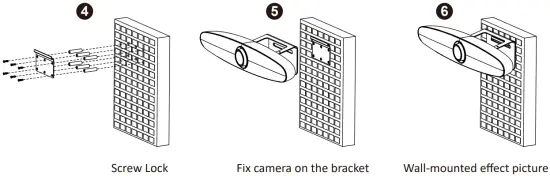

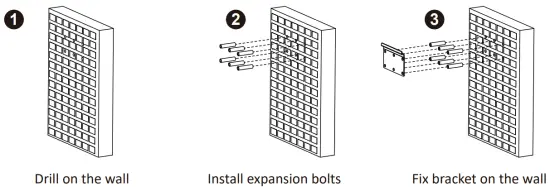

Installation

Compliance Information

FCC Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1 ) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body. Radio Frequency Exposure Statement for IC: This equipment complies with IC exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb)	0.1%	< 0.1%
Mercury (Hg)	0.1%	< 0.1%
Cadmium (Cd)	0.01%	< 0.01%
Hexavalent Chromium (Cr6•)	0.1%	< 0.1%
Polybrominated biphenyls (PBB)	0.1%	<0.1°/o
Polybromi nated diphenyl ethers (PBDE)	0.1%	< 0.1%
Bis(2-ethylhexyl) phthala te (OEHP)	0.1%	< 0.1%
Butyl benzyl phthalate (BBP)	0.1%	<0.1%
Dibutyl phthalate (OBP)	0.1%	<0.1%
Diisobutyl phthalate (DIBP)	0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex Ill of the RoHS2 Directives as noted below:

Examples of exempted components are:

Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
(1) Short length (<500 mm): maximum 3.5 mg per lamp.
(2) Medium length (>500 mm and < 1,500 mm): maximum 5 mg per lamp.
(3) Long length(> 1,500 mm): maximum 13 mg per lamp.
Lead in glass of cathode ray tubes.
Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
Copper alloy containing up to 4°/o lead by weight.
Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Note

Customer Care

Country/ Region	Website/Phone	Country/ Region	Website/Phone
Asia Pacific & Africa
Australia	www.viewsonic.com/au/	Bangladesh	www.viewsonic.com/bd/
(China)	www.viewsonic.com.cn 4008 988188		www.viewsonic.com/hk/
Hong Kong (English)	www.viewsonic.com/hk-en/	India	www.viewsonic.com/in/
Indonesia	www.viewsonic.com/id/	Israel	www.viewsonic.com/il/
(Japan)	www.viewsonic.com/jp/		www.viewsonic.com/kr/
Malaysia	www.viewsonic.com/my/	Middle East	www.viewsonic.com/me/
Myanmar	www.viewsonic.com/mm/	Nepal	www.viewsonic.com/np/
New Zealand	www.viewsonic.com/nz/	Pakistan	www.viewsonic.com/pk/
Philippines	www.viewsonic.com/ph/	Singapore	www.viewsonic.com/sg/
(Taiwan)	www.viewsonic.com/tw/		www.viewsonic.com/th/
Vi t Nam	www.viewsonic.com/vn/	South Africa & Mauritius	www.viewsonic.com/za/
Americas
United States	www.viewsonic.com/us 1-800-688-6688	Canada	www.viewsonic.com/us 1-866-463-4775
Latin America	www.viewsonic.com/la
Europe
Europe	www.viewsonic.com/eu/ +49-0821-45057383	France	www.viewsonic.com/fr/
Deutschland	www.viewsonic.com/de/		www.viewsonic.com/kz/
POCCHR	www.viewsonic.com/ru/	Espana	www.viewsonic.com/es/
Turkiye	www.viewsonic.com/tr/		www.viewsonic.com/ua/
United Kingdom	www.viewsonic.com/uk/
