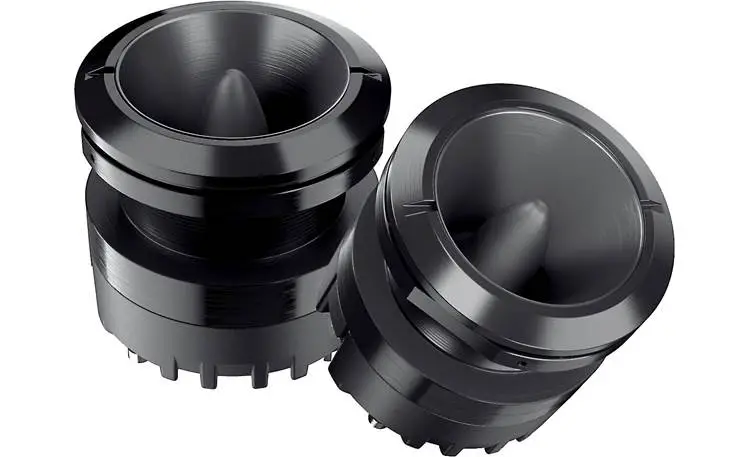

Hertz ST 35A NEO SPL Show Series 1-7/8″ bullet tweeters

Instructions

1. All components must be firmly secured to the vehicle structure. Do the same when installing any custom structures you may have built. Confirm your installation is solid and safe. A component coming loose while driving may cause serious damage to the passengers, as well as to other vehicles.
2. Always wear protective eyewear when using tools, as splints or product residue may become airborne.
3. In order to avoid incidental damage, keep the product in the original packaging until you are ready for the final installation.
4. Do not carry out any installation inside the engine compartment.
5. Before starting with the installation turn the head unit and all other audio system devices off, avoiding any possible damage.
6. Make sure that the location you choose to install the components does not interfere with the normal operation of any mechanical or electrical devices of the vehicle.
7. Do not install loudspeakers where they may be exposed to water, excessive humidity, dust or dirt.
8. Do not install the tweeter without the protective grille.
9. Do not install the components or make cable run close to electronic or mechanical devices of the vehicle.
10. Be very cautious when drilling or cutting into the vehicle chassis, making sure there are no cables or structural elements essential to the vehicle underneath or in the selected area.
11. When routing cables, make sure that the cable does not come in contact with sharp edges or near moving mechanical devices. Make sure that it is firmly attached and protected along its entire length and its insulation is self-extinguishing.
12. Only use cables with the proper section (AWG) indicated herein.
13. When running the cable through a hole in the vehicles chassis, protect the cable with a rubber ring (grommet). Be sure to provide proper protection for cables running close to heat-generating devices.
14. Do not run the wires outside of the vehicle.
15. Use top quality cables, connectors and accessories such as found in the Connection catalogue.
16. Warranty certificate: For more information visit the Hertz website.

SAFE SOUND

USE COMMON SENSE AND PRACTICE SAFE SOUND. PLEASE REMEMBER THAT LONG EXPOSURE TO EXCESSIVELY HIGH SOUND PRESSURE LEVELS MAY DAMAGE YOUR HEARING. SAFETY MUST BE AT THE FOREFRONT WHILE DRIVING.

Information on electrical and electronic equipment waste (for those European countries which organize the separate collection of waste)
Products which are marked with a wheeled bin with an X through it can not be disposed of together with ordinary domestic waste. These electrical and electronic products must be recycled in proper facilities, capable of managing the disposal of these products and components. In order to know where and how to deliver these products to the nearest recycling/disposal site please contact your local municipal office. Recycling and disposing of waste in a proper way contributes to the protection of the environment and to prevent harmful effects on health.

Hertz Warranty

The Hertz products are warranted, under normal functioning conditions, for the period of time as set by the laws in force, against defects concerning materials or their manufacturing. The warranty is valid from the date of purchase, certified by receipt.

The warranty is not valid if:

• The product is damaged by incidents, installations and/or improper use, or by any other causes not depending on materials or manufacturing defects;
• The product is modified or tampered with by unauthorized people;
• Its serial number has been altered or cancelled.

While the product is under warranty, defective parts will be repaired or replaced at the manufacturer’s discretion.
The defective product, along with notification about it, must be returned to the dealer from which it was purchased together with the warranty certificate duly filled in. If the product is no longer under warranty, it will be repaired at the current costs.
Elettromedia s.r.l. does not undertake any liability for damages due to transportation.
Elettromedia s.r.l. does not take any responsibility for: costs or loss of profit due to the impossibility to use the product, other accidental or consequential costs, expenses or damages suffered by the customer. Warranty according to laws in force.
For more information visit the Hertz website.

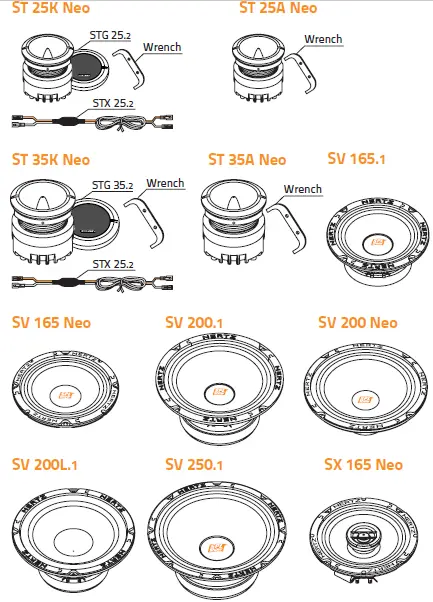

Packaging contents

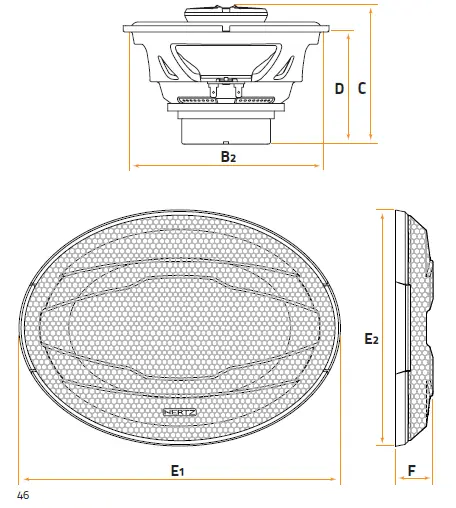

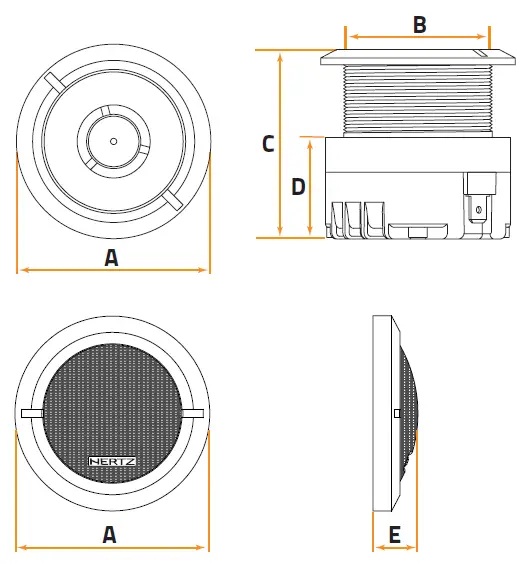

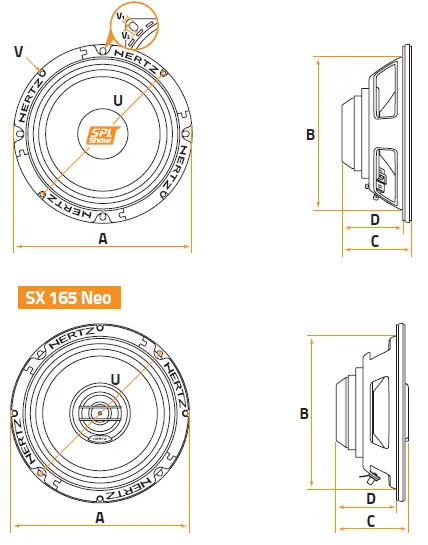

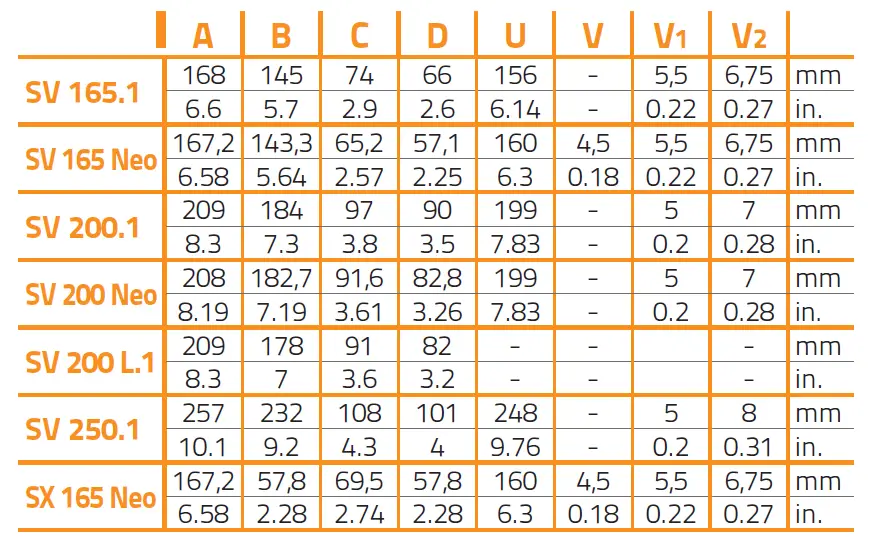

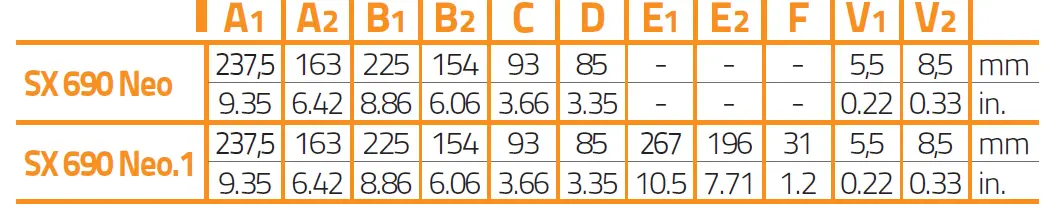

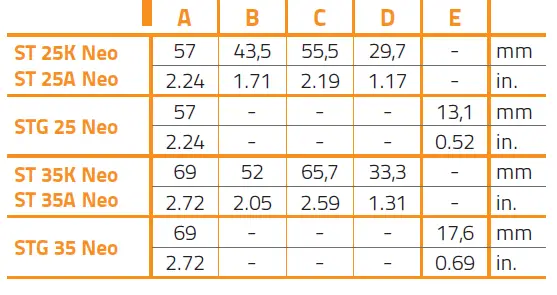

Dimensions

ST 25K Neo / ST 25A Neo / ST 35K Neo / ST 35A Neo

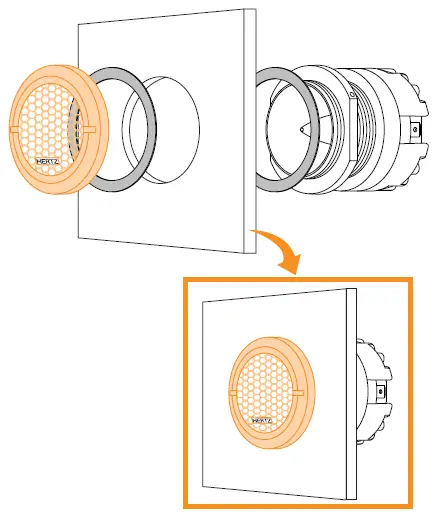

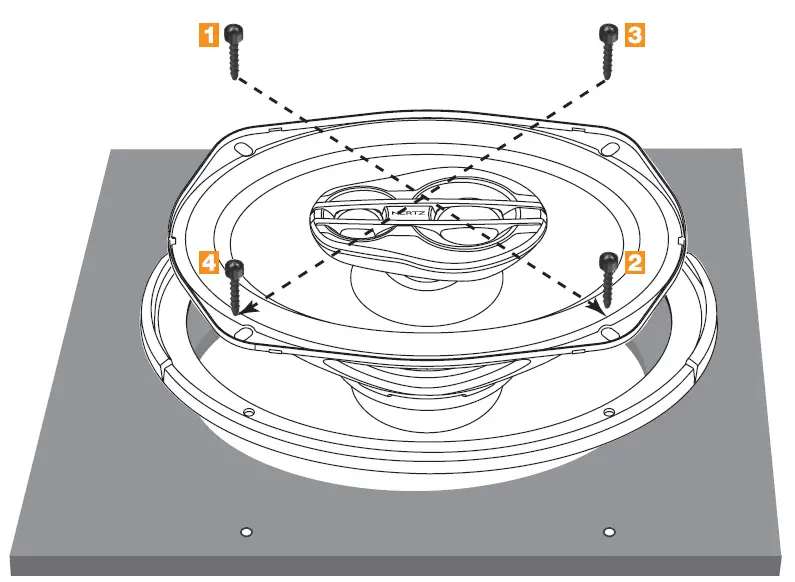

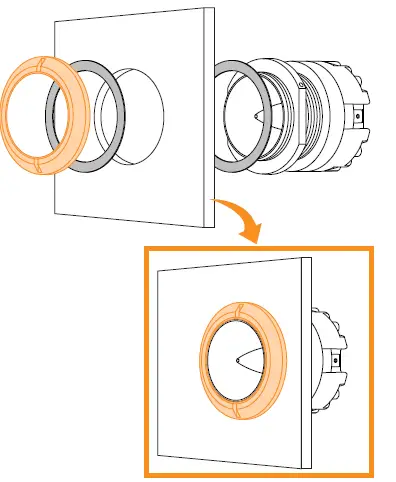

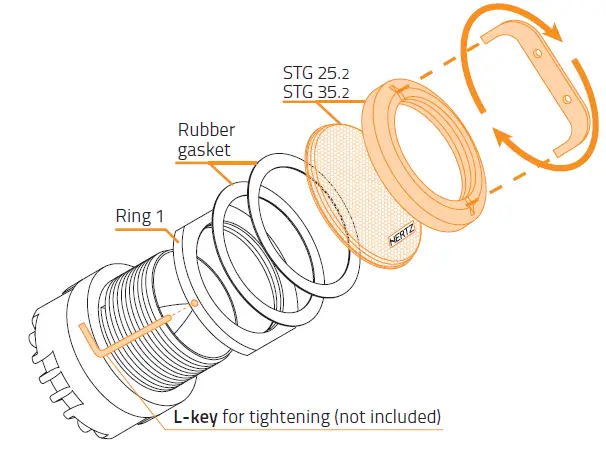

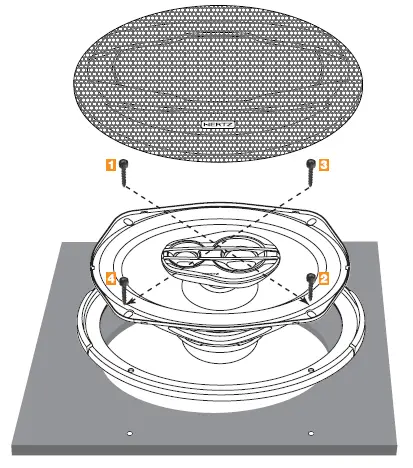

Mounting

ST 25K Neo / ST 25A Neo / ST 35K Neo / ST 35A Neo

ST 25K Neo + STG 25.2 / ST 35K Neo + STG 35.2

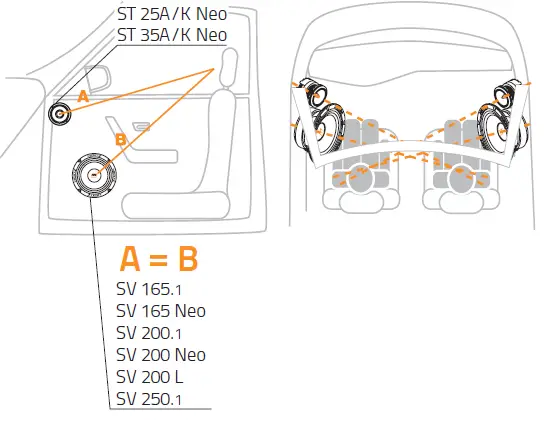

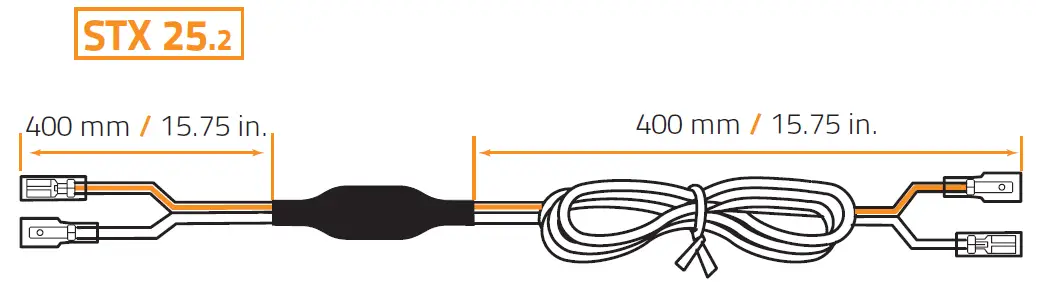

Suggested Length and Angle

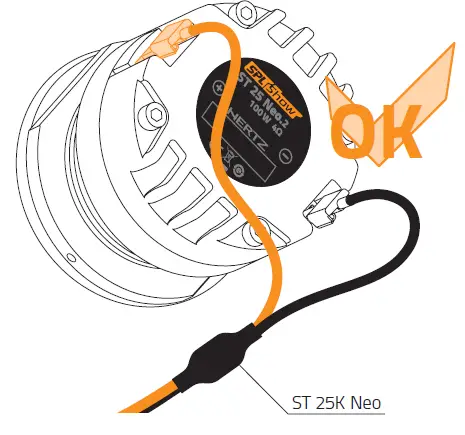

Connections

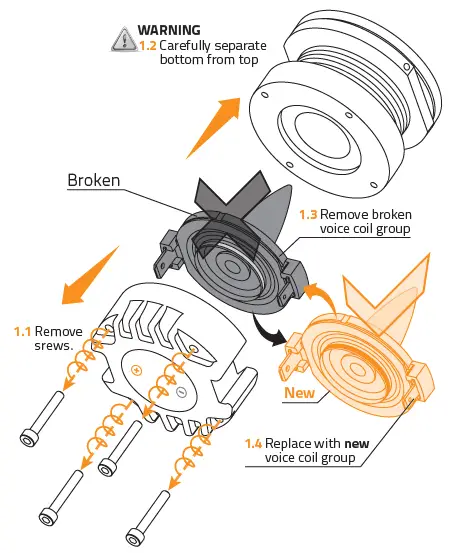

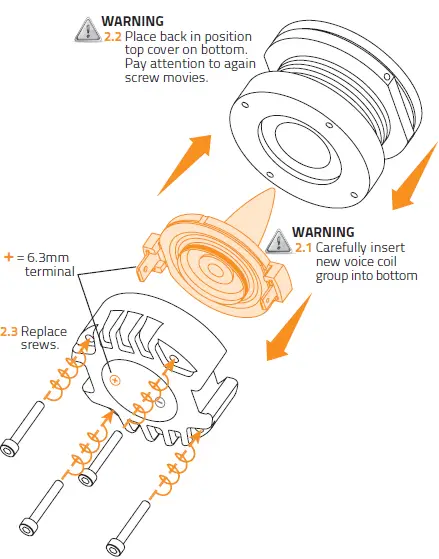

REPLACEMENT OF VOICE COIL GROUP
(VC 25 Neo / VC 35 Neo)

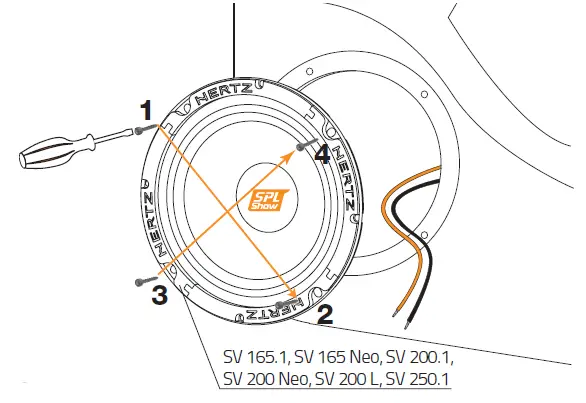

1. Disassembly
2. Re-assembly

SV 165.1 / SV 165 Neo / SV 200.1 /
SV 200 Neo / SV 200 L / SV 250.1

SV 165.1 / SV 165 Neo / SV 200.1 / SV 200 Neo /
SV 200 L / SV 250.1 / SX 165 Neo NOTE: *Connection compatible with Harley Davidson®*

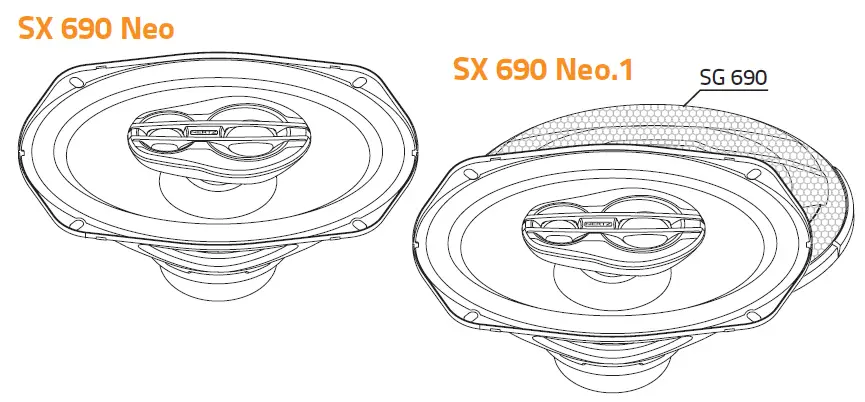

SX 690 Neo / SX 690 Neo.1 SX 690 Neo SX 690 Neo.1

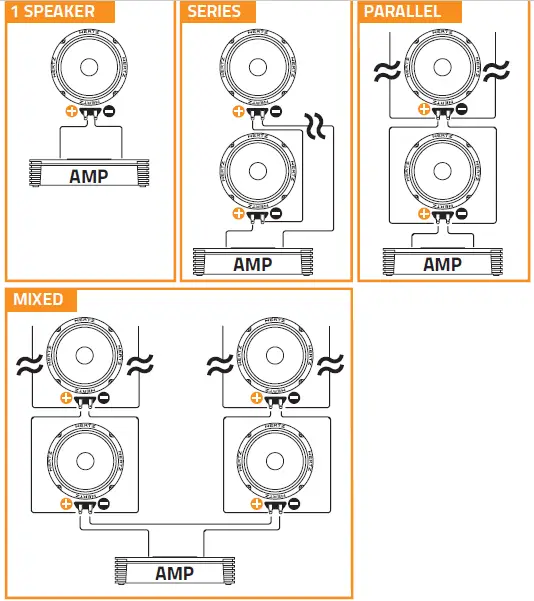

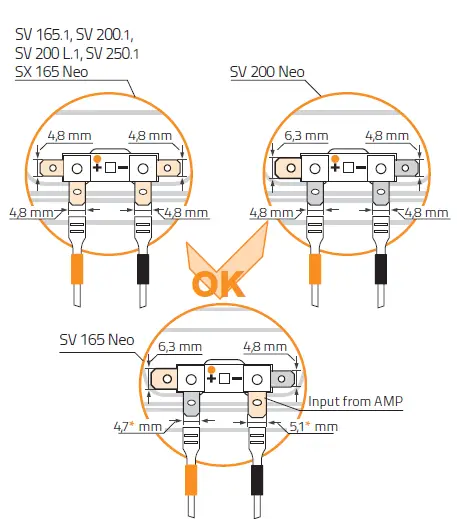

Connections

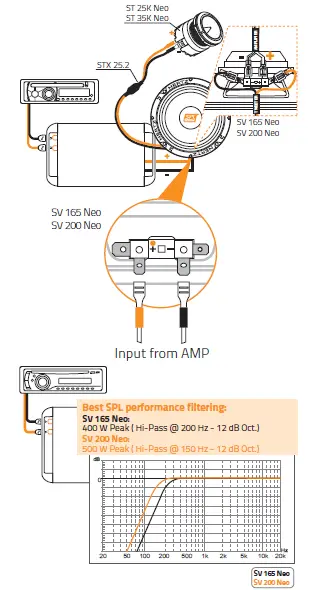

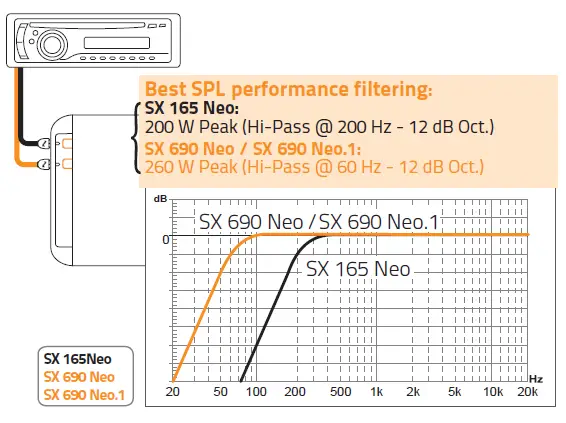

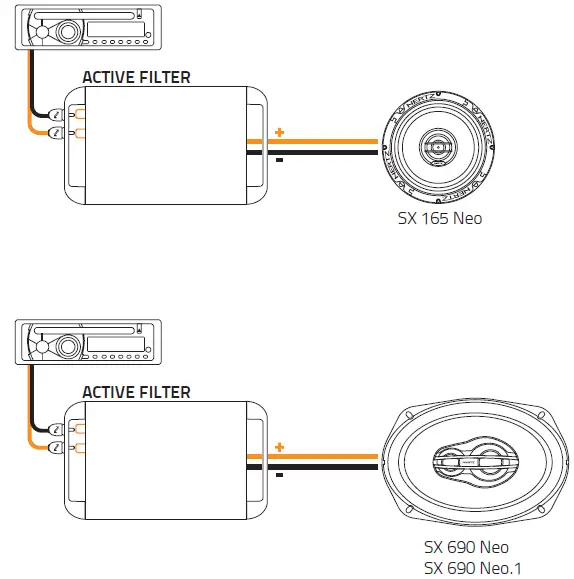

Connecting the systems

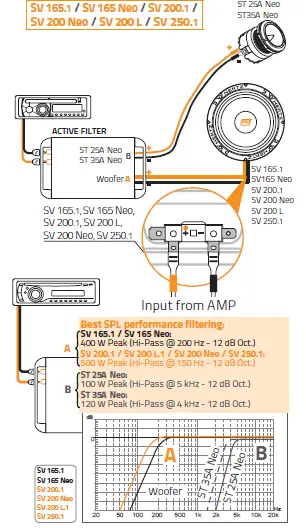

ST 25K Neo or ST 35K Neo / SV 165 Neo / SV 200 Neo

SX 165 Neo / SX 690 Neo / SX 690 Neo.1

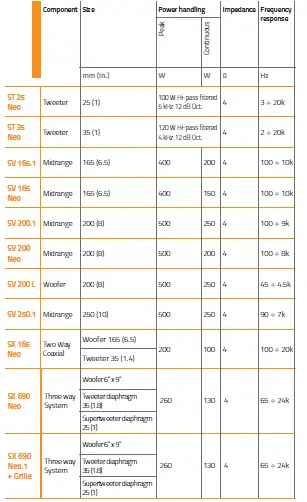

Technical specifications

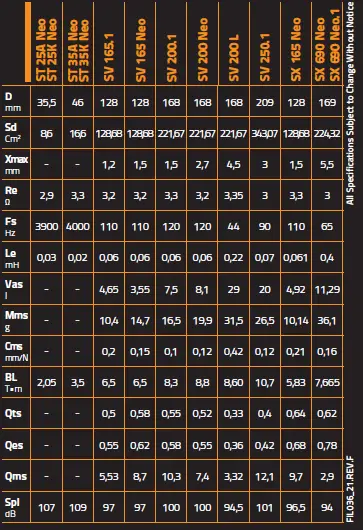

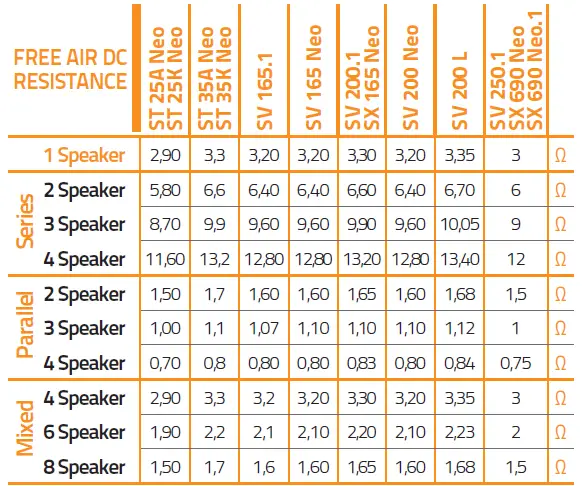

Electro-Acoustic parameter

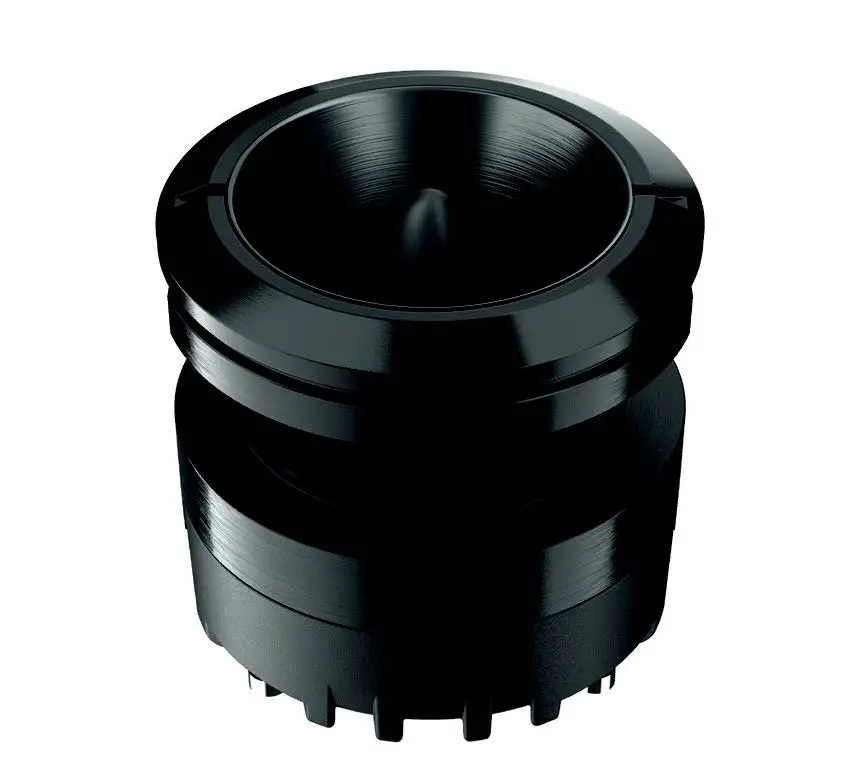

ST 35A NEO

HIGH EFFICIENCY COMPRESSION DRIVER
120 W

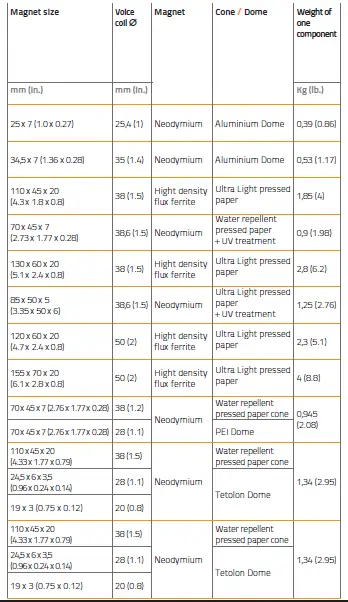

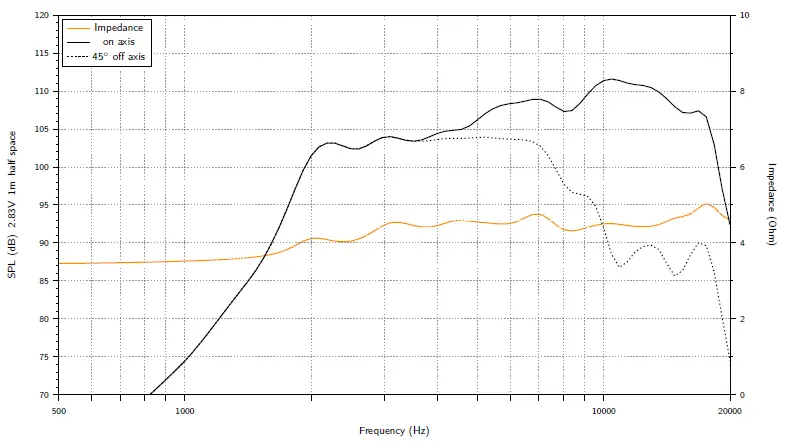

TECHNICAL SPECIFICATIONS

ELECTRO-ACOUSTIC PARAMETERS

1. Powerful Neodymium magnet providing high performance with compact size.
2. FEM (Finite Element Method) optimized phase-plug and loading horn.
3. CCAR (Copper Clad Aluminum Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
4. Extra-light aluminum membrane to maximize SPL with high current, screw
   terminals.
5. Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
6. Aluminum back cover for superior heat dissipation.
7. Impressive low frequency extension and efficiency.
