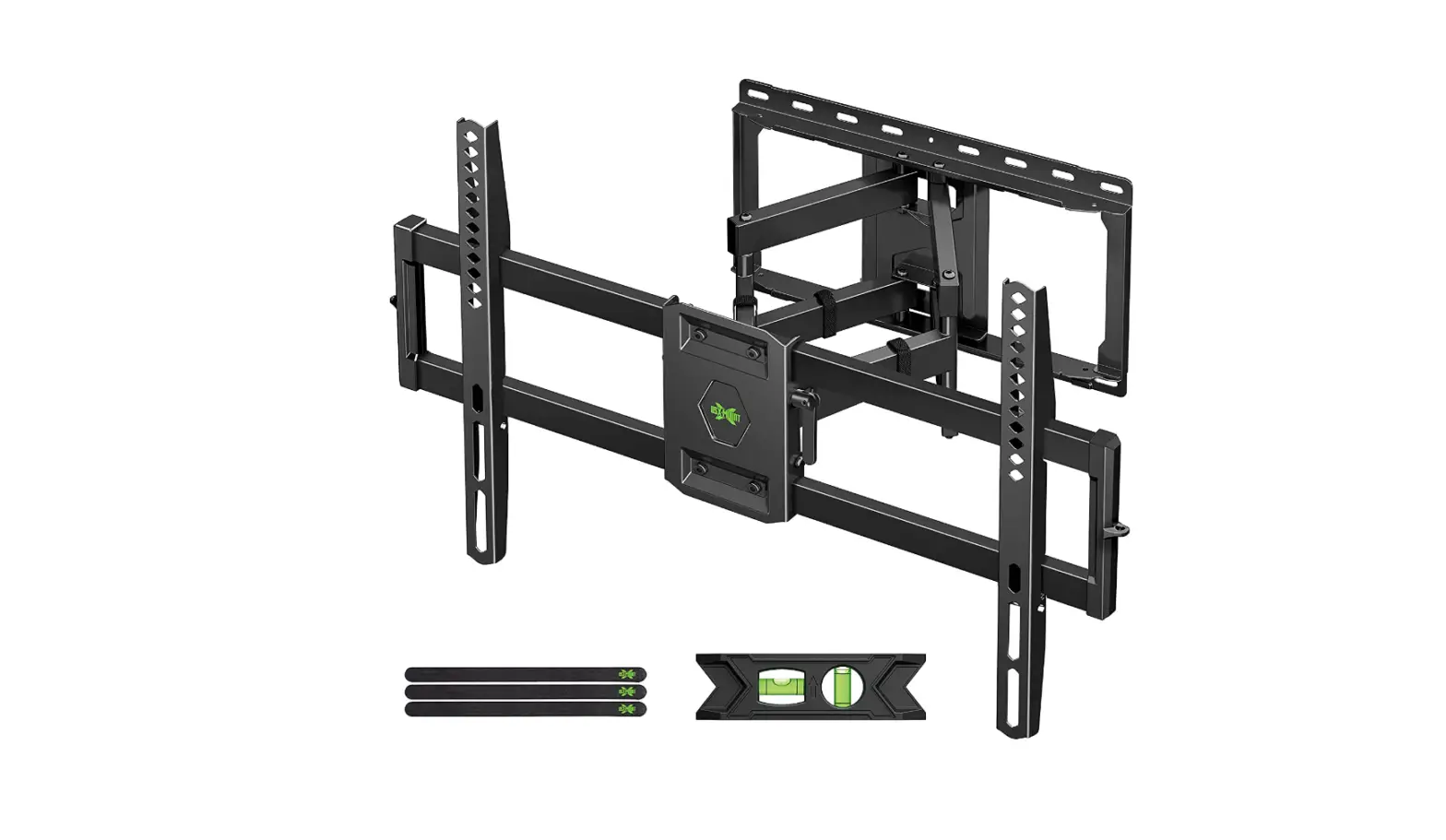

MU0028-B Full Motion TV Wall Mount for 42-75 Inches TVs
Product Information
- Product Model: MU-680C-A-DY
- Maximum Weight Capacity: 100 lbs (45.5 kg)
- Compatible TV Sizes: Minimum – 150x100mm / 6×4, Maximum –
600x400mm / 24×16 - Included Accessories: Velcro cable ties x5, Bubble level x1,
Mounting template x1
Product Usage Instructions
- Step 1-1: Select TV screw diameter
Thread screws by hand into the threaded holes on the back of
your TV to select which screw diameter fits your TV. The available
options are M4, M6, and M8. - Safety Caution:
- Please read the installation instructions carefully before
proceeding. - If you have any doubts about the safety of the installation,
assembly, or use of this product, please contact us. - This product is designed for use in wood stud or solid concrete
walls only. DO NOT install into drywall alone. - The wall must be capable of supporting five times the weight of
the TV and mount combined. Incorrect installation may result in
product damage or bodily injury. - WARNING: This product contains small items that could be a
choking hazard if swallowed.
Verify that all parts are included and undamaged. If there are
any parts missing or damaged, please contact us for assistance.
- Ensure that the TV size is within the maximum limits: 600mm/24
(width) and 400mm/16 (height). - The maximum weight of the TV should not exceed 100 lbs (45.5
kg).
If you have any further questions or need assistance, please
feel free to contact us via Amazon. Additionally, you can refer to
the Video Guide about installation on our product page for further
assistance.
INSTALLATION INSTRUCTION
V6
Velcro cable ties X5
Bubble level X1
Mounting template X1
Max: 100LBS (45.5KG)
Max:600x400mm /24×16″ Min:150x100mm /6×4″
MU-680C-A-DY
If you have any questions, please feel free to contact us via Amazon.
Warm Tips You could also refer to the Video Guide about installation on our product page.
Step 1-1 Select TV screw diameter
Thread screws by hand into the threaded holes on the back of your TV to select which screw diameter fits your TV.
M4 M6 M8
Safety Caution
Please read this instruction carefully before installation. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, please contact us.
This product is designed for use in wood stud or solid concrete wall. – DO NOT install into drywall alone.
The wall must be capable of supporting five times the weight of the TV and mount combined. Incorrect installation may result in product damage or body injury.
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage, please contact us.
Must Check Before Getting Started
MAX:600mm/24″
MAX: 400mm/16″
Max: 100LBS (45.5KG)
<16mm(5/8″)
Min. Wood Stud Size: nominal 4″(102mm) actual 3 1/2″(89mm)
Min. Wood Stud Size: nominal 2″(51mm) actual 1 1/2″(38mm)
16″(406mm)
Min. 8″ (203mm)
Drywall with wood studs
Solid concrete wall
CAUTION: DO NOT install into drywall alone.
Installation Tools (Not Included)
Wood Stud Installation Concrete Installation
7/32″ (5.5mm)
Stud Awl Wood
Finder
Drill Bit
3/8″ (10mm)
Masonry Hammer Drill Bit
Step 1-3 Attach the bracket
2M
Band Tape
Pencil
Electrodrill
1/2″ (13mm)
Socket Screwdriver Wrench
1
CAUTION: Ensure bracket is securely fastened before moving on to the next step.
(a) For Flat Back
No!
04
Top of TV
M-A M-C M-B
Use the shorter screws
M-E Not for M8 screws
Hardware Included
Arm and Wall Plate
Front Support
Arm Extensions
01 x1
Brackets
02 x1
Wrench
Side Cover
03 x2 Front Cover
04 x2
05 x1
Hardware cWall /Product)
Lag Bolts ST8x65mm
Open-end wrench
06 x2
07 x1
x4
x1
A
B
TV Screws / Washers
Philips Screws M4 x 12mm M4 x 30mm
Philips Screws M6 x 15mm M6 x 30mm
Philips Screws M8 x 25mm M8 x 45mm
Spacers L10mm
Washers Ø6mm M4-5-6
Spacers L5mm
x4 x4
x4 x4 x4 x4
x8
x4
M-A
M-B
M-C
M-D
M-E
Step 2A Wall plate installation (wood stud)
x8
M-F
2
A-1
Max 406mm (16″)
Locate your studs. Verify and mark the center of the studs by finding the stud edges using an awl, a thin nail, and an edge-to-edge stud finder.
Bubble Level
Step 1-2 Select TV screw length
When attaching brackets to the flat screen, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes.
(b) For Round Back / Extra Space
No!
Too Short
Too Long
Correct
Correct
04
Top of TV
A-2
Position the mounting template at your desired height and line up
the holes with your stud center line.
Level the mounting template and
mark the pilot hole locations.
V2
M-A M-C M-B
Use the longer screws
M-E Not for M8 screws
M-D M-F
A-3 Drill pilot holes using a 7/32 in.
(5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled
to a depth of 2 3/4 in (70 mm). Be sure to drill into the center of the stud.
Mounting template
7/32 in Ø5.5 mm
2.75in (70 mm)
3
4
5
A-4
A
To prevent the TV falling down, the
Arrow Must Keep UP at this step!!
UP
01
B-2
Ø 10 mm
Step 3 Install front support and extensions
3-1 Install the extensions 03 to front support 02 with the pre-assembled screws.
[02] [03]Back view
[063]3/8in Ø 10 mm
2 2
No!
05
Use the included wrench 05 when have not socket wrench in hand.
Install wall plate 01 using lag bolts A with Socket Wrench, NO Electrodrill. Tighten the lag bolts A until they are pulled firmly against the wall plate 01
Step 2B Wall plate installation (concrete)
B-1
Position the mounting template at your desired height , level the mounting template and mark the pilot hole locations x4.
Bubble Level
V2
Mounting template
6
Step 3 Install front support and extensions
3-2
Hang 0022 onto 0011 and using a screwdriver to secure with pre-assembled screws P1 and washer P2 .
Drill pilot holes
2.75in 70 mm
B-3
Concrete wall anchor 4pcs (NOT INCLUDED)
Ø10*61mm
Contact us to have these additional pieces shipped directly to you.
A
To prevent the TV falling
01
down, the Arrow Must Keep UP at this step!!
UP
Use the included wrench 05 when have not 05
socket wrench in hand.
No!
Install wall plate 01 using lag bolts A and anchor (not included) with Socket
Wrench, NO Electrodrill. Tighten the lag bolts A until they are pulled firmly
against the wall plate 01
7
Adjustments
Tilting Adjustment
-13°
+5°
(Tilting)
Tilting Angle Adjustment (+5° / -13°) Loosen 2 tilting bolts, pull TV to your desired angle, then fasten tilting nuts with open-end wrench.
1. Loosen a little
2. Remove the pre-assembled screws x4
3. Insert the arm extension
Assemble the side covers and the arm extensions with the preassembled screws
Fasten the all 8 screws.
1. Hang
07
Product dimensions
MAX:600mm/24″ MIN:150mm/6″
9mm/0.4″
2. Push
Attach the front cover to the front support
8
+5°
MAX:
400mm/16″ MIN:
-13°
100mm/4″
P1 P2
P1 P2
Step 4 Hang TV with brackets onto the arm extensions
Tighten
B
Loosen
04
TV leveling adjustment (-3°/+3°)
±3°
± 3°
Secure TV with brackets 04
against the wall plate 01
with the pre-assembled
01
screws [SS3]
Loosen
57mm/2.2″
330mm/13″
±3°
77mm/3″ ~ 407mm/16″
34mm/1.3″
203mm/8″ 305mm/12″ 406mm/16″ 433mm/17″
130mm 162mm 5.1″ /6.4″
±45°
Loosen 2 leveling bolts on the rear of TV plate with the open- end wrench B , adjust to level, and retighten to secure.
Tighten
9
10
11
