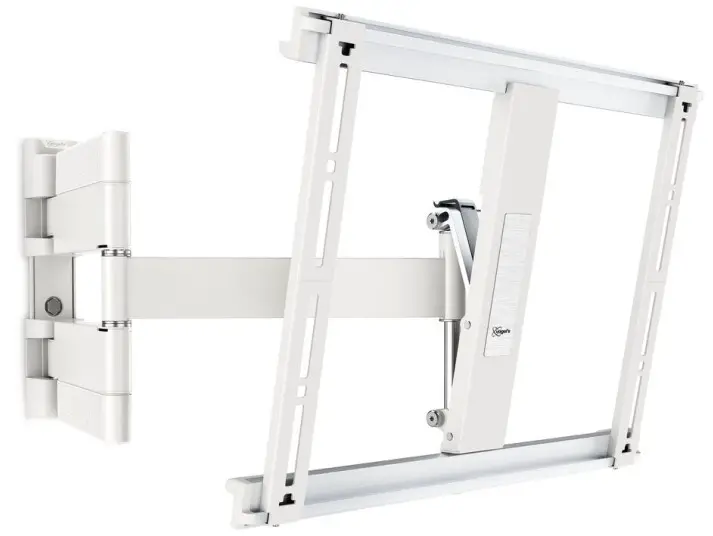

THIN 445 ExtraThin Full-Motion TV Wall Mount (white)
User Manual
Key Benefits
- Mount your TV only 3,5 cm from the wall
- Smoothly turn your TV up to 180°
- Tilt (up to 20°) to avoid refledions
- Hide all unsightly cables
- Install your mount perfectdly level: spirit level included!
Extra-thin TV bracket with turning and tilting function

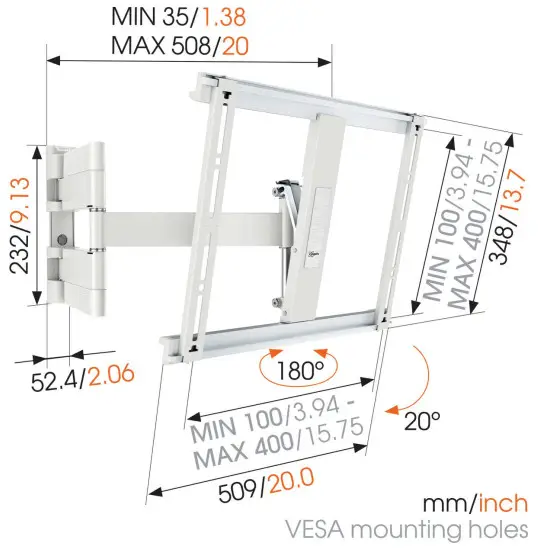

The THIN 445 full motion TV bracket has a maximum weight capacity of 18 kg. Almost any TV, from 26″ to 55″ (66-140 cm), can be mounted flat against the wall with the HIN 445. The maximum turning angle is 180° and the max. tilting angle is 20°. The distance from the wall is 35 mm. Also available in white.
THIN 445 ExtraThin Full-Motion TV Wall Mount (white)
Specifications
| Article number (SKU) | 8394451 |
| Colour | White |
| EAN single box | 8712285334962 |
| Produ size | M |
| TÜV certified | Yes |
| Tilt | Tilt up to 20° |
| Turn | Full motion (up to 180°) |
| Guarantee | Lifetime |
| Min. screen size (inch) | 26 |
| Max. screen size (inch) | 55 |
| Max. weight load (kg) | 18 |
| Min. hole paern | 100mm x 100mm |
| Max. hole paern | 400mm x 400mm |
| Max. bolt size | M8 |
| Max. height of interface (mm) | 348 |
| Max. width of interface (mm) | 509 |
| Cable management | Cable clip Cable management |
| Max. distance to the wall (mm) | integrated in arm |
| Max. horizontal hole paern (mm) | 508 |
| Max. vertical hole paern (mm) | 400 |
| Min. distance to the wall (mm) | 400 |
| Number of pivot points | 35 |
| Spirit level included | 3 |
| Universal or fixed hole paern | Yes |
| Awards | Universal |
