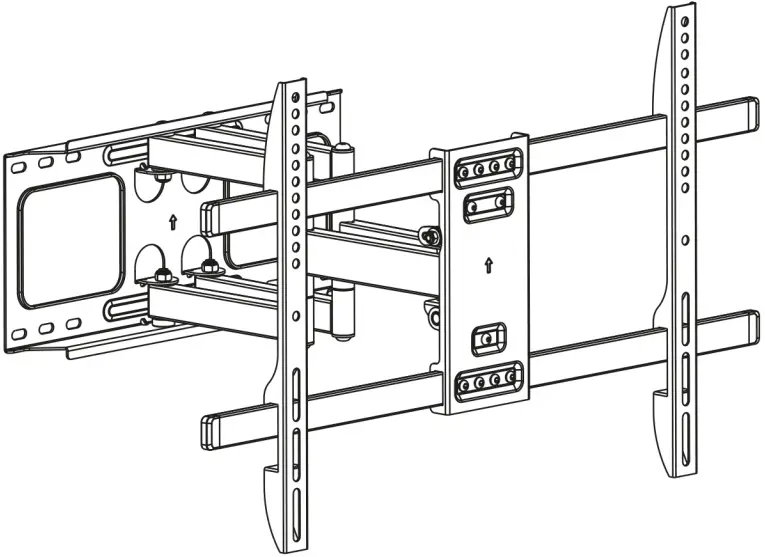

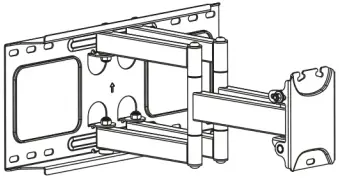

37″-80″ Full Motion TV Wall Mount Bracket
VESA Compatible
200×200 300×200
300×300 400×200
400×300 400×400
600×400
INSTALLATION MANUAL
Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.
CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury.
- Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
- Safety gear and proper tools must be used. This product should only be installed by professionals.
- Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
- Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
- This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
- This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.
MAINTENANCE: Check that the bracket is secure and safe to use at regular intervals (at least every three months).
A (xl) B (x1)
C (x2) D (x2) E (x4)
F (x5) G (x1) H (x1)

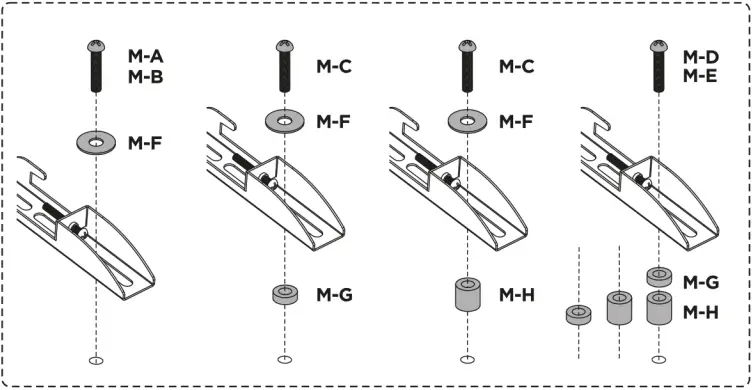

M-A (x4) M-B (x4) M-C (x4) M-D (x4)
M5x14 M6x14 M6x25 M8x25
M-E (x4) M-F (x4) M-G (x4) M-H (x4)
M8x45

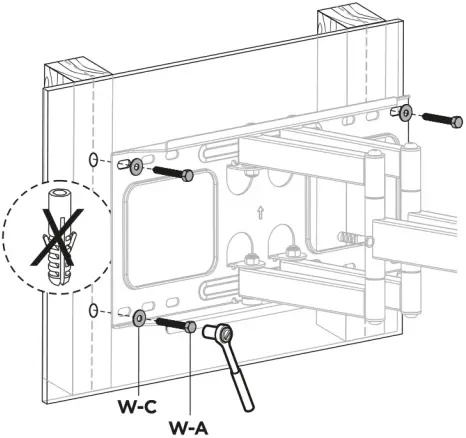

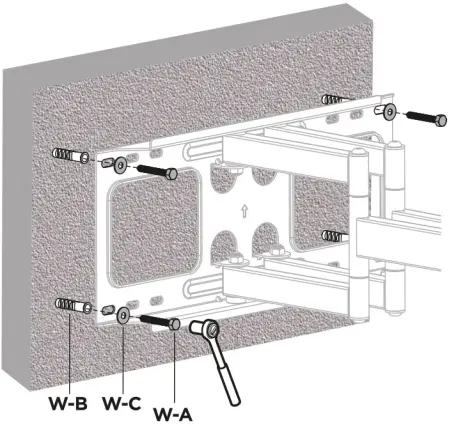

W-A (x4) W-B (x4) W-C (x4)
ST8x60 ∅12×60
1
2
3
4
5
6
7.

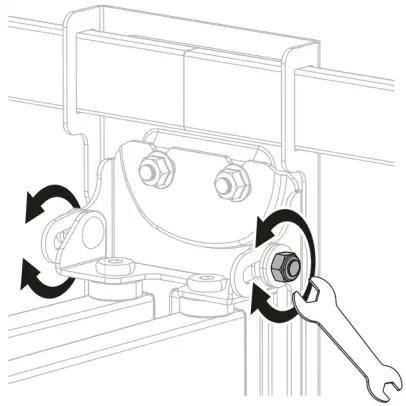

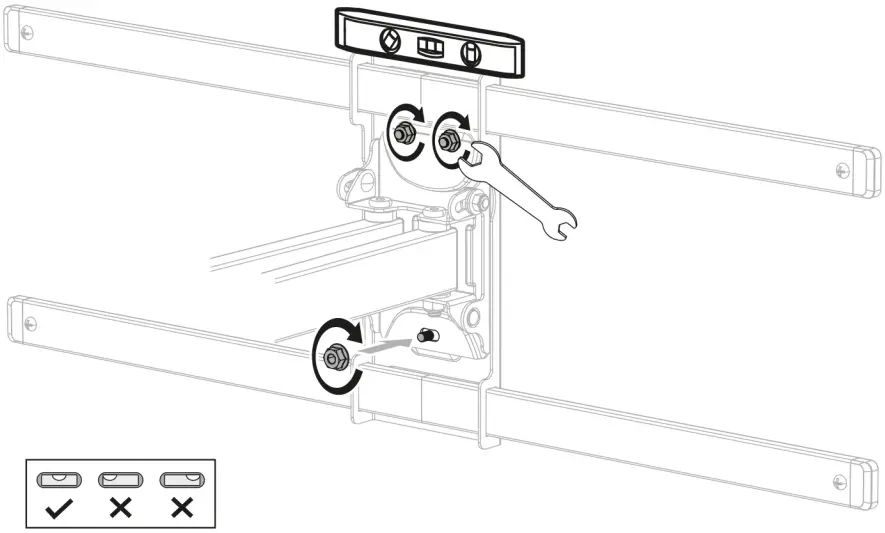

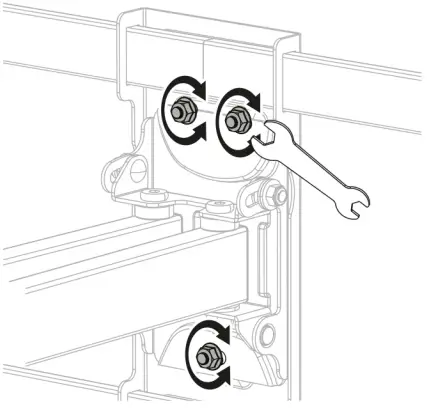

Note: Adjust to the desired angle then tighten the screws using the tool as shown, alternating from each screw as you tighten them.
