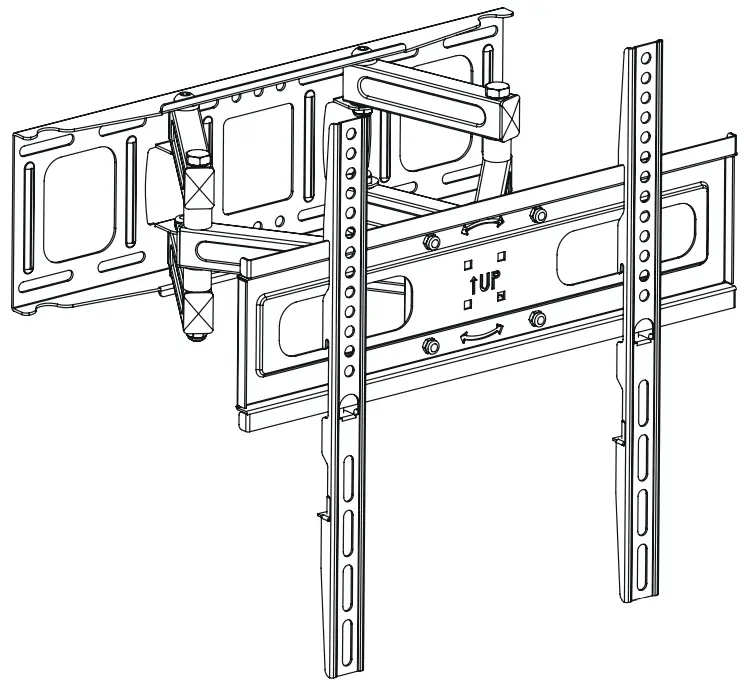

Wall TV Bracket
IMPORTANT SAFEGUARDS
pay, then these instructions must be included.
When using the product, basic safety precautions should always be followed to reduce the risk of injury including the following:
- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
- You will have to adjust rates product after installation is complete.
- Do not exceed the maximum listed weight capacity. Serious injury or property damage may occur.
- Because mounting surface materials can vary widely, it is imperative that you make sure the matting surface is strong enough to handle mounted products and equipment.
IMPORTANT. RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
Before First Use
- Check for transport damages.
Risk of suffocation!
are a potential source of danger, e.g. suffocation.
Scope of application
 | 55KG(121Lbs)MAX/Each |
 | Max:400x400mm/15.7×15.7″ |

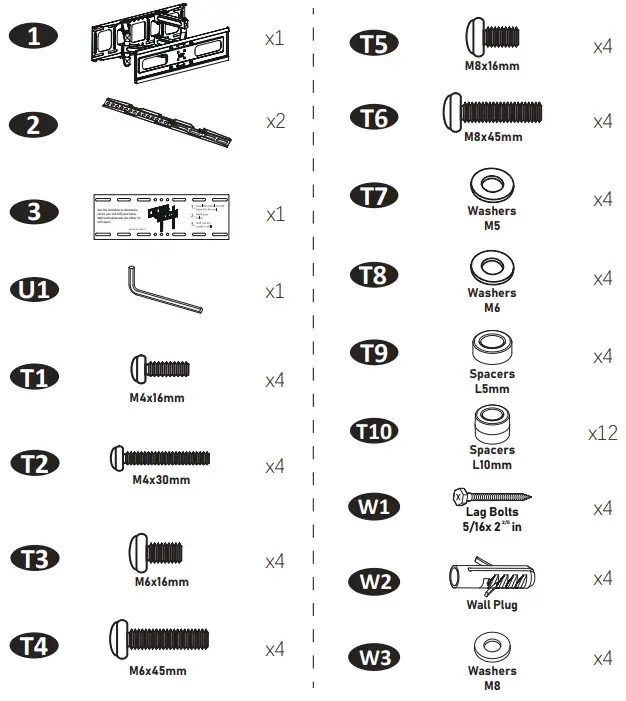

Contents
Tools needed
STEP1

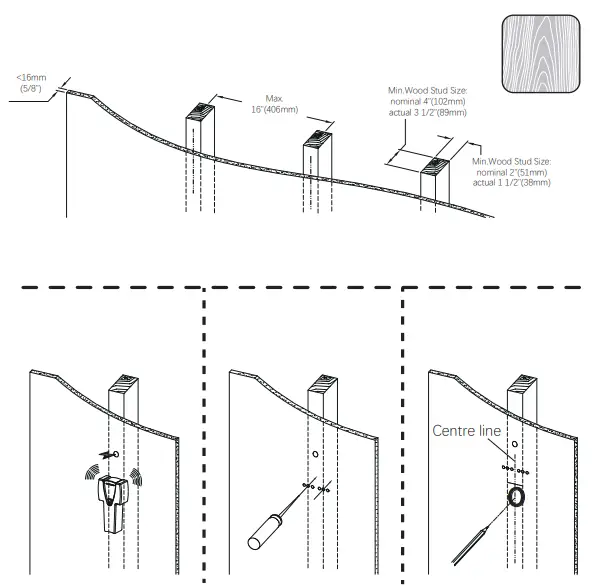

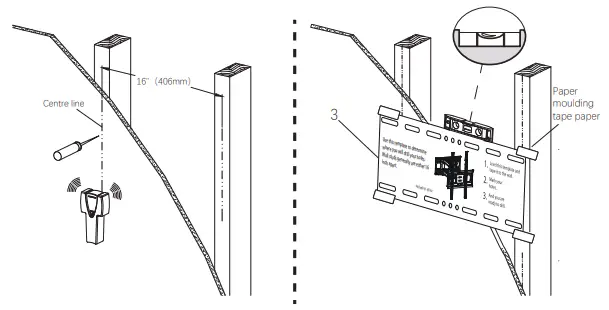

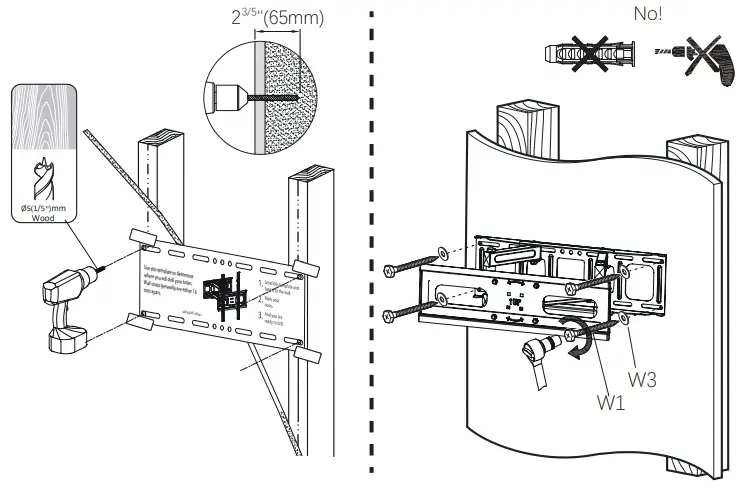

Wall Fixation
CAUTION: To avoid potential personal injury or property damage: All 4 LAG bolts, must be firmly tightened to prevent unwanted movement of the wall plate assembly.Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step. To prevent the TV from falling down, the bolt head must keep UP at this step!!
STEP1-B

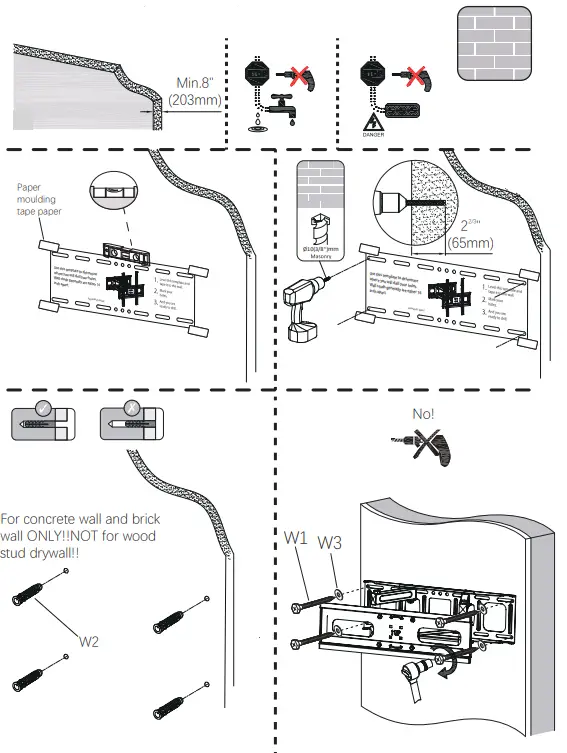

Solid Concrete wall Installation
STEP2

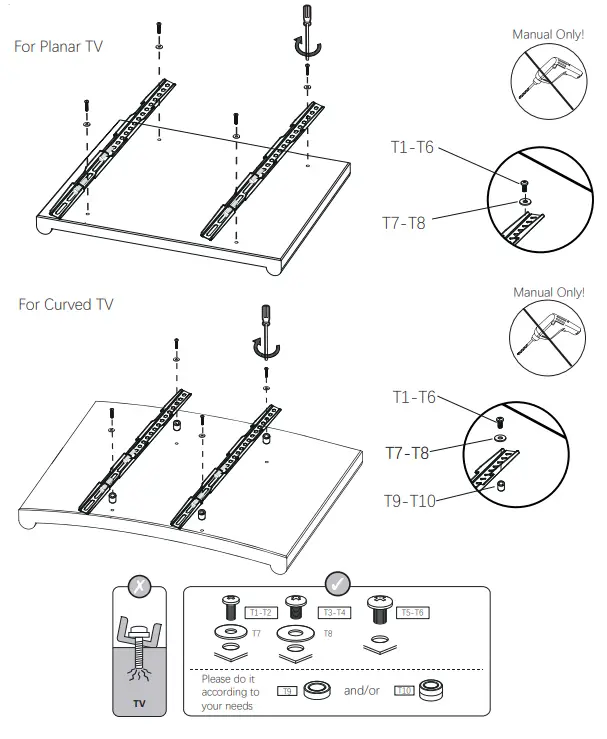

Installation of TV Fixer
STEP3

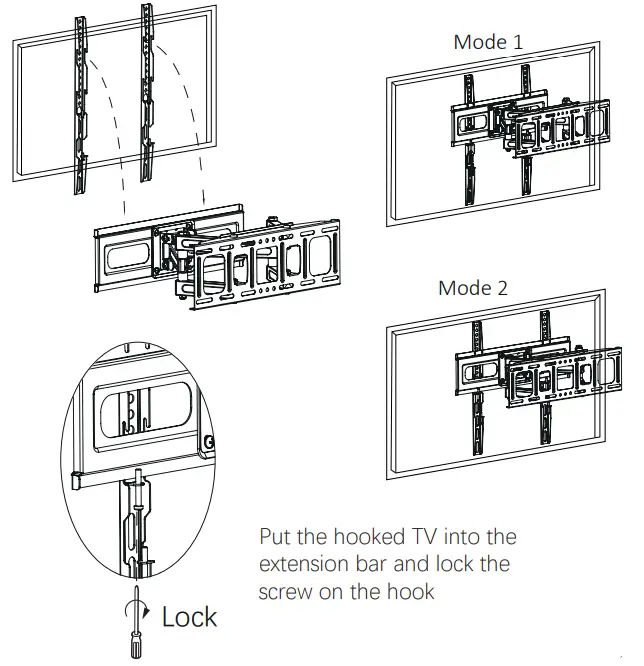

set position
There are two gears for the hook. Choose the right gear according to the individual
STEP4

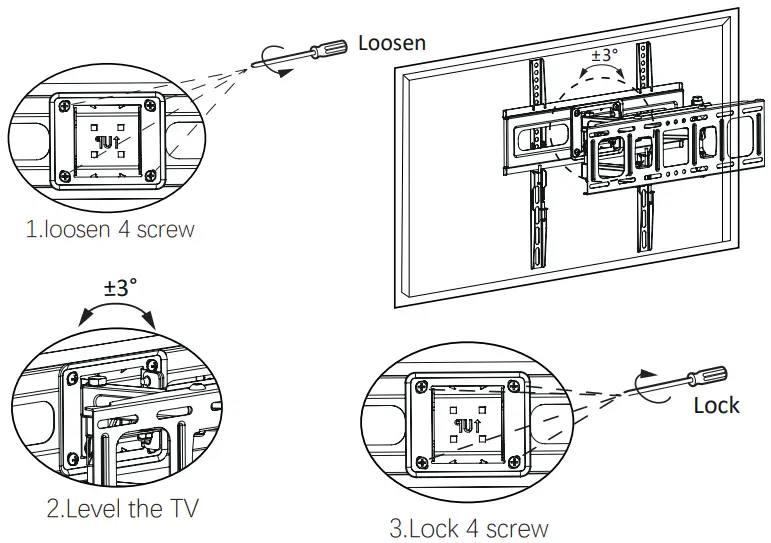

Horizontal Angle Adjustment
STEP5

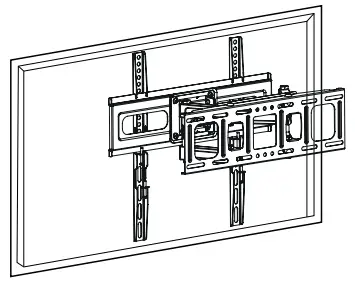

locking
Ensure cables don’t restrict arm movement Check all fittingseatright
Use the U1 wrench to loosen the screw, then choose the right angle, and then lock it with the wrench
Cleaning and Maintenance
Cleaning
- To clean, wipe with a soft, sightty moist cloth.
- Never use corrosive detergents, wire brushes, abrasive scourers, metal, or sharp utensils to dean the product.
Maintenance
- Check the components regularly to make sure all screws and bolts are tightened.
- Store in a cool and dry place away from children and pets, ideally in original packaging.
- Avoid any vibrations and shocks.
If you do not understand these instructions or problems related to the installation and use of the product, please refer to the product installation and use video:
This video is for reference only, please follow the manual
