hama 00108727 Full Motion TV Wall Bracket

Thank you for choosing a Hama product.
Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

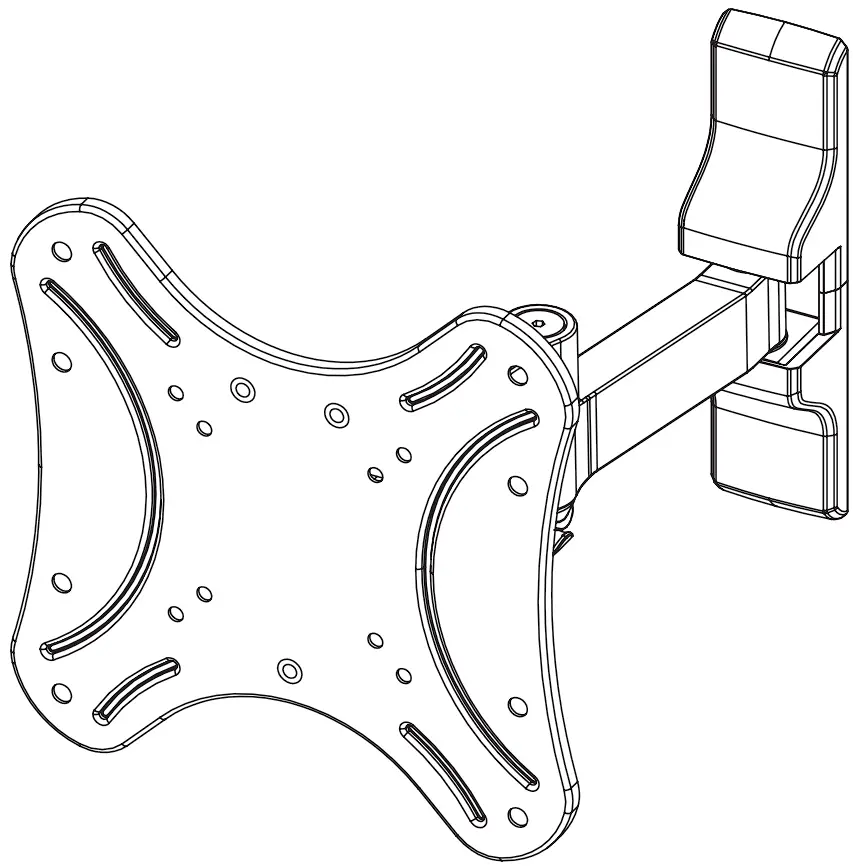

Picture Illustration

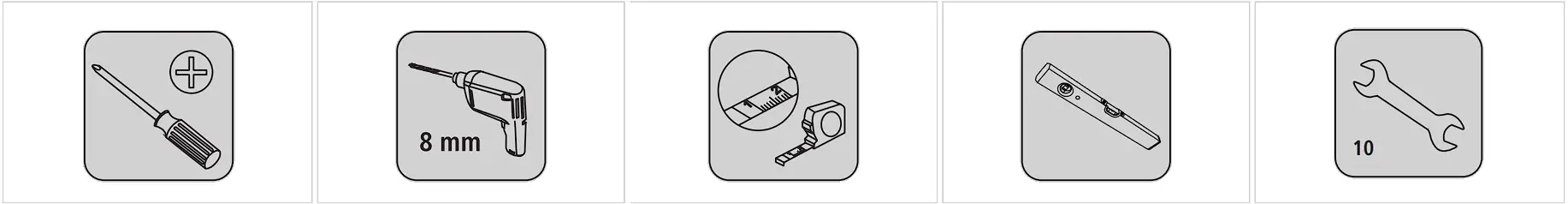

Required tools

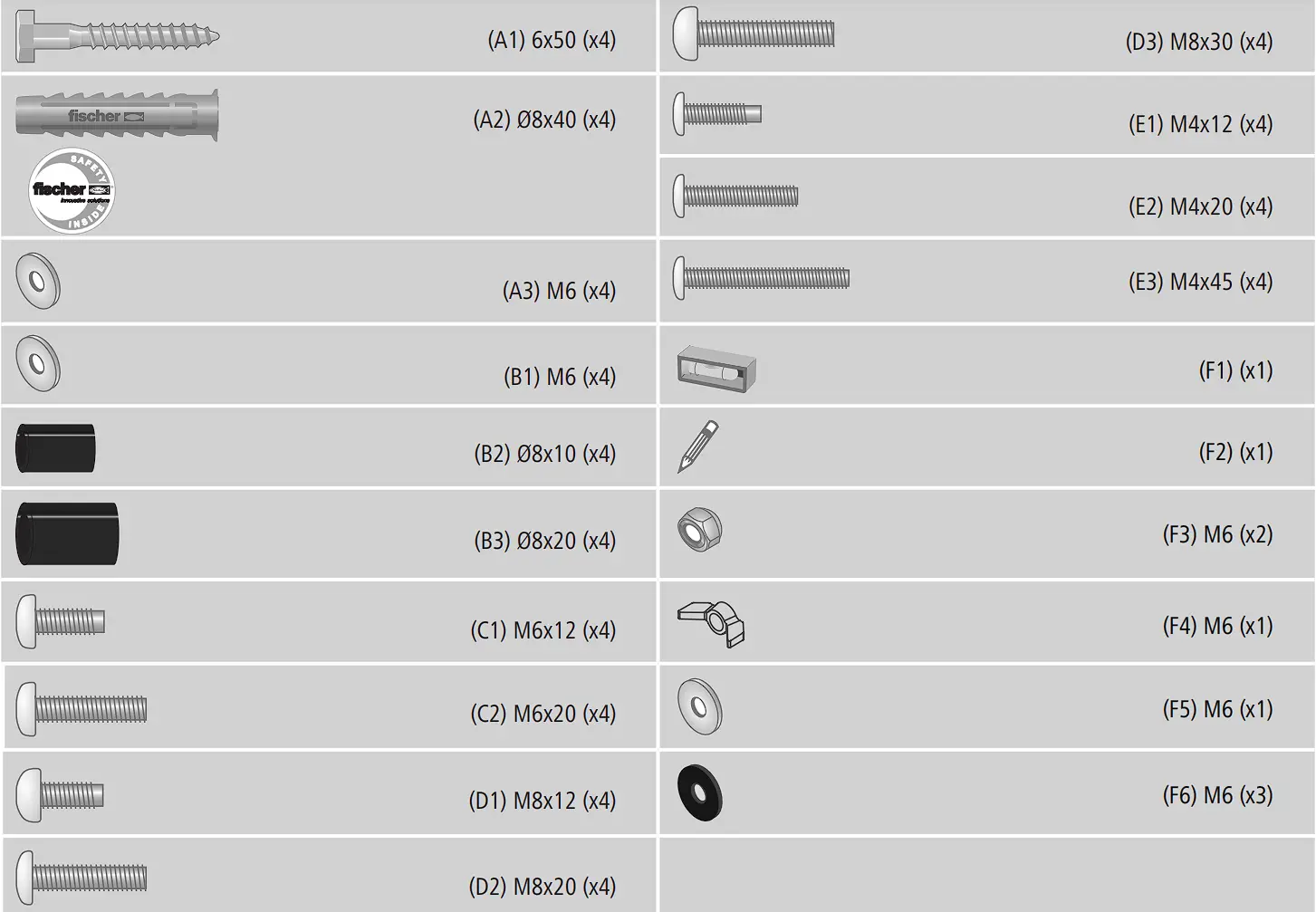

Installation kit

Explanation of Warning Symbols and Notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note This symbol is used to indicate additional information or important notes.

Package Contents

• TV wall bracket
• Wall plate cover (2x)
• Drilling template
• Cable ties
• Installation kit (see contents, Fig. 1)
• These operating instructions

Note Please check that the installation kit is complete before installing the bracket and ensure that none of the parts are faulty or damaged.

Safety Notes

Warning Given the multitude of terminal devices and wall structures available on the market, the supplied mounting kit is unable to cover every option. It occasionally happens that the screws for attaching the terminal device to the wall bracket are too long. Please note that the supplied wall plugs are for use with concrete brick and solid brick walls only. Read the operating instructions for your terminal device before attempting to mount it. The instructions provide information about the type and measurements of suitable fastening materials. If the supplied mounting kit does not contain suitable fastening materials for mounting the terminal device, purchase these from a specialised dealer. If the wall on which the bracket is to be mounted is made of different material types and construction types to those specified, purchase suitable mounting materials from a specialised dealer. Never apply force during mounting. This can damage your end device or wall bracket. If in doubt, have this product mounted by a qualified technician – do not attempt to mount it yourself!

• Do not mount the product above locations where persons might linger.
• Once you have mounted the product and the attached load, check that they are sufficiently secure and safe to use.
• You should repeat this check at regular intervals (at least every three months).
• When doing so, ensure that the product does not exceed its maximum permitted carrying capacity and that no load exceeding the maximum permitted dimensions is attached.
• Make sure that the product is loaded symmetrically.
• During adjustment, ensure that the product is loaded symmetrically and that the maximum permitted carrying capacity is not exceeded.
• Maintain the necessary safety clearance around the attached load (depending on the model).
• In the event of damage to the product, remove the attached load and stop using the product.

Intended use and specifications

• The bracket is used for wall mounting flat panel displays for non-commercial, private household use.
• The bracket is only intended for use within buildings.
• Use the bracket only for the intended purpose.


  Maximum load bearing capacity:	25 kg
  Screen size:	48,0 – 122,0 cm (US: 19” – 48”)
  Depth:	5,8 cm – 41,3 cm

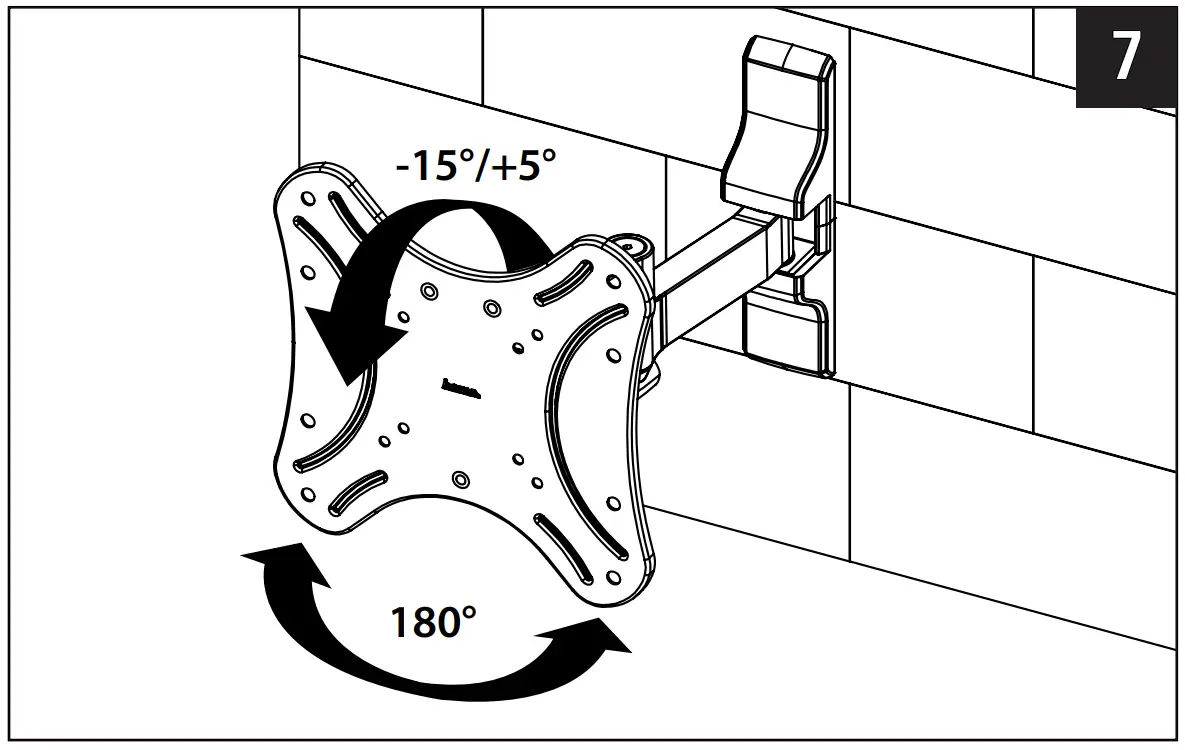

  Angle:	up to +5°/-15° (depends on the device)
  Pivoting range:	up to 180° on 3 joints and 2 carrier arms (depends on the device)
  Wall mounting plate dimensions:	21,9 x 5,5 cm
  Mounting holes:	according to the VESA standard 200×200

Installation requirements and installation

Note Only mount the TV wall bracket with the help of a second person. Get the support and help you need. Different end devices have different options for connecting cables and other devices. Before installation, ensure that the necessary connections will still be accessible after installation. The same mounting kit is included with all of our TV wall brackets. Depending on the product and mounting type, you may not need to use the entire mounting kit. Unneeded screws and other small parts may be left over, even if the wall bracket is properly mounted. Keep these leftover parts with the operating instructions in a safe place, just in case you might need them later on (e.g. should you move, sell the product, mount the wall bracket in a different location, buy a new TV, etc).

Warning This product is suitable for wall mounting only. Before installing the bracket, ensure that the wall on which the television is to be mounted is suitable for the weight and make sure that no electrical wires, water, gas or other lines are located at the installation location. Please note that the provided wall anchors are only approved for concrete and solid brick walls.

• Observe the other warnings and safety instructions.

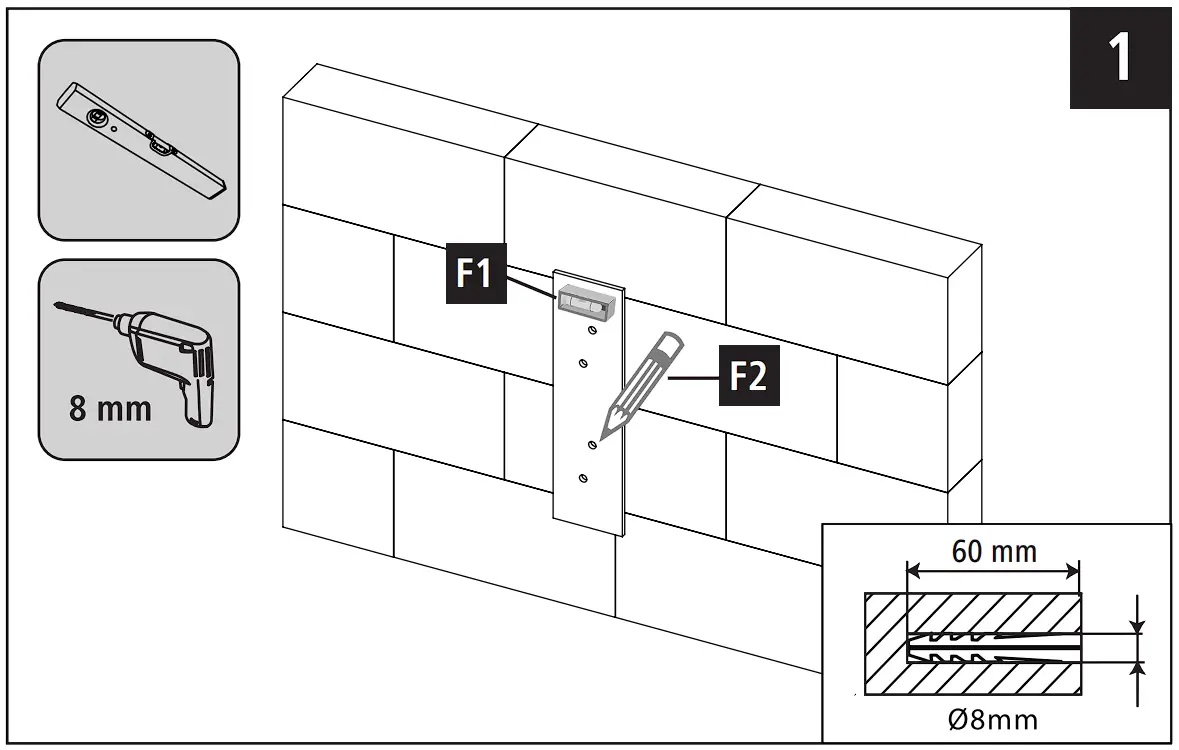

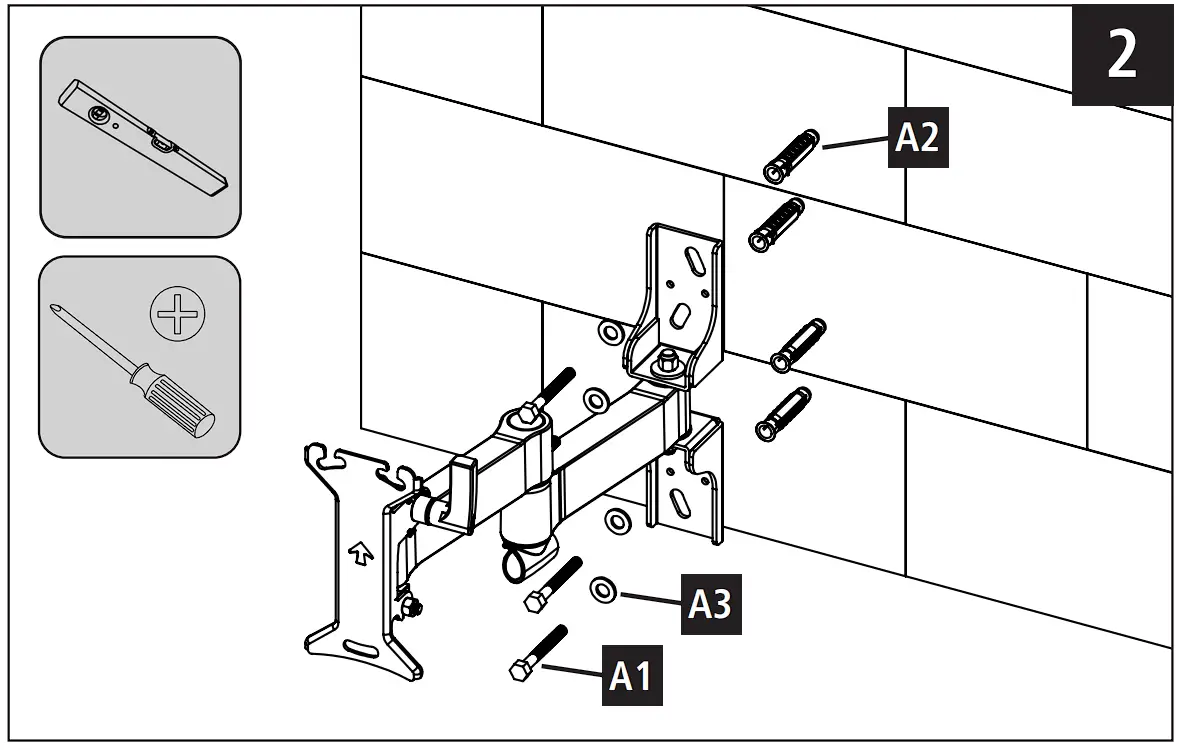

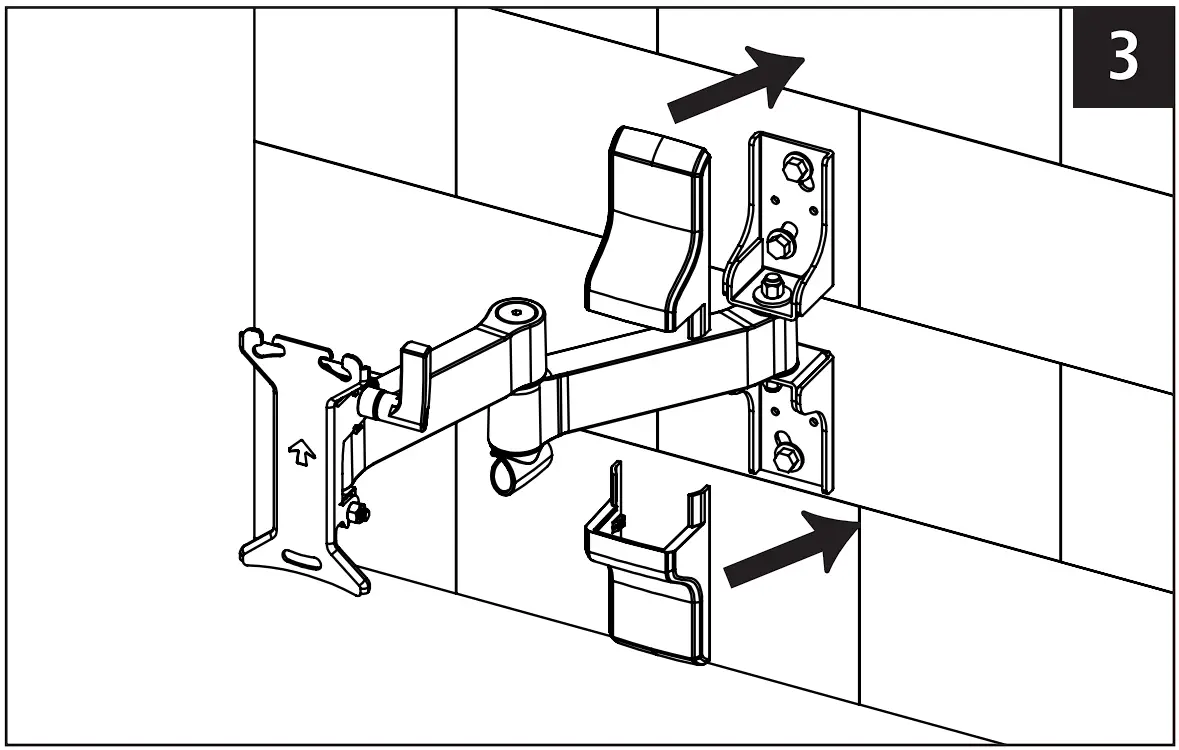

• Proceed step-for-step in accordance with the illustrated installation instructions (Fig. 1 ff.).
• During installation, the hinges are to be adjusted so that the TV can be moved sideto side.
• Check whether your television is level using the included spirit level. If necessary, adjust the television plate.

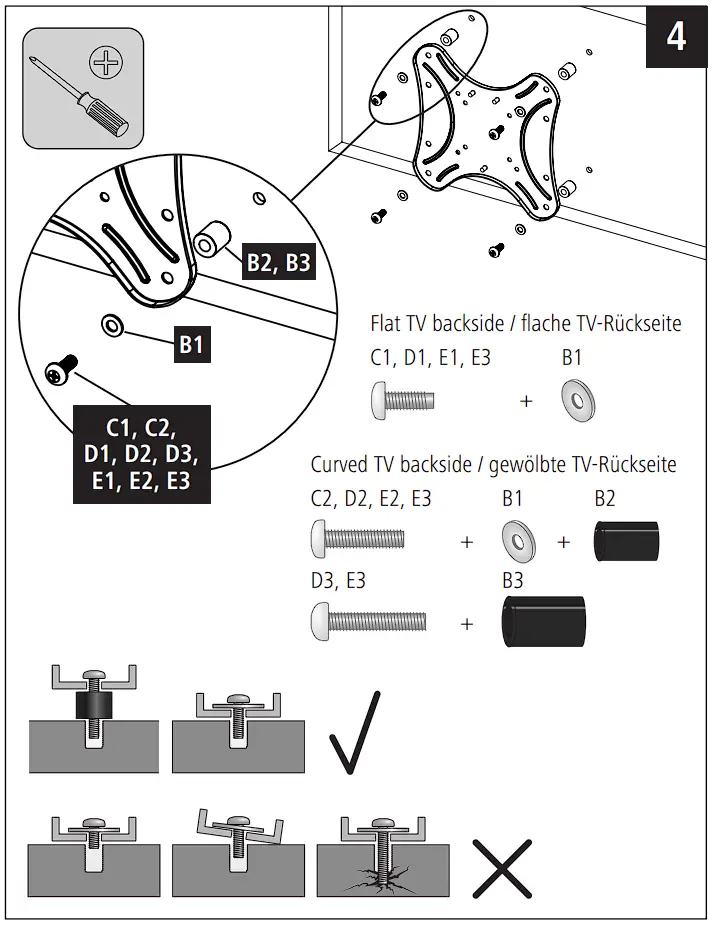

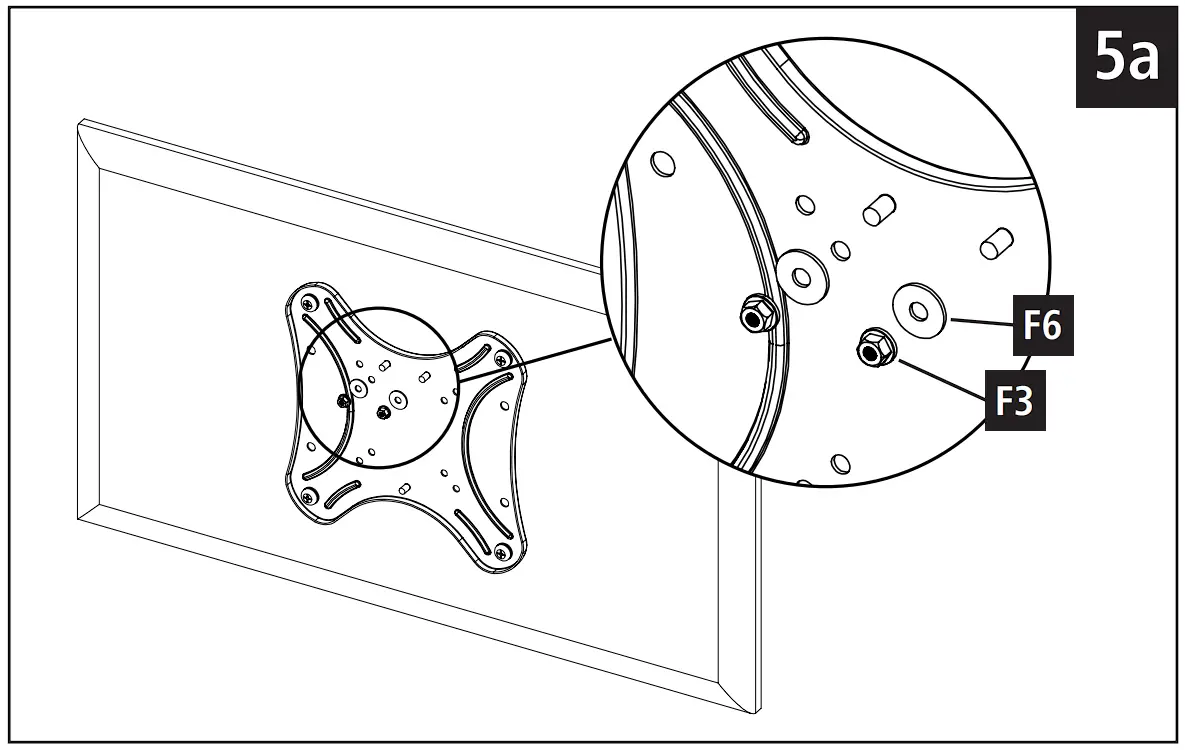

Note Given the multitude of terminal devices available on the market, we cannot describe all possible mounting options here. Please ensure that the bracket lays flat and evenly on the back of the television. Use the enclosed spacer to even out any unevenness on the back of the television. Ensure that all screws have the proper length and can be mounted until they are hand-tight (see Fig. 4).

Setting and maintenance

Note Only adjust the TV wall bracket with the help of a second person. Get the support and help you need.

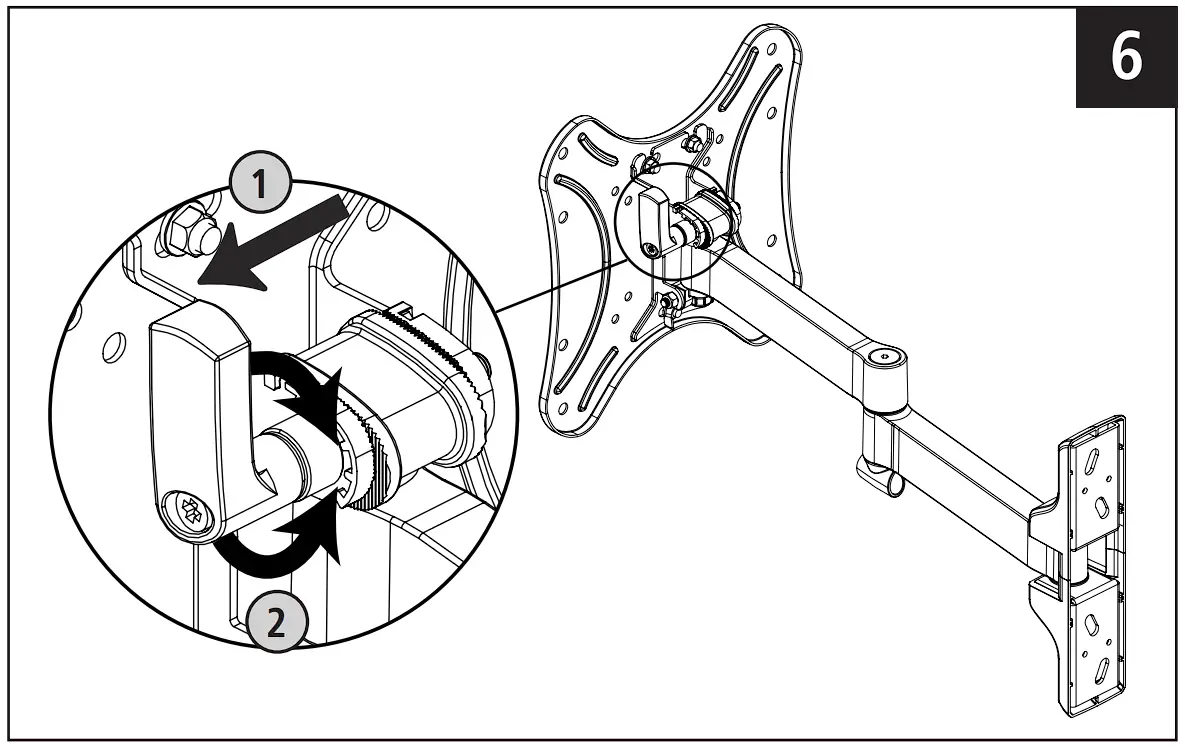

• To adjust the tilt, loosen the lever fixing screws slightly, set the desired tilt and retighten the screws securely. If the fixing screw is turned as far as it will go, you can pull on it gently while turning it to position it for other settings. (Fig. 6)
• Screws do not have to be loosened for side-to-side movement.
• Check that the bracket is secure and safe to use at regular intervals (at least every three months). Only use water or standard household cleaners for cleaning.

Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

Terms of waranty

HAMA GmbH & Co KG grants you an extended manufacturer’s warranty for this product that covers the freedom from defects, usability, workmanship and durability of the materials used for the specified period of 10 years. Compatibility of the product with future standards for further developed hardware is also excluded.

At the discretion of Hama GmbH & Co KG, valid warranty claims in this period will be resolved at no cost either by repair or replacement. The warranty period begins on the date of purchase of this product and is valid throughout the EU.

The warranty you are entitled to is in addition to your statutory rights and does not affect them. The warranty does not cover damage caused by improper use, normal wear and tear, exposure to chemicals, force majeure, or modifications or repairs performed by yourself or third parties.
Furthermore, this warranty does not cover accessories that are not included with the product as standard (promotional parts).

In the event of a warranty claim please write to us, enclosing proof of purchase, at Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, Germany. You are also free to contact us at www.hama.de or by telephone on +49 (0)9091/502-0.
