Required tools

Installation kit

Operating instruction

Thank you for choosing a Hama product.
Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

Explanation of Warning Symbols and Notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks

Note This symbol is used to indicate additional information or important notes.

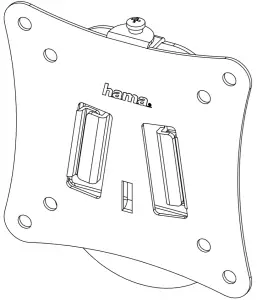

Package Contents

• TV wall bracket
• Drilling template
• Cable ties

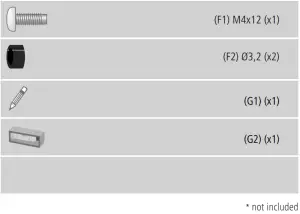

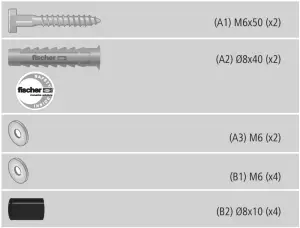

• Installation kit (see contents, Fig. 1)
• These operating instructions

Note Please check that the installation kit is complete before installing the bracket and ensure that none of the parts are faulty or damaged.

Safety Notes

Warning Given the multitude of terminal devices and wall structures available on the market, the supplied mounting kit is unable to cover every option. It occasionally happens that the screws for attaching the terminal device to the wall bracket are too long. Please note that the supplied wall plugs are for use with concrete brick and solid brick walls only. Read the operating instructions for your terminal device before attempting to mount it. The instructions provide information about the type and measurements of suitable fastening materials. If the supplied mounting kit does not contain suitable fastening materials for mounting the terminal device, purchase these from a specialised dealer. If the wall on which the bracket is to be mounted is made of different material types and construction types to those specified, purchase suitable mounting materials from a specialised dealer. Never apply force during mounting. This can damage your end device or wall bracket. If in doubt, have this product mounted by a qualified technician – do not attempt to mount it yourself

Note – Commercial use If the device is used commercially, increased duty of care requirements apply. Therefore, please observe the accident prevention regulations of the German employer’s liability insurance association for electrical systems and equipment. Please also observe all accident prevention regulations from other applicable employer’s liability insurance associations and accident insurance companies, as well as any legal regulations applicable to the particular industry and/or location. The wall bracket must be installed by trained personnel or by a special technician, especially when installed in schools, educational institutions, hobby/self-service workshops or other publicly accessible institutions. Secure the product and the attached load against falling using suitable equipment (e.g. an arresting cable) and in accordance with locally applicable regulations. We strongly recommend these additional safeguards even if they are not legally required. Have trained personnel carry out regular inspections to ensure that the product is securely installed, properly functioning and in acceptable condition (we recommend inspections at least every 6 months, or more frequently if required for the particular location) and then document these inspections.

• Do not mount the product above locations where persons might linger.
• Once you have mounted the product and the attached load, check that they are sufficiently secure and safe to use.
• You should repeat this check at regular intervals (at least every three months).
• When doing so, ensure that the product does not exceed its maximum permitted carrying capacity and that no load exceeding the maximum permitted dimensions is attached.
• Make sure that the product is loaded symmetrically.
• Maintain the necessary safety clearance around the attached load (depending on the model).
• In the event of damage to the product, remove the attached load and stop using the product.

Intended use and specifications

• The bracket is only intended for use within buildings.
• Use the bracket only for the intended purpose.

Installation requirements and installation

Note Only mount the TV wall bracket with the help of a second person. Get the support and help you need. Different end devices have different options for connecting cables and other devices. Before installation, ensure that the necessary connections will still be accessible after installation. The same mounting kit is included with all of our TV wall brackets. Depending on the product and mounting type, you may not need to use the entire mounting kit. Unneeded screws and other small parts may be left over, even if the wall bracket is properly mounted. Keep these leftover parts with the operating instructions in a safe place, just in case you might need them later on (e.g. should you move, sell the product, mount the wall bracket in a different location, buy a new TV, etc).

Warning This product is suitable for wall mounting only. Before installing the bracket, ensure that the wall on which the television is to be mounted is suitable for the weight and make sure that no electrical wires, water, gas or other lines are located at the installation location.  Please note that the provided wall anchors are only approved for concrete and solid brick walls.

• Observe the other warnings and safety instructions.

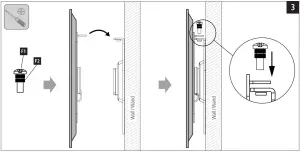

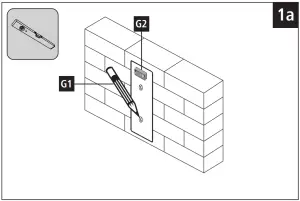

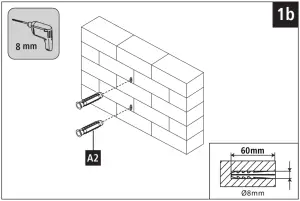

• Proceed step-for-step in accordance with the illustrated installation instructions (Fig. 1 ff.).
• Check whether your television is level using the included spirit level. If necessary, adjust the wall plate.

Setting and maintenance

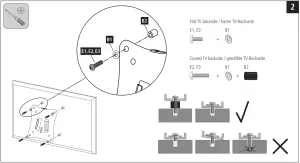

Note Given the multitude of terminal devices available on the market, we cannot describe all possible mounting options here. Please ensure that the bracket lays flat and evenly on the back of the television. Use the enclosed spacer to even out any unevenness on the back of the television. Ensure that all screws have the proper length and can be mounted until they are hand-tight (see Fig. 2).

Note Bracket is not adjustable.

• Check that the bracket is secure and safe to use at regular intervals (at least every three months). Only use water or standard household cleaners for cleaning.
