PRODUCT OVERVIEW

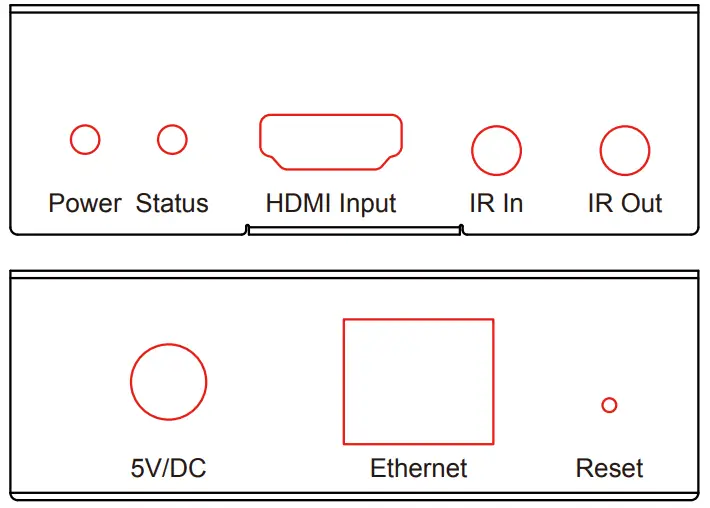

Transmitter

• IR Out: plug the IR blaster into this jack
• IR In: plug the IR receiver into this jack
• HDMI Input: connect to the HDMI output of your HDMI source device
• Status: This LED illuminates to indicate the status of this transmitter
• Power LED: This LED illuminates when power is applied to the transmitter.
• Reset: press and hold this button for about 10 seconds to reset the transmitter to the factory default settings
• DC/5V: plug one of the included AC power adapters into this DC jack
• Ethernet: Connect a cat5e/6 Ethernet cable into this port to deliver the signal to the receiver

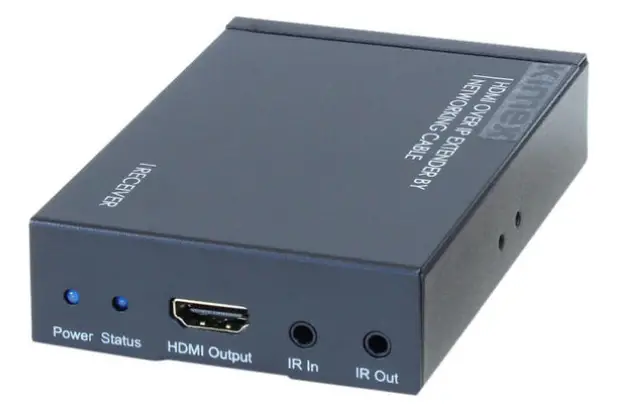

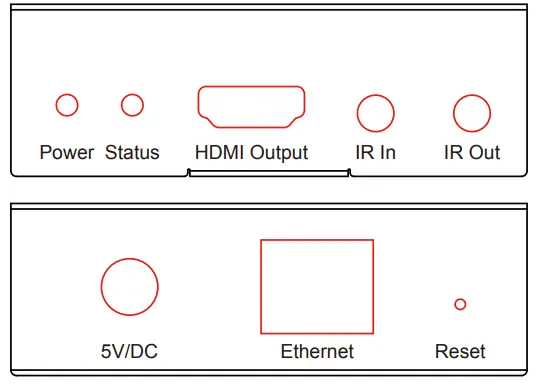

Receiver

• IR Out: plug the IR blaster into this jack
• IR In: plug the IR receiver into this jack
• HDMI output: connect to the HDMI input of your HDMI sink device
• Status LED: this LED illuminates to indication the status of this receiver
• Power LED: this LED illuminates when power is applied to the receiver
• Reset: press and hold this button for about 10 seconds to reset the receiver to the factory default settings
• Ethernet: connect a cat5e/6 Ethernet cable into this port to receive signal from the transmitter
• DC/5V: plug one of the included AC power adapters into this DC jack

INTRODUCTION

• This HDMI over IP Extender use the advanced M-JPEG as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly.
• It supports 120m over single cat5e/6 cable at point to point, as well as point to many over Ethernet switch.
• The over IP solution is widely used in various locations, like meeting rooms, classroom, metro, airport, home, mall advertisements…etc.

FEATURES

• Using M-JPEG compression encoding, support resolution up to 1080p@60hz
• Comply with TCP/IP protocol, Transmit up to 120meters@1080p/60Hz over single Cat5e/6 cable
• Support LPCM audio format
• Bi-direction Wide-band IR pass through to control the source or sink device. (38khz to 56khz)
• Support one to one or one-to-many modes with large cascade
• HDCP Compliant
• Support PC web control
• Build in EDID
• Carry power to Tx and Rx units with a Power Over Ethernet enabled Smart Managed Switch (*Optional POE version only)

PACKAGE CONTENTS

• 1x Main unit Transmitter
• 1x Main unit Receiver
• 2x IR-Receiver cable
• 2x IR-Blaster cable
• 1x User Manual
• 2x 5V Power adapter

APPLICATION

one-to-one extender

one too many extenders & Splitters

CONNECTION

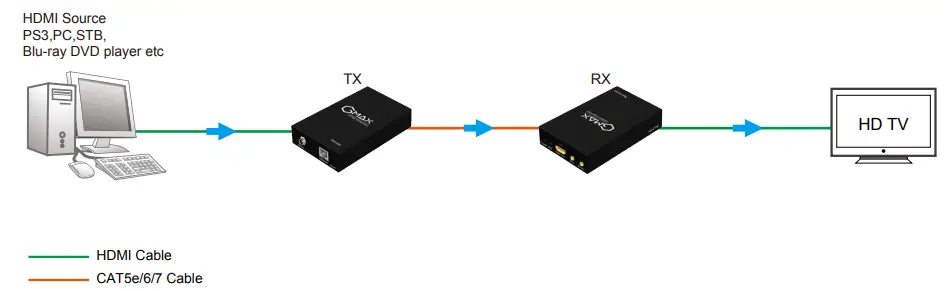

one-to-one extender

1. Connect the source device and the Transmitter unit with HDMI Cable.
2. Connect another HDMI display and the HDMI Receiver unit with HDMI Cable.
3. Connect the Transmitter and Receiver with the Cat5e/6 cable
4. Connect the IR blaster cable into “IR Out” port, and connect the IR Receiver cable into the “IR In” port. Then you can control the source or sink device with IR.
5. Power on the Transmitter and Receiver with 5V adapter.

NOTE: Insert/Extract cables gently.

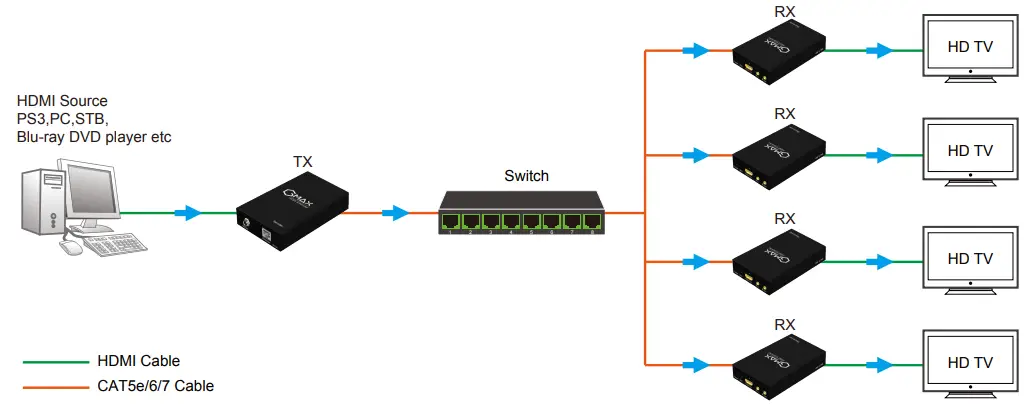

one too many extenders & Splitters

1. Connect the source device and the Transmitter unit with HDMI Cable.
2. Connect the transmitter and the switch/router with a cat5e or cat6 cable.
3. Connect all the Receivers and the switch/ router with the Cat5e/6 cable.
4. Connect the HDMI displays and the HDMI Receiver units with HDMI Cable.
5. Connect the IR blaster cable into “IR Out” port, and connect the IR Receiver cable into “IR In” port. Then you can control the source or sink device with IR.
6. Power on the Transmitter and Receiver with 5V adapter, power on the switch with its adapter.
