HDMI over HDBaseT Extender
User Manual
Model : HE02EIX
4K 60Hz 4:4:4 HDMI & IR/R232 CAT5e Extender 70M
Introduction
HE02EIX is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed HDMI, bi-directional IR, and RS232 signals with resolution up to 4K@60Hz 4:4:4 and transmission distance up to 70M. Its TX unit has a built-in local loop-out port that can connect with an extra HDMI display and its RX unit has dual HDMI outputs for signal distribution.
Features
- Resolution up to 4K@60hz 4:4:4.
- Signal extension up to 70M over CAT5e or greater cable.
- Built-in local loop out for an extra HDMI display at the TX side.
- Built-in dual HDMI outputs at RX.
- Supports bi-directional IR, RS232 transmission.
- Supports CEC, and EDID pass through.

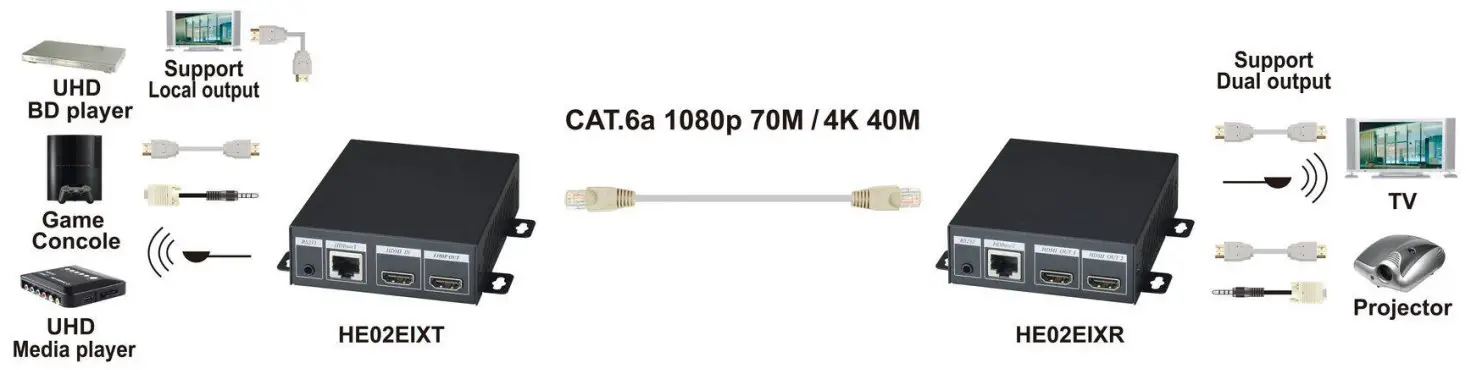

Installation view
Cable
Link cable recommends using high-quality CAT5e, CAT6, CAT6a, CAT7 UTP / STP, or FTP cable. Poor quality cable or network connection or improper construction will cause unstable connection, video or sound disruptions, picture noise appears.
HDBaseT Distance Chart by Different Cable
| Cable Type | Range | Supported Video |
| CAT5e / CAT6 | 60m | Up to 1080p 60Hz 12bit |
| CAT6e / CAT7 | 70m | |
| CAT5e / CAT6 | 35m | Up to 4096×2160@60Hz 4:4:4 |
| CAT6a / CAT7 | 40m |

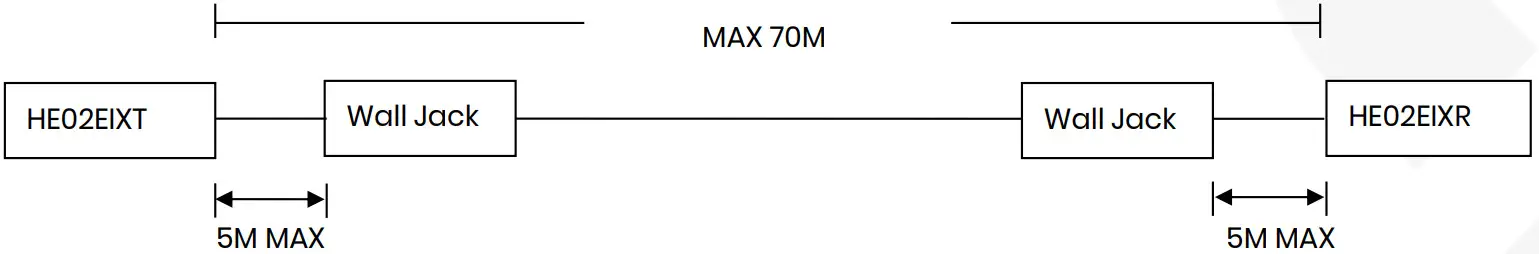

If connection through the wall socket, the cable length must be less than 5 meters between HDMI extender and the wall jack, as below drawing
RJ45 Define
Video Link (TIA/EIA-568-B)
| 1. Orange-white | DATA0 + |
| 2. Orange | DATA0 – |
| 3. Green-white | DATA1 + |
| 4. Blue | DATA2 + |
| 5. Blue-white | DATA2 – |
| 6. Green | DATA1 – |
| 7. Brown-white | DATA3 + |
| 8. Brown | DATA3 – |

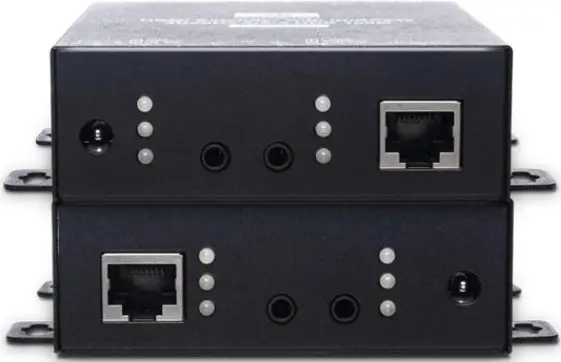

Panel View
LED Indication
Color | Status | HE02EIXT | HE02EIXR |
GREEN | LINK | ON: HDBaseT Linking | |
BLUE | VIDEO | ON: Input signal 4K@60Hz 4:4:4 | |
RED | FW UP | ON: Firmware Update | |
Color | Status | HE02EIXT | HE02EIXR |
GREEN | ON | ON: Power normal | |
BLUE | IR RX | ON: Receiving IR signal | |
RED | IR TX | ON: Sending IR signal | |
Firmware updated Switch
| 1. RS232 | ON: Firmware Update, OFF: RS232 Extender |
| 2. Reserve | Must Keep Off |
| 3. Low Power Mode | ON: Turn off power saving mode, OFF: Turn on power-saving mode |
| 4. Reserve | Must Keep Off |

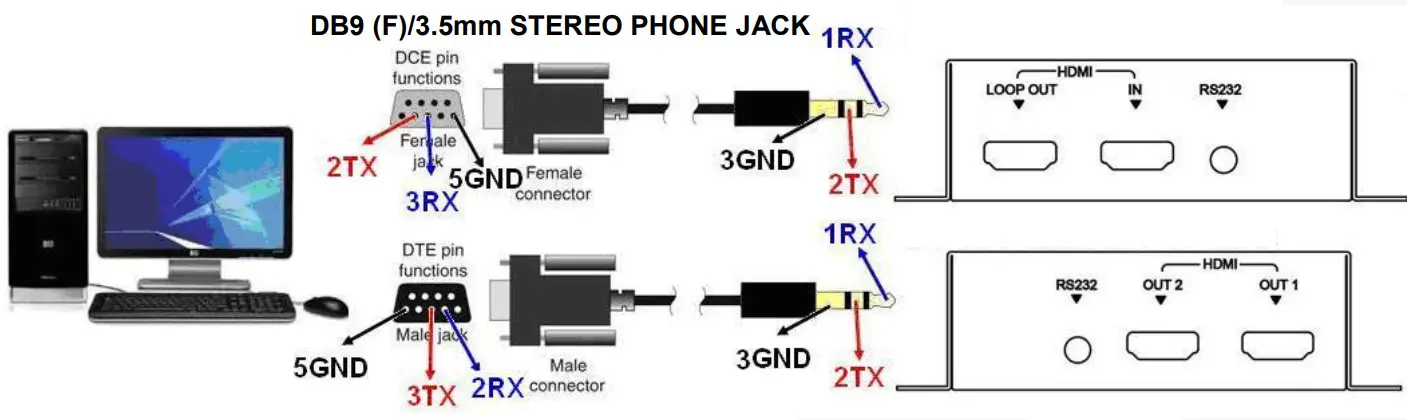

RS232 Define
DB9 (F)/3.5mm STEREO PHONE JACK
| RS232 | 3.5 mm Phone Jack | ||
| Footprint | Define | Footprint | Define |
| Pin 2 | TX | Pin 1 | RX |
| Pin 3 | RX | Pin 2 | TX |
| Pin 5 | GND | Pin 3 | GND |
DB9 (M)/3.5mm STEREO PHONE JACK
| RS232 | 3.5 mm Phone Jack | ||
| Footprint | Define | Footprint | Define |
| Pin 2 | RX | Pin 1 | RX |
| Pin 3 | TX | Pin 2 | TX |
| Pin 5 | GND | Pin 3 | GND |
Package Include
| HE02EIXT | x 1 |
| HE02EIXR | x 1 |
| DC 5V 2A Adapter | x 2 |
| IR Receiver Cable | x 1 |
| IR Emitter Cable | x 1 |
| DB9 (M)/3.5mm STEREO PHONE JACK | x 1 |
| DB9 (F)/3.5mm STEREO PHONE JACK | x 1 |
| Mounting Screw pack | x 2 |
Trouble Shooting
- The wiring must be away from any equipment with an electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines.
- Under HDMI 2.0 mode, must use Premium certified HDMI cable.
- EDID pass-through for HE02EXT transmitter input and HE02EXR receiver output 1 only
- CEC works for HE02EXT transmitter input and HE02EXR receiver output 1 only.
- Under HDCP 2.2 mode: anyone who monitors HDCP authorization fail will cause no video status, other connecting monitors will be also failed. Then monitor testing must be done one by one to find which monitor HDCP failed.
- This device DBase port is not a general Ethernet signal; do not connect with Network devices to avoid damage.
- IR transmitters do not put near from receiver to avoid mutual interference.
Specification
| ITEM NO. | HE02EIXT | HE02EIXR |
| Support | ||
| Compliance | HDMI 2.0, HDCP 2.2, 1.4, DVI | |
| Max. DisplayPort Resolution | 4K@60Hz 4:4:4 | |
| Max. Transmission Distance | 70M at 1080p@60Hz, 40M at 4K@60Hz | |
| Video Bandwidth | 10.2 Gbps | |
| Audio Format | 7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA | |
| IR Support | 30-60Khz, ± 15, 5M, Bi-directional | 30-60Khz, ±55°, 5M, Bi-directional |
| RS232 Baud Rate | 115200 bps/ Full Duplex | |
| Ports & Interfaces | ||
| Video-Input | 1 x HDMI Type A | 1 x HDBaseT |
| Video Output | 1 x HDBaseT | 2 x HDMI Type A |
| RS232 Interface | 1 x DB9(F)/ 3.5mm Stereo Phone Jack | 1 x DB9(M)/ 3.5mm Stereo Phone Jack |
| IR Interface | 1 x 3.5mm Phone Jack | 1 x 3.5mm Phone Jack |
| Power | ||
| Power Supply | DC 5V 2A | DC 5V 2A |
| Power Consumption | 1A (Max), 263mA (Low Power) | 1.6A (Max), 324mA (Low Power) |
| Ambient Temperature | ||
| Operation | 0 to 55℃ | |
| Storage | -20 to 85℃ | |
| Humidity | up to 95% | |
| Physical Characteristics | ||
| Dimensions | 109.6 x 109.5 x 30mm | 109.6 x 109.5 x 30mm |
| Weight | 270g | 285g |
