SC T HE02N HDMI over HDBaseT Extender

Introduction

HE02N is a 4K HDMI over HDBaseT™ extender that uses a single Ethernet cable to extend uncompressed HDMI with resolution up to 4K@60Hz 4:2:0, and transmission distance up to 100M, along with bi-directional IR and RS232 signals. The extender also supports HDMI ARC (Audio Return Channel) designed to reduce the number of cables between your TV and the amplifier. And a built-in Ethernet port with 10/100 bandwidth on both TX and RX sides allows the HE02N to connect with standard network devices such as 100Base-T routers, TVs, and computers.

Features

• Resolution up to 4K@60Hz 4:2:0.
• Signal extension up to 100M over CAT5e/6 cable.
• Supports 10/100Mbps Ethernet connector for an network device.
• Supports ARC (Audio Return Channel), send digital audio from TV back to the amplifier.
• Supports bi-directional IR, RS232 transmission.
• Supports EDID, and CEC pass through.

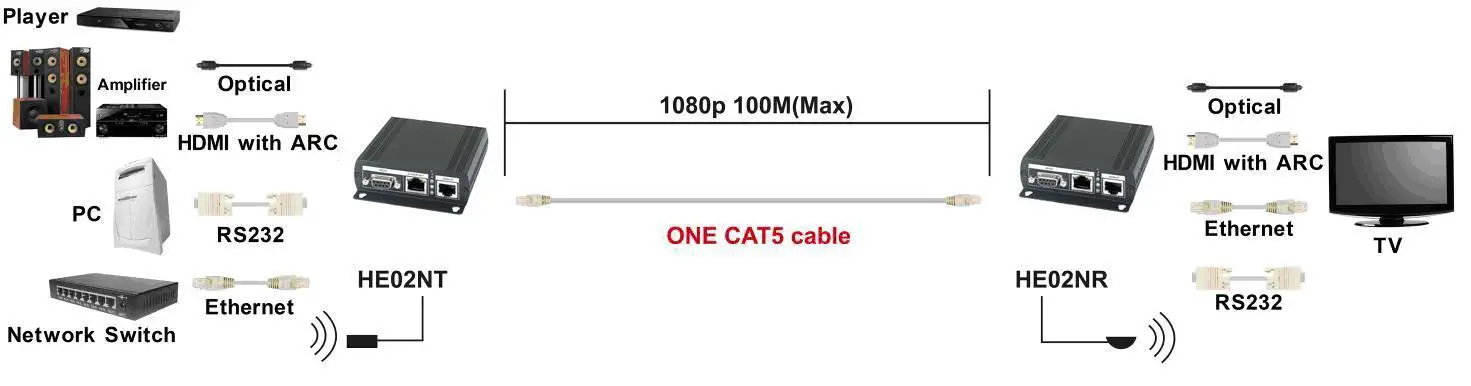

Installation view

Cable

Link cable recommend use high quality CAT.5e、CAT.6、CAT.6a、CAT.7 UTP / STP or FTP cable. Poor quality cable or network connection or improper construction will cause unstable connection, video or sound disruptions, picture noise appears.

HDBaseT Distance chart by different cable

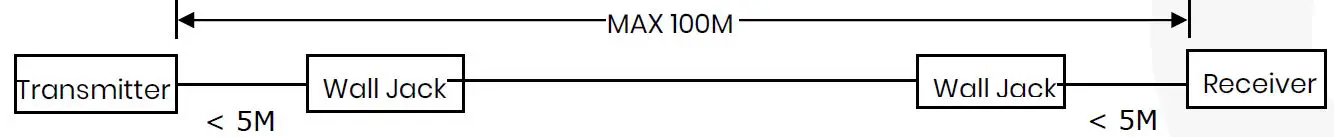

If connection through the wall socket, the cable length must less 5 meters between HDMI extender and wall jack, as below drawing:10/100Mbps network connection using general CAT5e cable and working distance up to 100M.

RJ45 Define

LED Indication

DC JACK Port:

HDBaseT Port:

10/100 Ethernet Port:

Digital Audio Return

This product supports the TV audio sent from HDMI ARC (Audio Return Channel) or Digital optical audio mode, from the receiver back to the transmitter end.
HE02NR: When ARC and optical digital inputs signals simultaneously, it will use optical digital as priority transmission.
HE02NT: When HE02NT receives digital audio signal, it will be output simultaneously from ARC and optical digital.

Caution

1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, Microwave, radio equipment, fluorescent lamp, power cable.
2. This device HDBaseT port is not Ethernet signal, do not connect with Network to avoid damage.
3. IR emitter do not put near from receiver to avoid mutual interference.

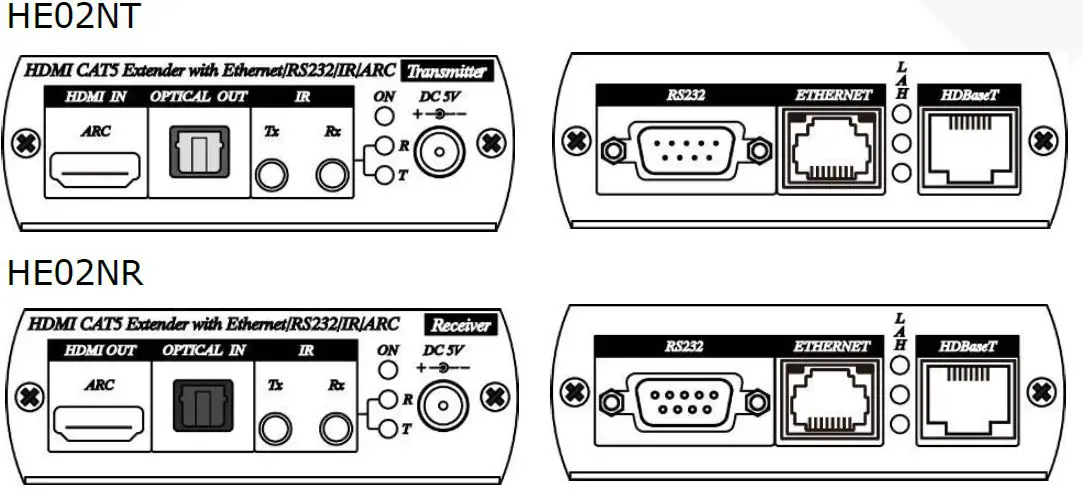

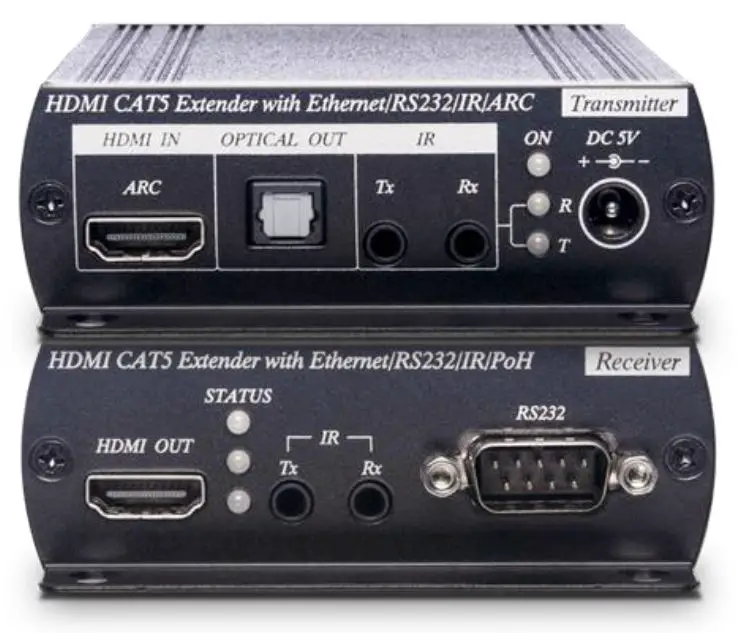

Panel view:

Package Include

• HE02NT Transmitter x 1 piece
• HE02NR Receiver x 1 piece
• Power adapter x 2 piece
• Mounting screw pack x 2 bags
• IR Emitter cable x 2 pieces
• IR Receiver cable x 2 pieces

Specification
