SC T HE03-54K HDMI over IP Extender Series

Introduction

HE03-4K is a 4K HDMI extender that can use a cost-effective Ethernet cable to send the signal for up to 140M with resolution up to 4K@30Hz 4:4:4. The built-in EDID button can automatically find the connected HDMI monitor’s best resolution and correctly display wanted video. The extender applies AV over IP technology that allow itself to work with Ethernet switches to split an HDMI to multiple ones, which can display one HDMI source on multiple displays at the same time.

Features

• Resolution up to 4K@30Hz 4:4:4.
• Signal extension up to 120M over CAT5e, 140M over CAT6.
• Workable with SR01X (IP repeater) for longer distance.
• Workable with Ethernet switch for signal distribution.

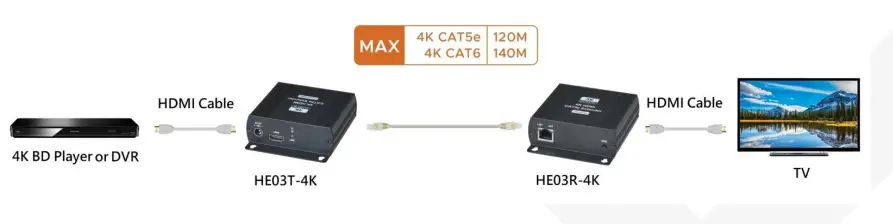

Installation View

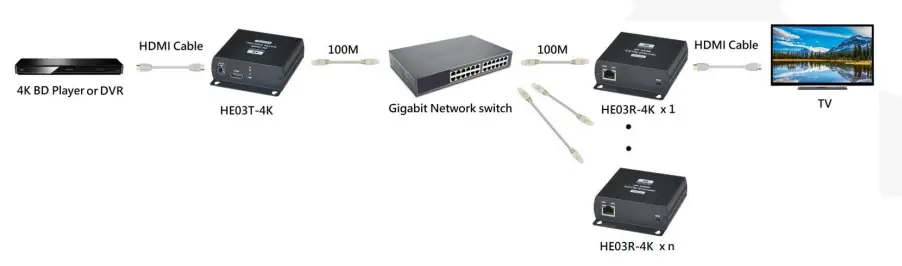

Support 1 to multiple display over Gigabit Network switch:

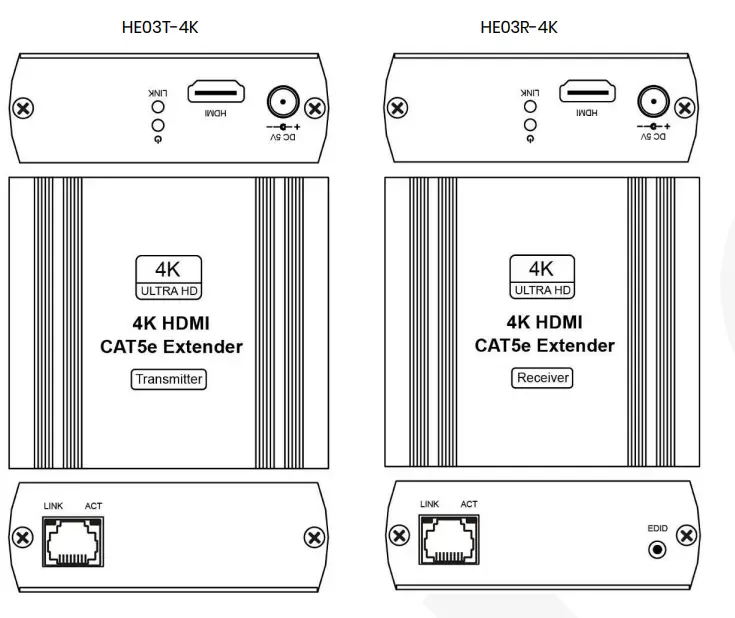

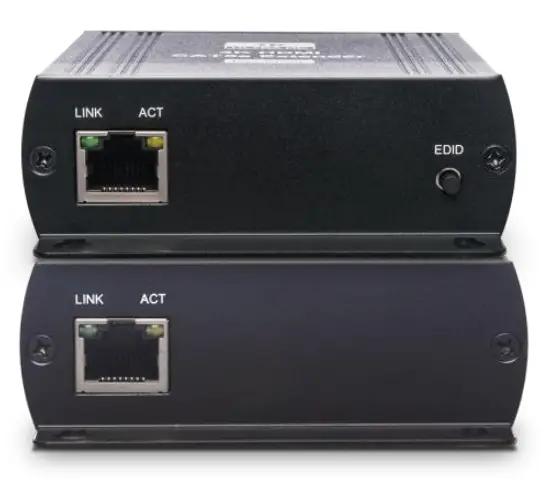

Panel View

LED Indication Instruction

Button Define

RJ45 Define

Link Cable (use TIA/EIA-568-B)

1. Orange-white Data 1 +
2. Orange Data 1 –
3. Green-white Data 2 +
4. Blue Data 3 +
5. Blue-white Data 3 –
6. Green Data 2 –
7. Brown-white Data 4 +
8. Brown Data 4 –

Cable

Link cable recommends use high-quality CAT5e, CAT6 UTP/STP/FTP cable. The max working distance is 140M (Max) over CAT6. Poor quality cable or network connection or improper construction will cause unstable connection, video or sound disruptions, picture noise appears.
Caution: The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage.

Trouble Shooting

1. HE03-4K transmission data rate up to 850Mbps Max.
2. Do not recommend to connect general LAN to avoid large video data transmission slow down other LAN devices. 。
3. When connect with Gigabit Switch, make sure to turn off EEE (Energy-Efficient Ethernet).

Package Include

• 1 x HE03T-4K Transmitter
• 1 x HE03R-4K Receiver
• 2 x DC 5V 2Amp Power Adapter 4 x Screw
• 4 x Screw Plug
• 2 x Rubber Gasket

Specification
