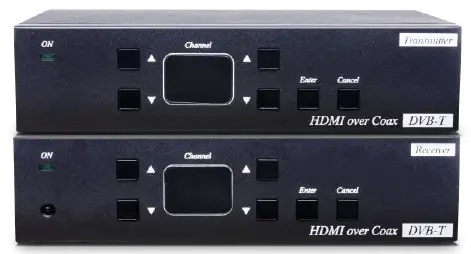

SC T HE05C HDMI Over Coaxial 500M Extender

Introduction

HE05C is a point-to-point HDMI extender that applies DVB-T RF modulator and can use an RG59/ RG6 coaxial cable to send an HDMI signal for up to 500M. The extender can also work with either a splitter to distribute one HDMI signal to multiple displays or a combiner to integrate various HDMI input/ output sources for channel selection. It can widely apply in CCTV, CATV, large outdoor screen, and shopping mall advertisements.

Features

•  Resolution up to 1080p@60Hz.
•  Signal extension up to 500M over a coaxial cable.
•  Built-in local loop out port for an extra HDMI display at TX side.
•  Supports up to 99 channel for both TX & RX with frequency range 142-950MHz.
•  Supports HDMI distribution and martix via CATV RF splitter/ DTV Mixer.
• Built-in LCD display at TX & RX for channel setting.
•  Managed via front panel buttons and IR remote.

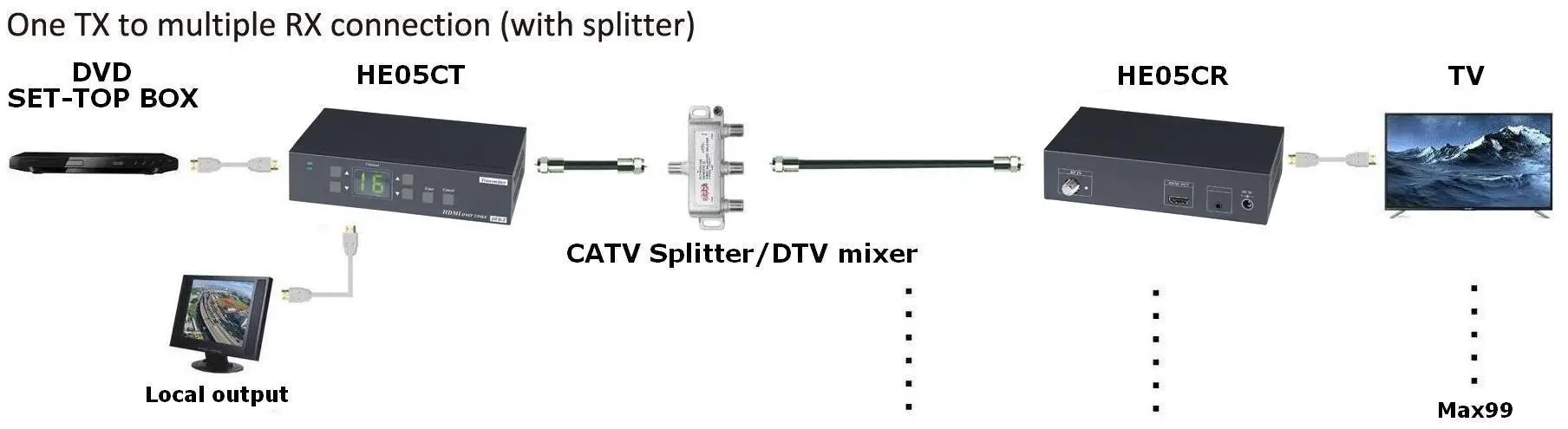

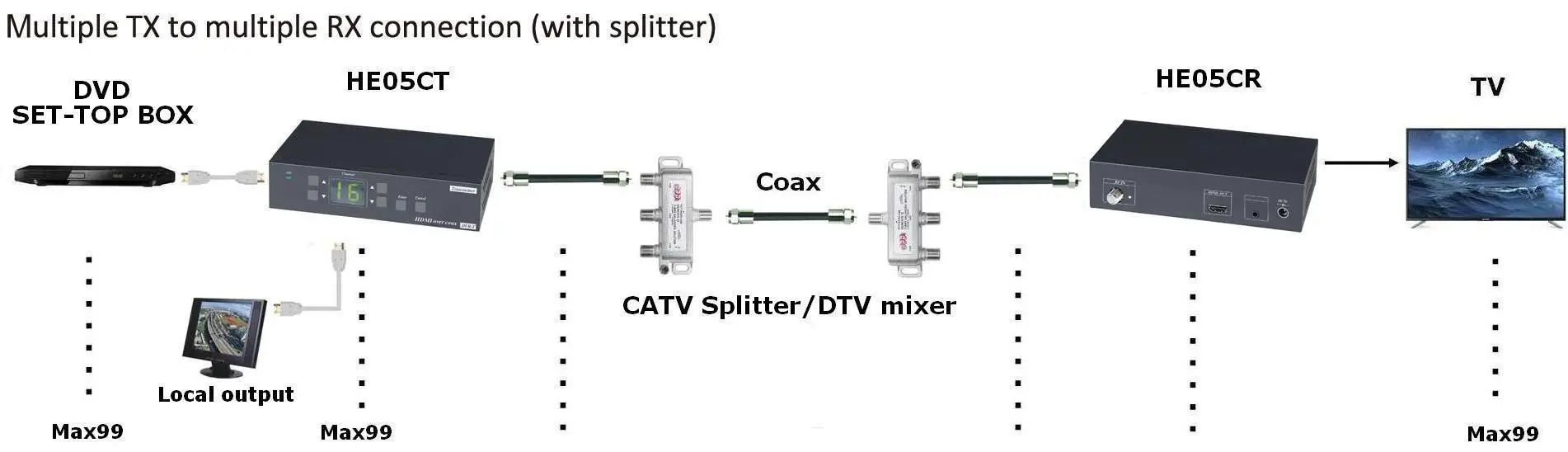

Installation View

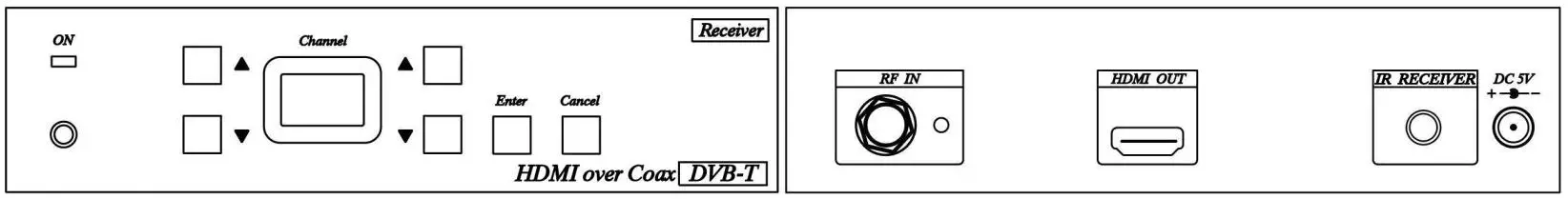

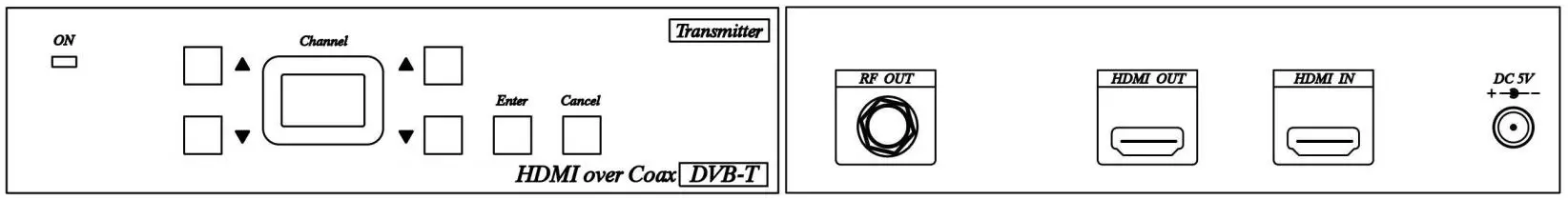

Panel View

LED Indication

• HE05CT LED
• Green ON/OFF Power on/off
• HE05CR LED
• Green ON/OFF
• Blue ON
• Blue FLASH
• Power on/off
• Video signal received
• Video signal not stable

Button Function

• single digit channel selecting key
• two-digital channel selecting
• Key channel selection
• confirm channel selection cancel

Option Model

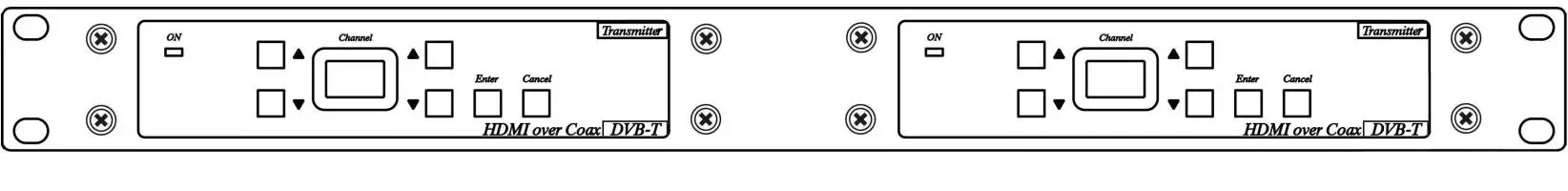

TPN002U 1U 19” Rack Mounting Panel Allow to fit two pieces of HE05CT/CR in 1U Rack Mounting Panel

IR01 Remote Controller
When using multiple source with HE05CT transmitter, HE05CR receiver input source selection could be using optional IR remote controller for easy operation.

Remote Control Function

Initial the first time using the remote control or after change battery of remote control, both need setting the IR remote controller ID. To setting the Remote ID, Press and hold power button, then press button 0 to complete the setting. + (for example)

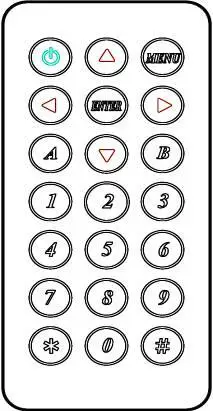

Remote Controller Key Function

• Channel Switching Key ,
• Channel input Key
• Channel Selecting confirm key
• ,A, B,MENU,＃,＊,◀ , ▶ Reserve( no function)

Cable and Transmission

Recommend to use use high quality 75Ω Coaxial Cable and F connector, low quality coaxial cable and channel selection may case signal loss and effect transmission distance and reliability. Point to Point transmission distance up to 500M (Max) ,the channel selection must be
0-12 channel or 81-94 channel. For multiple TX, RX working distance around 200M and must work with CATV splitter/amplifier or DTV mixer.

Package Include

• HE05CT HDMI Transmitter x 1 pcs
• HE05CR HDMI Receiver x 1 pcs
• Mounting Screw pack x 1 bags
• Power Adapter x 2 pcs
