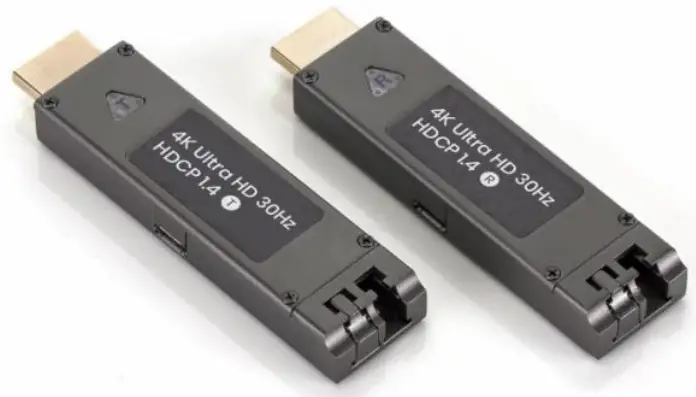

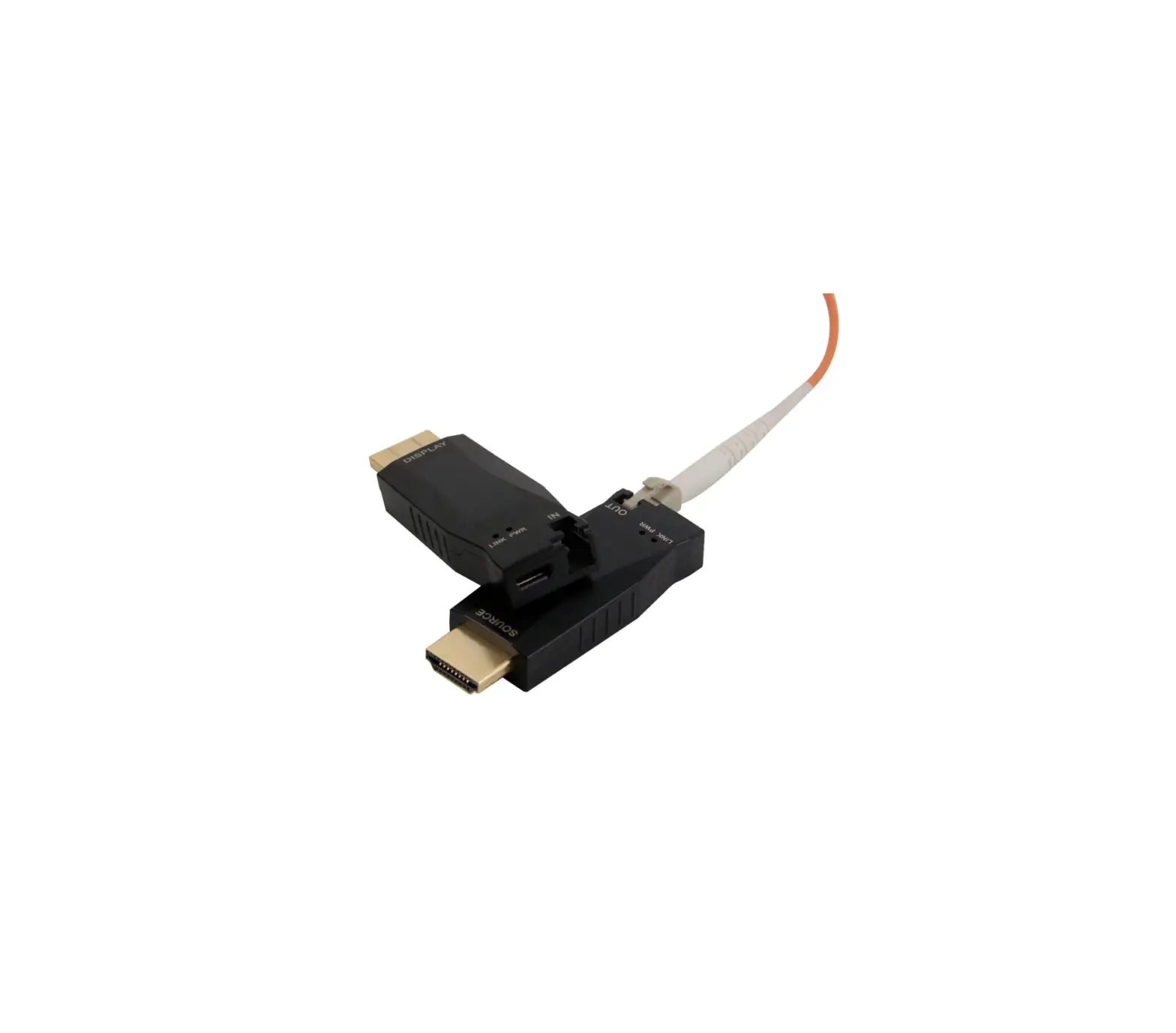

SC T HE01F-4K Compact 4K HDMI Fiber Extender

Introduction

HE01F-4K is an HDMI extender that uses a single fiber optic cable with LC connections to transmit uncompressed 4K 30Hz HDMI signals, with EDID and HDCP signals supported for both multi-mode and single-mode fibers. This small compact size allows you to easily finish installation for any audiovisual applications.

Features

• Resolution up to 4K@30Hz.
• Transmission distance up to 1KM over single-mode fibers, 300m over multi-mode fibers.
• Built-in LC Fiber Connector.
• Supports EDID bypass.
• Low latency.
• Plug & Play, USB powered.

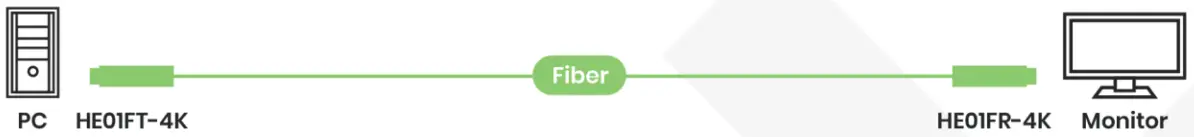

Installation view

Transmission Distance

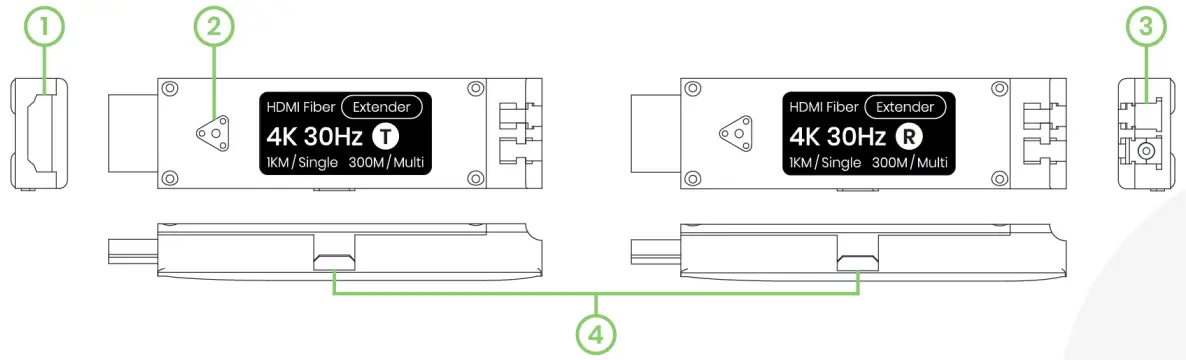

Panel view

Installation Guide

1. Connect HE01FT-4K (The transmitter) to an HDMI source.
2. Connect the optical fiber cable to HE01FT-4K.
3. Power on HE01FT-4K from the micro-USB port.
4. Connect HE01FR-4K (The receiver) to an HDMI device.
5. Connect the optical fiber cable to HE01FR-4K.
6. Power on HE01FR-4K from the micro-USB port.

LED Indication

Caution

• The product DOES NOT support CEC due to EDID pass-through. Tosupport CEC, please contact us for customization.
• This product is designed for indoor applications. If it is desired for outdoor use, please install additional equipment for waterproof protection and surge protectors to prevent damages caused by lighting.
• Both transmitter and receiver have to be powered through a micro-USB port.
• Kindly use high-quality OM3 fiber optic cable or upgrade to OM4 fiber optic cable while using multi-mode to reach the 300M extension, or the signal would probably degrade causing abnormal images.
• Do not put anything on the power and system cables, place them where they cannot be stepped on. Please be sure there is nothing resting on any cables.
• Avoid using this product close to water places, or near high temperature devices such as radiators, stoves, etc.
• Using standard and certified optical fiber cables to transfer high-resolution video is recommended.
• Shut down the power supply and unplugged all equipment immediately if:
  • water or any kind of liquid has been spilled into the product;
  • the product has been damaged by external force
  • the product does not operate normally as this manual indicates
  • Please contact us for further repair if above conditions happen

What’s In the Package

Specification
