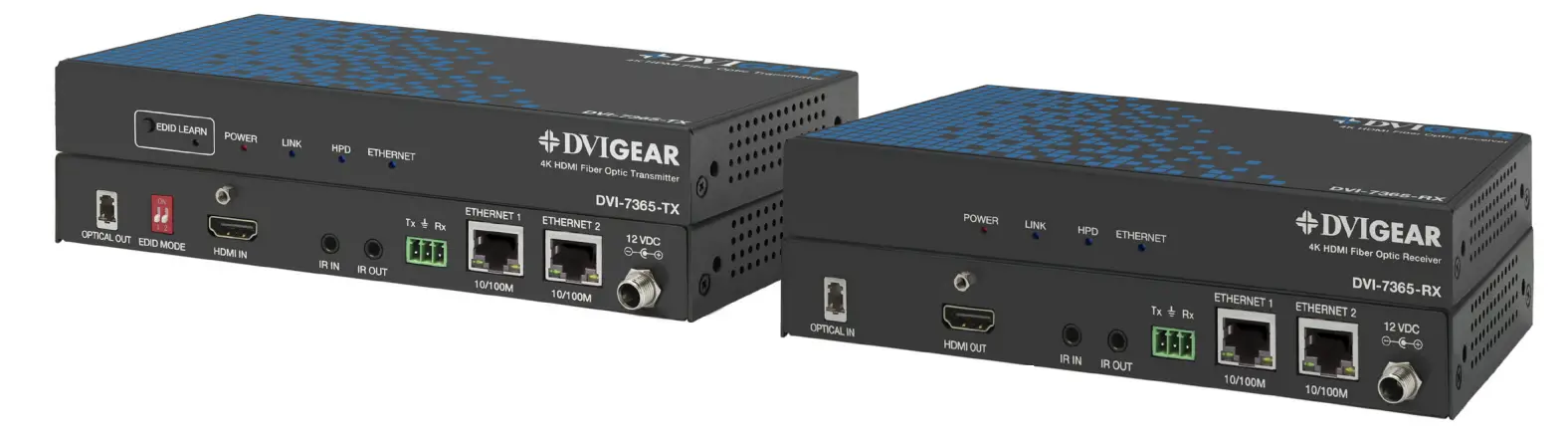

DVIGEAR DVI-7365 HDMI 4K Fiber Optic Extender
INTRODUCION
Designed for Extreme Requirements — The DVI-7365 is a high performance, cost-effective, 4K Multiport Optical Extender designed to meet and exceed even the most demanding system requirements. It supports a wide array of signal types with or without HDCP content protection, provides long-distance extension over a single fiber cable, and supports ultra-high resolutions up to 4K (UHD) at 60Hz (4:4:4).
Multiple Signals Extended over a Single Cable — This multiport optical extender supports uncompressed HDMI 4K /60p, embedded audio, bidirectional IR, RS 232 and two 10/100 BaseT Ethernet ports, using only a single fiber optic cable. It can extend these signals over cable distances of up to 1.86 mi. (3,000 meters). For added versatility, these units provide Advanced EDID Management with four operating modes: Pass-through, Learn 1, Learn 2, and Factory Default.
Fiber Optic Technology — Each extender set consists of an optical transmitter unit and an optical receiver unit. The transmitter converts the AV signals into light pulses for transmission over a single strand of Multi-Mode or Single-Mode fiber optic cable. The receiver converts the light pulses back to AV signals for the display, as well as other downstream devices. By using advanced fiber optic technology, without any compression, this product provides superior picture quality over greater distances than other extension methods, such as copper cables or CAT-X extenders. Together, these features make the DVI-7365 the ideal, cost-effective solution for system designers and integrators who need to support high resolution HDMI signals over extreme distances with flawless image quality
FEATURES
- Supports resolutions up to 4096×2160 /60p (4:4:4), without using compression
- Extends HDMI, Ethernet (10/100Base-T), RS-232, and bidirectional IR over a single strand of fiber optic cable
- HDCP 1.4 and HDCP 2.2 compliant
- Maximum extension distances: Single-Mode Fiber: > 1.86 miles (~ 3,000 m) OM3 Multi-Mode Fiber: > 1,000 ft. (~ 300 m)
- Four Advanced EDID Management Modes: Pass-through, Learn 1, Learn 2, and Factory Default
- Optical fiber transmission is immune to environmental signal noise
- Low RFI / EMI profile for sensitive applications
- Locking DC power connectors for added security and reliability
- Heavy-duty mounting brackets are included

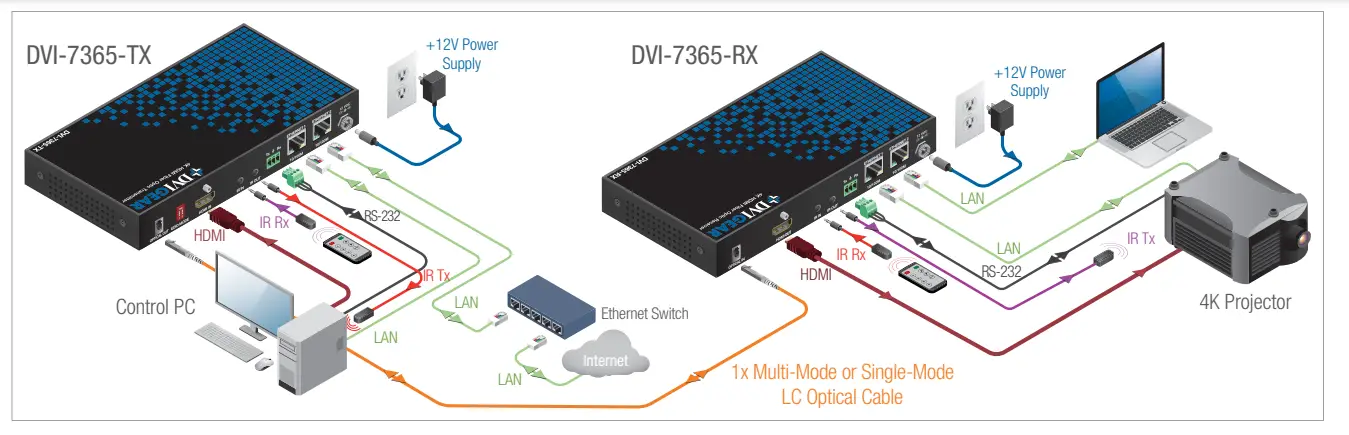

STAND-ALONE DIAGRAM

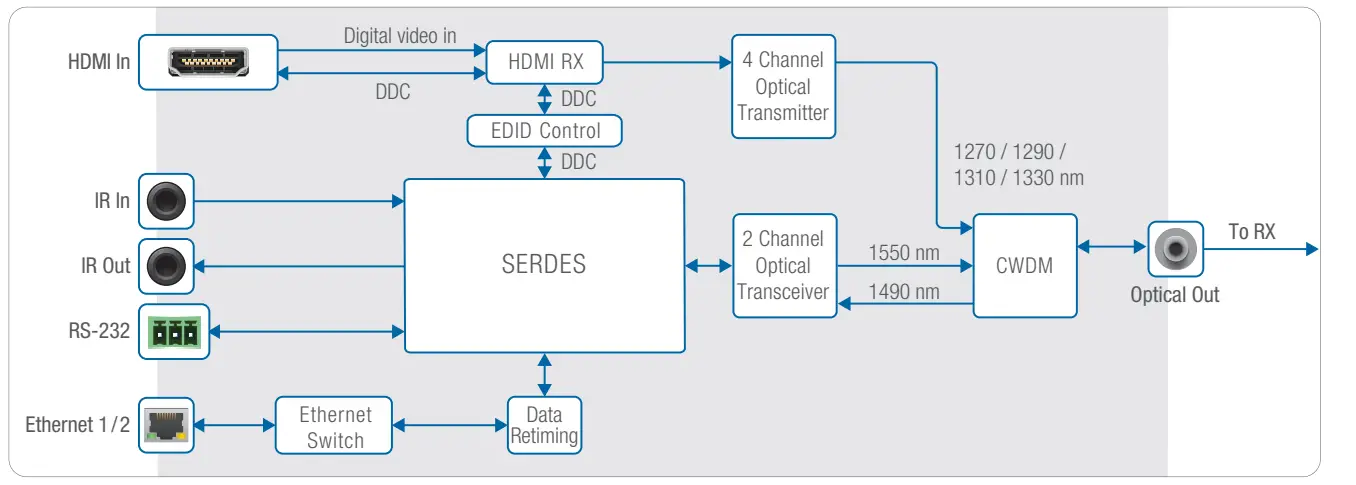

DVI-7365-TX INTERNAL BLOCK DIAGRAM

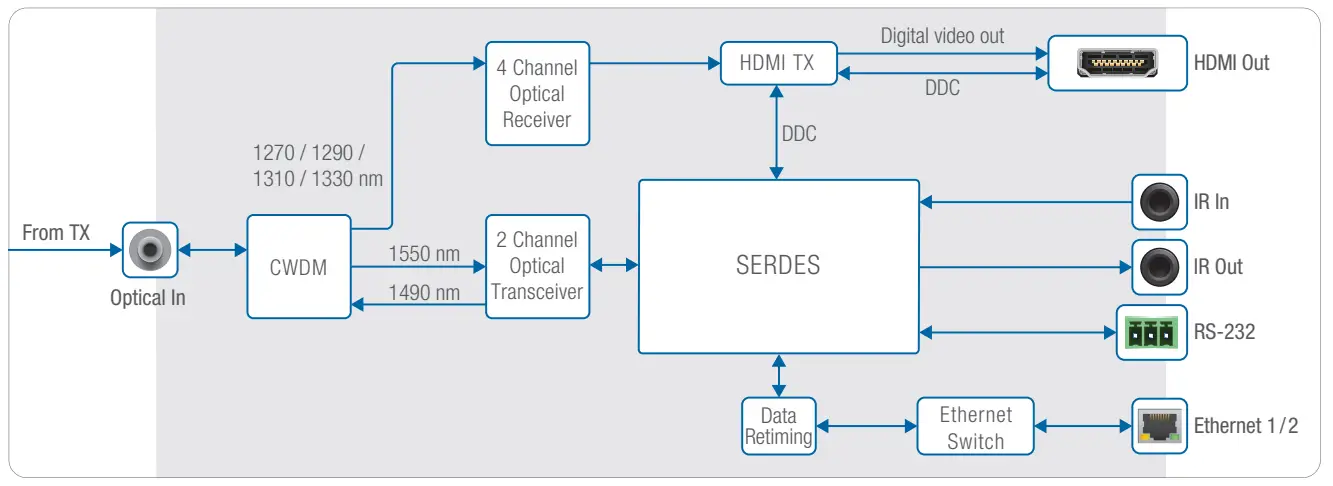

DVI-7365-RX INTERNAL BLOCK DIAGRAM

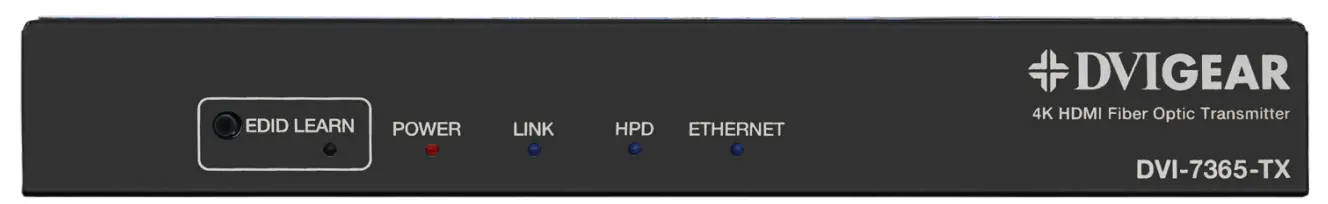

DVI-7365-TX Front View

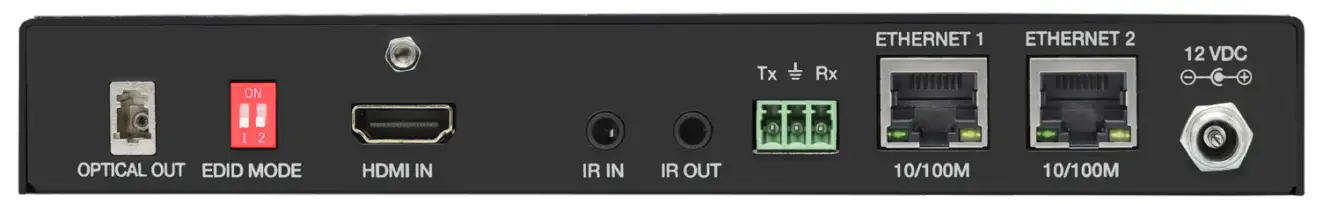

DVI-7365-TX Rear View

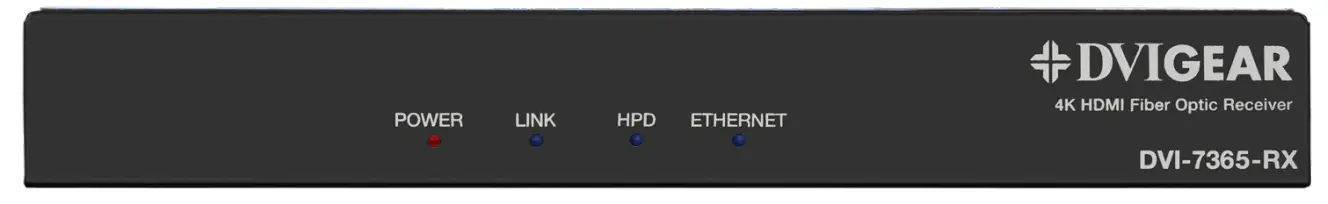

DVI-7365-RX Front View

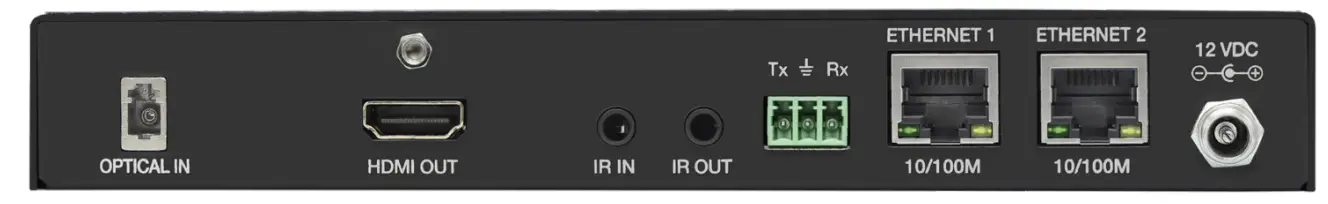

DVI-7365-RX Rear View
SPECIFICATIONS
| Performance | |
| Standards Compliance | HDMI 4K /60p, DVI v1.0, HDCP v2.2 |
| Maximum Pixel Clock Frequency | 600 MHz |
| Maximum Video Bit Rate | 6 Gbps. / 18 Gbps. (Aggregate) |
| Total System Jitter (I/O) | 0.6 UI maximum |
| Inter-Channel Skew | 2 nanoseconds maximum |
| Ethernet | 10/100 BaseT |
| Supported Color Depth | Up to 12-bit per pixel |
| Supported Resolutions | Up to 4K: 4096 x 2160 /60Hz (4:4:4) |
| Digital Audio Support | Embedded HDMI digital audio up to 8-channel (7.1) LPCM, 48 kHz, 24-bit audio capability |
| Connections | |
| HDMI Input / HDMI Output | 1 ea. 19-pin Female HDMI connector |
| Optical | 1 ea. LC fiber optic connector |
| Ethernet | 2 ea. RJ-45 female connector |
| RS-232 | 1 ea. 3-pin Phoenix connector |
| IR Input / IR Output | IR IN: 1 ea. 3.5mm stereo mini-jack; IR OUT: 1 ea. 3.5mm mini-jack |
| Power | 1 ea. Screw-Locking 2.1 / 5.5 mm female connector |
| Control | |
| TX Unit | Front Panel: EDID Learn button, LEDs for EDID, Power, Optical Link, HPD and Ethernet Back Panel: EDID Mode selection via 2x DIP switches |
| RX Unit | LEDs for Power, Optical Link, HPD and Ethernet |
| Optical | |
| Optical Technology | CWDM (Course Wavelength Division Multiplexing) using 6 optical wavelengths |
| Laser Diodes | 1270/1290/1310/1330nm 10Gbps CWDM DFB Lasers; 1490nm/1550nm 2.5Gb/s CWDM DFB Lasers |
| Photo Diodes | 1100 – 1620nm PIN Photo Detectors |
| WDM Filter | Integrated 1270nm / 1290nm / 1310nm / 1330nm / 1490nm / 1550nm filter |
| Optical Wavelengths / Actual Data Rates | TMDS Signals: 1270nm / 1290nm / 1310nm / 1330nm = 6.0 Gbps. DDC, IR, RS-232, Ethernet Signals: 1490nm / 1550nm = 1.25 Gbps. |
| Optical Link Power Budget | 8.0 dB (minimum) |
| Cable | ||
| Maximum Cable Length (typical) | 9/125μ Single-Mode Fiber: > 1.86 miles ( ~ 3,000 meters) 50/125μ OM3 Multi-Mode Fiber: > 1,000 ft. ( ~ 300 meters) | |
| DVIGear Fiber Cable | OFNP, Plenum rated – additional data and custom lengths available on request | |
| Cable Jacket | OFNP, Plenum rated, Black PVC Jacket | |
| Cable Outside Diameter | 0.2″ (4.4 mm) | |
| DDC Support | ||
| EDID Management / Modes | EDID Pass-through (transparent) EDID Learn 1 / Learn 2 (cached) Factory Default EDID (1080p 2-Ch audio) | |
| HDCP Support | Supports HDMI signals with or without HDCP encryption | |
| Mechanical | ||
| Case Dimensions (H x W x D) | Without Brackets: 1.0″ x 7.5″ x 3.9″ (26.0 x 190.0 x 99.5 mm) Width with Brackets: 8.5″ (215.5 mm) | |
| Weight | TX Unit: 568g; RX Unit: 563g | |
| Construction | High-impact metal enclosure with jet black finish | |
| Mounting Options | Mounting Brackets are included | |
| Environmental | ||
| Operating / Storage Temperature | 14° to +158° F (-10° to +70°C); -40° to +185° F (-40° to +85°C) | |
| Operating / Storage Humidity | 5% to 80% (non-condensing); 5% to 95% (non-condensing) | |
| Power Requirements | ||
| Optical Transmitter / Receiver | Both TX and RX units must be powered by the supplied external power adapters. | |
| External AC Power Adapters | Model No: DVI-7216-PS Input: 100-240VAC / 50-60Hz 0.8A; Output: 12VDC, 2.0A | |
| Maximum Power Consumption | DVI-7365-TX: 530 mA (6.4 watts); DVI-7365-RX: 450 mA (5.4 watts) | |
| Regulatory Approvals | ||
| Fiber Optic Extender Unit | FCC Class B, CE, RoHS | |
| Laser | US-FDA CDRH Class 1 | |
| External AC Power Adapters | FCC, CE, UL, C-UL, BSMI, CB, CCC, LVD, LPS, PSE, RCM, RoHS, WEEE | |
| Warranty | ||
| Limited Warranty | 3 Years Parts and Labor | |
| Model Numbers(1) | ||
| DVI-7365-TX | 4K HDMI Fiber Optic Transmitter, 1x LC | |
| DVI-7365-RX | 4K HDMI Fiber Optic Receiver 1x LC | |
| DVI-CUST-OPT | Custom Fiber Optic Cable, Plenum rated Specify: Length, Fiber Type (MMF, SMF) and Optical Connector (LC) | |
| Accessories Included(1) | Optional Accessories | |
| 1x External AC Power Adapter (DVI-7216-PS) with USA plug 1x User Guide 1x 3-Pin Phoenix Connector (Phoenix p.n. 1840379) 1x IR Transmitter (DVI-7360-IR-TX) (ships with DVI-7365-TX) 1x IR Receiver (DVI-7361-IR-RX) (ships with DVI-7365-RX) 2x Mounting Brackets with Screws | External AC Power Adapter (p.n. DVI-7216-PS) with Euro, UK, or Australia plugs +12 VDC Power Distribution Unit (p.n. DVI-7520-PDU) Custom Optical Cables (contact DVIGear for details) | |
Note 1: The Transmitter and Receiver units are sold separately. The accessories shown here are included per unit.
