SC T DE01ERK DVI CAT5e Extender 70M
Introduction
The DE01ERK is a DVI extender that can use a cost-effective Ethernet cable to carry the signal with transmission distance up to 70M. With DVI Adaptors, users can transmit high quality digital video of PC applications thru one cost effective CAT5/5e to the remote monitor or projector, instead of using short and expensive DVI cables. With embedded EDID inside the adaptor, your PC will continue to send the digital video even when the monitor is not connected. The user can then disconnects the monitor, place it in a remote location and reconnect it without rebooting the operating system…
Features
- Resolution up to 1920 x 1200.
- Signal extension up to 70M at 1024 x 768.
- No external power is required.
- Built-in micro USB for external power at RX unit when connected DVI source can’t provide enough power…

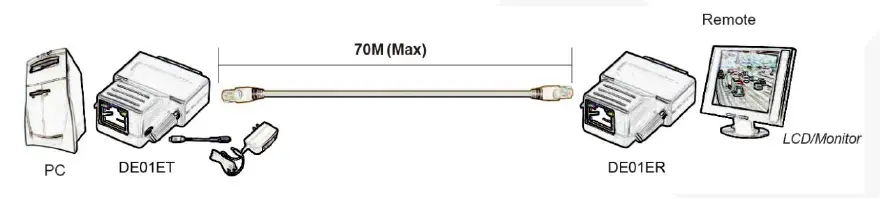

Installation view
DE01ET transmitter built-in micro USB for external power when your DVI source not able to provide enough power to the receiver. For example, when using multiple DE01ERK with DVI distributor, the power consumption may over the limitation of the DVI device, please use micro USB to DC plug cable (package included) with 5V power adaptor (optional) for external power.
| DE01ET to DE01ER | |
| Resolution | Distance (Meter) |
| 1024 x 768 | 70 |
| 1280 x 1024 | 50 |
| 1440 x 900 | 50 |
| 1600 x 900 | 50 |
| 1920 x 1200 | 50 |
Remark: The transmission distance will be affected from different PC/Monitor equipment and cable quality.

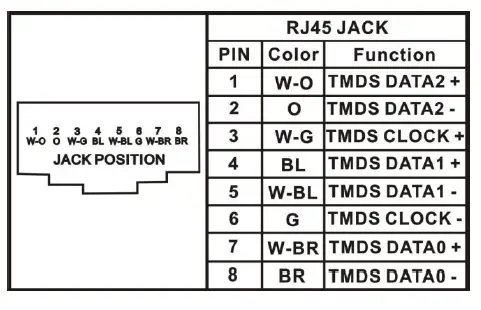

Panel View
Cable
Video Link cable using high-quality CAT5E UTP or CAT6 UTP cable, CAT6 cable enhances transmission range and signal stability. Do not use STP cable or flat cable which may cause no video output.
LED Indication
Green Status Normal Yellow Loss of Clock Signal
Caution
- The cabling must be away from any equipment with an electromagnetic wave, i.e.: microwave, radio equipment, high voltage.
- Working distance will be varied based on different equipment.
- The picture may come with noise under the resolution of 640 x 480
- HDCP is not supported.
- Do not use STP cable or flat cable which may cause no video output.
Specification
| ITEM NO. | DE01ET | DE01ER |
| Support | ||
| Compliance | DVI 1.1 | |
| Max. Video Resolution | 1920 x 1200@60 Hz | |
| Max. Transmission Distance | 50M at 1920 x 1200 | |
| Video Bandwidth | 1.65 Gbps | |
| Ports & Interfaces | ||
| Video Input | 1 x 25 Pin DVI-D | 1 x RJ45 |
| Video Output | 1 x RJ45 | 1 x 25 Pin DVI-D |
| Power Connector | 1 x Micro USB | |
| Power | ||
| Power Supply | DC 5V 1A (Optional) | |
| Power Consumption | 320mA | |
| Ambient Temperature | ||
| Operation | 0 to 55℃ | |
| Storage | -20 to 85℃ | |
| Humidity | Up to 95% | |
| Physical Characteristics | ||
| Dimensions | 40.2 x 55.5 x 22.5mm | 40.2 x 55.5 x 22.5mm |
| Weight | 260g | 280g |
