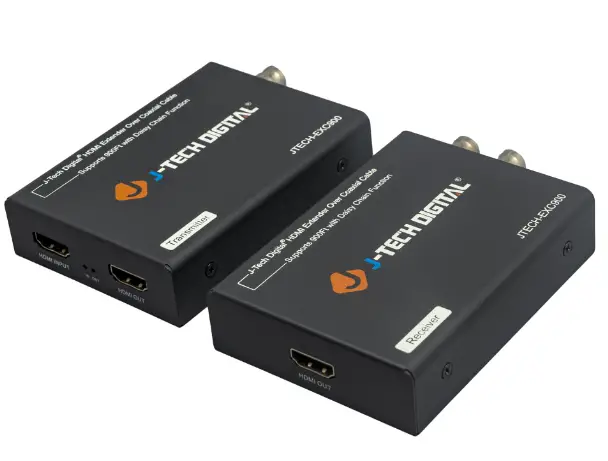

J-Tech Digital JTD-2860 Daisy Chain HDMI over Coaxial Extender
Introduction
The J-Tech Digital JTECH-EXC900 is designed to extend an HDMI source signal over coaxial cable. With the device’s strong resistance to interference and excellent image quality, the JTECH-EXC900 can be used in a wide array of applications including CCTV, extension to outdoor displays, hospitality, airports and digital signage.
Features
- Transmits HDMI signals up to 1640 ft over RG6 | RG7 | RG11 coaxial cable (Belden 1694A w/ 75Ω connectors recommended)
- Supports HDMI resolutions up to 1080p 60Hz
- HDMI 1.4 & HDCP 1.4 Compliant
- Transmitter features local HDMI loop output
- Receiver features daisy chain coaxial output
- No signal loss or latency
- Supports PCM 48kHz audio format
Product Interface

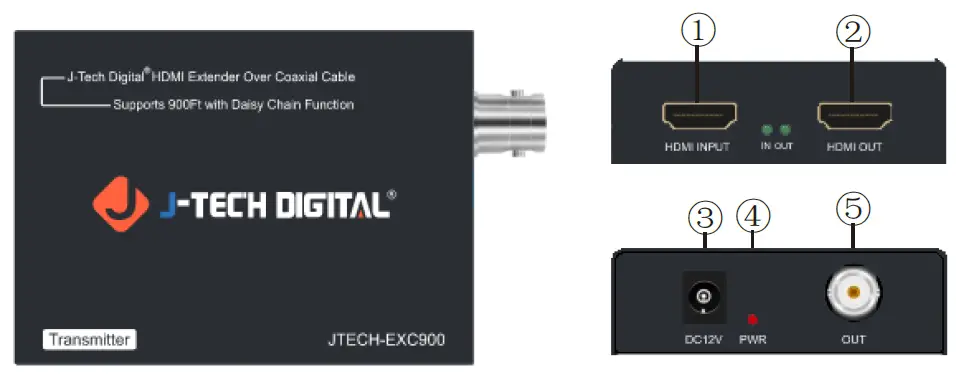

Transmitter
- HDMI In
- HDMI Loop Out
- DC In
- Power Indicator
- Coaxial Out

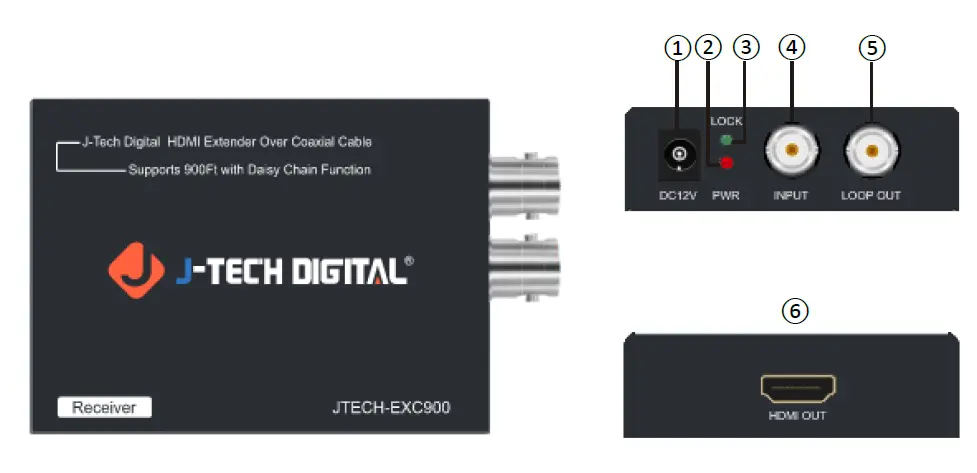

Receiver
- DC In
- Power Indicator
- Signal Indicator
- Coaxial In
- Coaxial Loop Out
- HDMI Out
Connection Diagram
There are 2 connection modes for JTECH-EXC900.

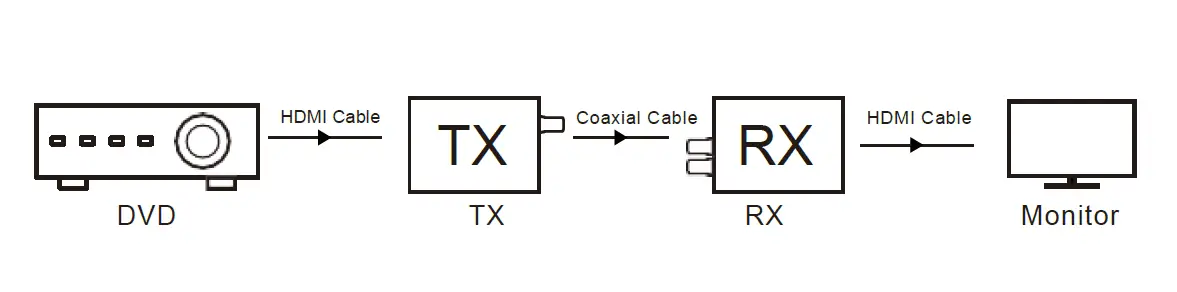

- Mode – Point to Point Connection

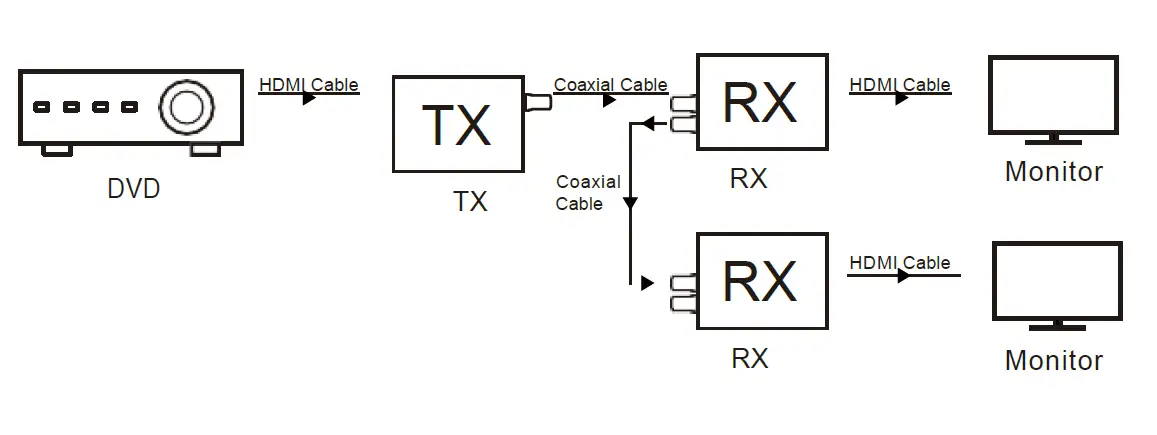

- Mode – Daisy Chain Connection
Package Contents
- 1 x JTECH-EXC900 Transmitter
- 1 x JTECH-EXC900 Receiver
- 2 x 12VC Power Adapter
- 1 x User Manual
Notes
- This extender set requires both transmitter and receiver to work as intended.
- One transmitter can feed signal to multiple receivers via daisy chain connection method and requires the purchase of additional receivers.
- Please reset or disconnect and reconnect the power adapter of the transmitter unit if there is no audio at your display.
