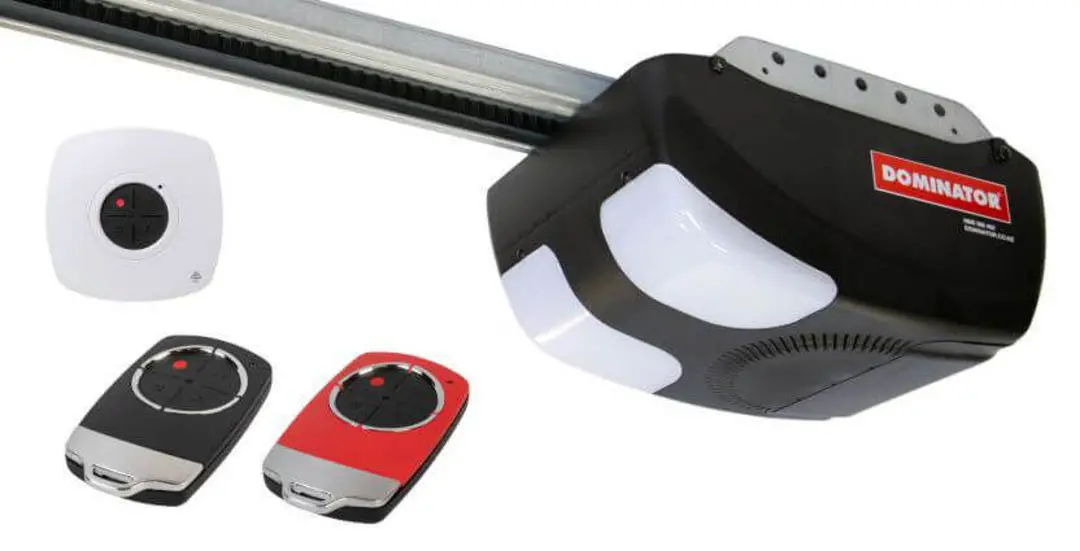

DOMINATOR 01414 Select Sectional Door Opener

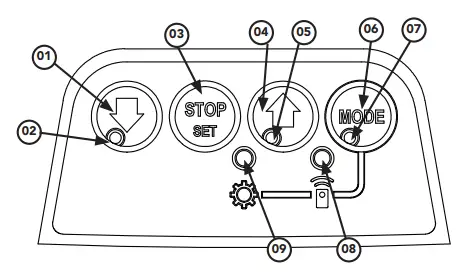

User Operating Controls

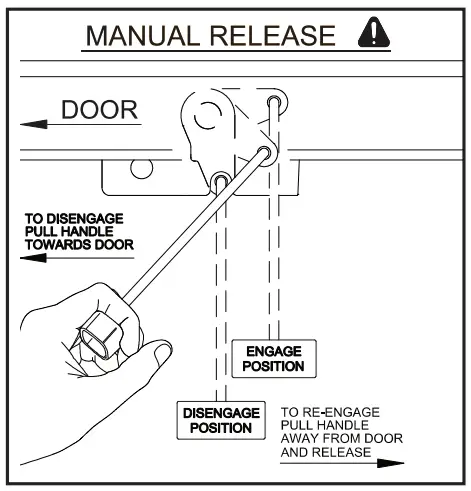

Manual Door Operation

To Disengage the Opener:

1. It is recommended to do so with the door in the closed position.
2. Pull the manual release cord towards the door, until you hear a click.
3. Move the door manually.
   CAUTION: When the opener is manually disengaged, the door is no longer locked. To lock the door manually, re-engage the opener after the door is closed.

To Re-Engage the Opener:

1. Check the door has not been locked by a locking device.
2. Pull the manual release cord away from the door, until you hear a click.
3. The door will now operate from the opener.
   CAUTION: Do not use the string handle as a mechanism to open the door. Failure to comply may cause serious injury.

Coding a Remote Control

Storing the Remote Control Code:
The opener can only be operated from remote controllers that have been programmed into its memory. Up to 64 remotes can be stored in the memory.

1. Remove the controls cover to access the buttons.
2. Press the MODE button repetitively until the REMOTE INDICATOR is lit.
3. Press and HOLD the CLOSE button to set Open / Stop / Close function. The Main light will start to flash rapidly.
4. Press one of the four (4) buttons on the transmitter until the main light starts to flash rapidly, then release transmitter button.
5. Press the remote control button again until the main light stops flashing rapidly.
6. Release both buttons. Press the MODE button to exit. and refit controls cover. The remote button is now coded, press to test.


   Main Light	Remote Status
   ON	Button added
   OFF	Button removed
   2 flashes, then OFF	Remote control deleted
   4 flashes, then OFF	Memory full

Battery Replacement:

Battery Type: 1 x CR2032.

1. To test the battery is working, press and hold a remote button. Check Light Status table to determine if battery needs replacing.



   Light Status	Battery Status
   Solid	OK
   Flashing	Replace
   No light	Replace



2. Use finger nails to separate the remote casing to expose circuit board.
3. Use a non-metallic object to push the battery down through the side opening to remove the battery.

Smart Phone Control (Requires Smart hub)

Connecting to WiFi:
The Smart Phone Control works via your home’s WiFi network. Initial set up involves linking your phone app and smart opener to your home network.

1. Download the Dominator App.
2. Remove the controls cover on opener to access the buttons.
3. Ensure the WiFi router is within range of the opener.
4. Connect the Smart Hub to power.
5. Go to phone settings, then WiFi and select (DOM000000).
6. Open App and tap on Start.
7. Select setup a new Smart Hub.
8. Follow on screen instruction in the Dominator App.
9. Upon completion, refit the controls cover and test the opener operation through the Dominator App.



Troubleshooting

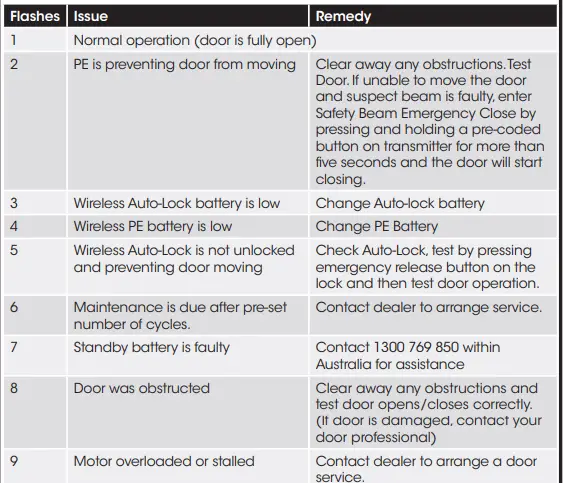

Main Light = Service / Warning Indicator:
Requirements for a service and user warnings are indicated after operation by the main light repeatsble flashing OFF a number of times followed by a pause. The below table identifies the issues and remedies.

Caring for your Opener

Preventative servicing of your garage door and opener, is important. Your garage door is made up of numerous moving parts designed to lift and lower your door safely and efficiently. Ongoing preventative servicing ensures that your door continues to function within factory specifications, greatly reduces the risk of failure and repair bills down the track and ensures you maintain your Warranty. Refer to your Owners Opener Handbook for your service schedule.

Refer to the installation manual for monthly testing procedures in Section 13 to ensure garage door is fit for use.

Need a Service Call?

If the opener needs a service please call the dealer who installed the garage door opener (their contact details are usually on a sticker on the back of your garage door).

SCAN: for Installation Instructions
For product assistance, general enquiry or more information, please visit: dominator.co.nz  or call 0800 366 462.
