Dominator Smart Pro Sectional Door Openers User Guide

DOMINATOR Smart Pro Sectional Door Openers

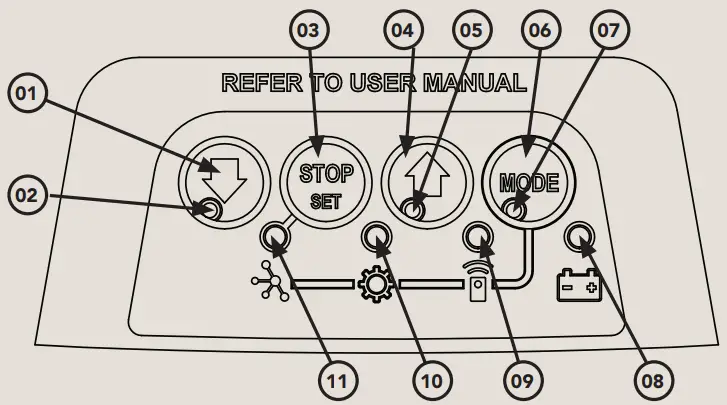

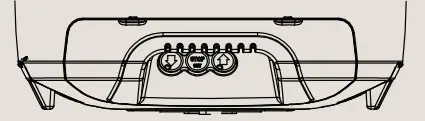

USER OPERATING CONTROLS

MANUAL DOOR OPERATION

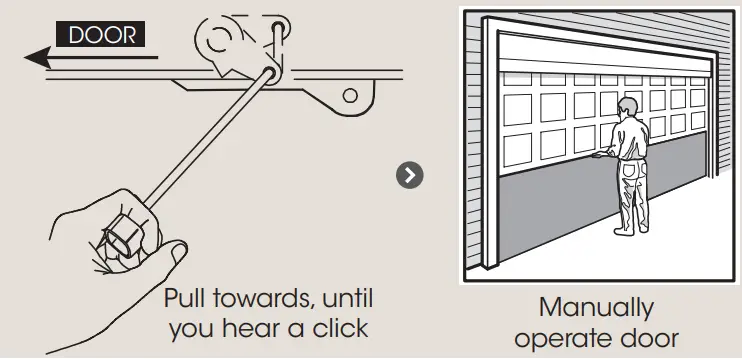

TO DISENGAGE THE OPENER

TIP: It is recommended to disengage the door with he door in the losed position.

CAUTION: When the opener is manually disengaged, the door is no longer locked. To lock the door manually, re-engage the opener after the door is closed.

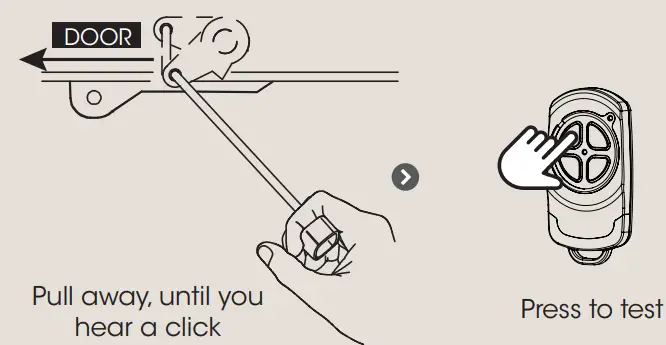

TO ENGAGE THE OPENER

CAUTION: Do not use the string handle as a mechanism to open the door. Failure to comply may cause serious injury.

CODING A REMOTE CONTROL

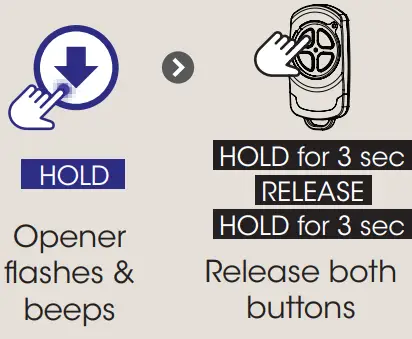

CODING REMOTE FROM THE OPENER

TIP: The opener can only be operated from remote controllers that have been programmed into its memory. Up to 64 remotes can be programmed.

STEP ONE

• Switch power on and remove controls cover

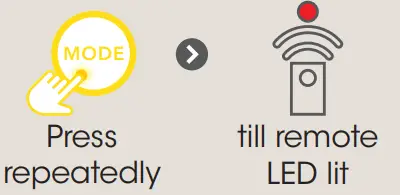

STEP TWO

STEP THREE

STEP FOUR

• Then refit controls cover

STEP FIVE

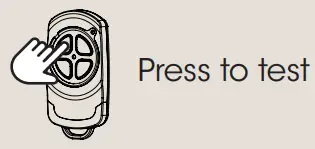

• Press to test

REMOTELY CODING A REMOTE CONTROL

Tip: Remotely coding works when you have a pre-coded remote control and are in range of the opener.

STEP ONE

• Take a pre-coded remote and press the button to duplicate.

STEP TWO

• Use a pen, HOLD for 2 sec the middle button through the coding hole.

STEP THREE

• The opener flashes & beeps
• HOLD for 3 sec RELEASE

STEP FOUR

• Opener stops flashing & beeping

CHANGING A BATTERY

Battery Type: 1 x CR2032.

STEP ONE

• Check Light Status Table

STEP TWO

• Use screwdriver fo remove Screws and open.

STEP THREE

• Use a non-metallic object to push out.

WARNING: The battery is hazardous and must be kept out of reach of children. The battery can cause severe or fatal injuries within 2 hours or less if swallowed or placed inside any part of the body. If you suspect the battery has been swallowed or placed inside any part of the body, SEEK IMMEDIATE medical attention.

SMARTPHONE CONTROL

(Smart Pro & Smart Only)

The Smart Phone Control works via your home’s WiFi network. Initial set up involves linking your phone app and smart opener to your home network.

WARNING: This device allows for the operation of the door when not in line-of-sight of the door and opener. The door may operate unexpectedly, therefore do not allow anything to stay in or near the path of the door.

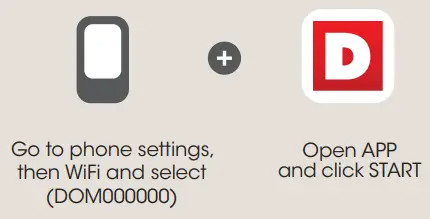

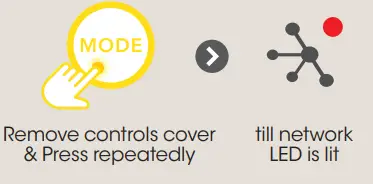

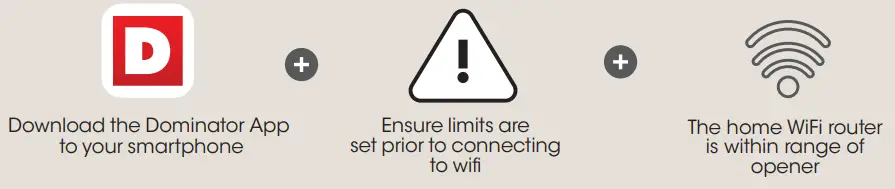

BEFORE YOU START

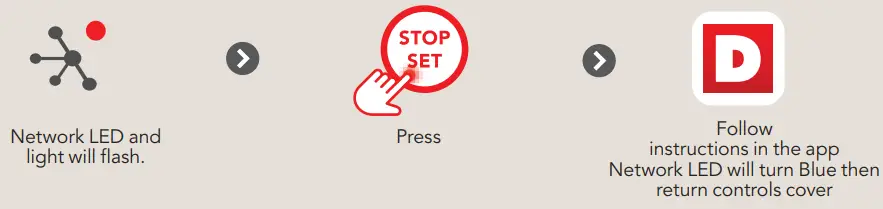

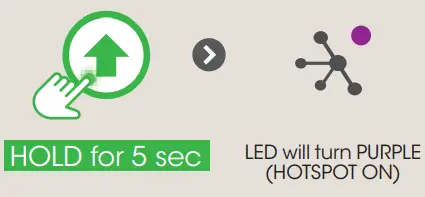

STEP ONE

STEP TWO

STEP THREE

STEP FOUR

STEP FIVE

TROUBLESHoOTING

• Main Light = Service/ Warning Indicator

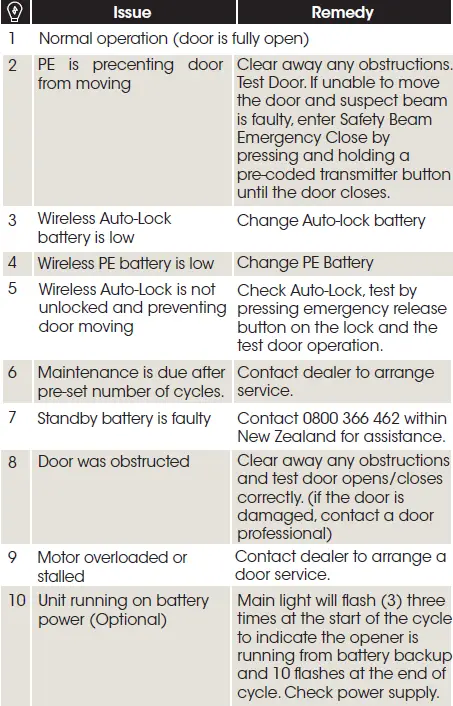

Requirements for a service and user warnings are indicated after operation by the main light repeatable flashing OFF a number of times followed by a pause. The below table identifies the issues and remedies.

CARING FOR YOUR OPENER

Preventative servicing of your garage door and opener, is important. Your garage door is made up of numerous moving parts designed to lift and lower your door safely and efficiently.

Ongoing preventative servicing ensures that your door continues to function within factory specifications, greatly reduces the risk of failure and repair bills down the track and ensure you maintain your Warranty. Refer to your Owners Opener Handbook for your service schedule available HERE.

Tip: Refer to the installation manual for monthly testing procedures in Section 13 to ensure garage door is fit for use available HERE.
Online warranty details are available HERE.

NEED A SERVICE CALL

If the opener needs a service please call the dealer who installed the garage door opener (their contact details are usually on a sticker on the back of your garage door).

For product assistance, general enquiry or more information, please visit: dominator.co.nz or call 0800 366 462.
