KOA K3899R HDMI Over IP Extender with Loop Out 150m
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.
Introduction
HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard network switcher, and extends distance up to 492ft / 150m between encoder and decoder via a CAT5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920×1200@60Hz. It also supports HDMI loop output on transmitter.

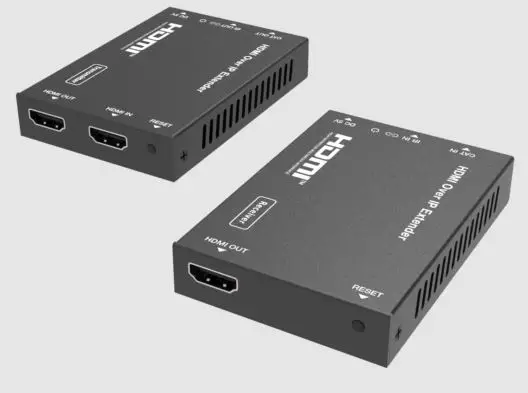

HDMI over IP Extender includes two units: Encoder and Decoder. Encoder is responsible for obtaining HDMI signals for encoding, transmitting via CAT5e/6 cables. It supports HDMI loop output; Decoder is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single CAT5e/6 cable and is the perfect solution for any application.
Features
- HDMI 1.3 and HDCP 1.4 compliant
- Support 6.75Gbps video bandwidth
- Video resolution is up to 1920×1200@60Hz
- Extend distance up to 492ft / 150m between encoder and decoder via a single CAT5e/6 cable
- Adopt standard H.265 encoding / decoding
- Support standard IP swticher / router/hub
- Support one-way IR control signal transmission
- Compact design for easy and flexible installation
Package Contents
- 1× HDMI over IP Extender (Encoder)
- 1× HDMI over IP Extender (Decoder)
- 1× IR Blaster cable (1.5 meters)
- 1× 20~60KHz IR Receiver cable (1.5 meters)
- 2× 5V/1A Power Adapters
- 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 6.75Gbps |
| Video Resolution | 640×480@60Hz~1920×1200@60Hz |
| HDMI Audio Formats | LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz |
| IR Frequency | 20Hz ~ 60KHz |
| Compression Technology | H.265 |
| Request for Switcher /Router | Support IGMP, Support DHCP |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 8-bit |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Encoder | Input: 1×HDMI IN [Type A 19-pin female] Output: 1×HDMI OUT [Type A 19-pin female] 1×CAT OUT [RJ45 connector] Control:1×IR OUT [3.5mm Stereo Mini-jack] |
| Decoder | Input: 1×CAT IN [RJ45 connector] Output: 1×HDMI OUT [Type A 19-pin female] Control:1×IR IN [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 88mm (W) × 61.2mm (D) × 16.5mm (H) |
| Weight | Encoder: 158g, Decoder: 155g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Encoder: 2.55W, Decoder: 3.7W |
| Operation Temperature | -10°C ~ 50°C / 14°F ~ 122°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Resolution / Distance | 1920×1200@60Hz – Feet / Meter |
| CAT 5e/6 cable | 492ft / 150 meters |
| Resolution / Cable length | 1920×1200@60Hz – Feet / Meter |
| HDMI IN / OUT | 50ft / 15 meters |
Operation Controls and Functions

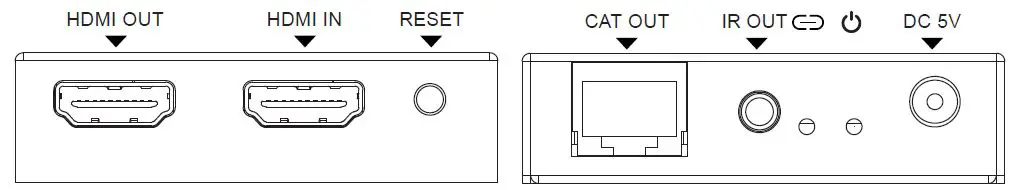

Encoder Panel
| Name | Function Description |
| HDMI OUT | HDMI Loopout port for connecting the HDMI display device. |
| HDMI IN | HDMI source input port for connecting the HDMI source device. |
| RESET button | Press and hold the button for 3 seconds to reset the product. The EDID will restore default status: 1920*1080@60Hz. |
| CAT OUT | The CAT OUT port is connected to the CAT IN port on Decoder or connected to switcher / router / hub with CAT cable for sending signal to receiver. |
| IR OUT | Connect to the IR blaster cable. The IR blaster signal is from IR IN on the Decoder. |
| LINK LED | The LED will flash blue when encoder is connected to decoder or connected to switcher / router / hub. |
| POWER LED | The LED will illuminate blue when the encoder is powered on. |
| DC 5V | Plug the DC 5V/1A power supply into the unit and connect the adapter to an AC outlet. |

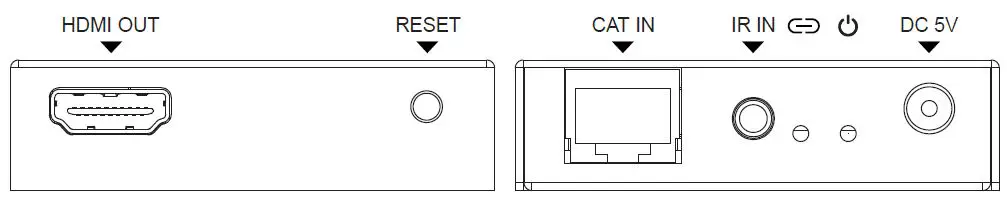

Decoder Panel
| Name | Function Description |
| HDMI OUT | HDMI output port for connecting the HDMI display device. |
| RESET button | ■ Press and hold the button for 3 seconds to reset the product to the factory default status. ■ Short press the button to copy EDID from decoder display device to encoder’s HDMI source device. |
| CAT IN | The CAT IN port is connected to the CAT OUT port on Encoder or connected switcher / router / hub with CAT cable for receiving encoder signal. |
| IR IN | Connect to wideband IR receiver cable. The IR signal is sent to IR OUT port on the Encoder. |
| LINK LED | The LED will flash blue when decoder is connected encoder or connected switcher / router / hub. |
| POWER LED | The LED will illuminate blue when the Decoder is powered on. |
| DC 5V | Plug the DC 5V/1A power supply into the unit and connect the adapter to an AC outlet. |

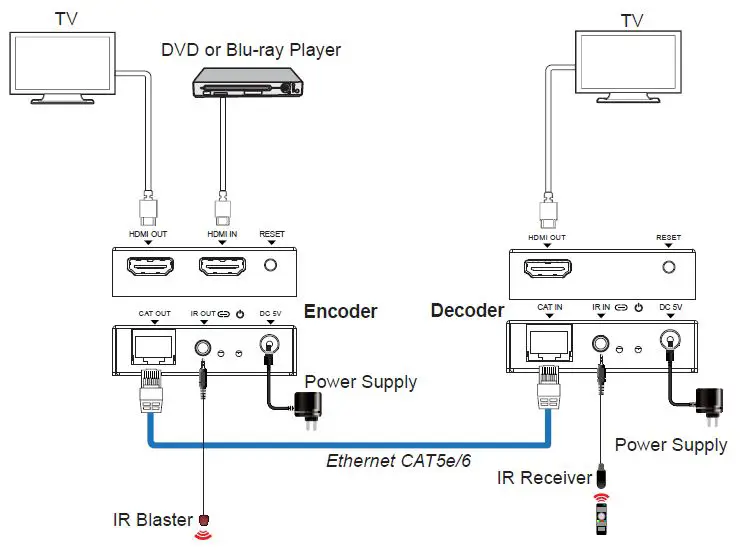

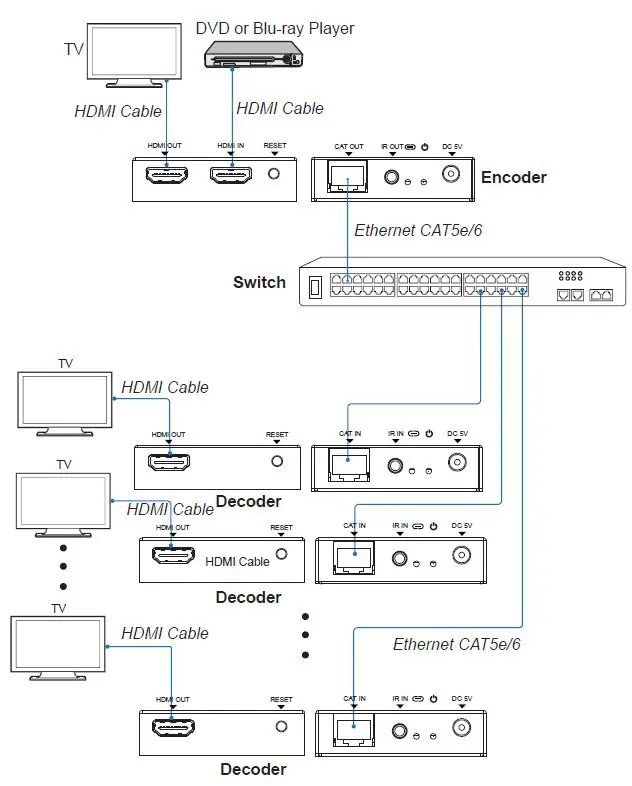

Application Example
