Fanvil i30 IP Door Phone Installation Guide

Package Contents

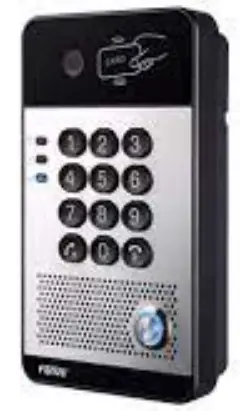

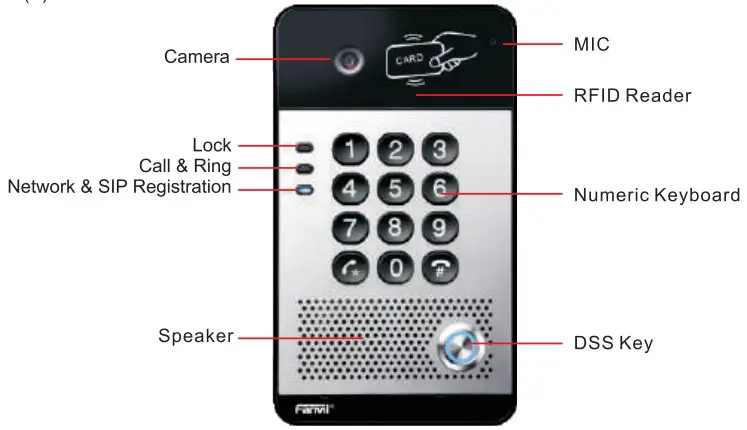

Front Panel

Button Definition

LED Definition

LED	Status	Description
Lock	Steady Blue	Door unlocking
	off	Door locking
Call & Ring	Blinks per second	Call Hold or Ringing
	off	On Hook
	Blinks every 3 seconds	Device in the issuing state
	Steady Blue	Online talking
Network & SIPI Registration	Blinks per second	Network error
	off	Network is normal, SIP is not registered
	Blinks every 3 seconds	SIP Registration failed
	Steady Blue	SIP Registration succeeded

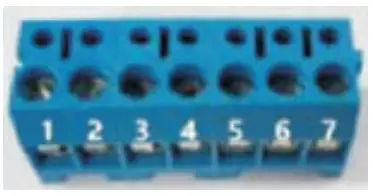

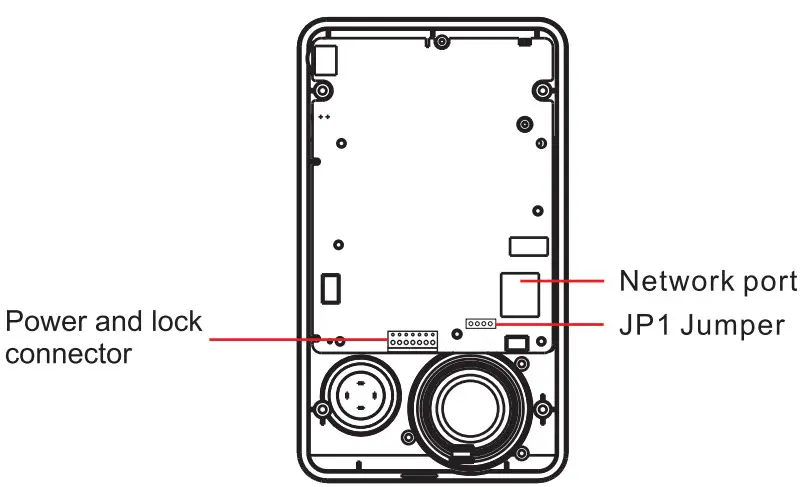

Port Definition

After removing the Back Panel of i30, there are one terminal block connectors for power and lock control connection as shown in the picture below.

Network Connector

Power and Electric-lock Connector

Jp1 Jumper

There are two modes for power supply of electric-lock as shown in the picture below.
(The default is “Passive Mode”).
Passive Mode: When the electric-lock starting current is more than 12V/500mA, need to use the external drive mode, the electric lock interface for short circuit output control.
Active Mode : When the electric-lock starting current is less than 12V/500mA, can use the internal drive mode, the electric lock interface is 12V DC output..

Jumper inpassive mode

Jumper inactive mode

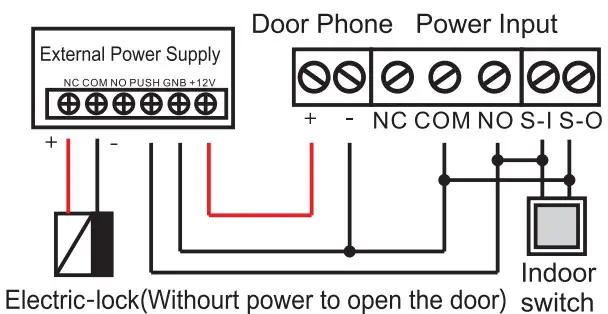

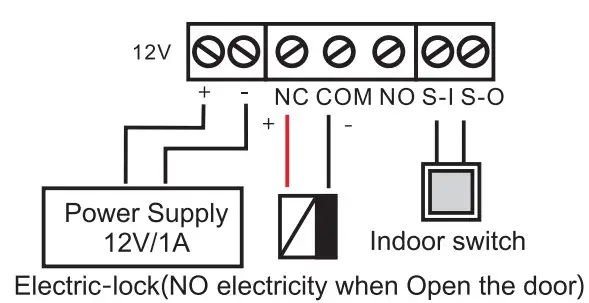

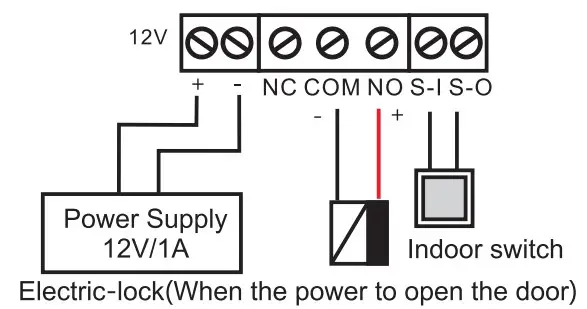

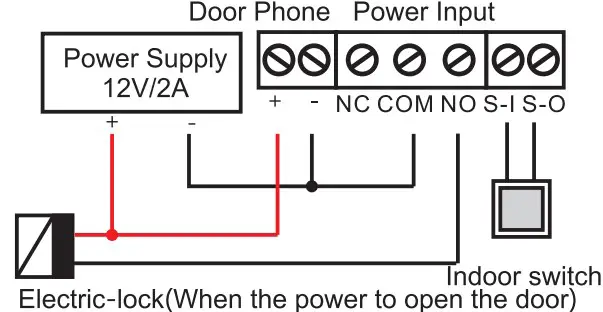

Wiring instructions
NO: Normally Open Contact
COM: Common Contact
NC: Normally Close Contact

Driving Mode		Electric-lock Mode		Jp1 Jumper	Connections
Active	Passive	No electricity when open	Electrify when open

Installation

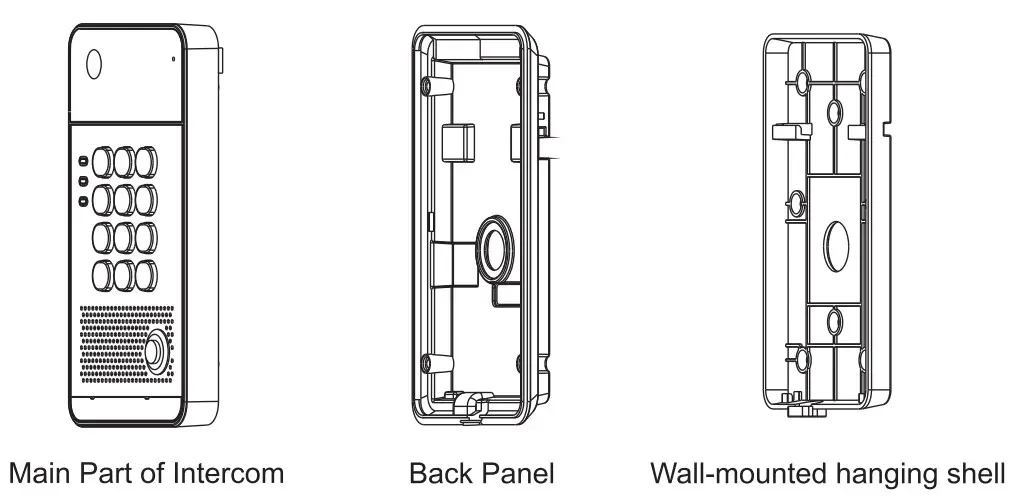

Figure 1 Three Major Parts of i30

Step 1: Installation preparation

A. Check the following contents:

• Hex wrench x 1
• RJ45 plugs x 2 (1 spare)
• KA4 x 25mm screws x 4
• 25mm screw anchors x4

B. Tools that may be required:

• Hex wrench
• Phillips screwdriver (Ph2 or Ph3), hammer, RJ45 crimper
• Electric impact drill with an 6mm drill bit

Step 2: Drilling

A. Place the mounting template with dimensions on the surface of a wall in a desired flat position.
B. Use an electric drill to drill the 4 holes marked on the mounting template. It is recommended to drill about 30mm deep. Remove the template when finishing drilling.
C. Push or hammer screw anchors into the drilled holes.

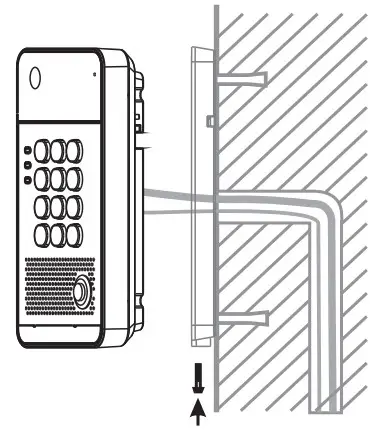

Figure 2 Wall Mounting

Step 3: Removing hanging shell

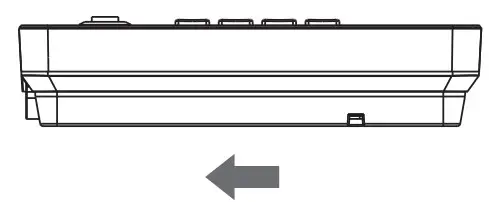

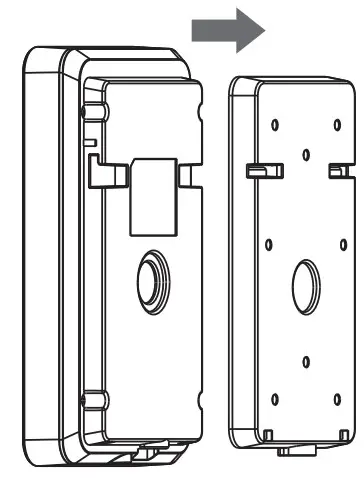

A. Remove the hanging shell in Figure 3 and Figure 4.

Figure 3

Figure 4

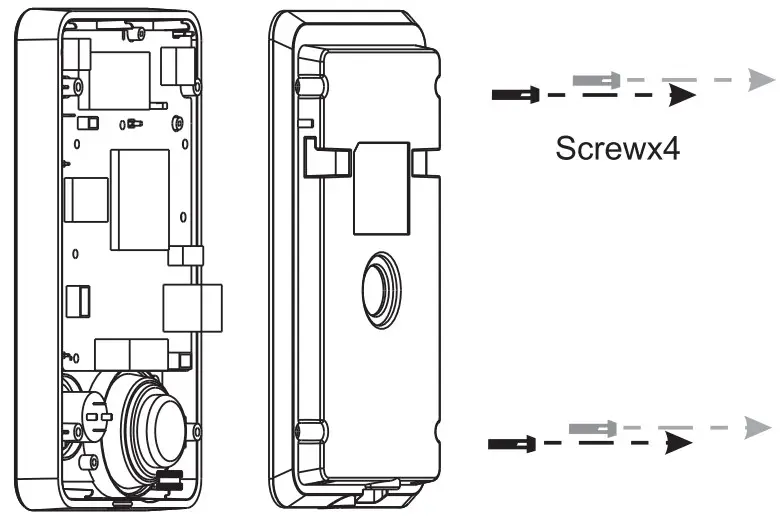

B. With Phillips screwdriver, unpacks the Back Panel and the main part of intercom as shown in Figure 5.

Figure 5

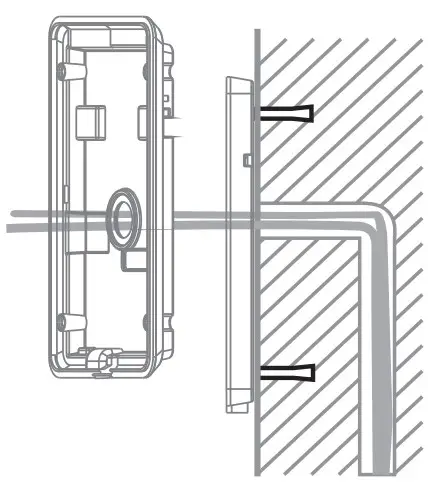

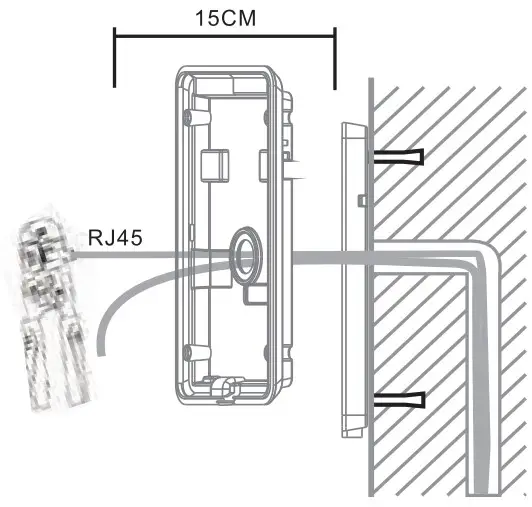

Step 4: Hanging shell Fixing and Cabling

Figure 6

A. Select the hole for cable supply; cable length of 15cm to 20cm is recommended.

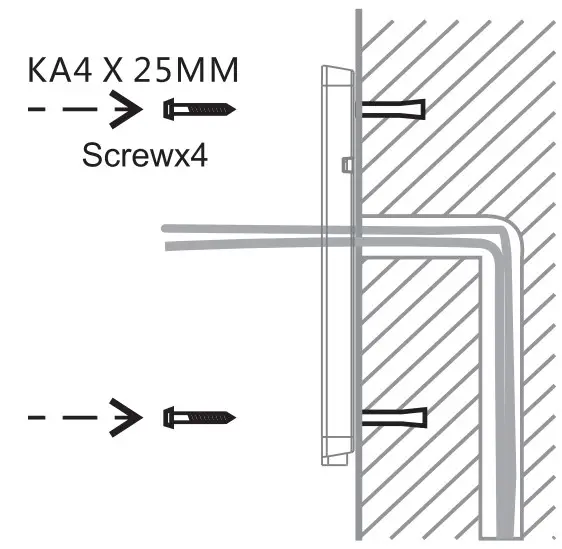

B. With 4 KA5 x 25mm screws, tighten the Wall-mounted hanging shell as shown in Figure 6.

Step 5: Connection line

Figure 7

Figure 8

A. Select the hole for cable supply.
B. Connect the cables of RJ45, power, and electric-lock to the motherboard socket as mentioned in connectors description (refer to Section 2).
C. Test whether there is electricity by doing the following:

Press the # button for 3 seconds to get the IP address of intercom by voice.
Input access password or press the indoor switch to check electric-lock installation.
Note: Do not proceed mounting until you have finished the electric checking.

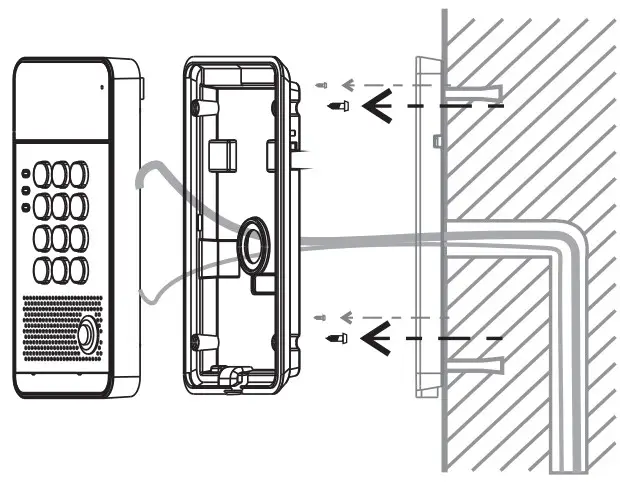

Step 6: Mounting

Figure 9

Figure 10

A. Use the 4 screws to tighten the main part of intercom on the back panel as shown in Figure 9.
B. Push the device into the Wall-mounted hanging shell and tighten it with 1 screw as shown in Figure 10.
C. Make sure the screws have been tightened properly for better waterproof effect.

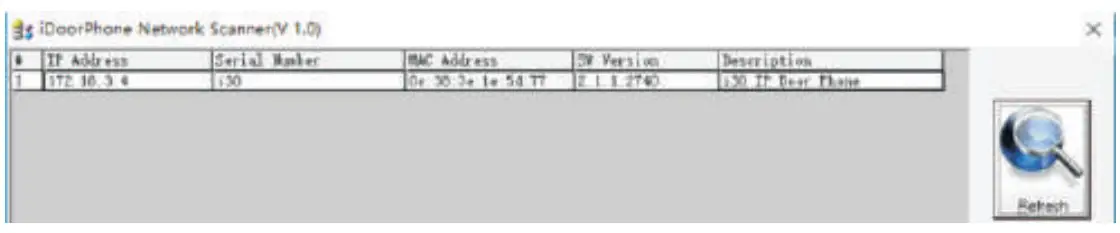

Searching Door Phone

There are two methods as shown below to search the i30. Method 1:

Open the iDoorPhone Network Scanner. Press the Refresh button to search the i30 and find the IP address.
(Download address http://downloadanvil.com/tool/iDoorPhoneNetworkScanner.exe )

Method 2:

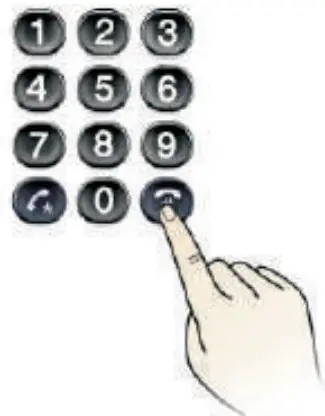

Press and hold the “#” key for 3 seconds and the door phone will report the IP address by voice.

SIP Door Phone Setting

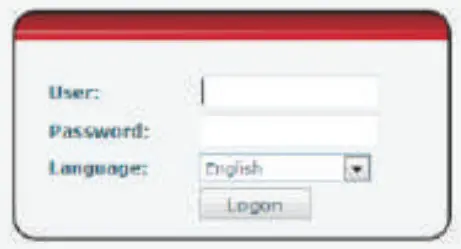

Step 1: Login the homepage of the i30.

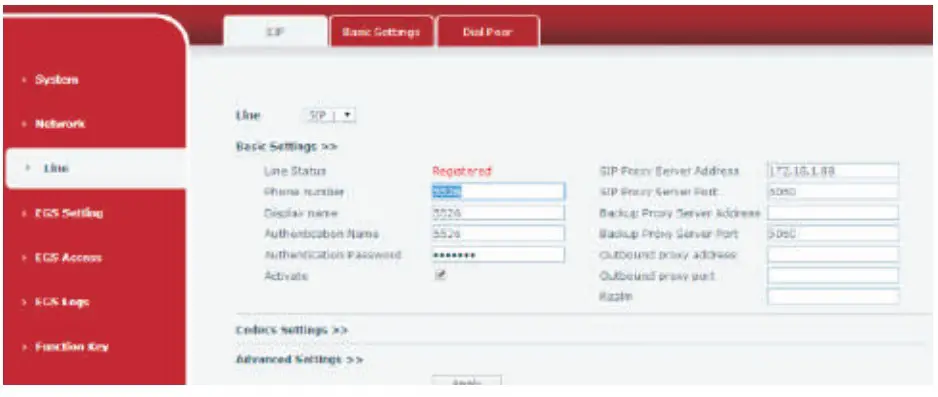

Step 2: Add the SIP account.
Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters.
Select “Activate”, and then click Apply to save this setting.

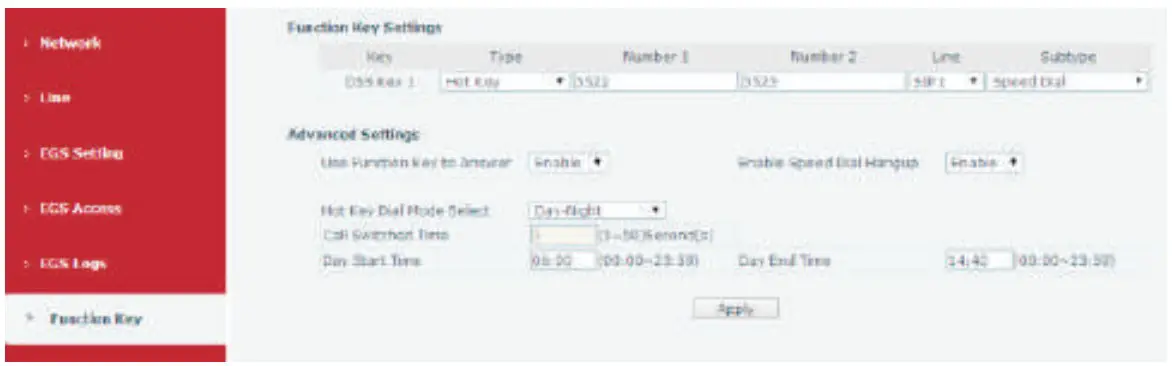

Step 3: Setting DSS key
Set the DSS key as shown below for a quick start. Click “Apply” to save this setting.

Type: Hot Key
Number 1: The DSS Key will dial to this Number 1.
Number 2: If Number 1 is unavailable, it will be forwarded to Number 2.
Line: Working line
Subtype: Speed dial

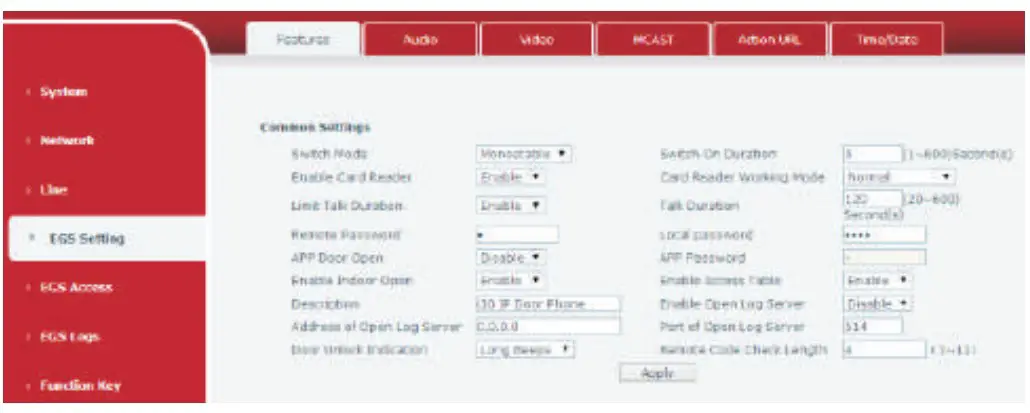

Step 4: Door Phone Setting

Door Unlocking Setting
Local
Local Password
Step 1: Go to EGS Setting — Features — Set Local Password (The default is “6789”).
Step 2: Use the device’s Numeric Keyboard to input password and “#” key, and then the door will be unlocked.

Private Access Code
Step 1: Go to EGS Access — Access Rule — set Access Code.
Step 2: Use the device’s Numeric Keyboard to input password and “#” key, and then the door will be unlocked.

Remote

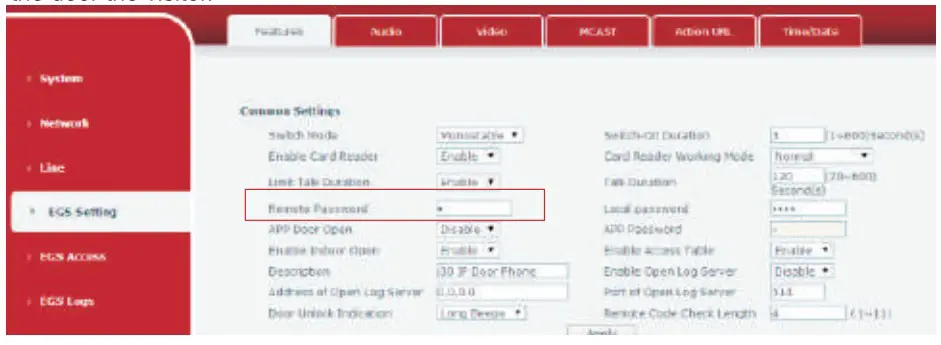

Remote Password
Step 1: Go to EGS Setting – Features – Set Remote Password (The default is “*”).
Step 2: To answer the call made by visitor via SIP phone, press the “*” key to unlock the door the visitor.

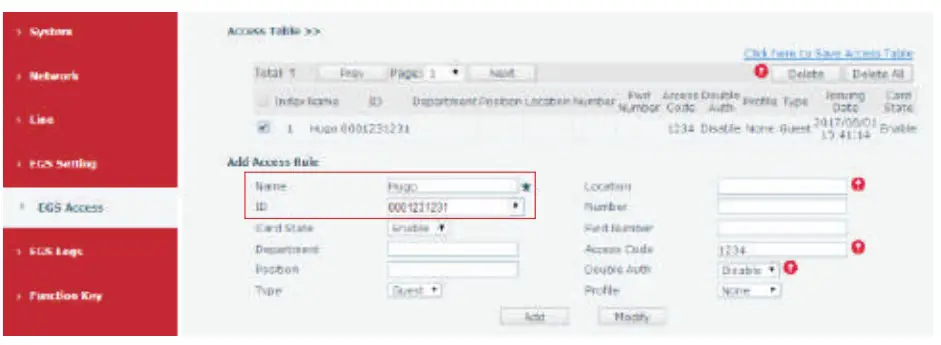

RFID Card
Step 1: Go to EGS Access — Enter the Name and ID Number (Only Front 10 yards) —
Press Add to Access Table.
Step 2: Use pre assigned RFID cards to unlock the door by touching RFID area of device.
